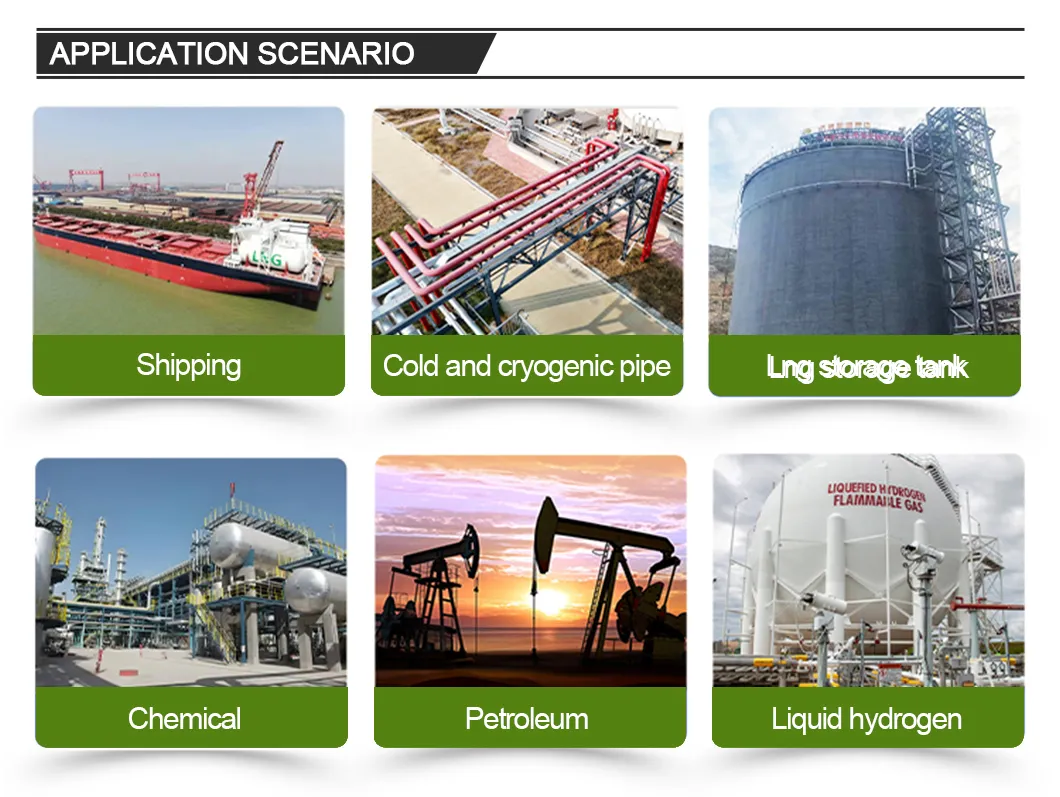

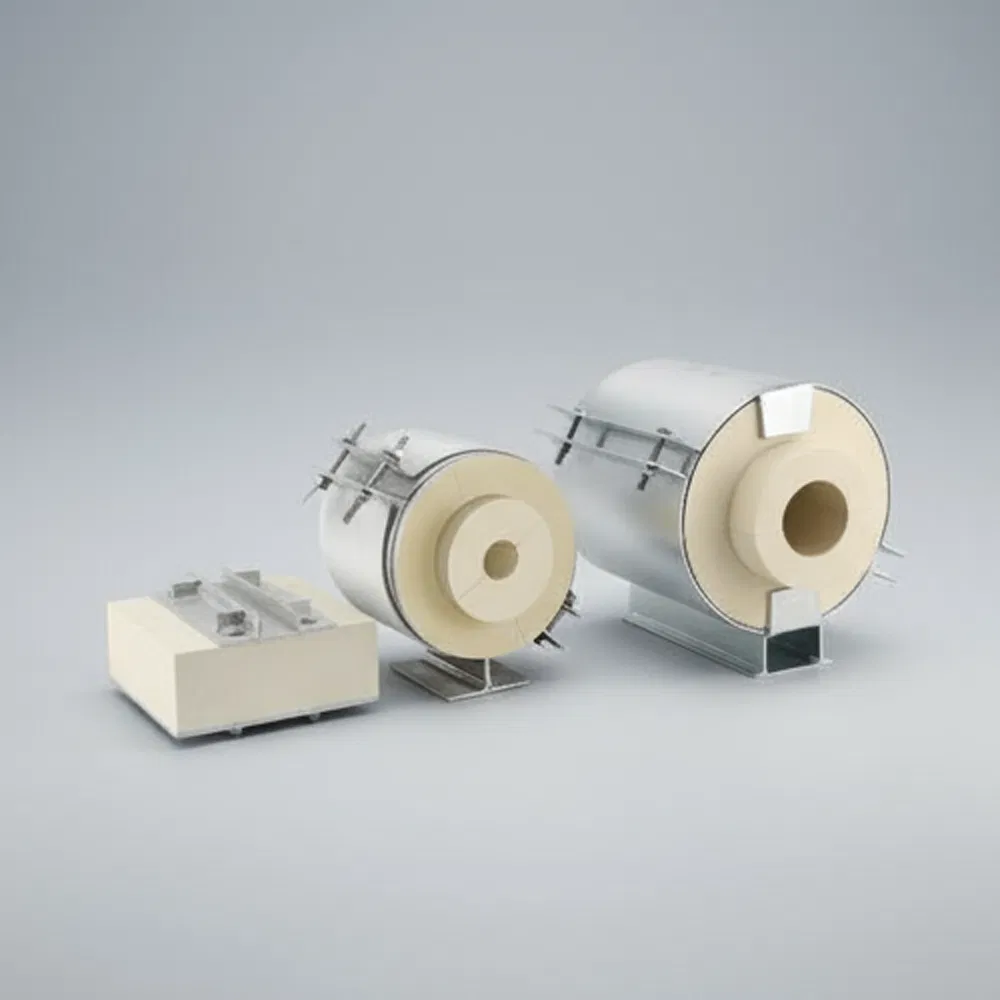

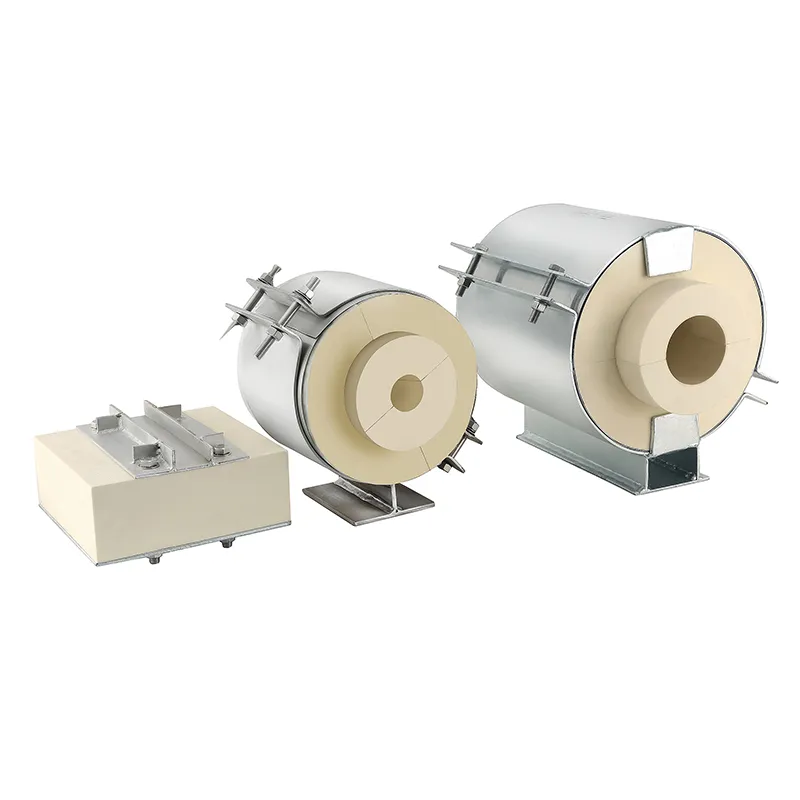

High-performance cold insulation is specifically designed to provide optimal thermal protection for various low-temperature applications, including cryogenic pipelines in the petrochemical industry, LNG, and LPG systems. We offer innovative concepts and solutions for high-performance cold insulation, suitable for a wide range of pipe support applications in temperatures ranging from -196°C to 120°C.
Our insulation system products feature a specially formulated layer that excels in key performance indicators, including high mechanical properties, flame retardancy, and thermal conductivity. These solutions range from single insulated pipe shells and pads to complete cold pipe support systems, ensuring safety and stability in demanding environments.
| Version | Unit | 9160 | 9220 | 9320 | 9340 |
|---|---|---|---|---|---|
| Density | Kg/m³ | 160 | 220 | 320 | 340 |
| Thermal Conductivity | W/(m.k) | ≤0.036 | ≤0.040 | ≤0.050 | ≤0.048 |
| Water Absorption | % | ≤2 | ≤2 | ≤1.8 | ≤1.6 |
| Closed Cell | % | ≥95 | ≥95 | ≥95 | ≥98 |
| Compressive Strength | Mpa | ≥1.6 | ≥4 | ≥6 | ≥9 |

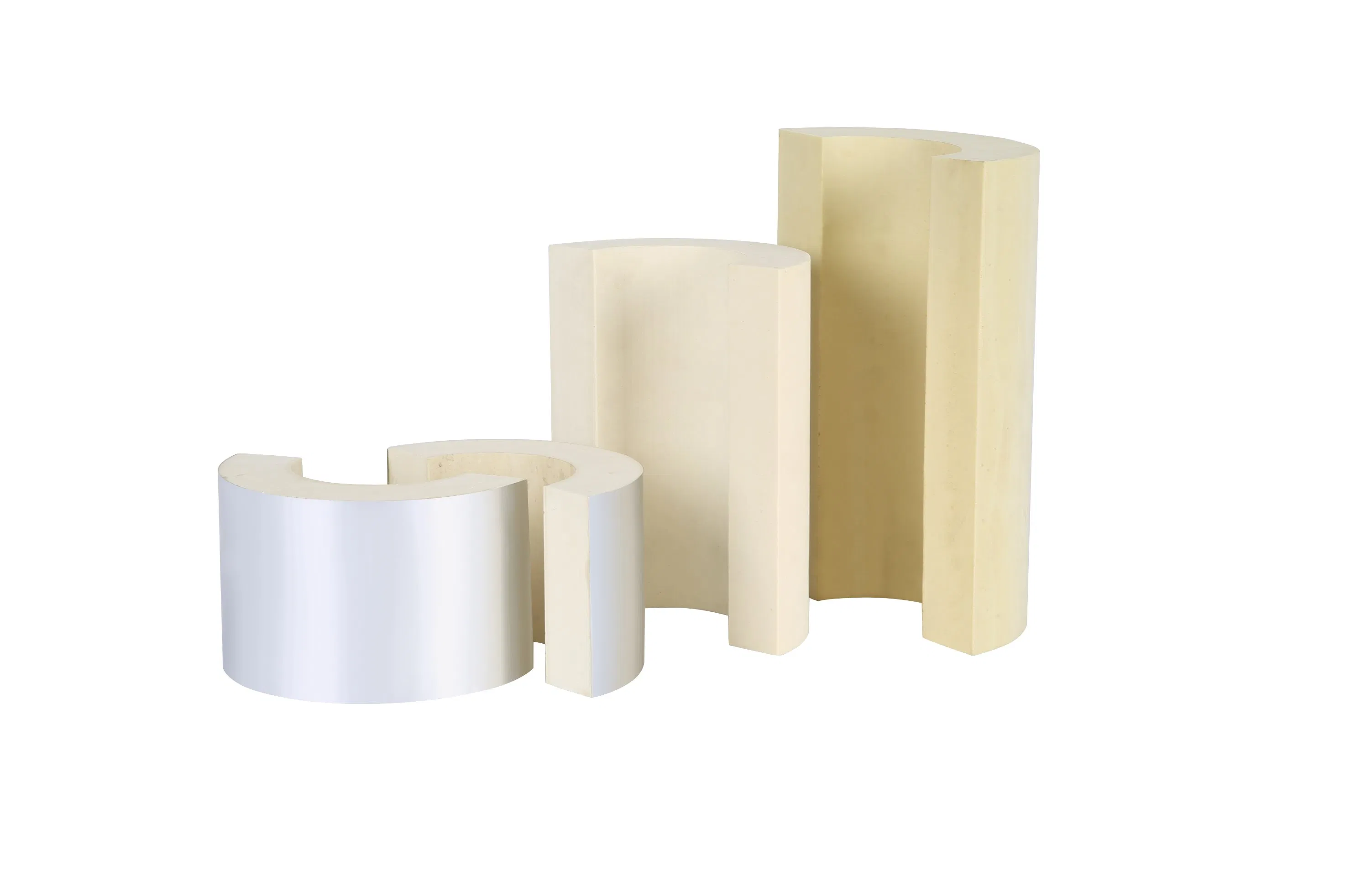

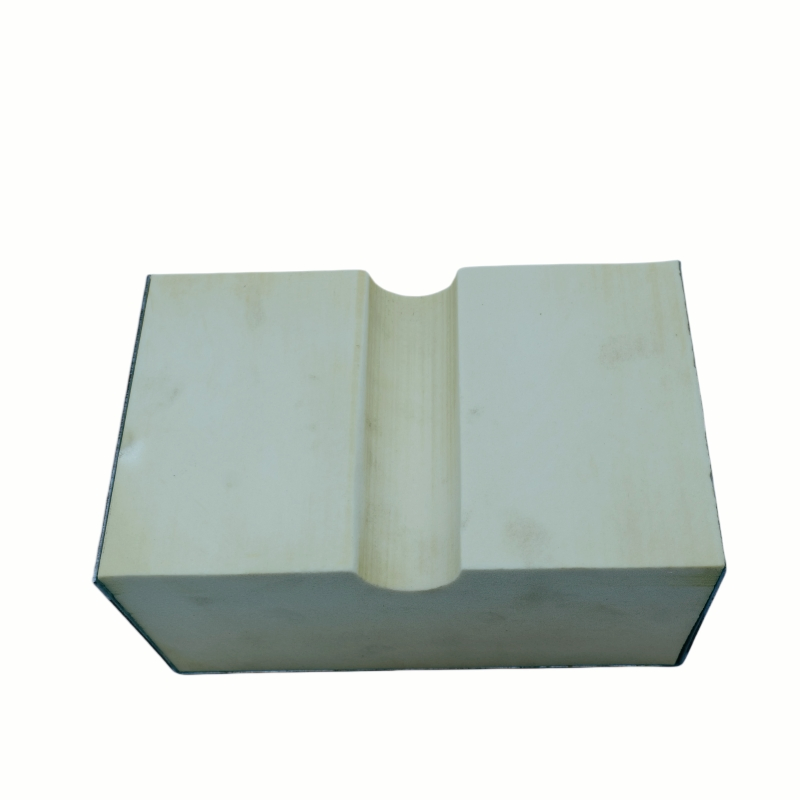

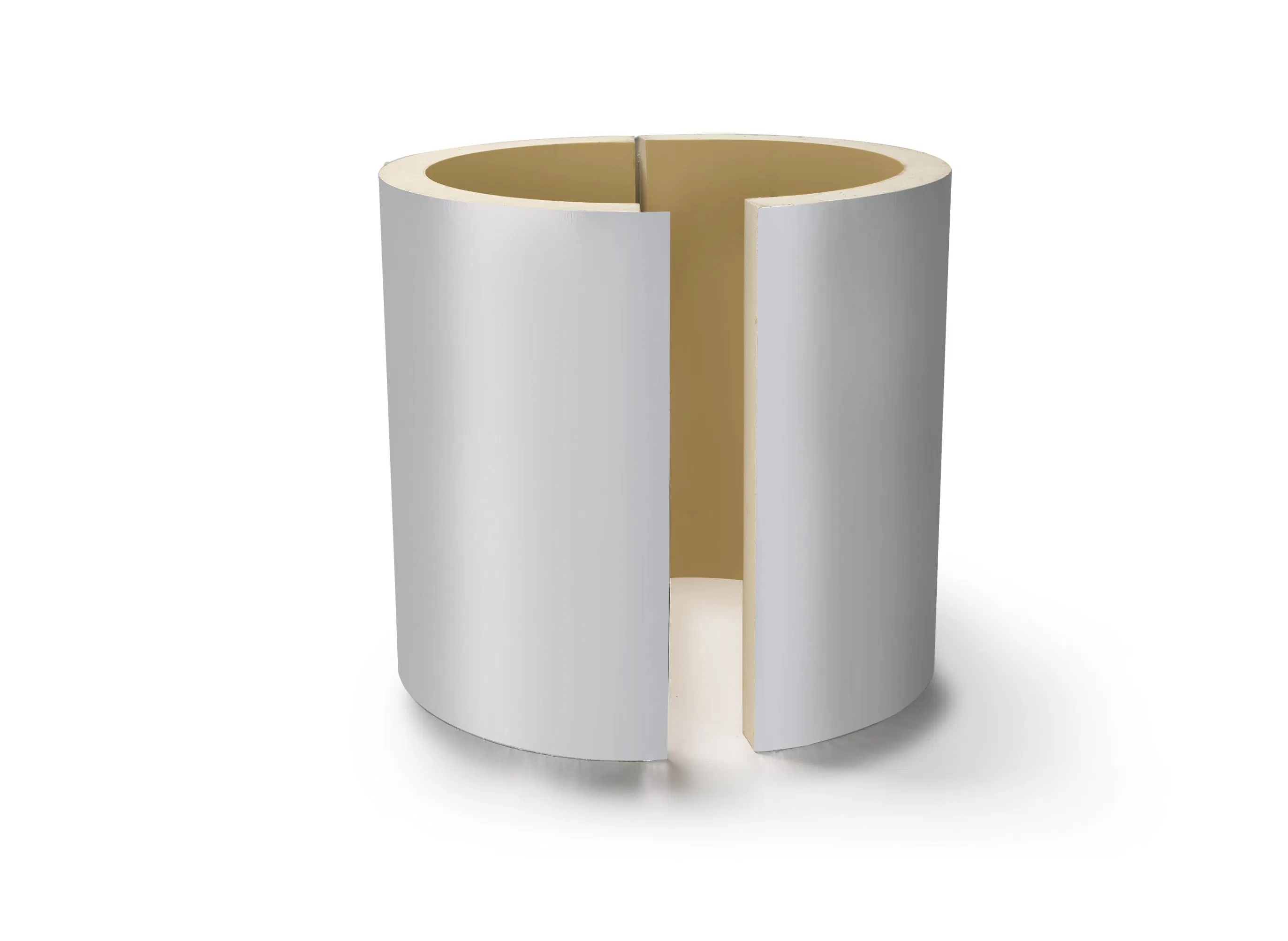

Insulation Core Material

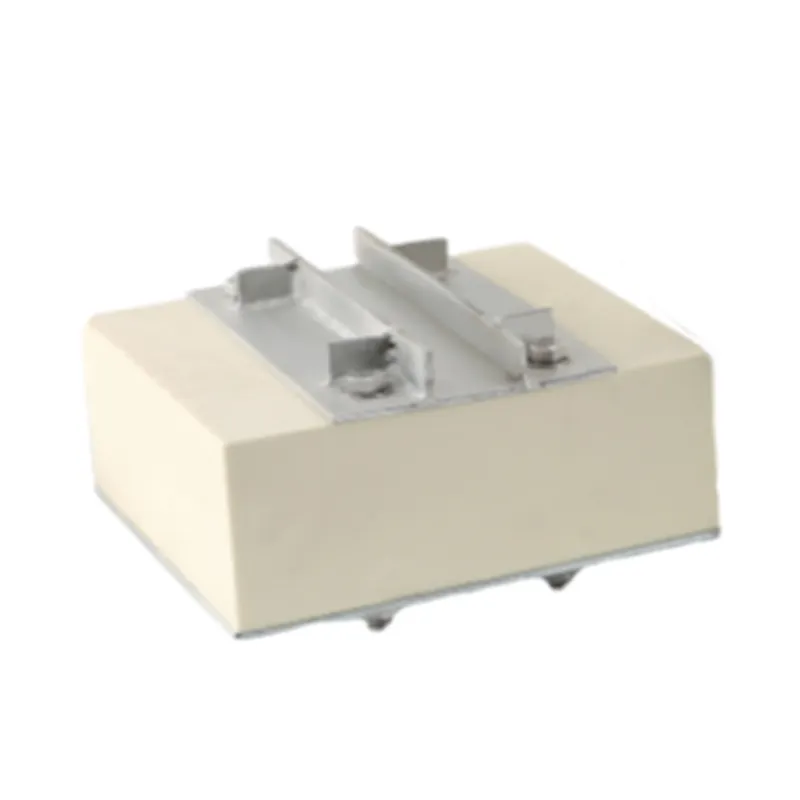

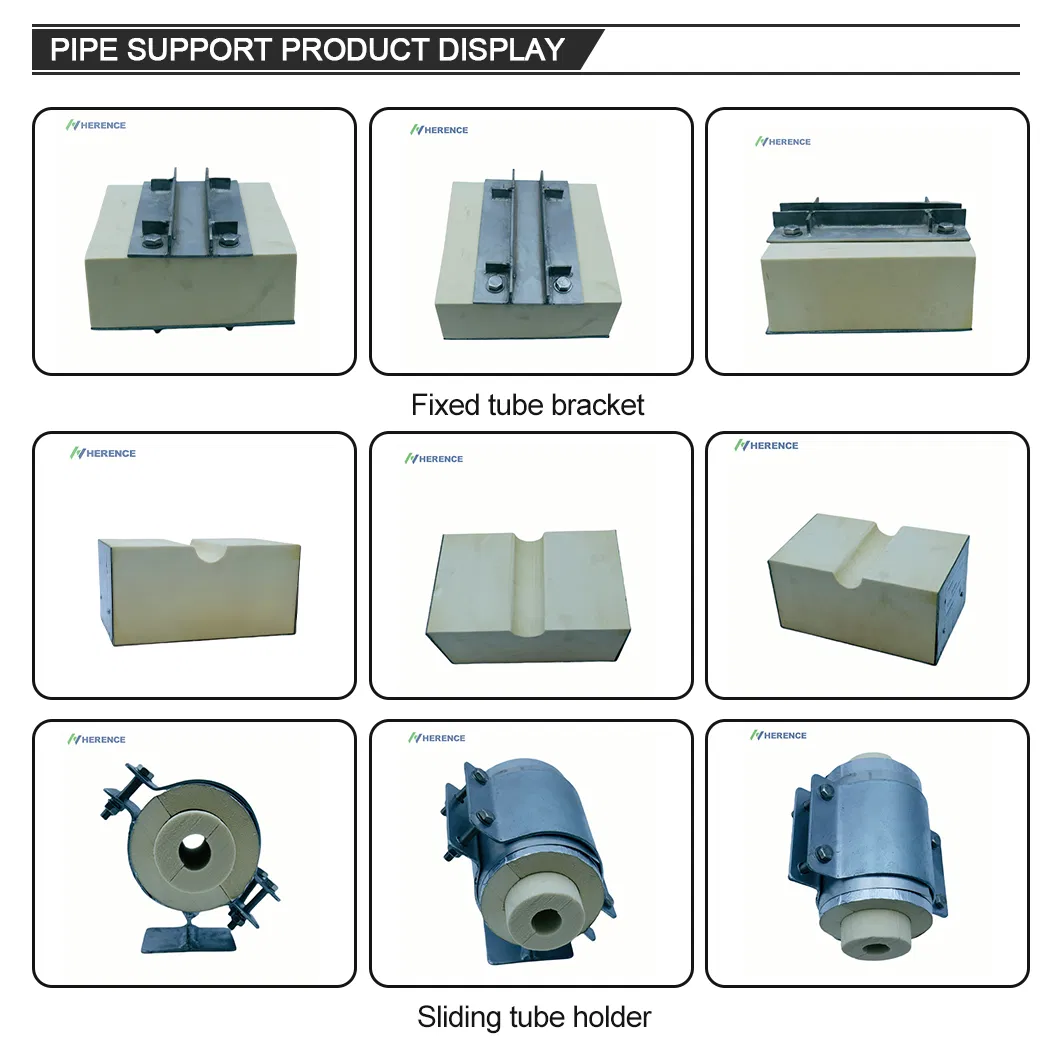

Fixed Tube Bracket

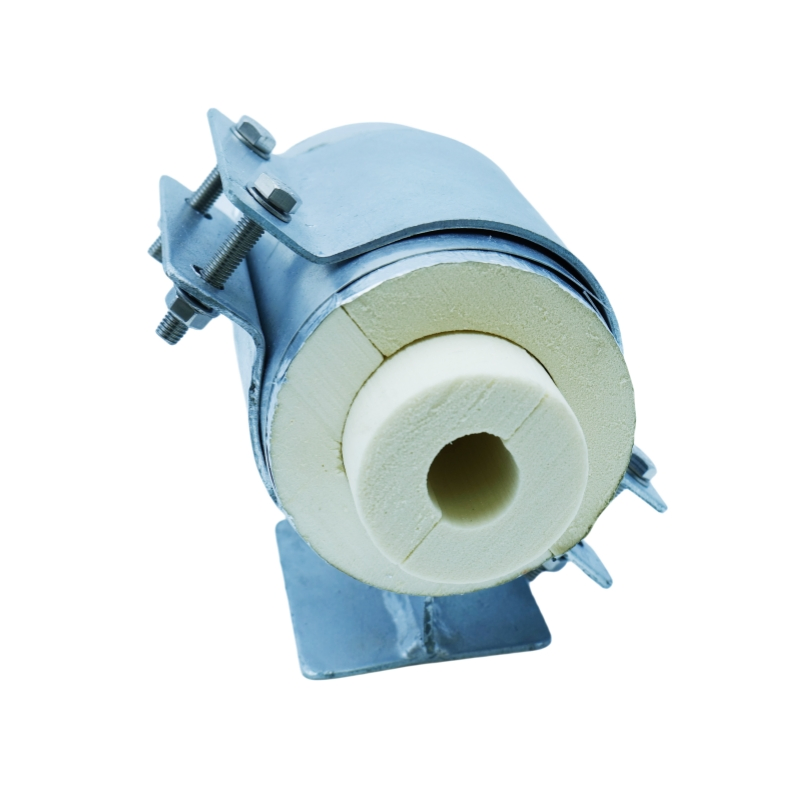

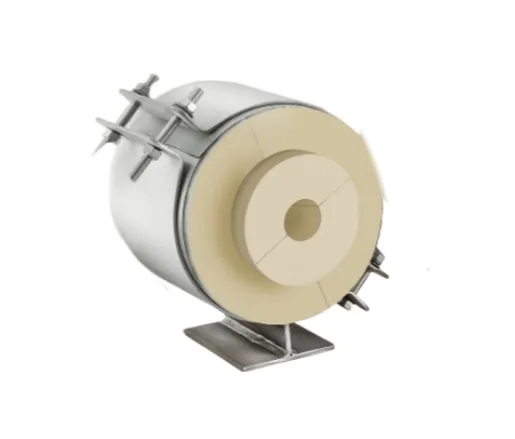

Sliding Tube Holder
