High-performance cold insulation is typically designed to provide optimal thermal insulation for various low-temperature applications, such as cryogenic pipelines in the petrochemical industry, LNG, and LPG pipelines. We offer innovative concepts and solutions for high-performance cold insulation, suitable for a wide range of pipe support applications in temperatures ranging from -196°C to 120°C.
Our Insulation System cold pipe support products feature a specially formulated insulation layer that outperforms other products in key performance indicators, including high mechanical properties, flame retardancy, and thermal conductivity. These products have been thoroughly and successfully tested in real-world environments.
Our solutions offer comprehensive high-performance insulation system services, from design and calculation to production and installation, detailed drawings, and after-sales service. These products range from single insulated pipe shells and insulation pads to complete cold pipe support systems. Our products and systems have always been recognized for their emphasis on quality stability, innovative drawing design, and their commitment to providing customers with safe and stable cold pipe support solutions.

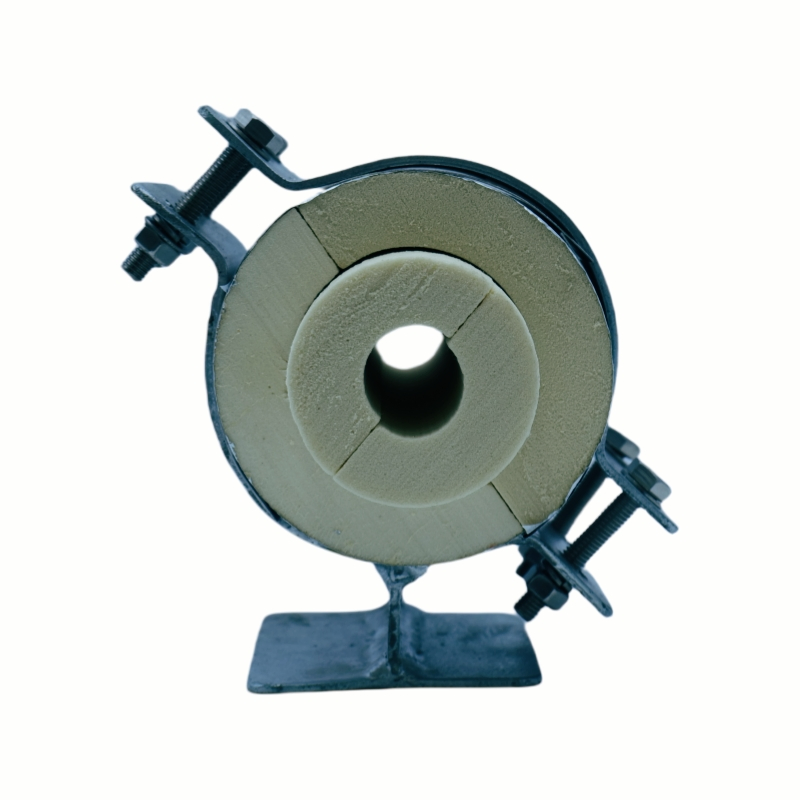

Fixed Tube Bracket

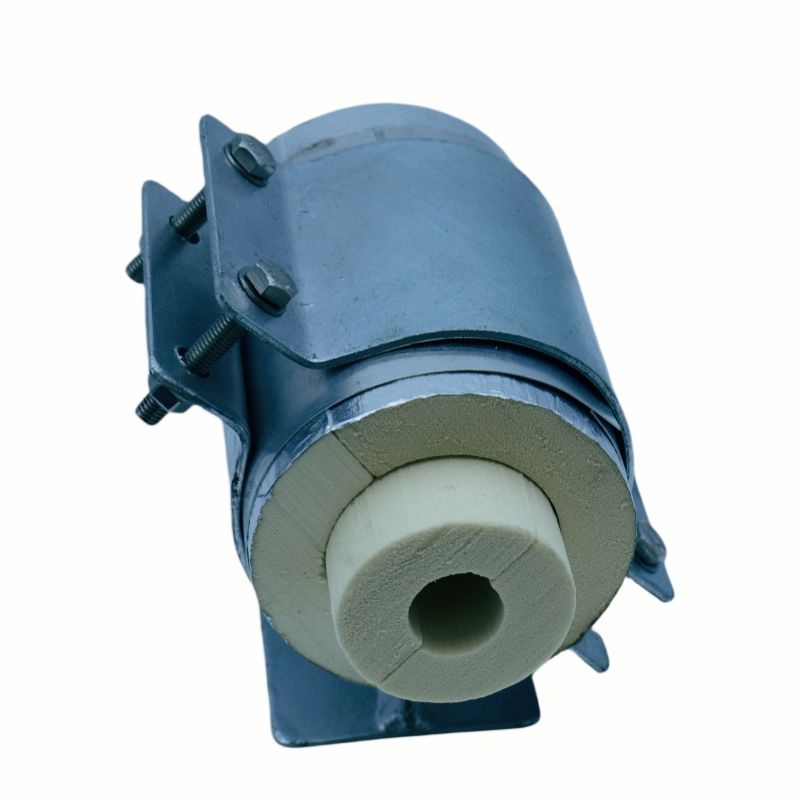

Sliding Tube Holder
| Version | Unit | 9160 | 9220 | 9320 | 9340 |
|---|---|---|---|---|---|
| Density | Kg/m³ | 160 | 220 | 320 | 340 |
| Thermal Conductivity | W/(m.k) | ≤0.036 | ≤0.040 | ≤0.050 | ≤0.048 |
| Water absorption | % | ≤2 | ≤2 | ≤1.8 | ≤1.6 |
| Closed cell | % | ≥95 | ≥95 | ≥95 | ≥98 |
| Compressive strength | Mpa | ≥1.6 | ≥4 | ≥6 | ≥9 |
Our company is an R&D-driven manufacturer dedicated to the development, manufacture, and global promotion of advanced foamed and composite molded components. Established in July 2017, we specialize in providing cryogenic and ultra-cryogenic insulation solutions as well as lightweight-application solutions for a wide range of industries.
We currently hold 2 invention patents and 23 utility-model patents. By continuously exploring and analyzing the specific needs of each sector, we design products that are highly targeted, exceptionally durable, and meticulously detailed. Our solutions serve city-gas operators, petrochemical EPC contractors, air-separation plants, nuclear-power facilities, LNG pipelines, LNG shipping, and many other industrial applications.
Core innovations include PIR rigid foam, HDPIR, epoxy and bismaleimide (BMI) resin-based composite molded parts, foam-glass components, application technologies, and integrated construction services. All products comply with ASTM C591 and CINI 2.7.01 standards.
