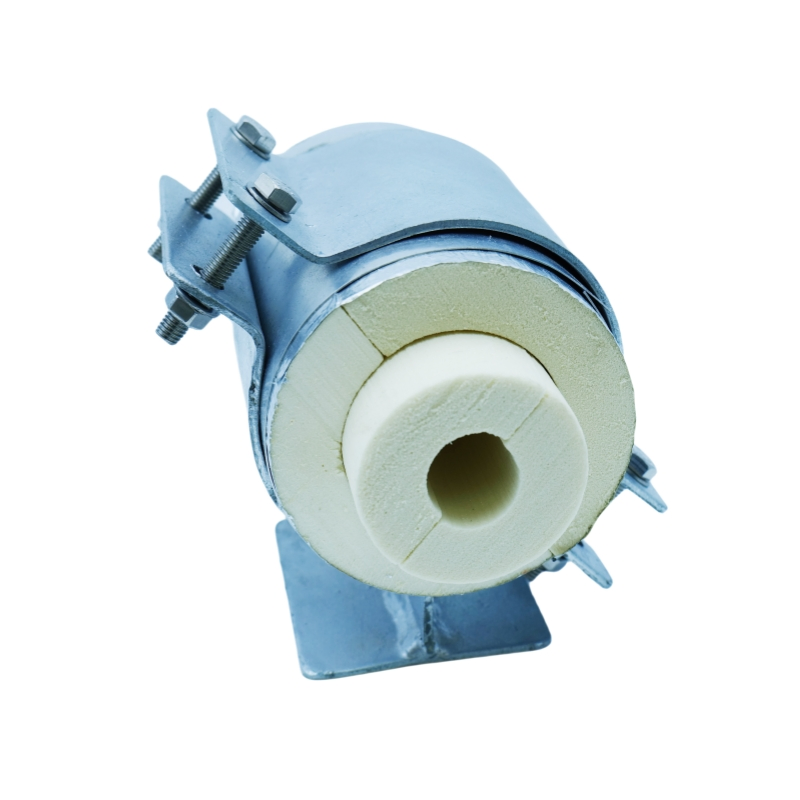

Premium LNG Facility Pipe Insulation and Support Solutions

Customization:	Available
After-sales Service:	Installation Guide
Highest Working Temperature:	-196℃-120℃

ℹ️ Basic Information

Model NO.

9220

Material

Polyurethane Foam Board

Applicable Temp.

-196°C to 120°C

Density

160-340 Kg/M³

Shape

Rectangle

Customized Services

Yes

📦 Packaging & Delivery

Package Size

76.00cm * 66.00cm * 102.00cm

Gross Weight

20.000kg

📝 Product Description

Version	9160	9220	9320	9340
Density (Kg/m³)	160	220	320	340
Thermal Conductivity	≤0.036	≤0.040	≤0.050	≤0.048
Water absorption (%)	≤2	≤2	≤1.8	≤1.6
Closed cell (%)	≥95	≥95	≥95	≥98
Compressive strength (Mpa)	≥1.6	≥4	≥6	≥9

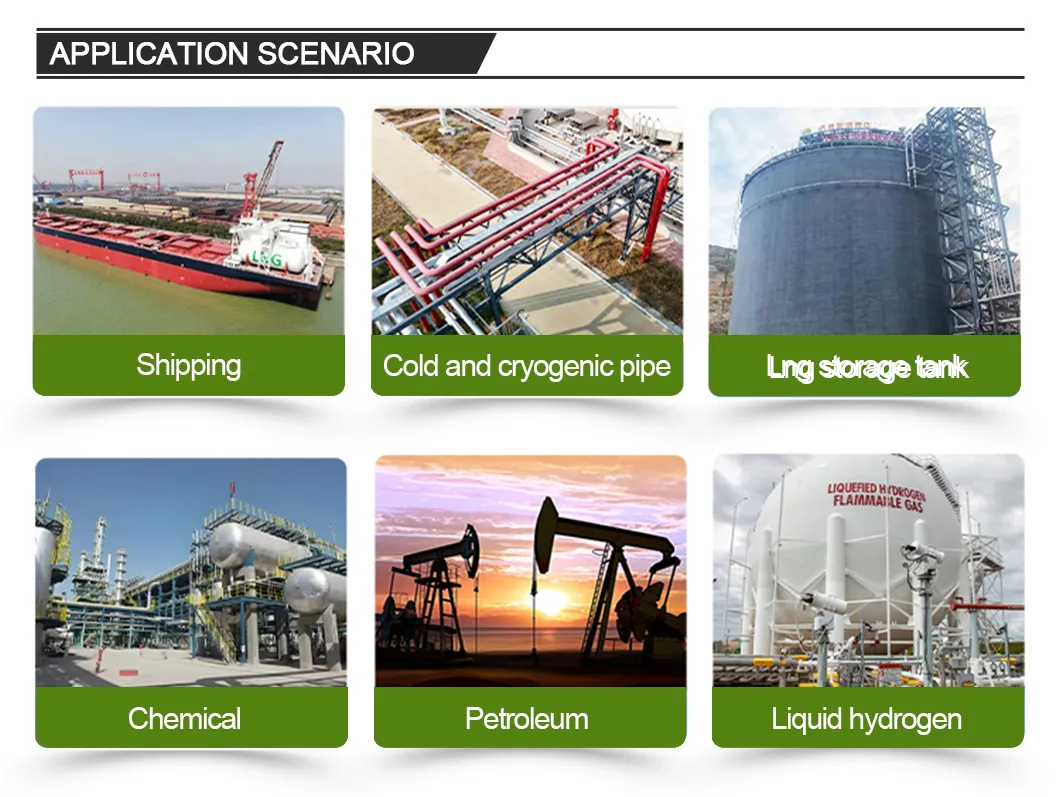

High-performance cold insulation is typically designed to provide optimal thermal insulation for various low-temperature applications, such as cryogenic pipelines in the petrochemical industry, LNG, and LPG pipelines. We offer innovative concepts and solutions for high-performance cold insulation, suitable for a wide range of pipe support applications in temperatures ranging from -196°C to 120°C.

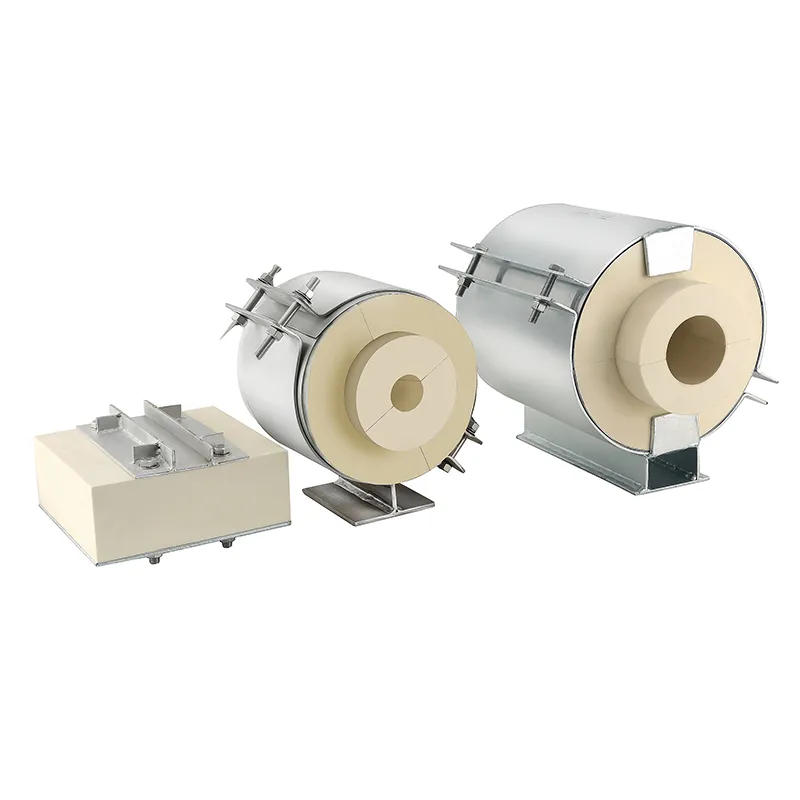

Our insulation system cold pipe support products feature a specially formulated insulation layer that outperforms other products in key performance indicators, including high mechanical properties, flame retardancy, and thermal conductivity. These products have been thoroughly and successfully tested in real-world environments.

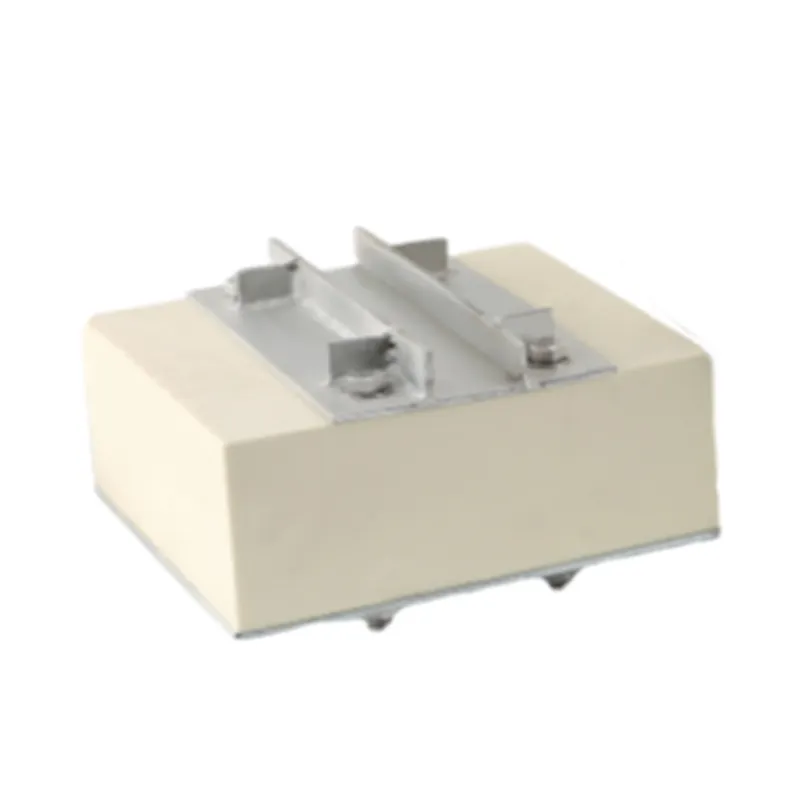

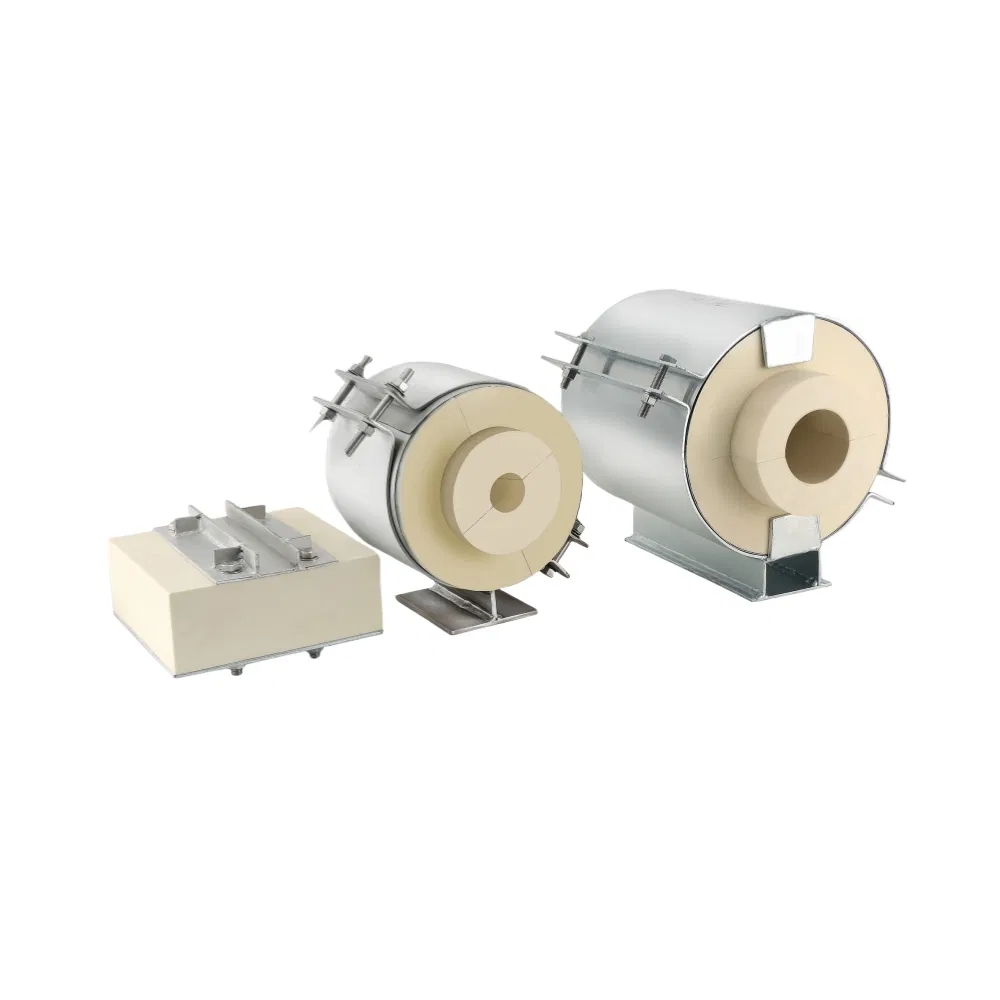

Fixed Tube Bracket

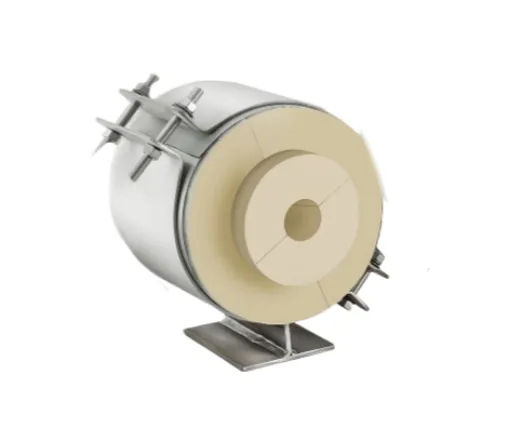

Sliding Tube Holder

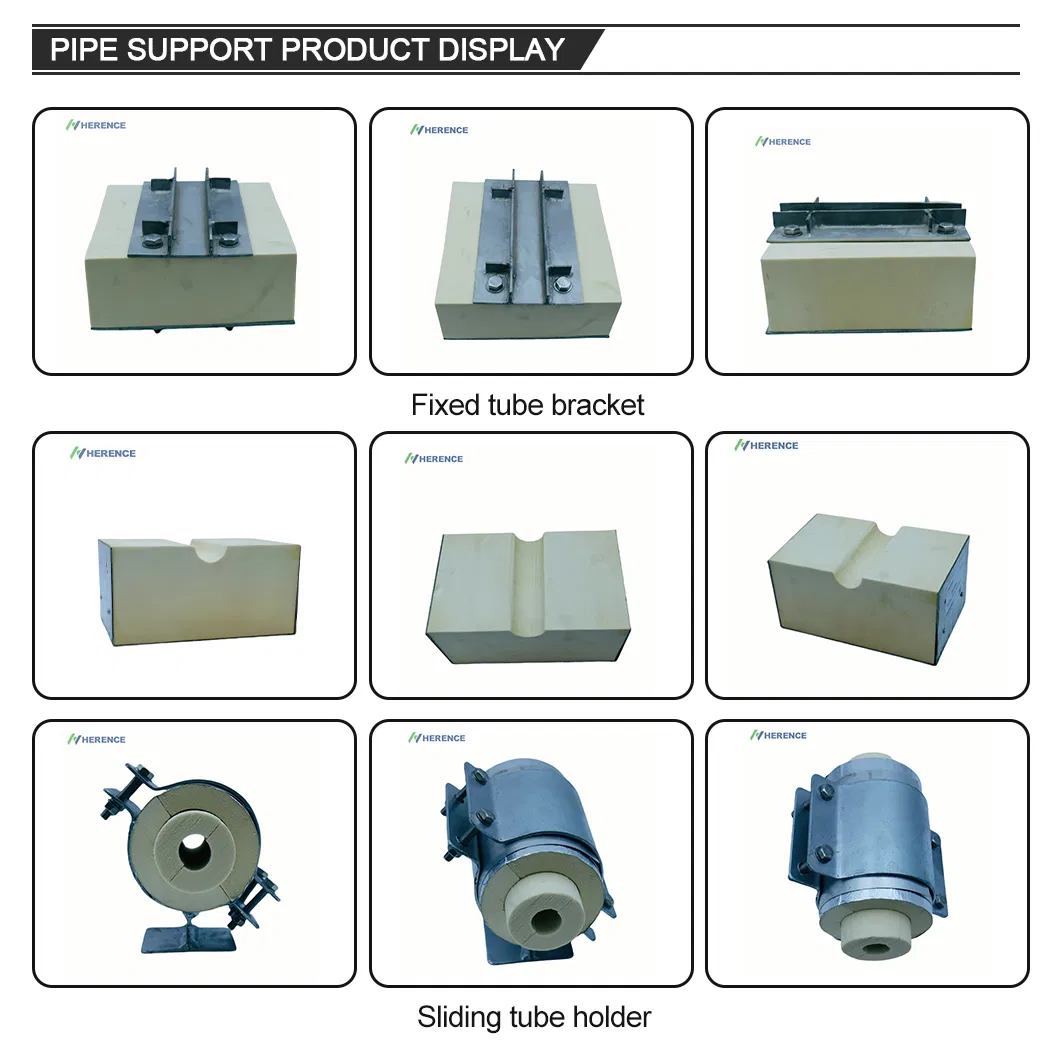

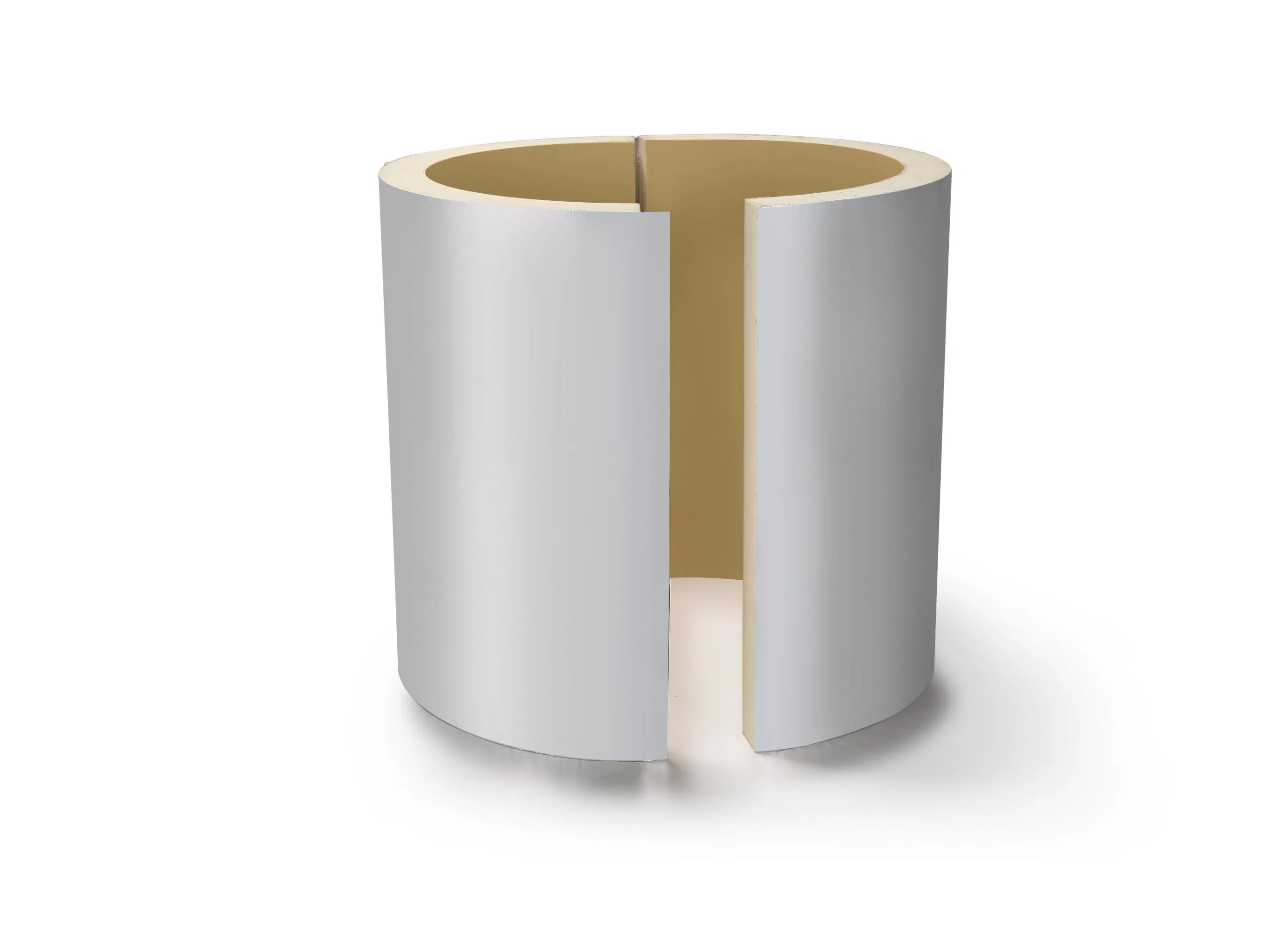

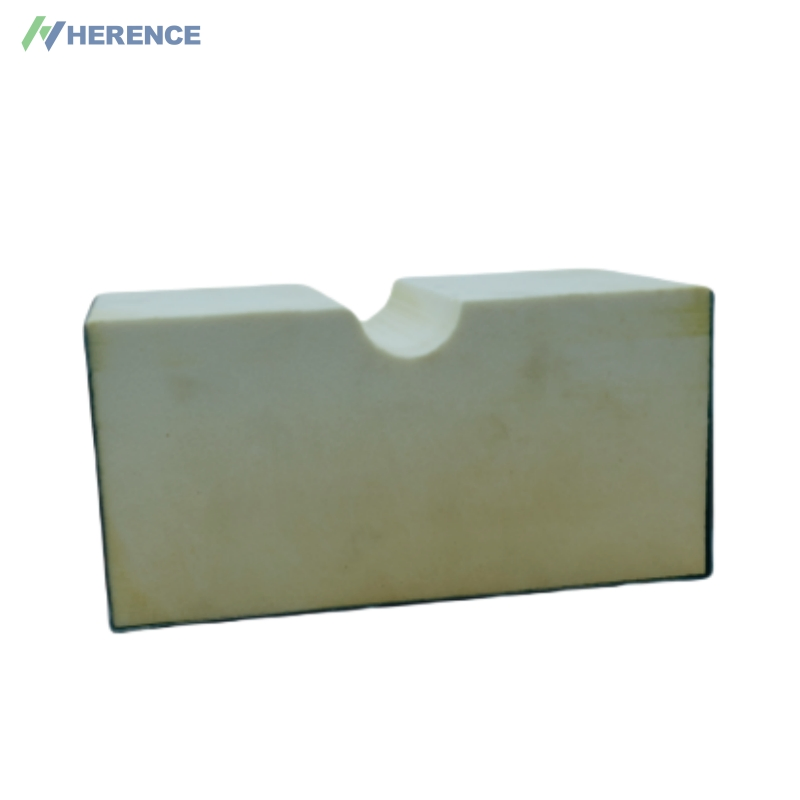

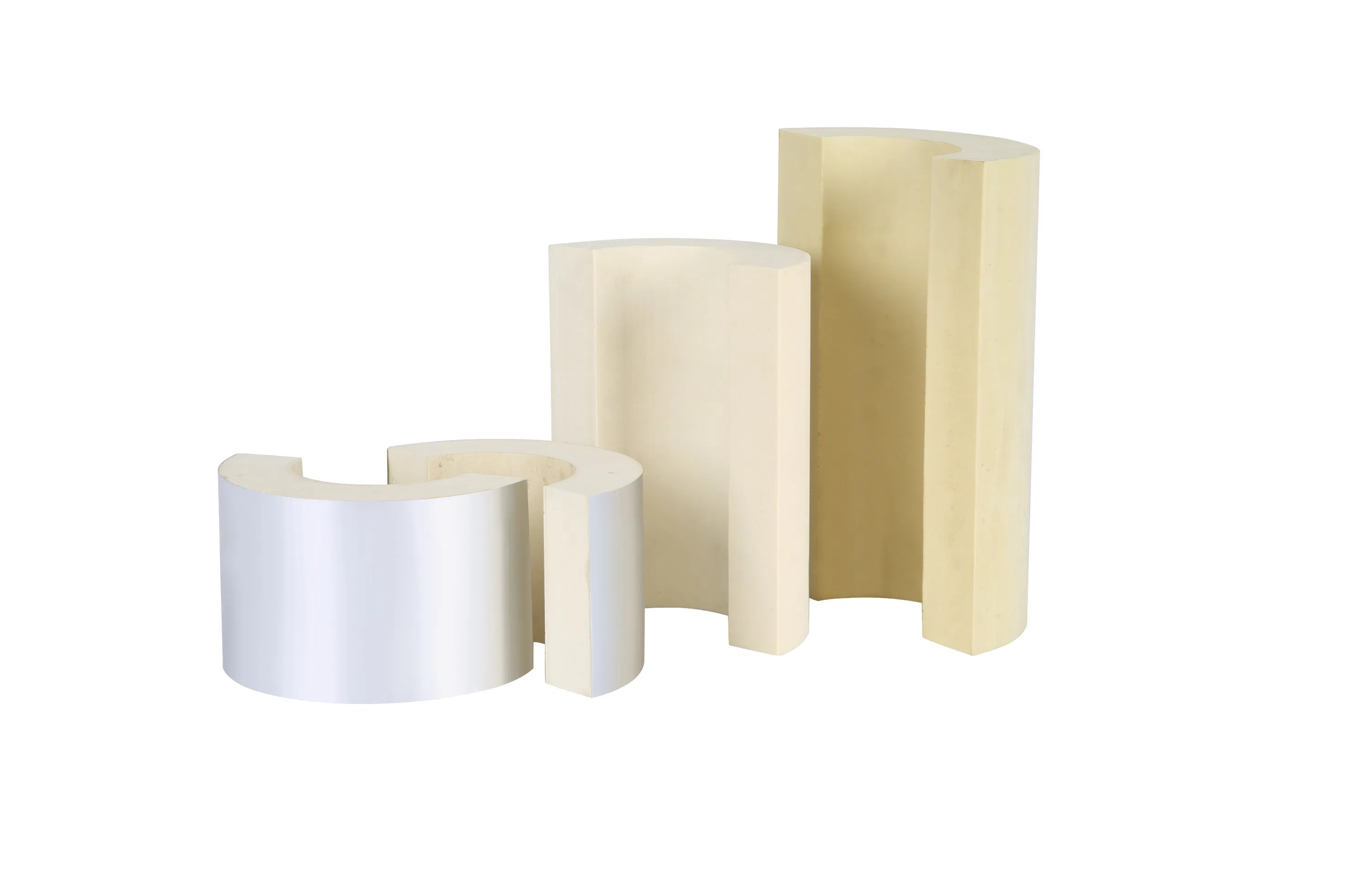

🖼️ Product Display

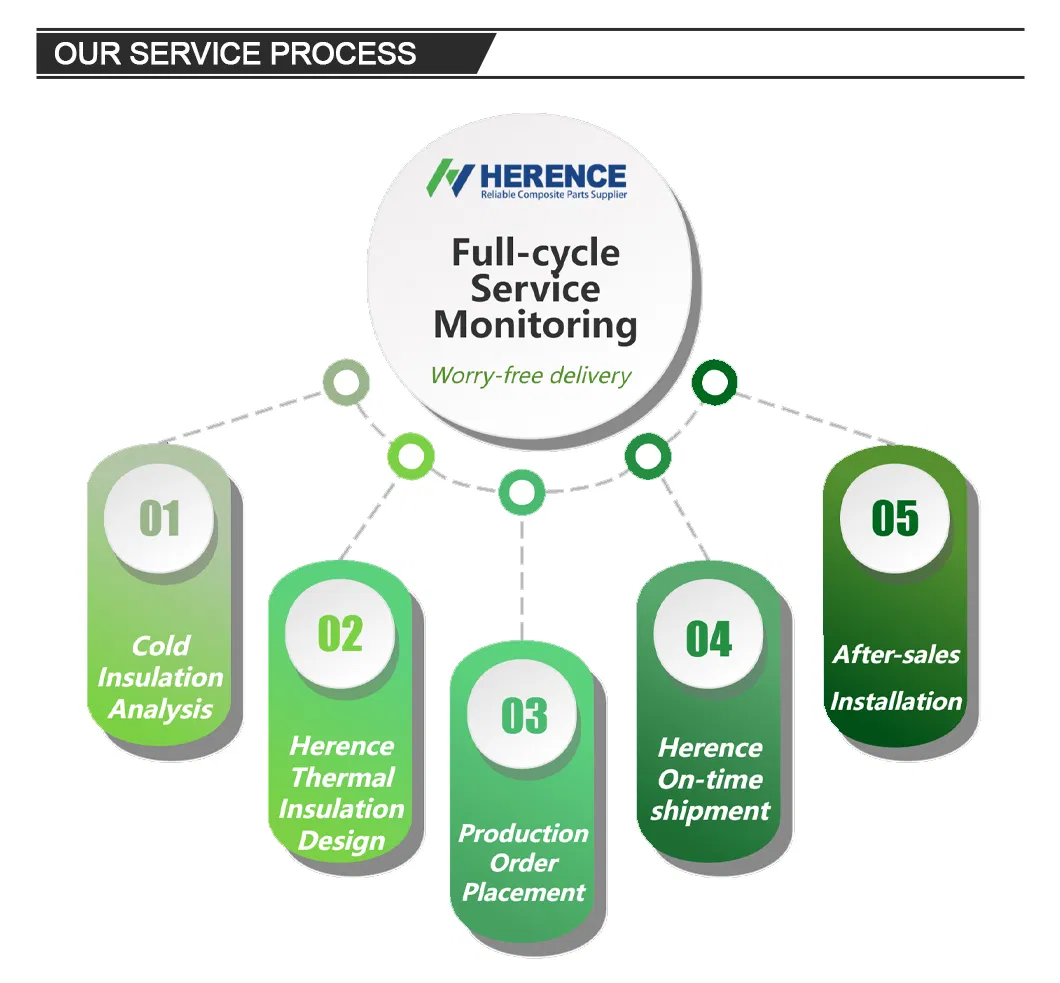

⚙️ Production Process

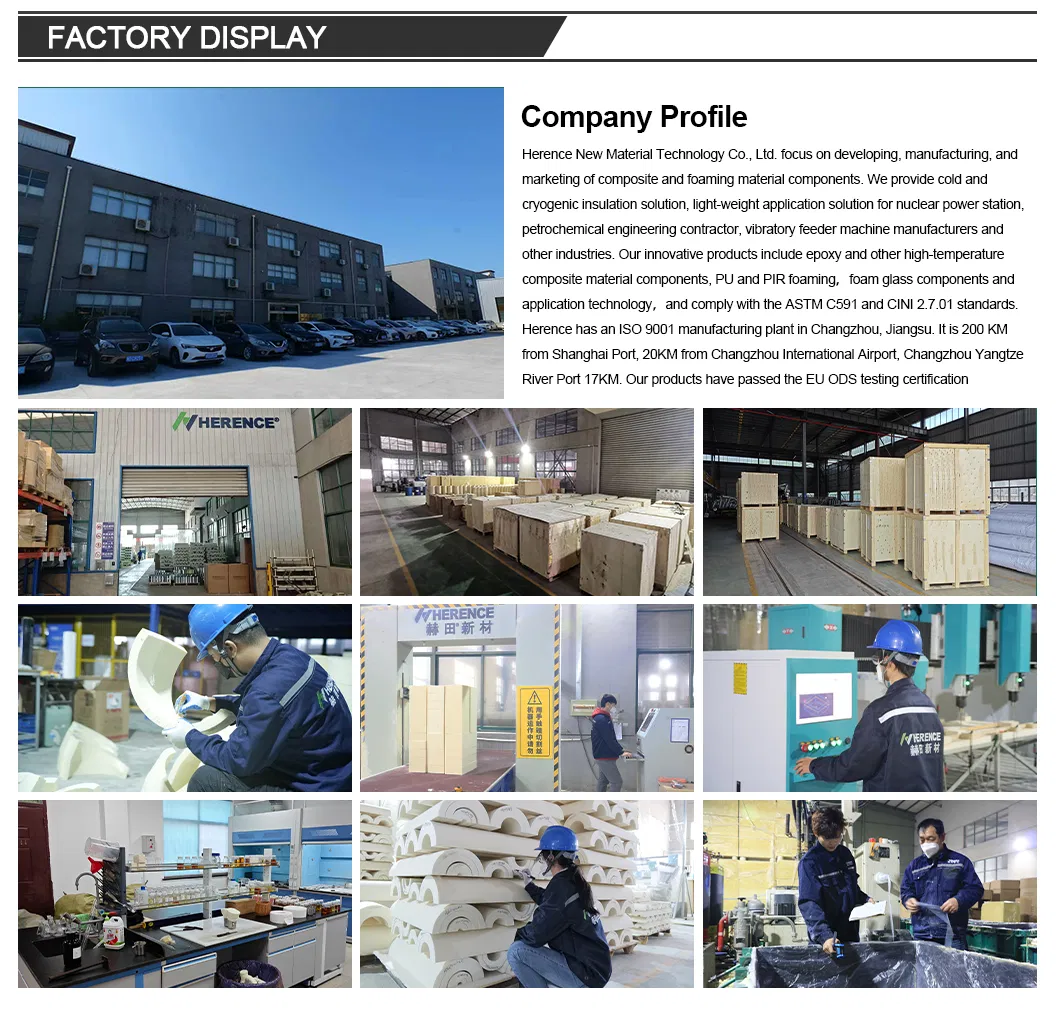

🏢 Professional Expertise

We are an R&D-driven company dedicated to the development, manufacture and global promotion of advanced foamed and composite molded components. We specialize in providing cryogenic and ultra-cryogenic insulation solutions as well as lightweight-application solutions for a wide range of industries.

Our core innovations include PIR rigid foam, HDPIR, epoxy and bismaleimide (BMI) resin-based composite molded parts, foam-glass components, application technologies and integrated construction services. All products comply with ASTM C591 and CINI 2.7.01 standards.

✅ Our Advantages & Certifications

🚢 Packaging & Shipping

❓ Frequently Asked Questions

Are you a manufacturing company or a trading company?

We are a professional manufacturer and have been in this field for more than 10 years.

What information is needed for a quote?

Please provide the flame retardant level, pressure requirements, specific dimensions/specifications, and your intended purchase quantity.

Is customization available?

Yes, we have a professional design team that can produce components according to your specific drawings and technical requirements.

What is the standard delivery time?

Typically, our lead time spans 15-30 days after receipt of advance payment, ensuring timely delivery for project schedules.

How do you protect products during transport?

We use anti-collision wraps, reinforced boxes for fragile parts, and meticulous layout arrangement. All products are inspected before shipment.

Can I obtain samples for evaluation?

Yes. Samples can be provided for evaluation. Shipping costs are negotiable and can be refunded once a formal order is confirmed.
