Product Description

📋 Basic Information

Model NO.: JN-SS10

Specification: As customer's request

HS Code: 8419500090

Production Capacity: 50000 Pieces/Year

⚙ Product Specification

Model No.	Vertical constant force spring hanger	Technics	Casting or Forging
Connection	Welding	Shape	Equal
Load Range	500-400000N	Displacement Range	50-500mm
Temperature Range	-20°C~ +200°C	Specification	ISO/GB
Transport Package	Wooden Box/Case/ Pallet	HS Code	8402900000

📝 Product Description

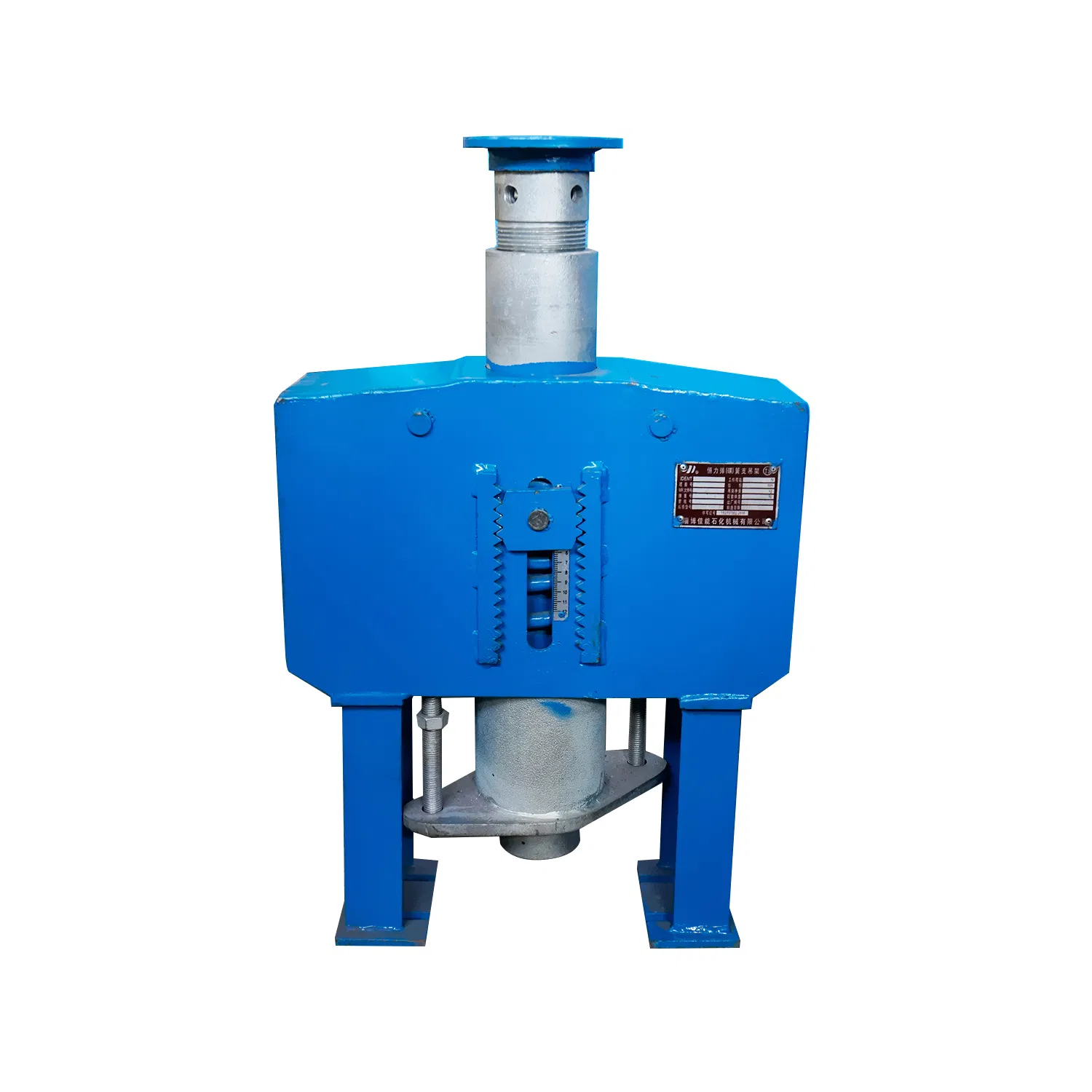

CONSTANT LOAD SPRING SUPPORTS.

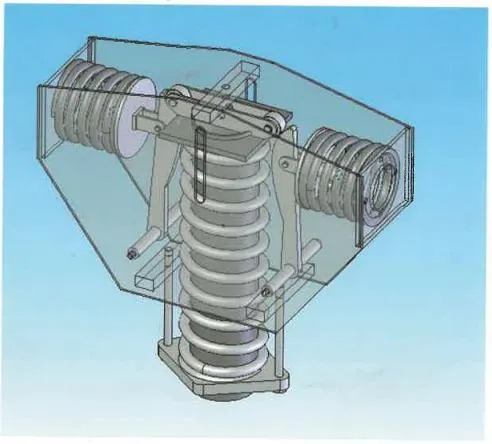

The Constant Load Spring Supports (Constant Supports) provide a constant supporting force through the total travel of the support. The simplified construction, together with the compression spring working in conjunction with a bell crank lever, achieves a mathematically perfect counter-balancing of spring and load moments about the main pivot point.

Constant Load Spring Supports are typically used when large vertical movements are present in critical piping to avoid the transfer of residual stresses to other process piping systems.

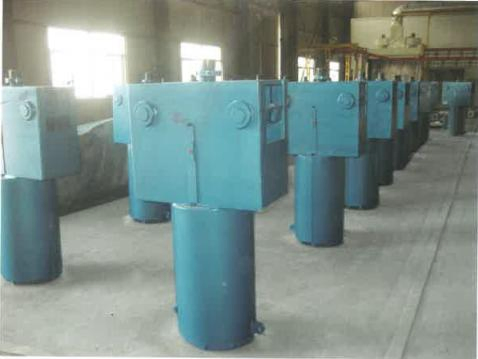

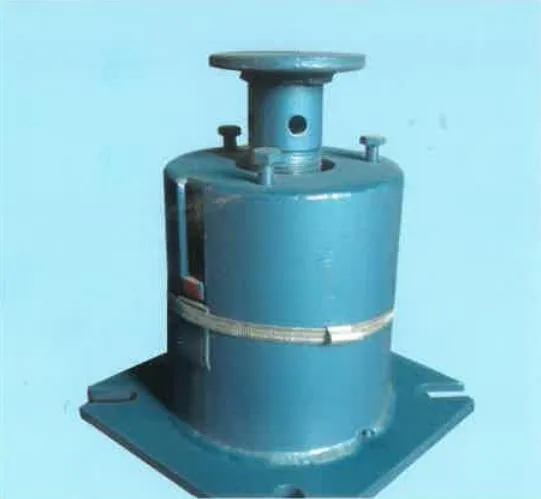

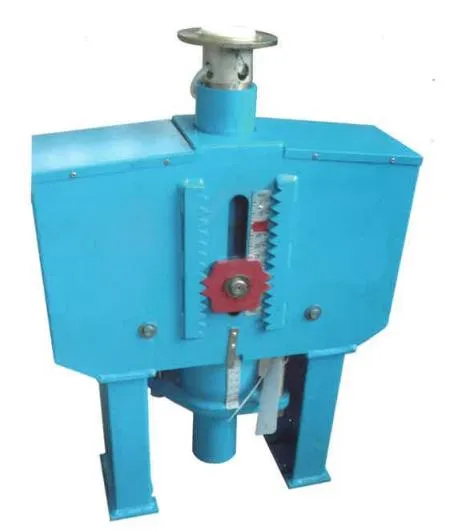

🖼 Product Display

❓ Frequently Asked Questions

What is the main function of Constant Load Spring Supports?

They provide a constant supporting force through the total travel of the support, using a compression spring and bell crank lever to achieve perfect counter-balancing.

In what scenarios are these supports typically used?

They are used when large vertical movements occur in critical piping to prevent the transfer of residual stresses to other parts of the piping system.

What is the load and displacement range for this model?

The load range is 500-400000N, and the displacement range is between 50mm and 500mm.

What are the temperature limitations for these hangers?

The supports are designed to operate within a temperature range of -20°C to +200°C.

How are the products packaged for international shipping?

Products are securely packed in wooden boxes, cases, or on pallets to ensure safe transport.

What manufacturing technics are used for the hangers?

The hangers are manufactured using high-quality casting or forging technics, followed by welding for connections.
