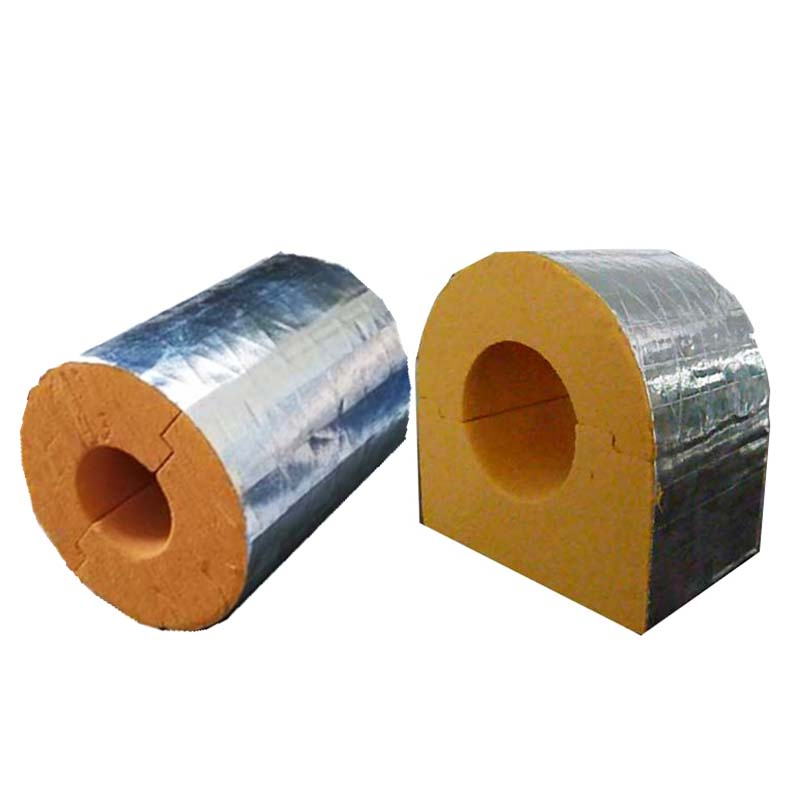

Hot Selling Phenolic Foam Pipe Support for Steel Pipe Insulation/Insulated

Basic Information

Model NO.

Phenolic Foam Pipe Support

Color

Silver, White

Refractoriness

200-450°C

Density

35~65kg/M³

Material

Phenolic Foam + Aluminum Foil

Diameter

15-600mm

Warranty

1 Year

Surface

Protected with Aluminum Foil

Product Description

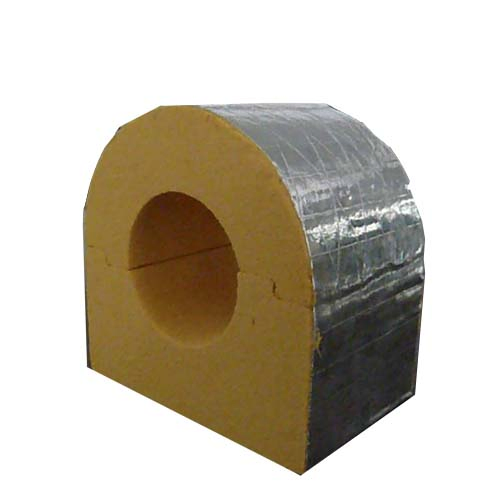

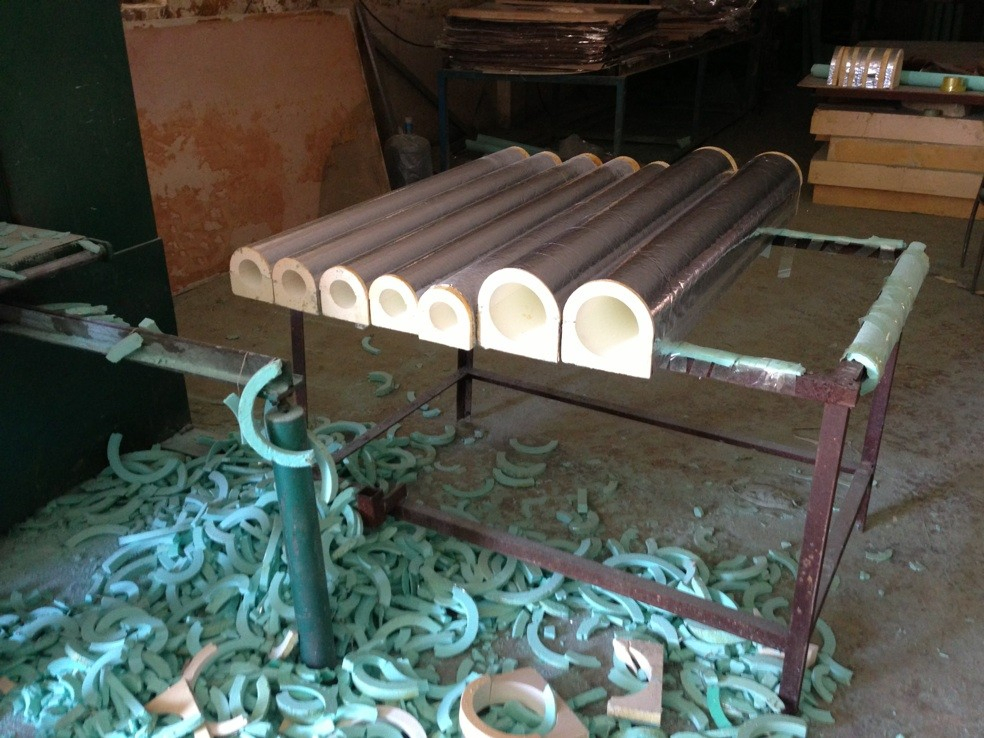

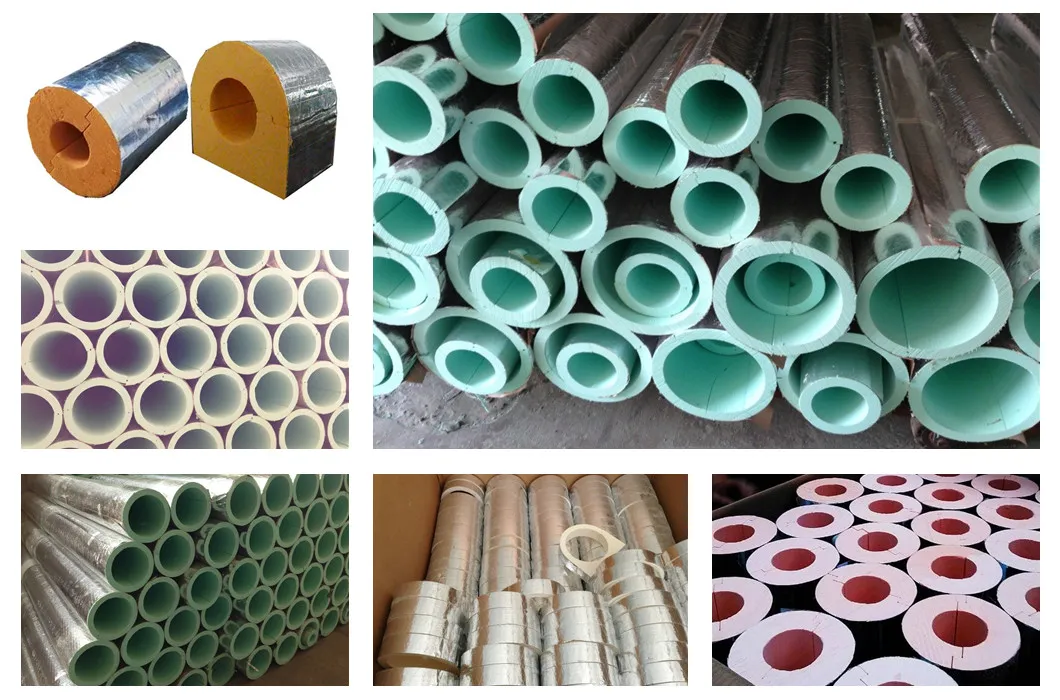

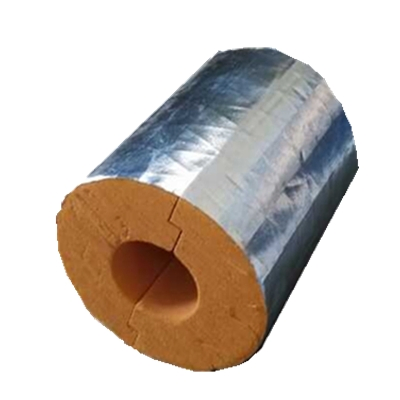

Phenolic Foam Pipe Support is fabricated from rigid closed cell phenolic foam block, and protected on the outside with aluminum foil vapor barrier. It is specifically designed for both cold and hot pipe insulation systems, providing superior thermal performance and fire resistance.

Technical Specifications

Property	Standard	Specification
Thickness	-	20-100mm
Standard Length	-	1000mm
Foam Density	BS4370	40-50 kg/m³
Thermal Conductivity	BS4370	0.025 W/m.k
Fire Rating	BS 476 Part 6&7	Class 0
Compressive Strength	ASTM D1621-00	91.8psi
Water Absorption	ASTM C209-98	0.25%
Max Operating Temp	-	150 °C

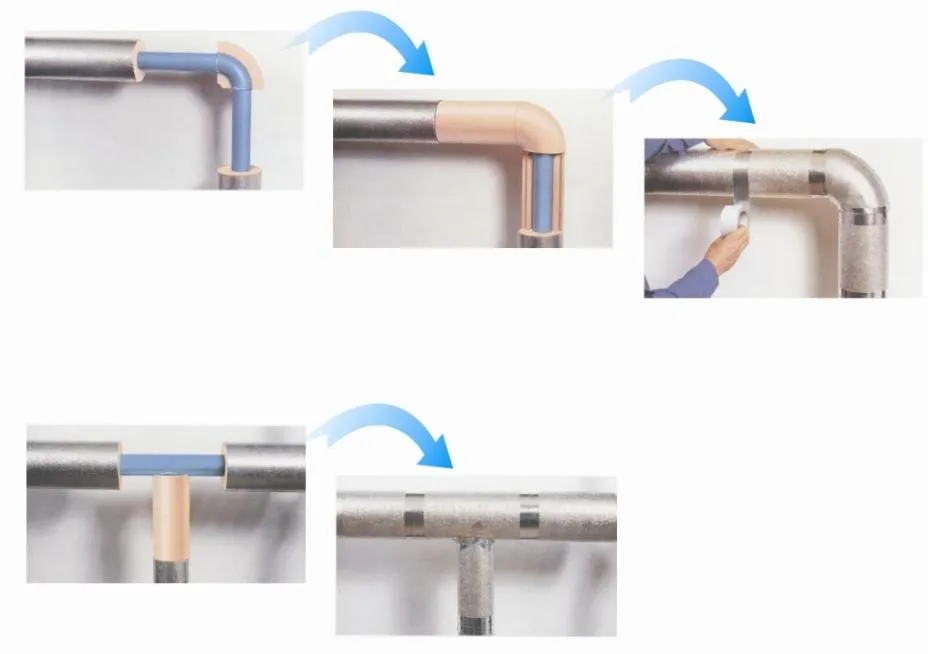

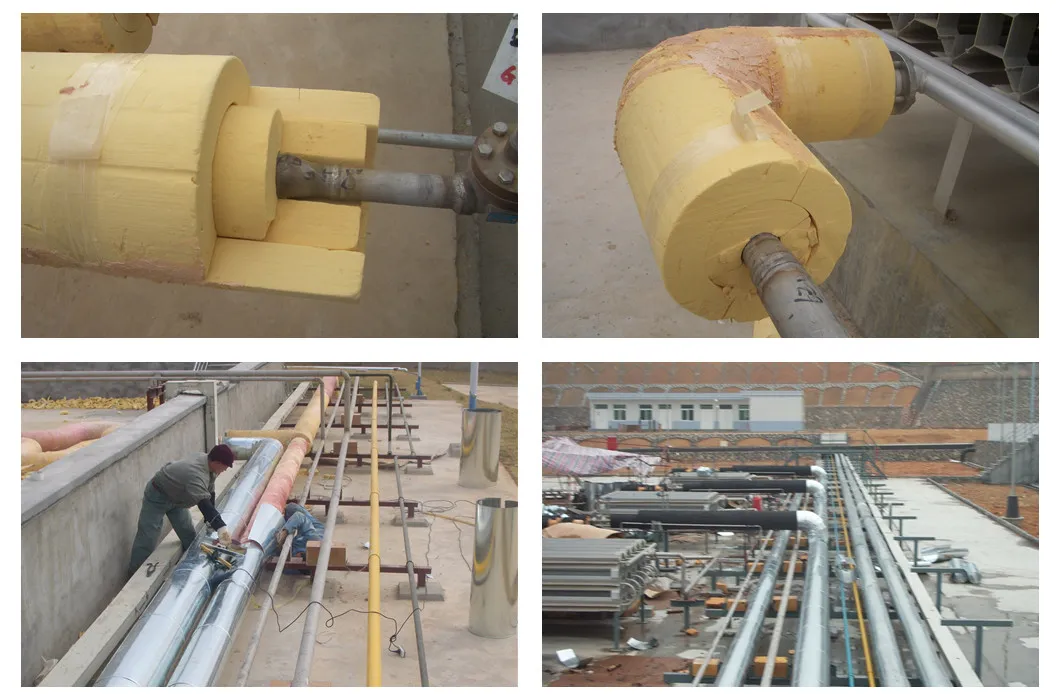

Application & Installation

Our Phenolic Foam Pipe Support is available in various thicknesses to meet specific performance requirements. It is compatible with mild steel, stainless steel, copper, and plastic pipework across standard diameters.

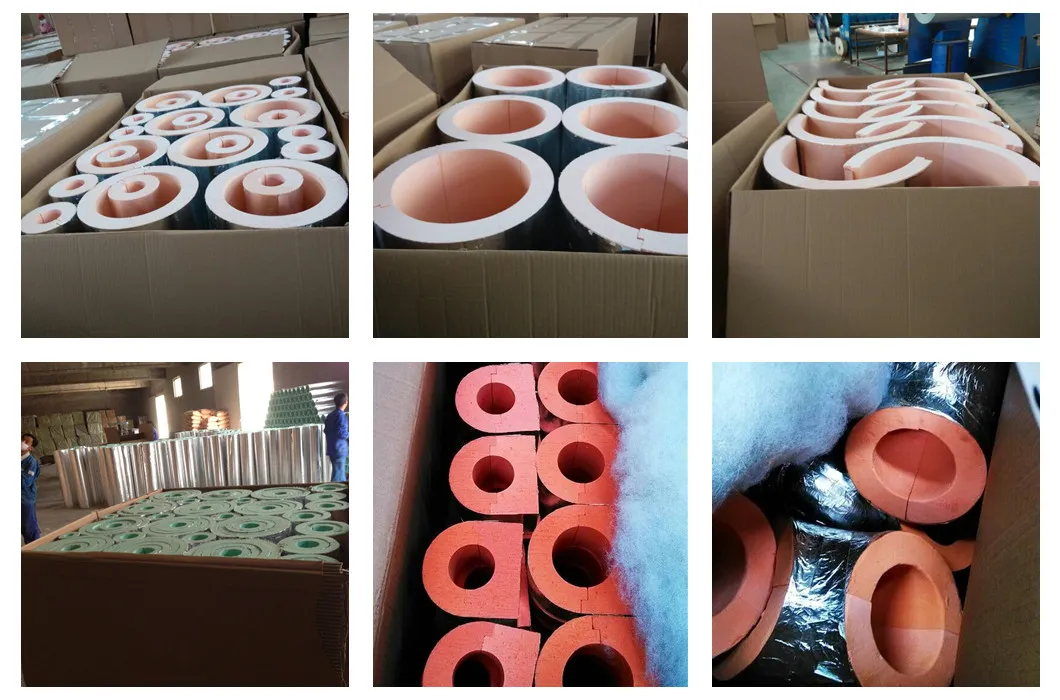

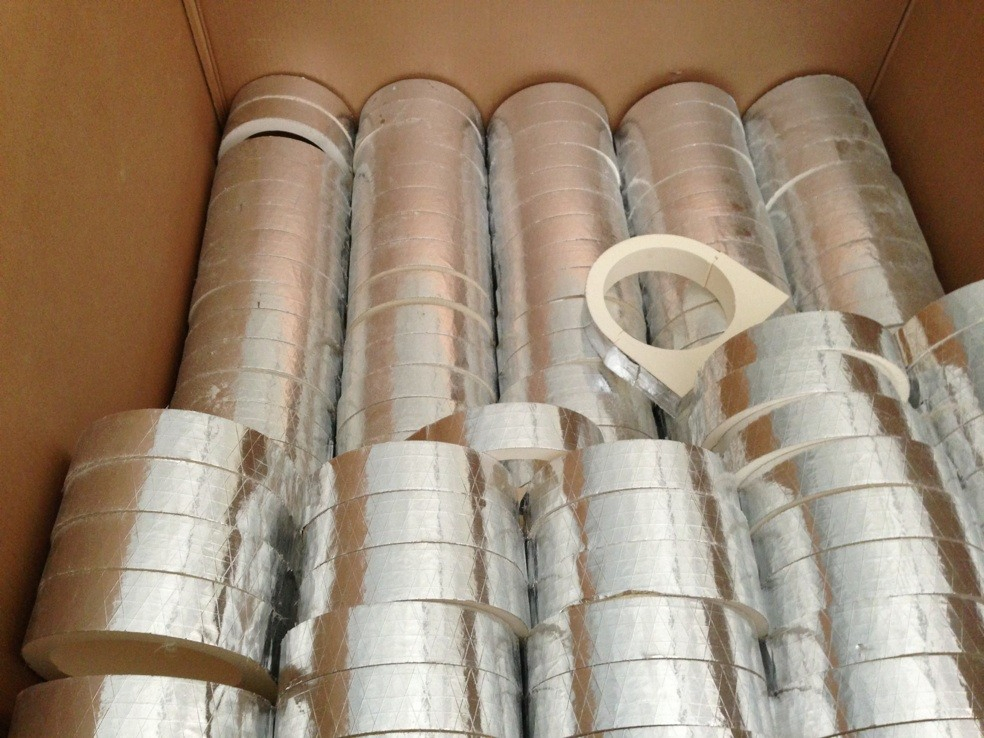

Packaging & Shipping

Supports are securely packed in high-quality cartons. We offer flexible packing solutions where different sizes and thicknesses can be mixed to optimize container space.

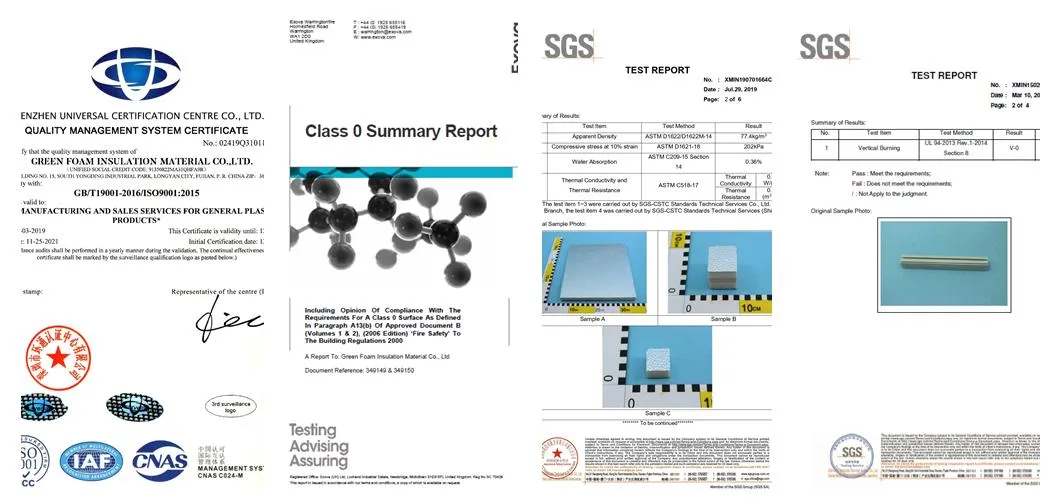

Certifications & Quality

Global Business Negotiation

Participating in numerous RHVAC Exhibitions globally including events in Thailand, Australia, and Pakistan. We welcome international partners to visit our production facilities for long-term cooperation.

Hot Selling Products

Explore our wide range of pre-insulated solutions including PIR/PU duct panels, phenolic duct panels, pre-insulated tool boxes, PVC flanges, and air diffusion components.

Frequently Asked Questions

1. Can you provide samples of the Phenolic Foam Pipe Support?

Yes, free small sample pieces are available. You only need to cover the express shipping costs via DHL, FEDEX, or TNT.

2. What is the typical delivery timeframe?

For a standard 40ft container, delivery is usually fulfilled within one week after the deposit is confirmed.

3. What are your standard payment terms?

Our standard terms are a 30% deposit in advance, with the remaining 70% balance due before shipment or against the copy of the Bill of Lading.

4. To which countries have you exported?

Our products are exported to over 40 countries, including the USA, Australia, Spain, Indonesia, Malaysia, UAE, and many regions across Africa and Latin America.

5. What is the fire rating of this material?

The Phenolic Foam Pipe Support achieves a Class 0 fire rating according to BS 476 Part 6 & 7 standards.

6. What is the thermal conductivity of the foam?

The thermal conductivity is exceptionally low at 0.025 W/m.k, ensuring excellent insulation efficiency for both hot and cold pipes.
