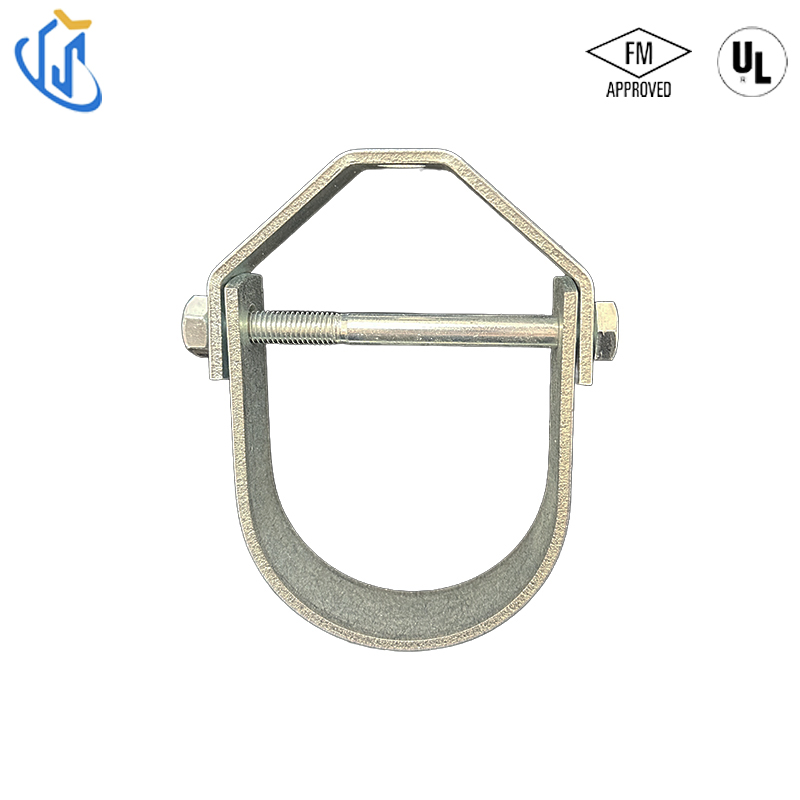

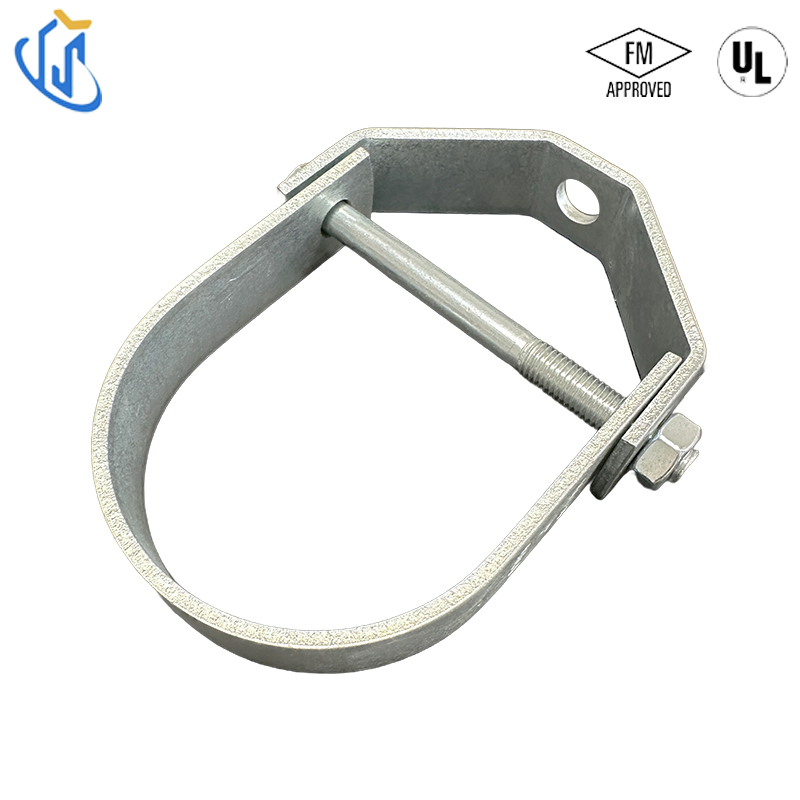

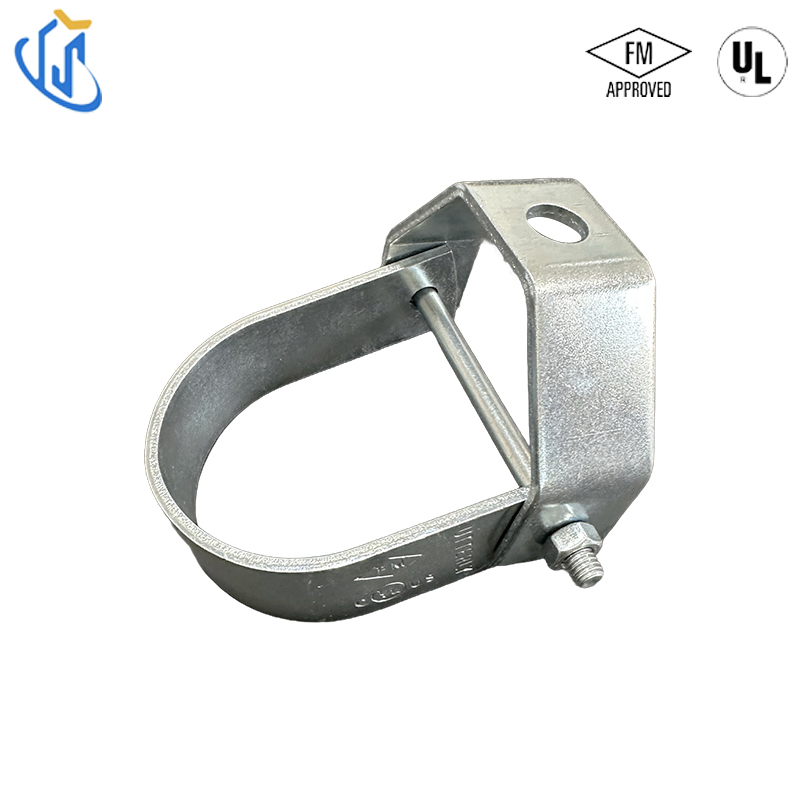

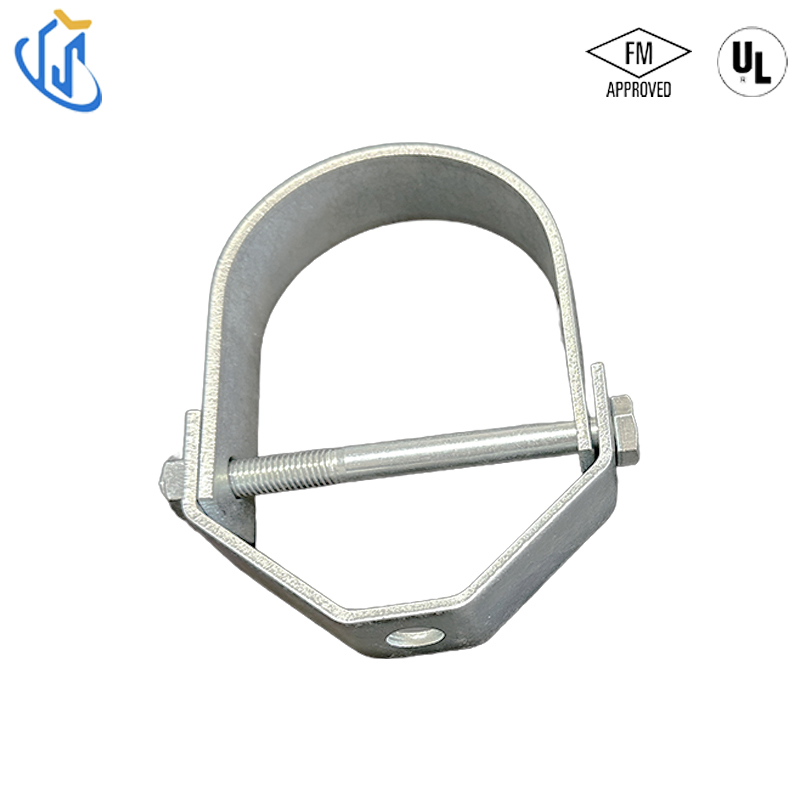

Hot DIP Galvanized Clevis Hanger for Pipe/Conduit Support System

1 / 5

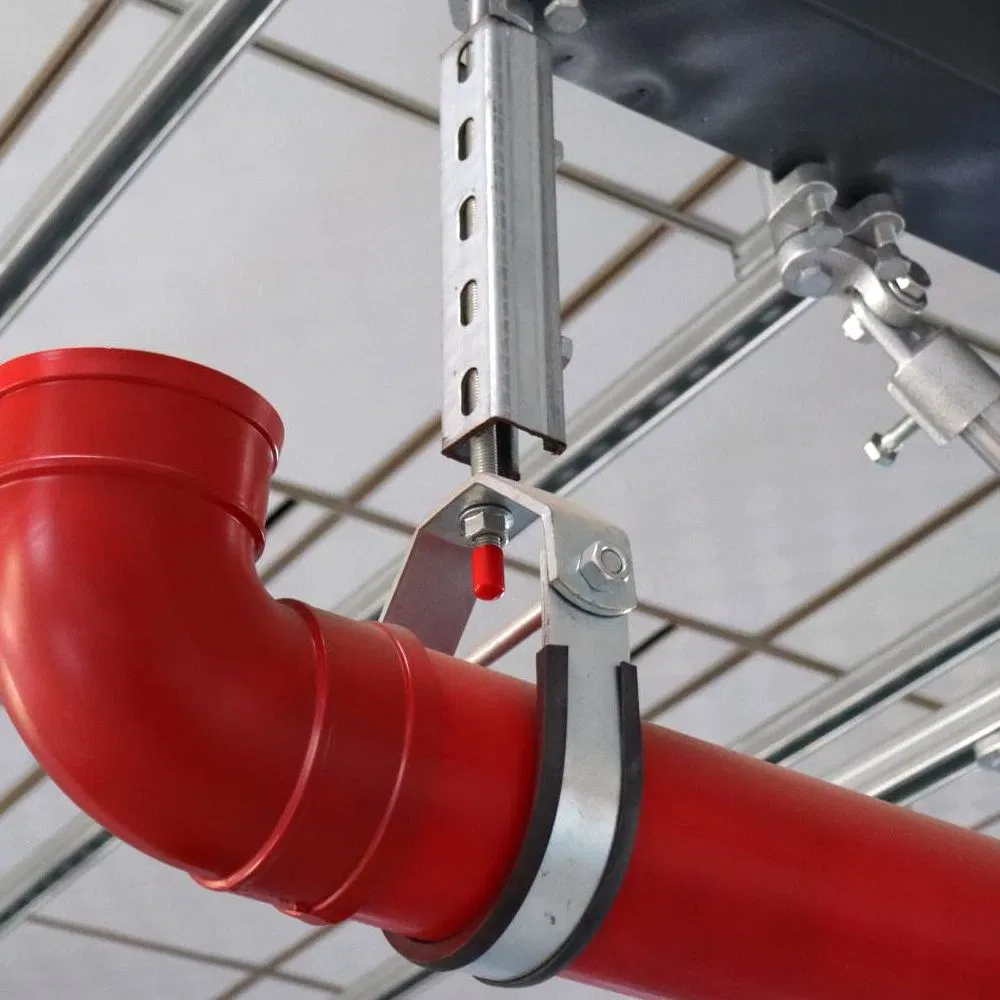

Hot DIP Galvanized Clevis Hanger for Pipe/Conduit Support System

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

UTT30 Clevis Hanger

Connection

Forged

Structure

Clevis/Pin/Hanger Rod/Nut

Flexible or Rigid

Flexible

Material

Carbon Steel & Ductile Iron Qt450

Standard

Certification

FM/UL

Surface Treatment

Black, Painted or Galvanized

Characteristics

Horseshoe/U Shape Design

Pipe Materials

Tube/Pipe/Conduit

Feature

Heavy Duty/Seismic Resistant

HS Code

7326909000

Certifications

Product Description

UTT30 Clevis Hanger Features

The product features a horseshoe-like design for easy installation and removal, significantly reducing labor time and effort. Its innovative shape allows it to be simply slid onto the pipe or conduit and securely snapped into place without the need for complex tools or fasteners.

Function: Allows vertical adjustment of pipe after installation.
Temperature: Plain 650°F, Galvanized 450°F.
Compliance: Federal Specification WW-H-171 (Type 1), MSS SP-69 (Type 1).
Size Range: 1/2" Through 12".

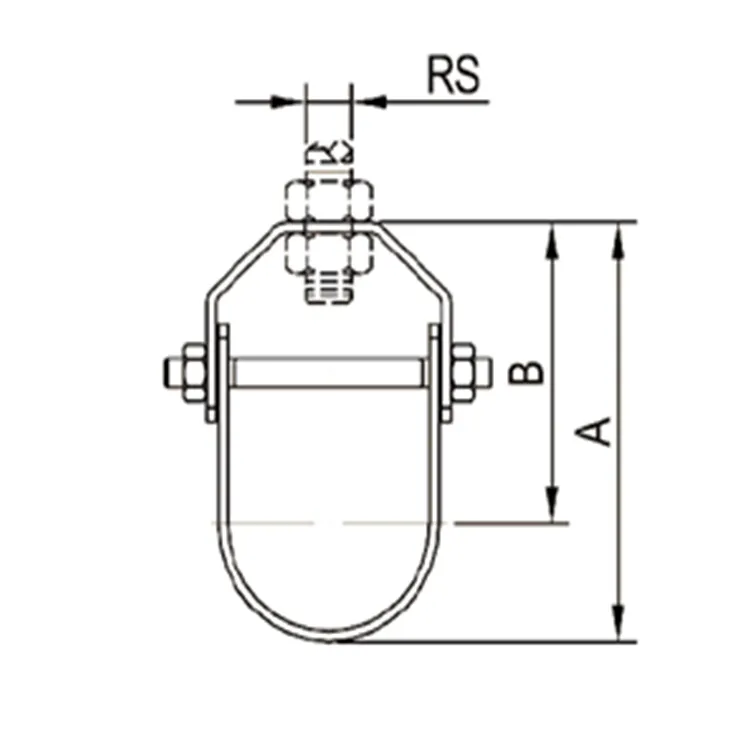

Technical Specifications

Size (in)	Size (mm)	Rod Size (RS)	Max Rec. Load (lbs)	Max Rec. Load (KN)
1/2"	DN15	M10	750	3.34
1"	DN25	M10	750	3.34
2"	DN50	M10	750	3.34
4"	DN100	M12	1500	6.67
6"	DN150	M20	2650	11.79
12"	DN300	M22	7900	35.14

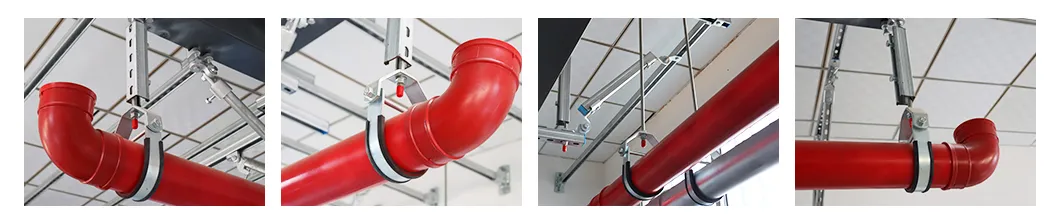

Installation Guide

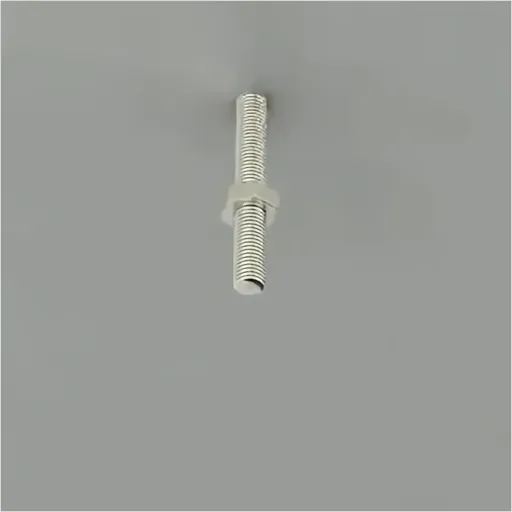

Step 1: Secure the screw to the mounting base surface, then install the nut.

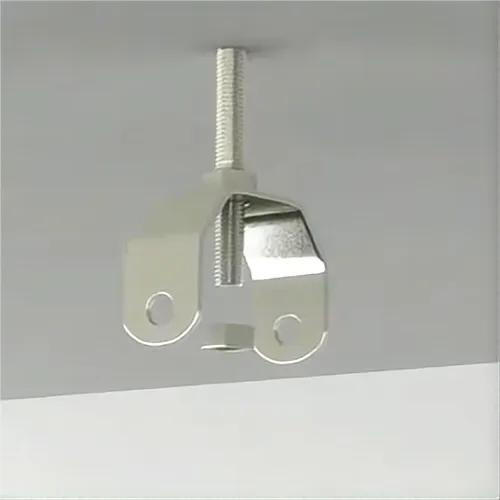

Step 2: Install the main part of the clevis hanger onto the screw and fix with the nut.

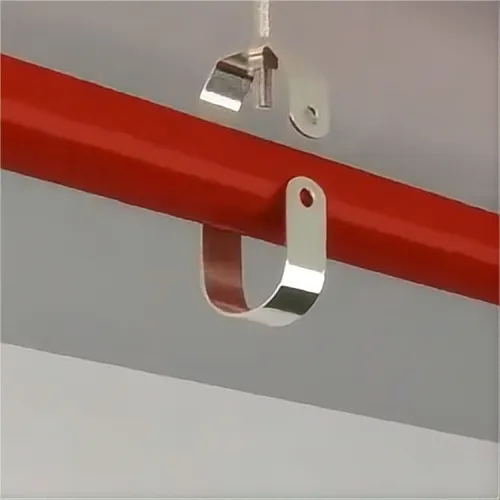

Step 3: Adjust the hanger position and place the pipe into the slot.

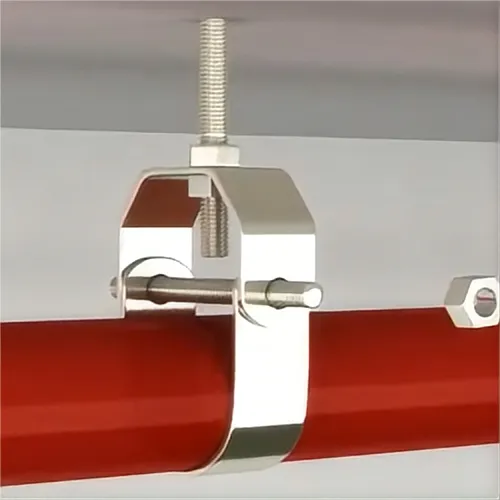

Step 4: Install U-shaped clamps and fasteners to lock the device securely.

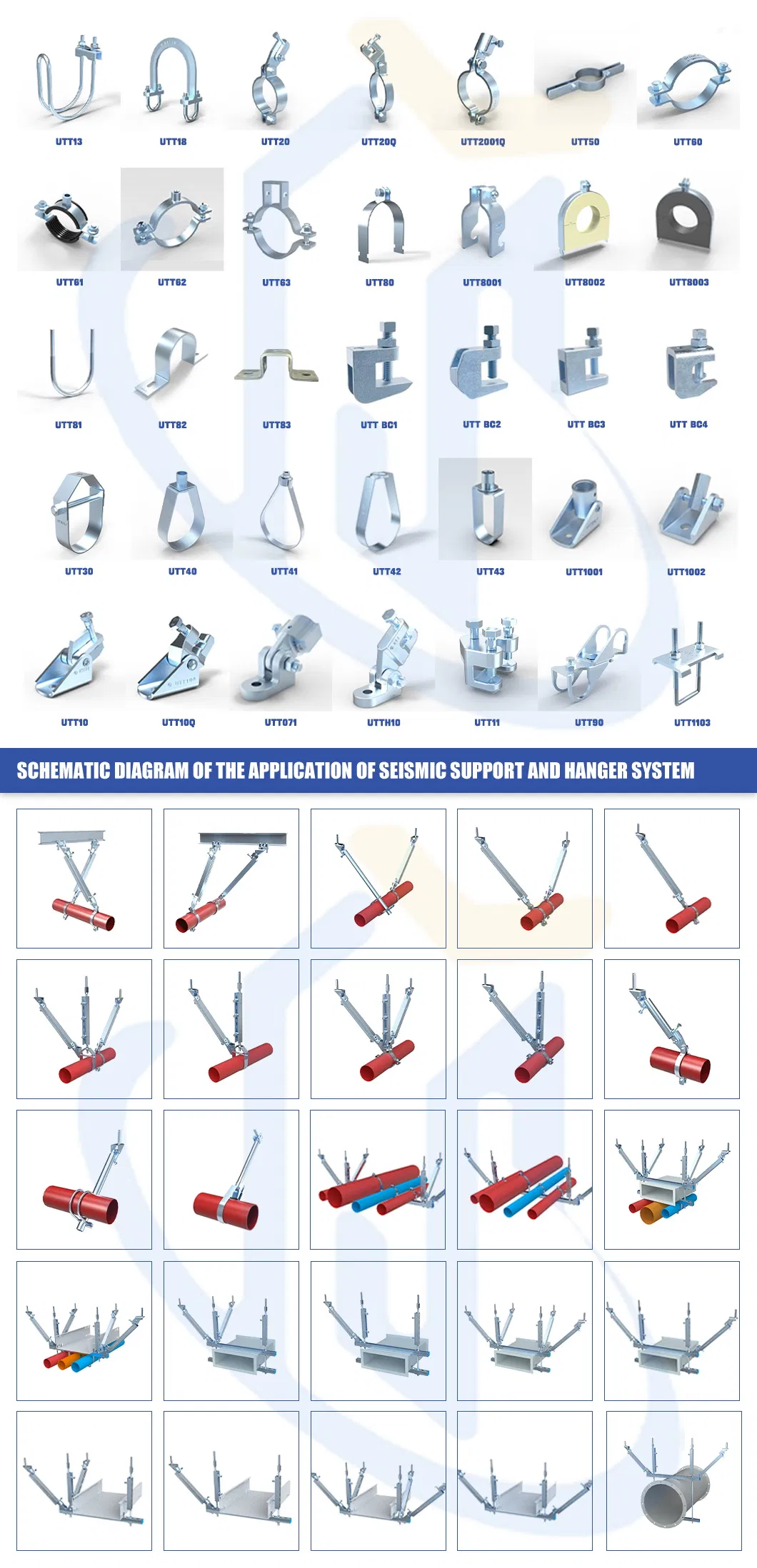

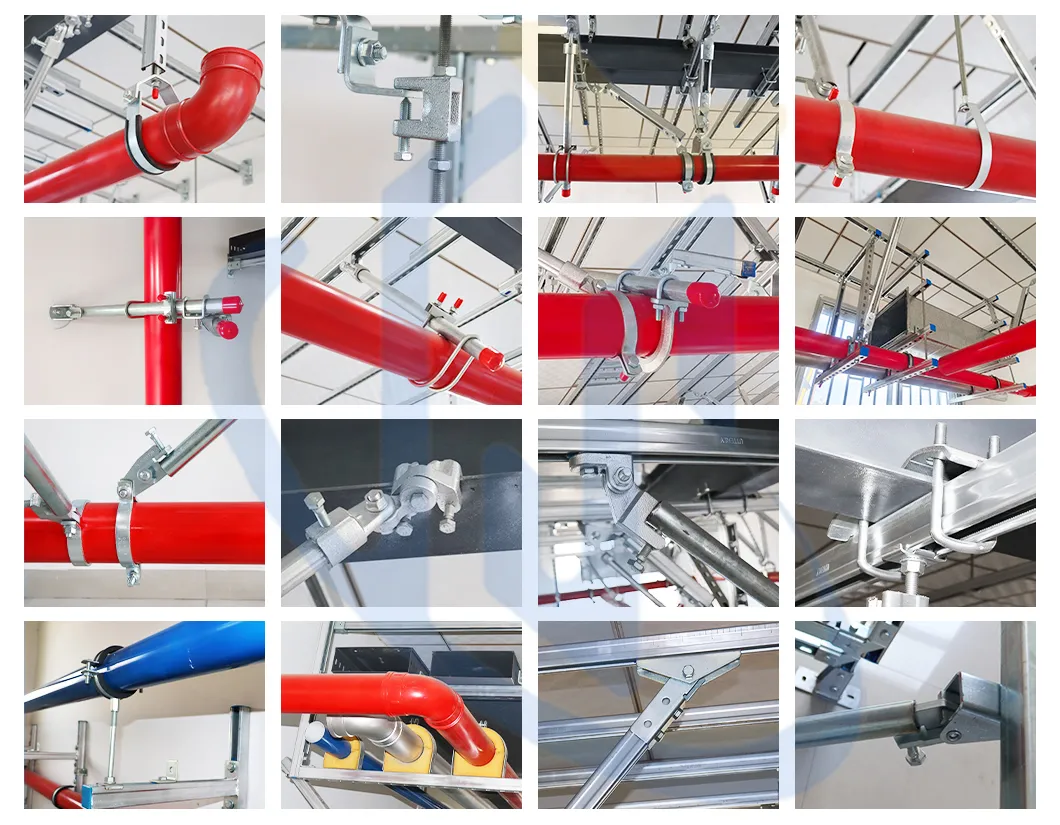

Product Showcase & Features

UL and FM industry certification standards.
Customizable special pipe support accessories based on engineering drawings.
Made of carbon steel, ductile iron, or stainless steel by casting or forging.
Galvanized surface for anti-corrosion, smooth finish, and long service life.

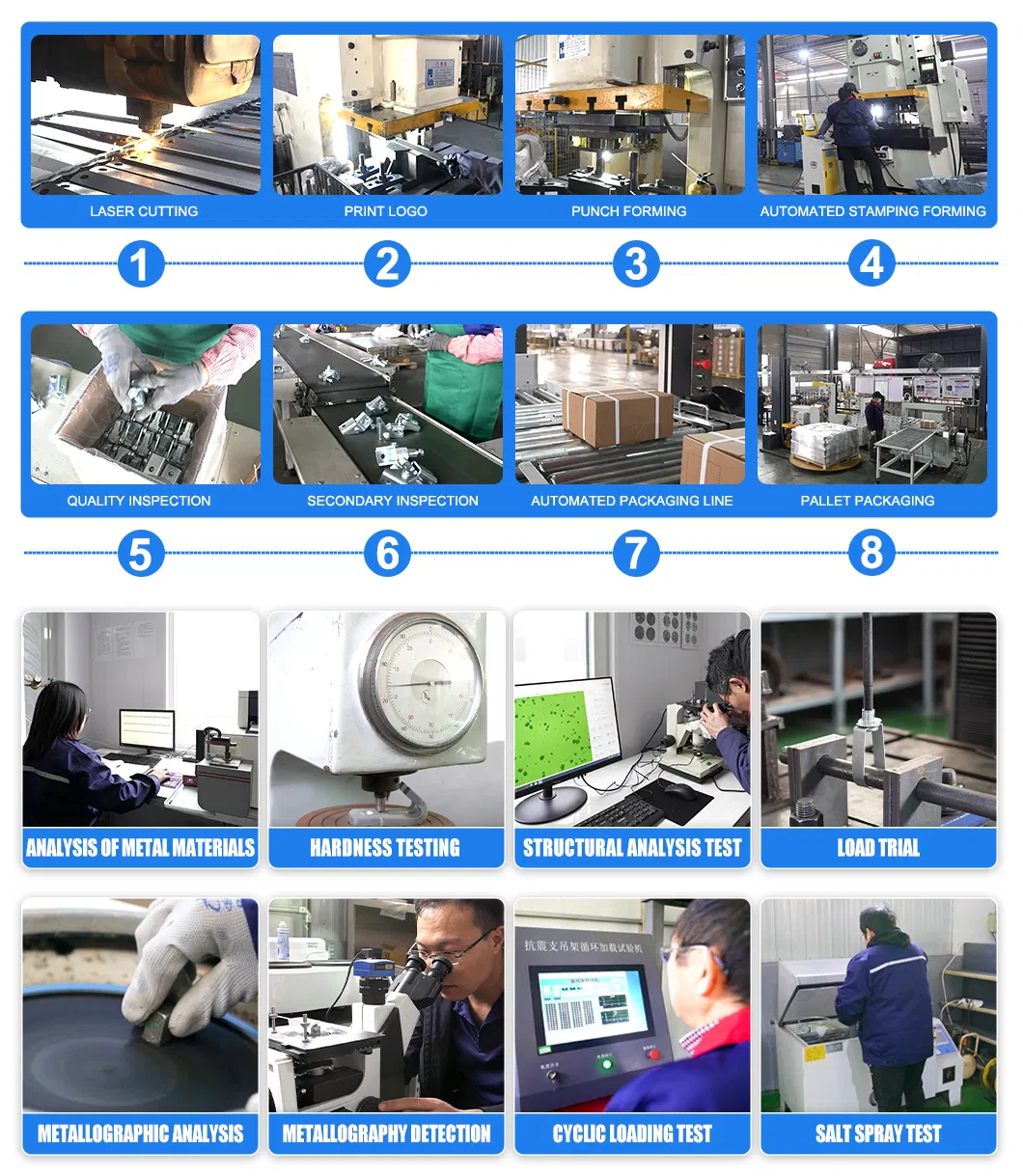

Production Process

Why Choose Our Solutions

Advanced Production Systems: 5 advanced laser cutters and high-quality casting equipment ensure smooth surfaces without defects.

Precision Engineering: Specialized molds and hydraulic presses meet stringent OEM and ODM requirements.

Efficient Assembly: Skilled team manages testing and packing. Products are secured in waterproof cartons and fumigated pallets.

Qualification: FM, UL, and CE certifications guarantee product safety and reliability.

Frequently Asked Questions

Q1: What materials are the clevis hangers made of?

A: Our clevis hangers are manufactured using high-quality Carbon Steel and Ductile Iron (Qt450) to ensure maximum strength and durability.

Q2: What certifications do these hangers hold?

A: All our clevis hangers are FM and UL certified, meeting international safety and quality standards for pipe support systems.

Q3: What is the maximum temperature these hangers can withstand?

A: The plain finish hangers can withstand up to 650°F, while the galvanized versions are rated for up to 450°F.

Q4: Are these hangers suitable for seismic-resistant applications?

A: Yes, our clevis hangers are designed to be heavy-duty and seismic-resistant, making them ideal for critical infrastructure and fire protection systems.

Q5: What sizes are available for the UTT30 model?

A: We offer a comprehensive range of sizes from 1/2" up to 12" to accommodate various pipe and conduit dimensions.

Q6: What surface treatments are available?

A: We provide several options including Black, Painted, and Hot-DIP Galvanized finishes to suit different environmental requirements and corrosion resistance needs.
