High-performance cold insulation is typically designed to provide optimal thermal insulation for various low-temperature applications, such as cryogenic pipelines in the petrochemical industry, LNG, and LPG pipelines. We offer innovative concepts and solutions for high-performance cold insulation, suitable for a wide range of pipe support applications in temperatures ranging from -196°C to 120°C.
The insulation system cold pipe support products feature a specially formulated insulation layer that outperforms other products in key performance indicators, including high mechanical properties, flame retardancy, and thermal conductivity. These products have been thoroughly and successfully tested in real-world environments.
| Version | Unit | 9160 | 9220 | 9320 | 9340 |
|---|---|---|---|---|---|
| Density | Kg/m³ | 160 | 220 | 320 | 340 |
| Thermal Conductivity | W/(m.k) | ≤0.036 | ≤0.040 | ≤0.050 | ≤0.048 |
| Water absorption | % | ≤2 | ≤2 | ≤1.8 | ≤1.6 |
| Closed cell | % | ≥95 | ≥95 | ≥95 | ≥98 |
| Compressive strength | Mpa | ≥1.6 | ≥4 | ≥6 | ≥9 |

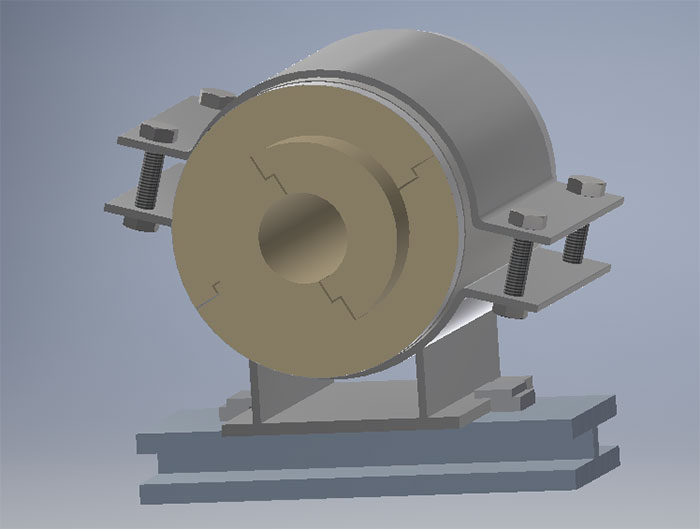

Fixed Tube Bracket

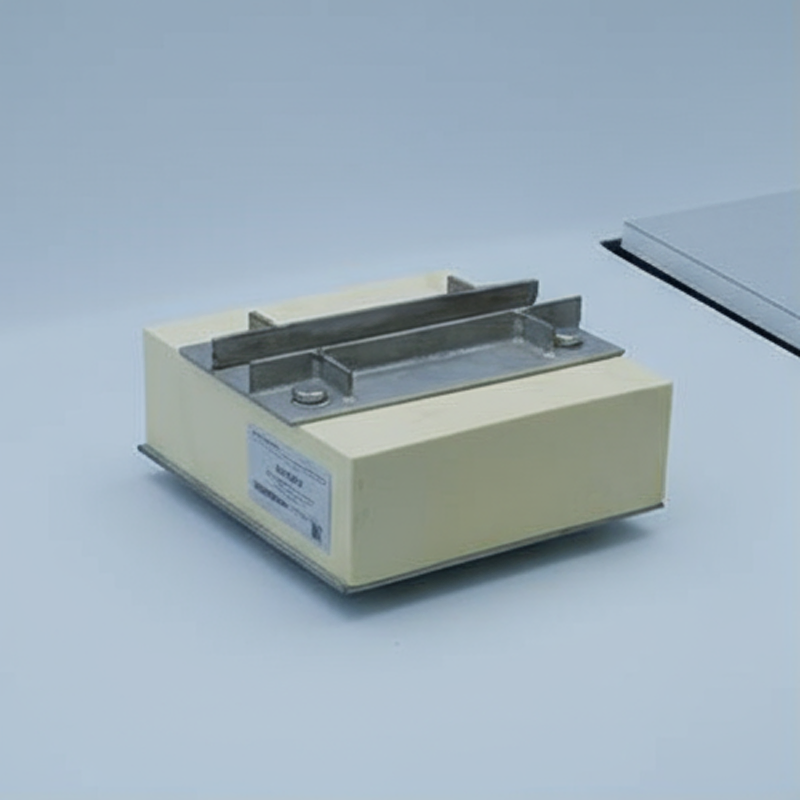

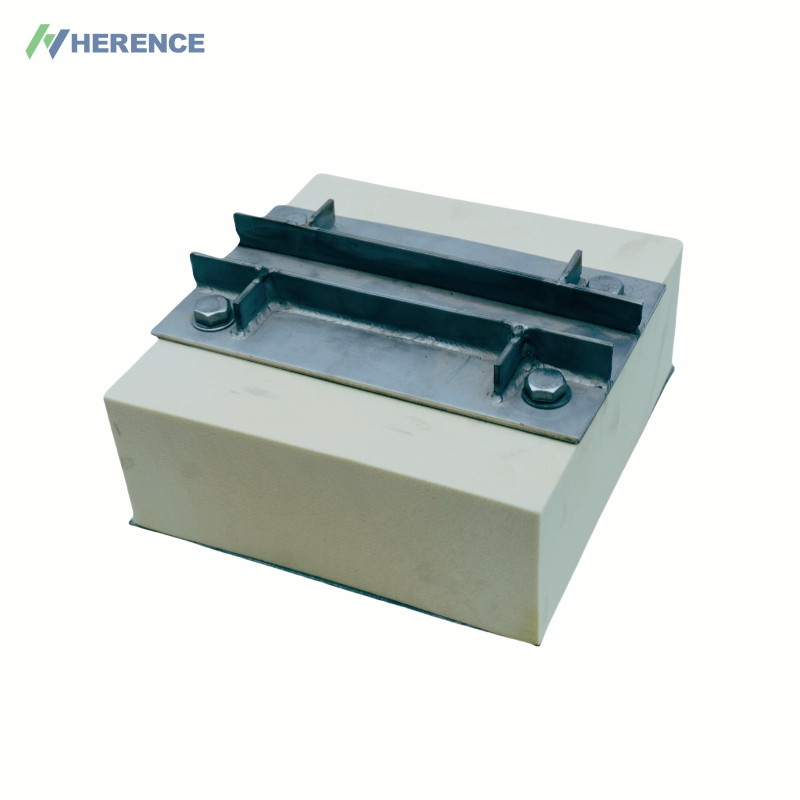

Sliding Tube Holder
Our company is an R&D-driven enterprise dedicated to the development, manufacture, and global promotion of advanced foamed and composite molded components. We specialize in providing cryogenic and ultra-cryogenic insulation solutions as well as lightweight-application solutions for a wide range of industries.
We currently hold numerous invention and utility-model patents. By continuously exploring and analyzing the specific needs of each sector, we design products that are highly targeted, exceptionally durable, and meticulously detailed. Our solutions serve city-gas operators, petrochemical EPC contractors, air-separation plants, nuclear-power facilities, LNG pipelines, LNG shipping, and medical-device manufacturers.
Core innovations include PIR rigid foam, HDPIR, epoxy and bismaleimide (BMI) resin-based composite molded parts, foam-glass components, and integrated construction services. All products comply with ASTM C591 and CINI 2.7.01 standards.
