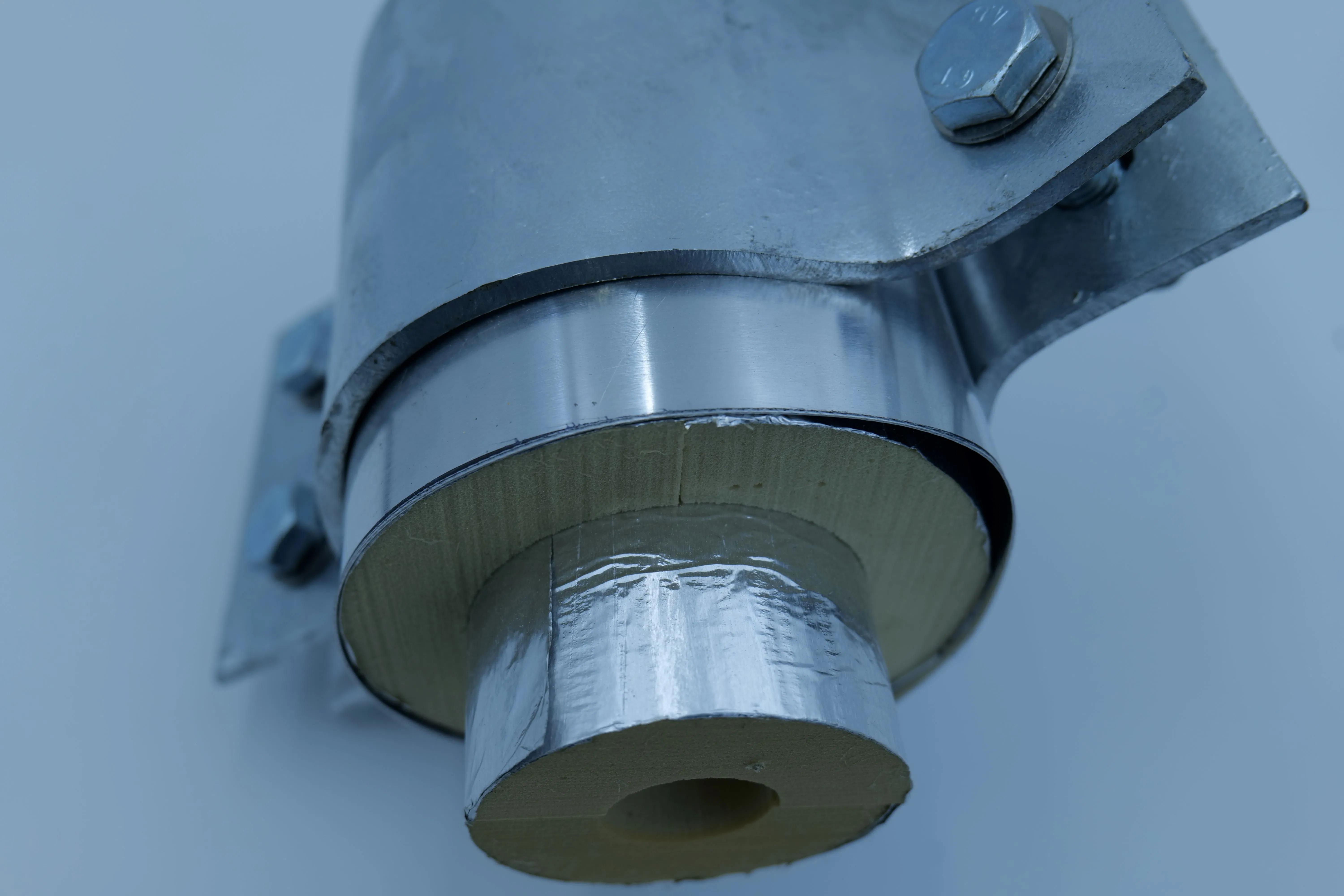

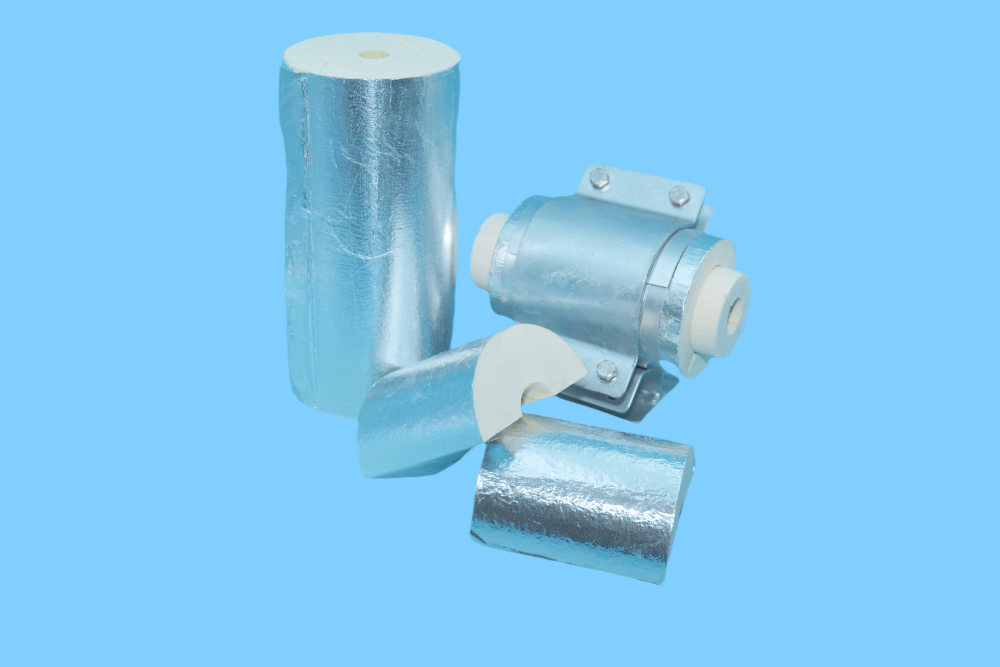

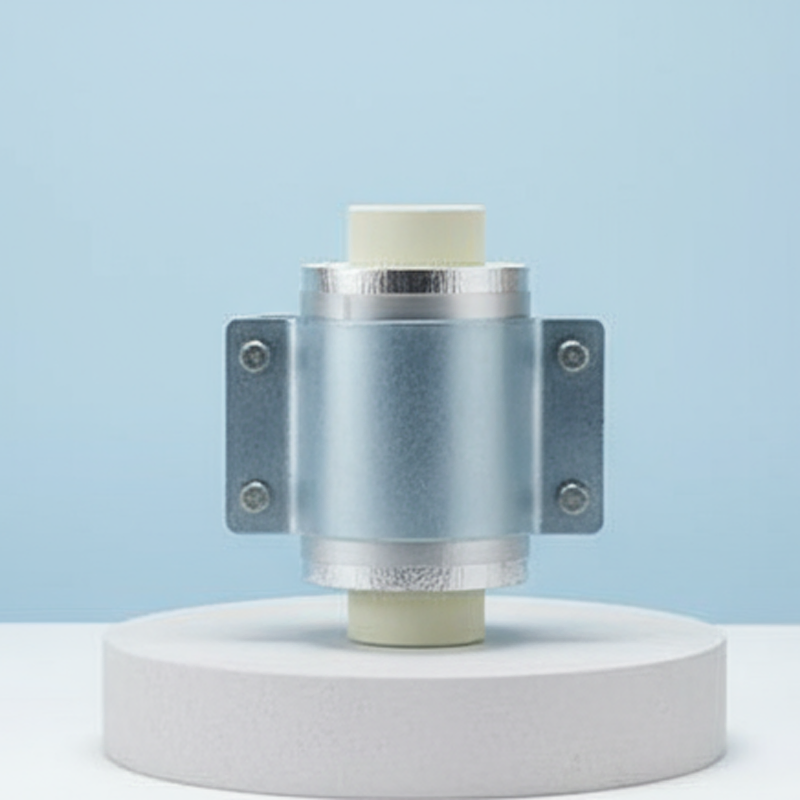

Heavy-Duty Rigid Anchor Pipe Support for Thermal Efficiency

1 / 5

Heavy-Duty Rigid Anchor Pipe Support for Thermal Efficiency

Customization:	Available
After-sales Service:	Installation Guide
Highest Working Temperature:	-196℃-120℃

Send Inquiry

Product Description

📊

Basic Information

Model NO.:9220

Material:Polyurethane Foam Board

Temperature:-196°C to 120°C

Density:160-340 Kg/M³

Shape:Rectangle

HS Code:3921139000

⚙️

Technical Specifications

Version	Unit	9160	9220	9320	9340
Density	Kg/m³	160	220	320	340
Thermal Conductivity	W/(m.k)	≤0.036	≤0.040	≤0.050	≤0.048
Water absorption	%	≤2	≤2	≤1.8	≤1.6
Closed cell	%	≥95	≥95	≥95	≥98
Compressive strength	Mpa	≥1.6	≥4	≥6	≥9

📘

Product Description

High-performance cold insulation is typically designed to provide optimal thermal insulation for various low-temperature applications, such as cryogenic pipelines in the petrochemical industry, LNG, and LPG pipelines. We offer innovative concepts and solutions for high-performance cold insulation, suitable for a wide range of pipe support applications in temperatures ranging from -196°C to 120°C.

Our insulation system cold pipe support products feature a specially formulated insulation layer that outperforms other products in key performance indicators, including high mechanical properties, flame retardancy, and thermal conductivity. These products have been thoroughly and successfully tested in real-world environments.

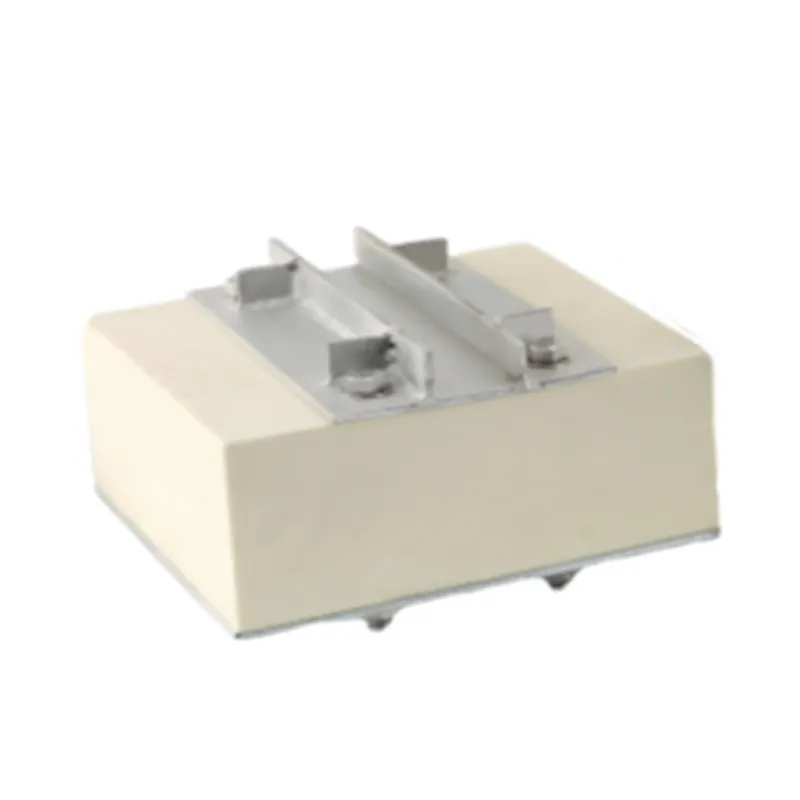

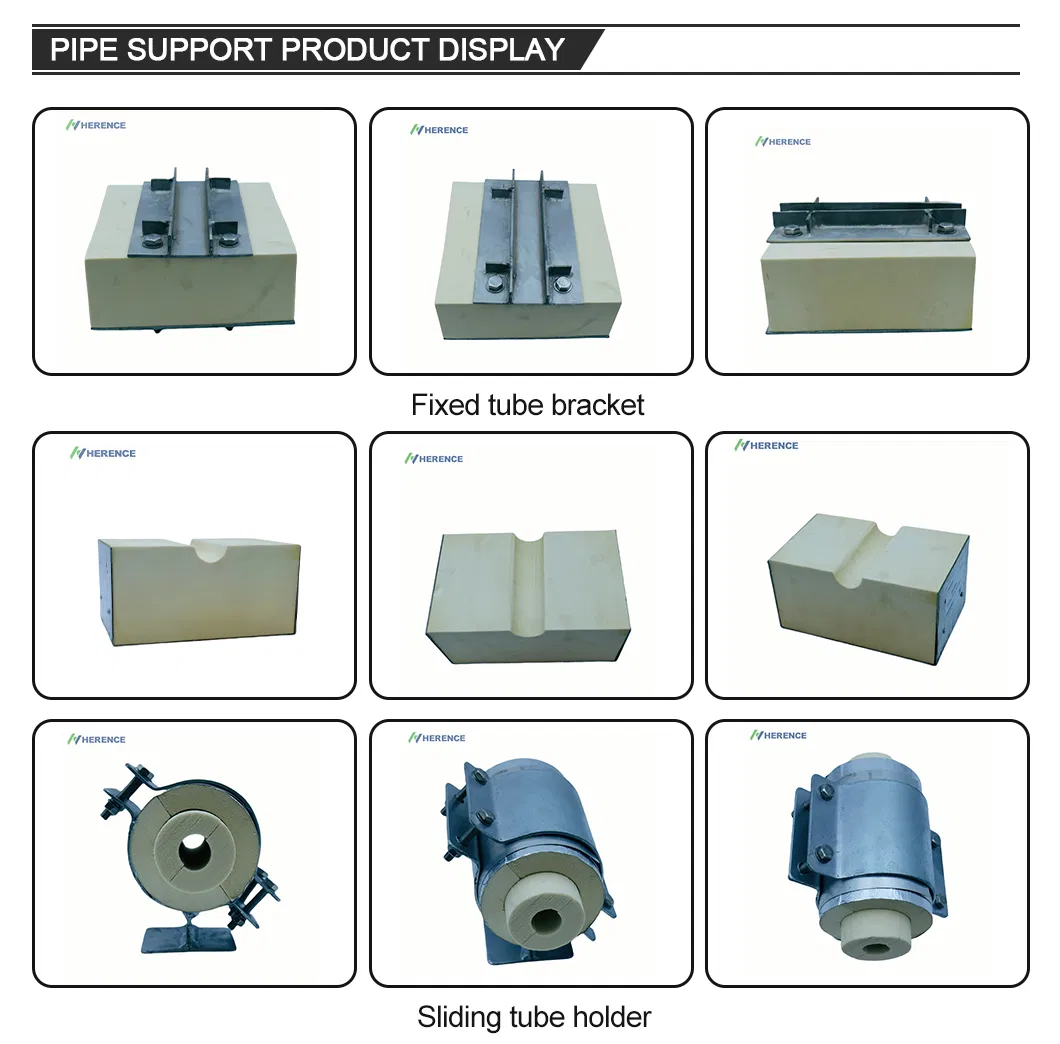

Fixed Tube Bracket

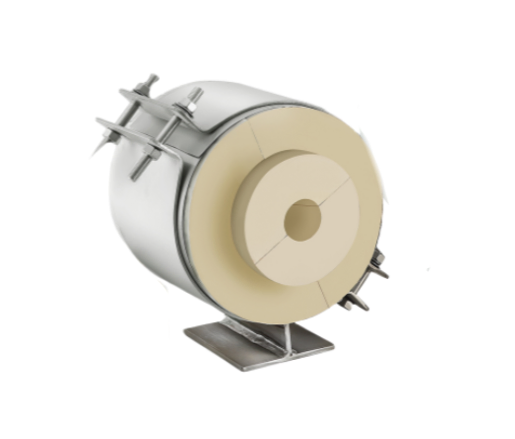

Sliding Tube Holder

🖼️

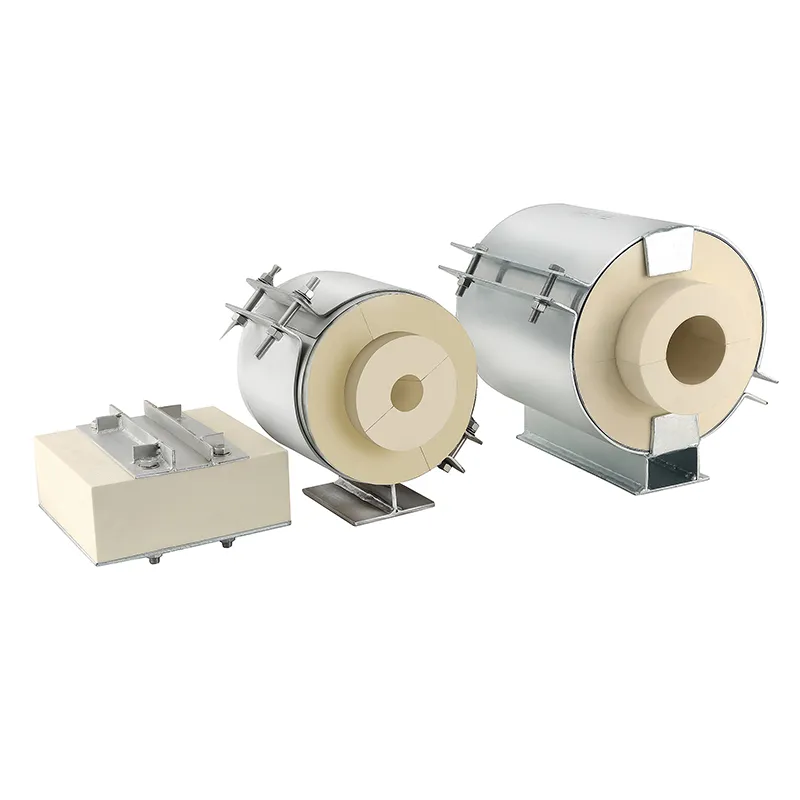

Product Display

🛠️

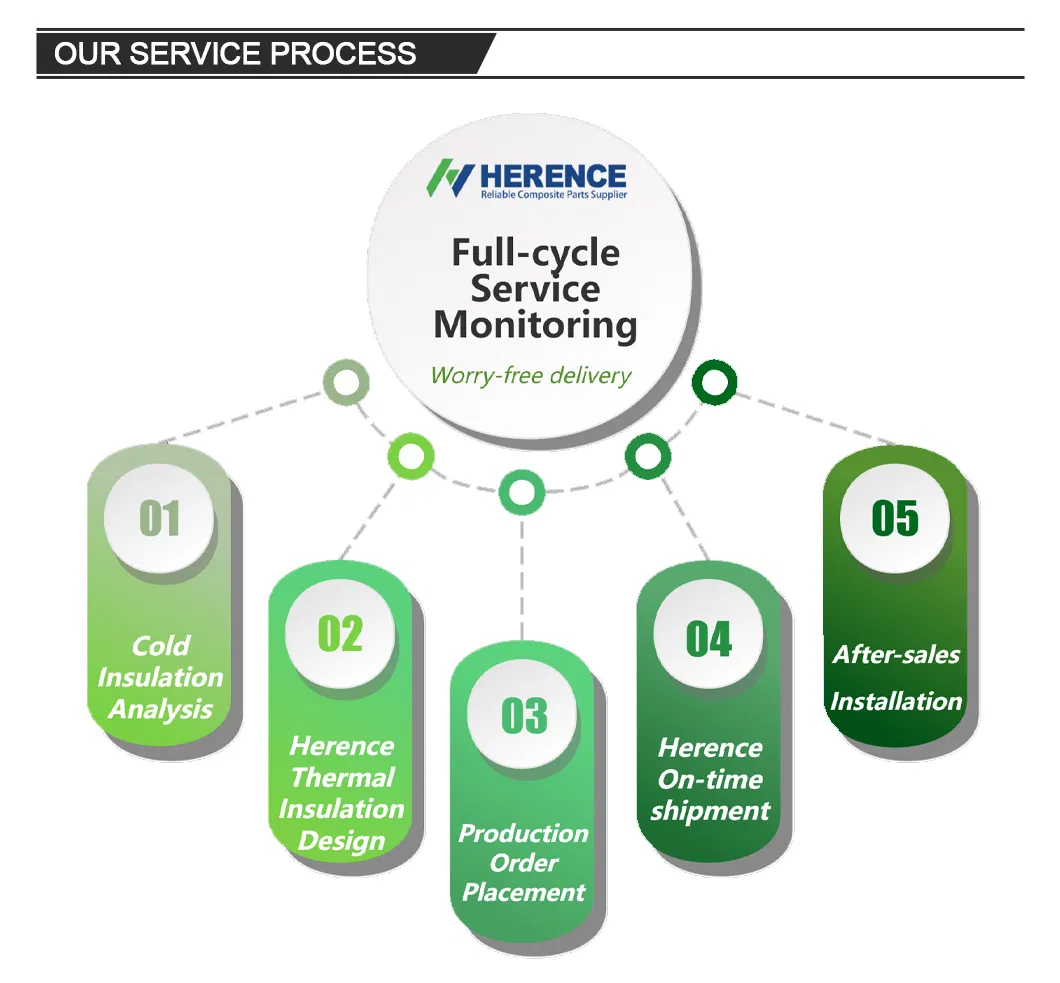

Production Process

🏢

About Our Technology

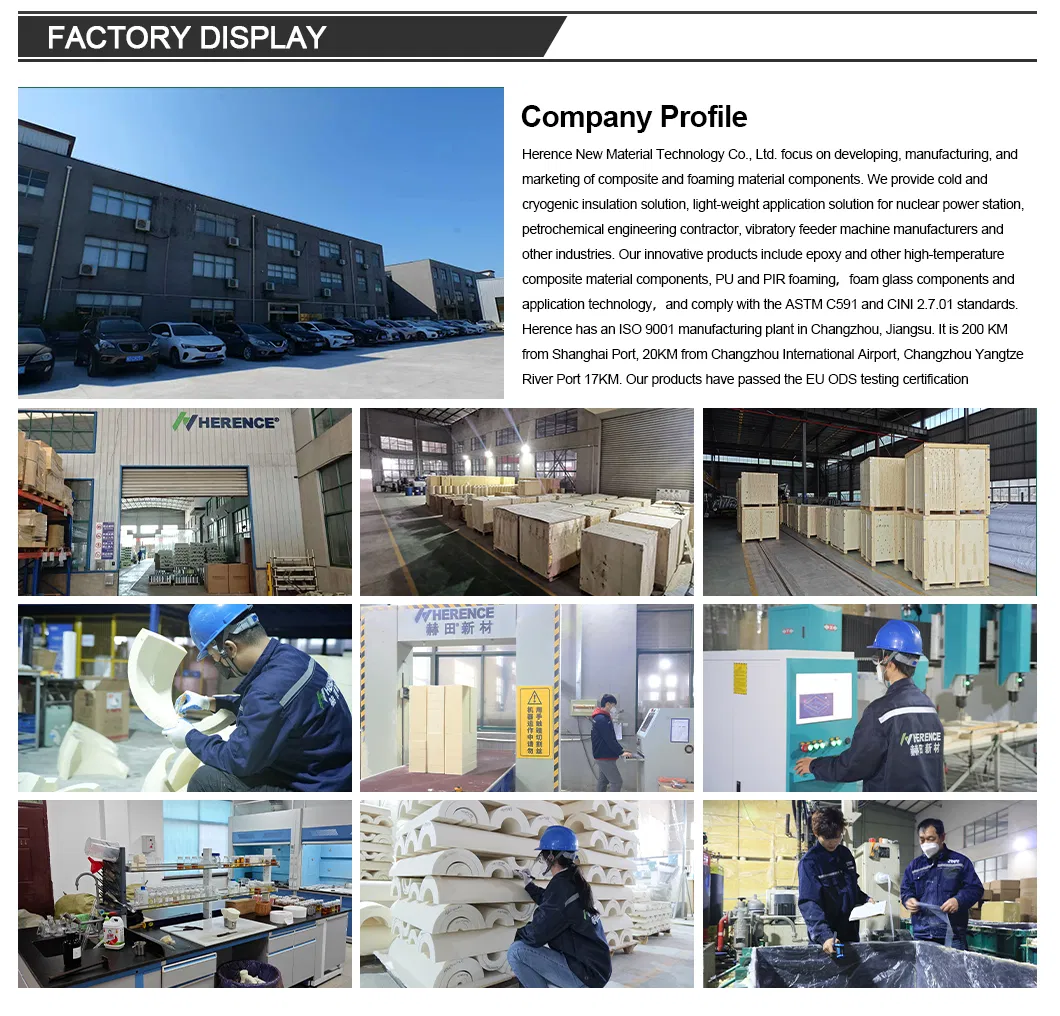

We are an R&D-driven company dedicated to the development, manufacture and global promotion of advanced foamed and composite molded components. We specialize in providing cryogenic and ultra-cryogenic insulation solutions as well as lightweight-application solutions for a wide range of industries.

Our core innovations include PIR rigid foam, HDPIR, epoxy and bismaleimide (BMI) resin-based composite molded parts, foam-glass components, and integrated construction services. All products comply with ASTM C591 and CINI 2.7.01 standards. Over the past years, we have continuously supplied a diverse portfolio of thermal- and cryogenic-insulation materials to project sites worldwide.
