Ampy Pipe
1 / 5

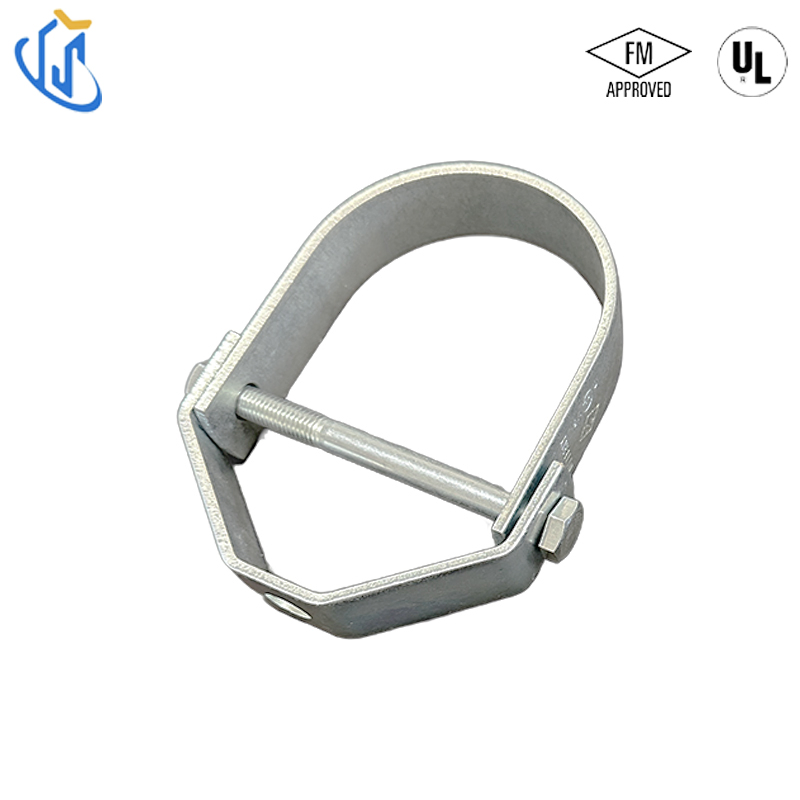

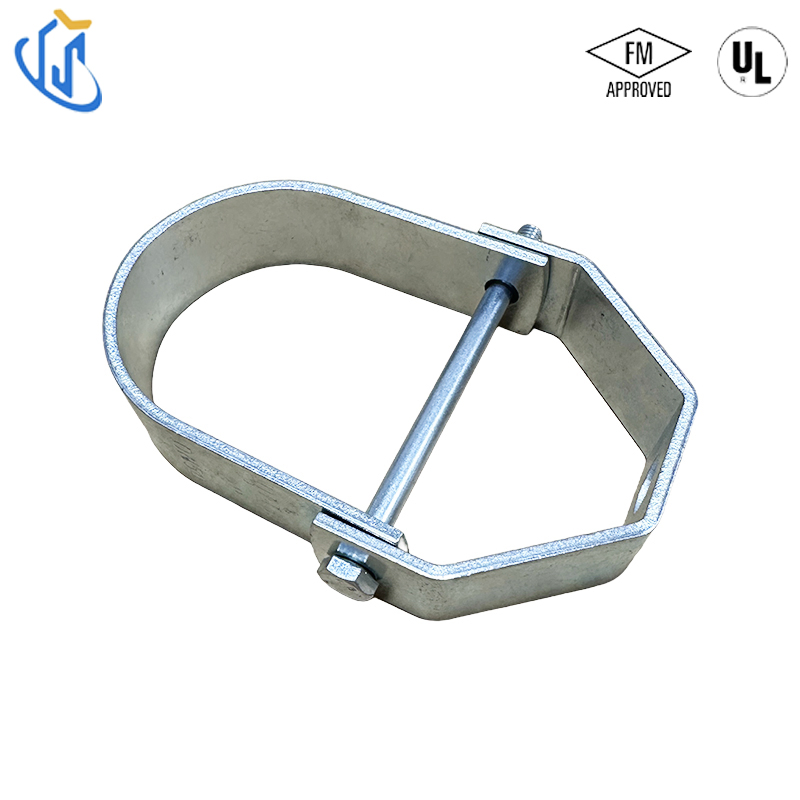

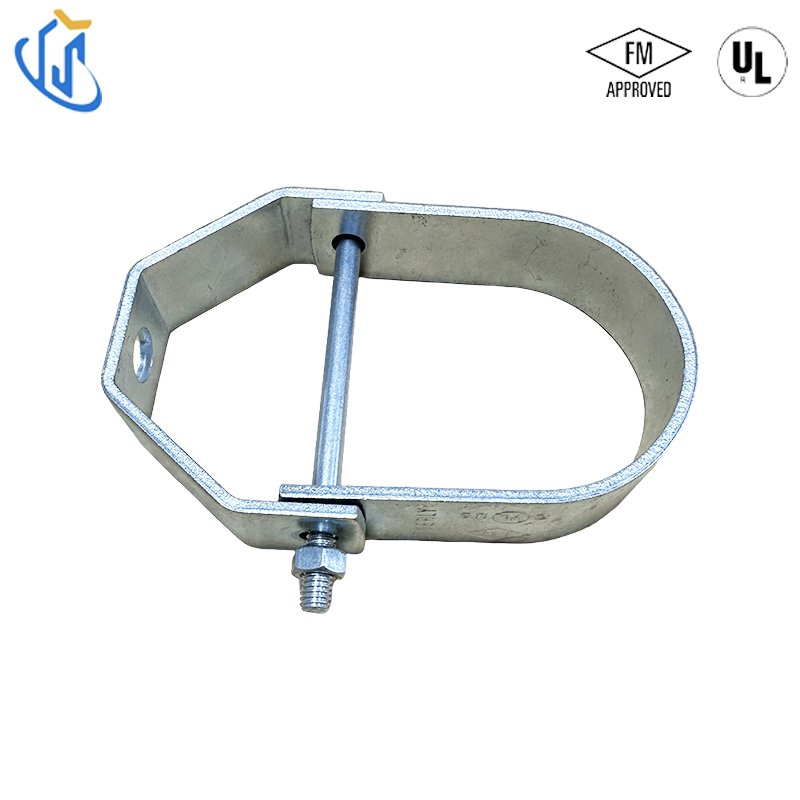

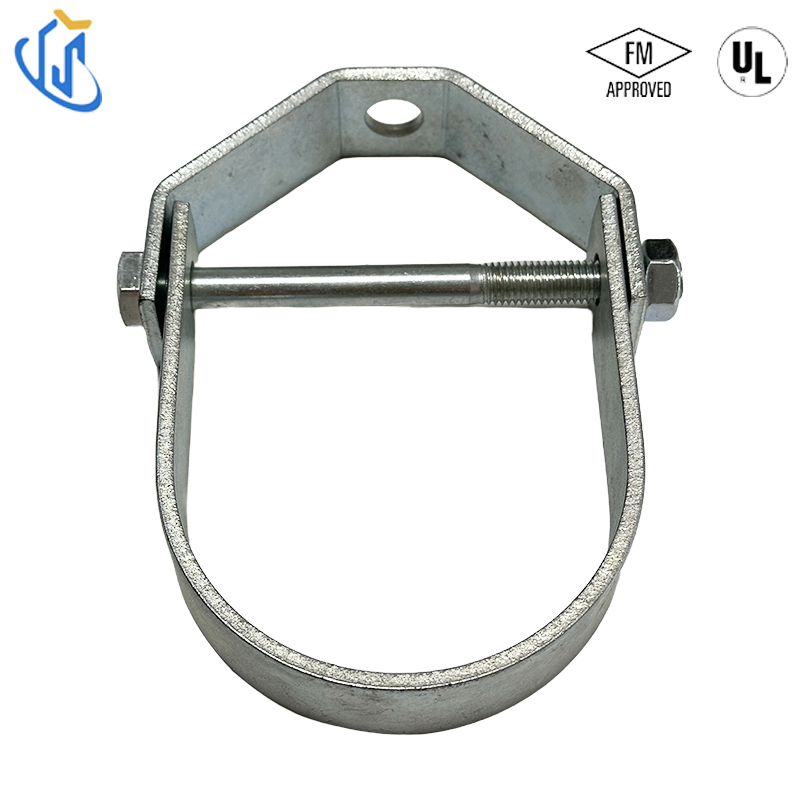

| Model NO. | UTT30 horseshoe shape pipe hanger |
| Connection | Coupling, Screw |
| Material | Alloy/Carbon Steel/Stainless Steel |
| Adaptive Domain | Building/Bridge Piping Support |
| Characteristics | Horseshoe/U Shape Design |
| Certification | FM/UL |
| Feature | Heavy Duty/Seismic Resistant/Corrosion Resistance |
| Specification | 1/2''~12'' |
The product features a horseshoe-like design for easy installation and removal, significantly reducing labor time and effort. Its innovative shape allows it to be simply slid onto the pipe or conduit and securely snapped into place without the need for complex tools or fasteners.

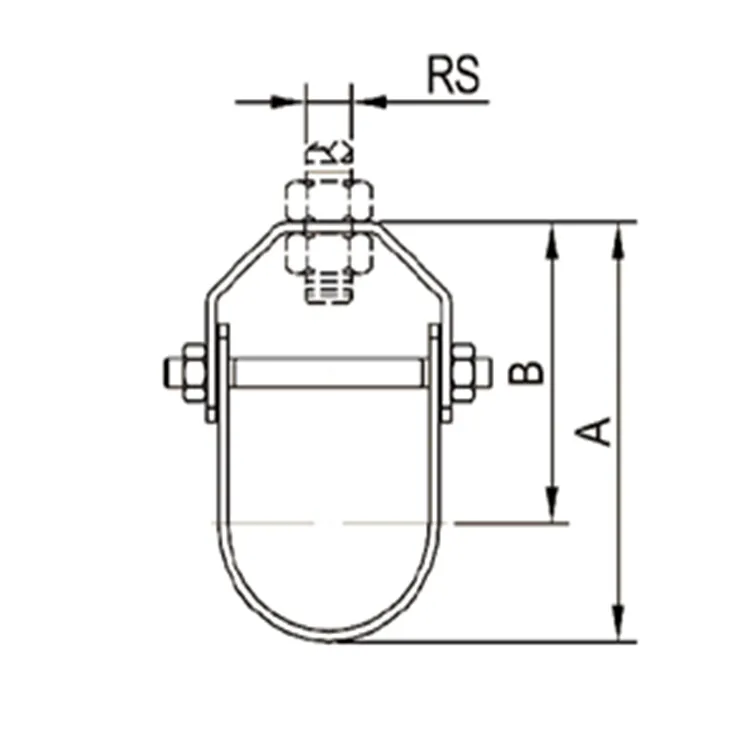

| Size (in/mm) | B (mm) | C (Thread) | D (Pipe OD mm) | T (Thickness mm) | Max Load (lbs) | |
|---|---|---|---|---|---|---|
| 1/2" | DN15 | 39.4 | M6 | 21.3 | 2.5 | 750 |
| 3/4" | DN20 | 39.4 | M6 | 26.7 | 2.5 | 750 |
| 1" | DN25 | 40.6 | M6 | 33.4 | 2.5 | 750 |
| 2" | DN50 | 53.5 | M6 | 60.3 | 2.5 | 750 |
| 4" | DN100 | 83.2 | M12 | 114.3 | 3.0 | 1500 |
| 6" | DN150 | 129.8 | M12 | 168.3 | 5.0 | 2650 |
| 12" | DN300 | 154.0 | M20 | 323.9 | 6.0 | 7900 |

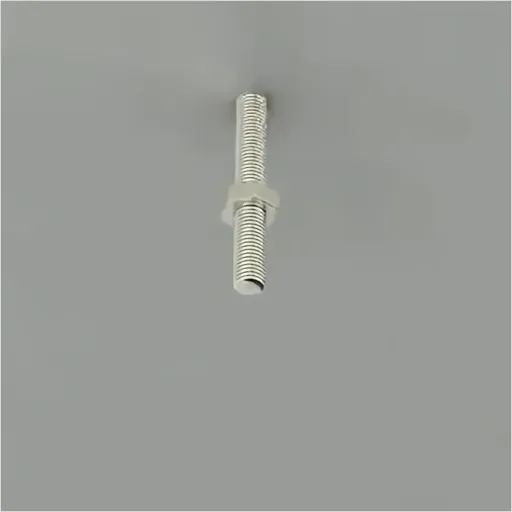

Step 1: Secure the screw to the mounting base surface, then install the nut.

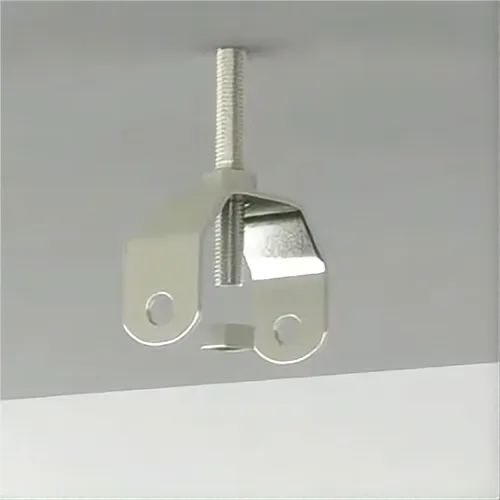

Step 2: Install the main part of the clevis hanger onto the screw.

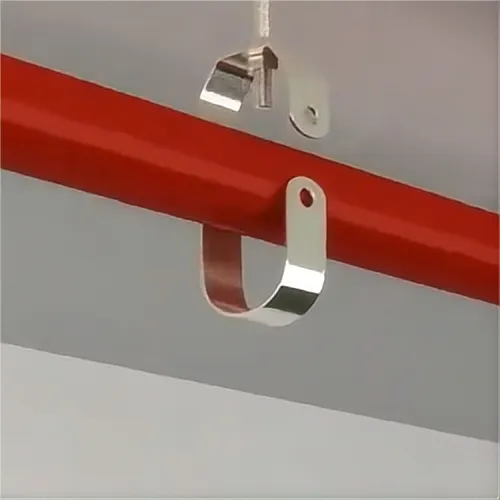

Step 3: Adjust the hanger to align with the pipe and place it into the slot.

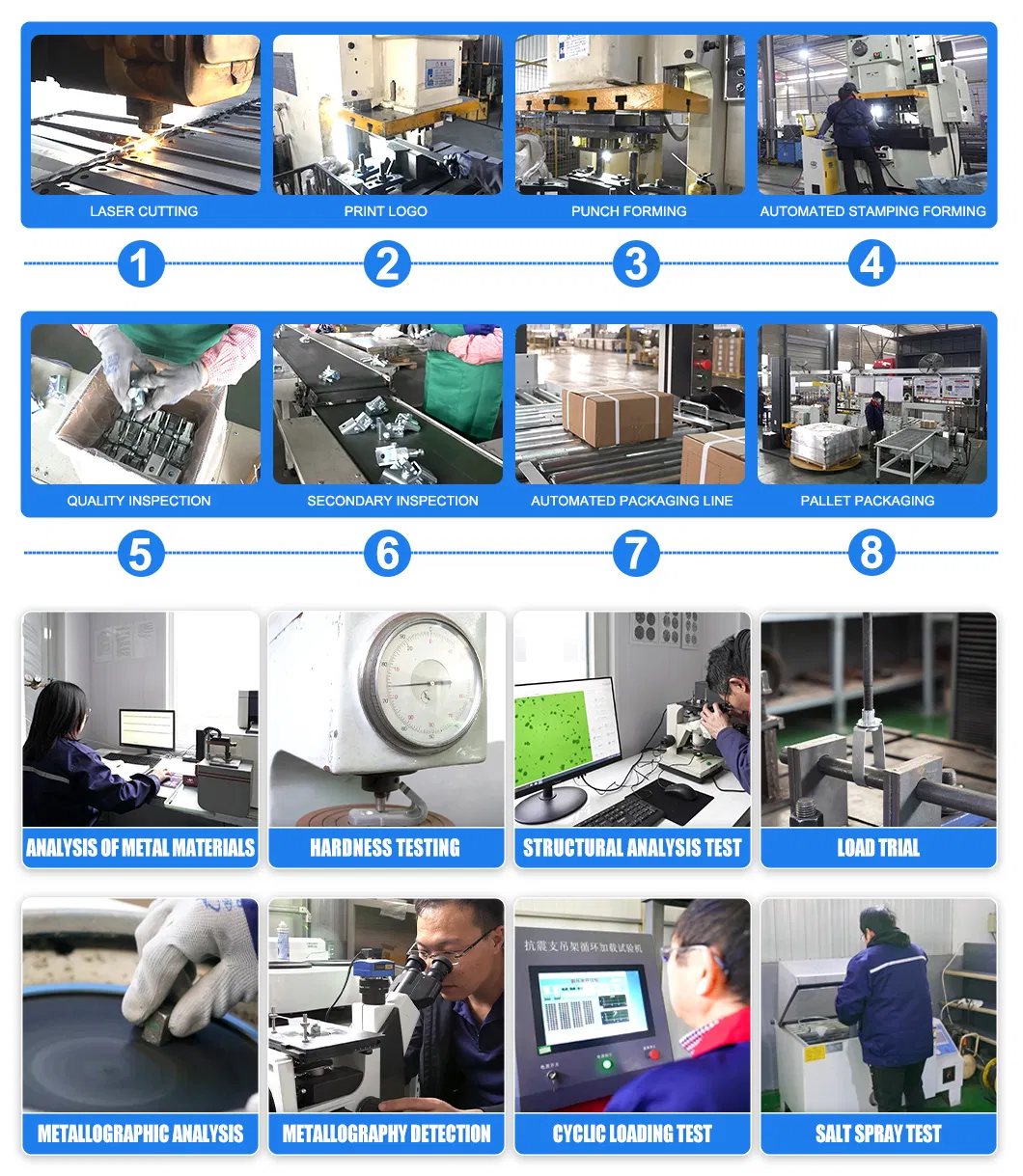

Precision Engineering: Use of 5 advanced laser cutters and dedicated molds ensures accuracy across all hydraulic forming processes.
Efficient Assembly: Skilled teams manage testing and waterproof packaging to ensure safe delivery via fumigated wood pallets.
