Ampy Pipe
1 / 5

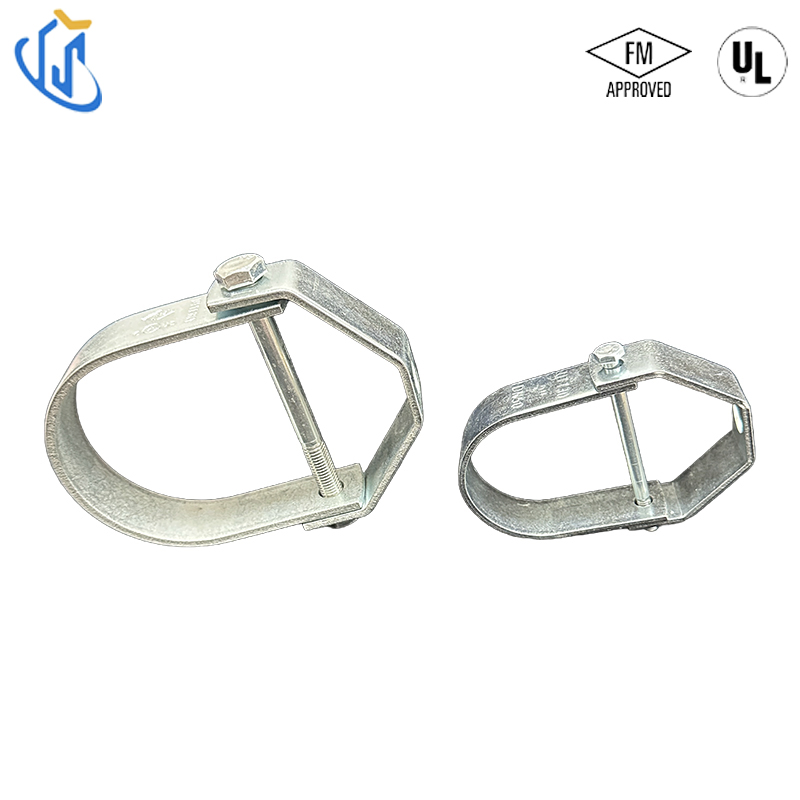

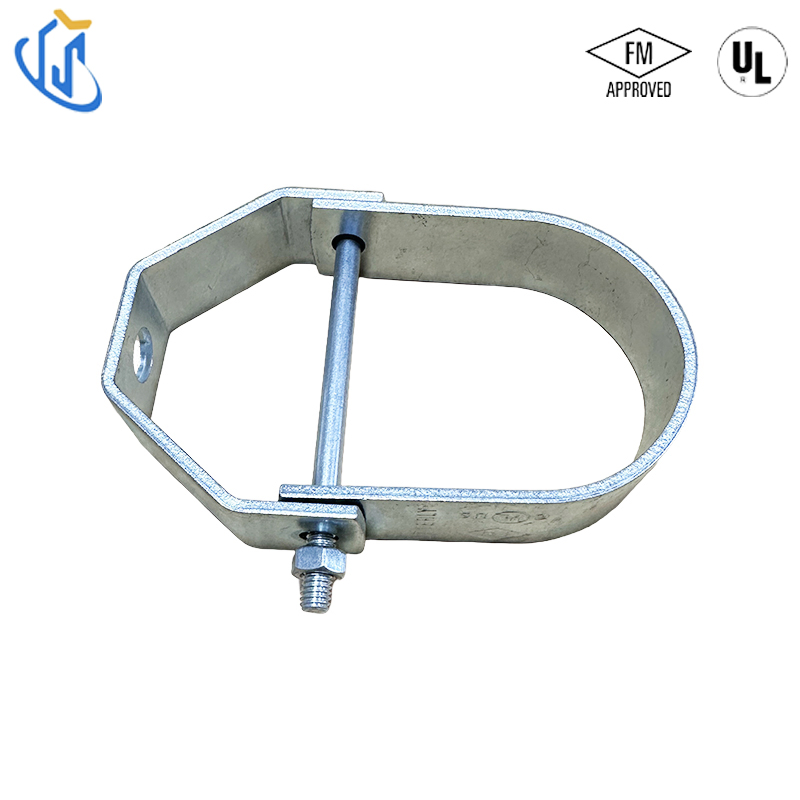

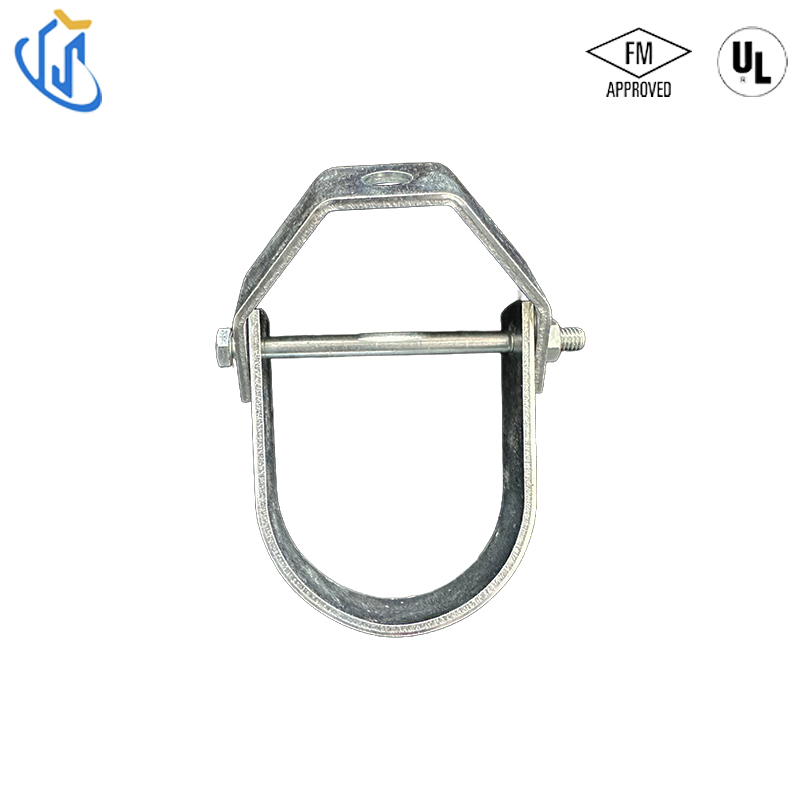

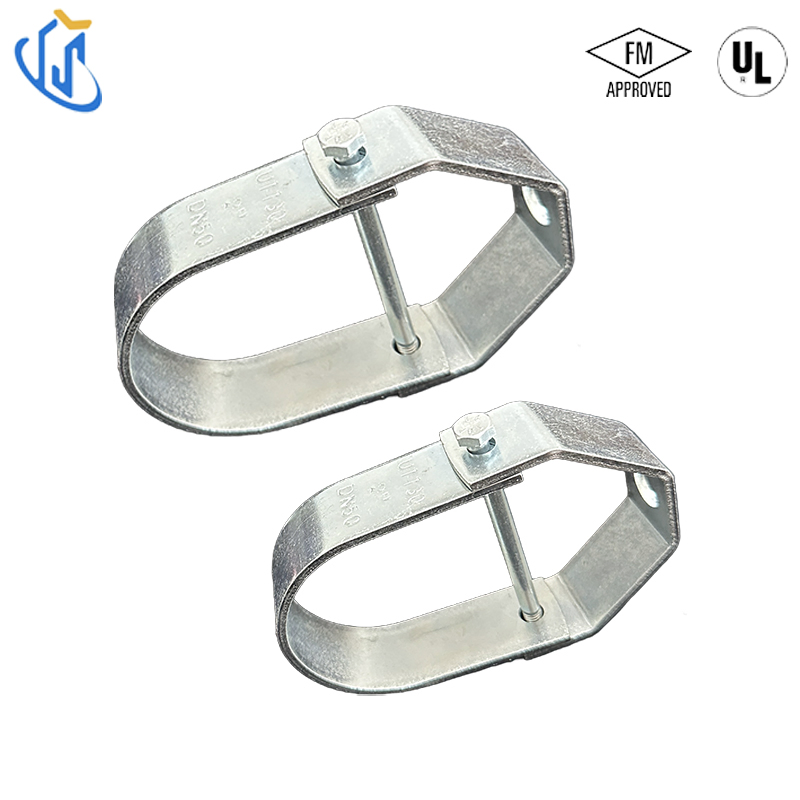

The product features a horseshoe-like design for easy installation and removal, significantly reducing labor time and effort. Its innovative shape allows it to be simply slid onto the pipe or conduit and securely snapped into place without the need for complex tools or fasteners.

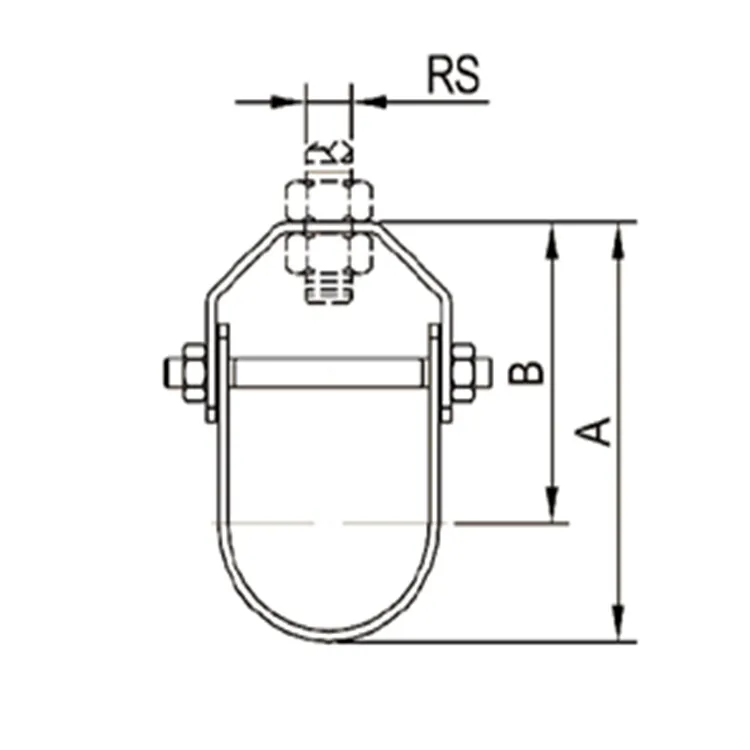

| Size | B | C | D | Max Rec. Load | |||||
|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | in | mm | in | mm | lbs | KN |
| 1/2" | DN15 | 1.57 | 39.4 | 1/4" | M6 | 1/2" | 21.3 | 750 | 3.34 |
| 1" | DN25 | 1.62 | 40.6 | 1/4" | M6 | 1" | 33.4 | 750 | 3.34 |
| 2" | DN50 | 2.13 | 53.5 | 1/4" | M6 | 2" | 60.3 | 750 | 3.34 |
| 4" | DN100 | 3.31 | 83.2 | 1/2" | M12 | 4" | 114.3 | 1500 | 6.67 |
| 8" | DN200 | 5.64 | 141.6 | 5/8" | M16 | 8" | 219.1 | 4050 | 18.02 |
| 12" | DN300 | 6.14 | 154 | 3/4" | M20 | 12" | 323.9 | 7900 | 35.14 |

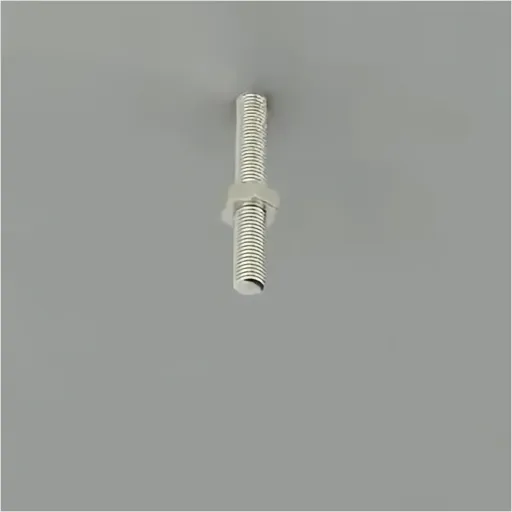

Secure the screw to the mounting base surface (e.g., ceiling), then install the nut onto the screw.

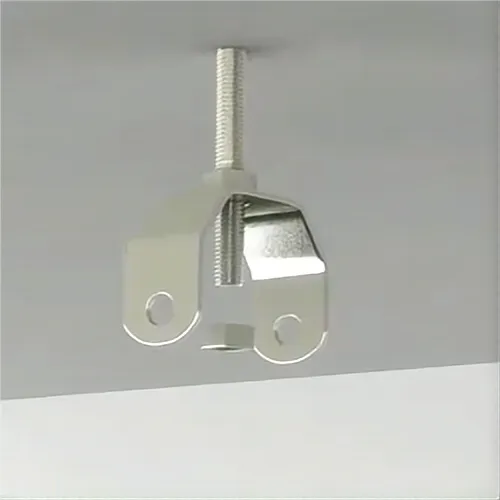

Install the main part of the clevis hanger onto the screw, and initially fix it using the nut.

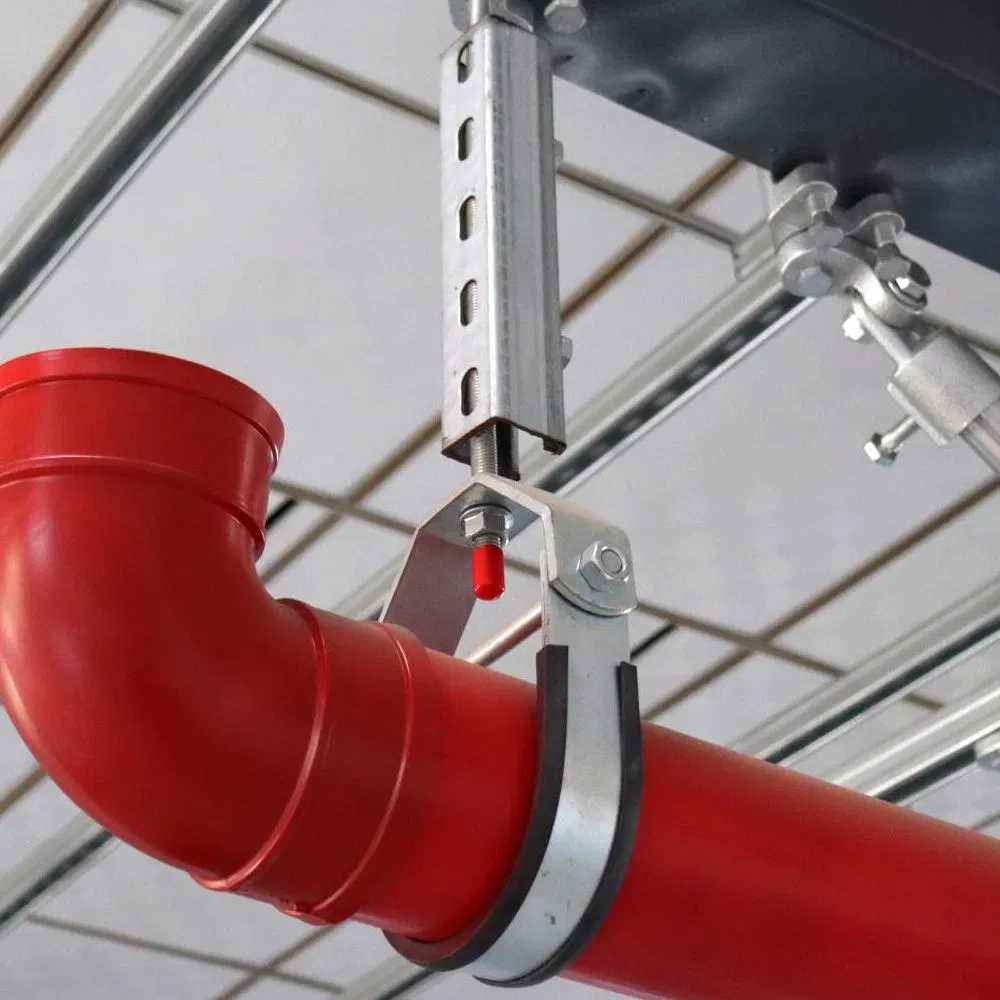

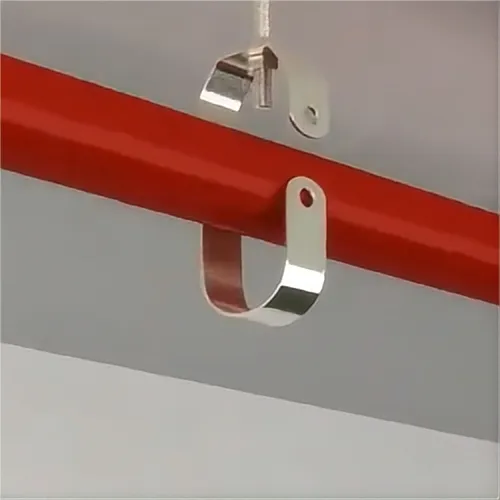

Adjust the position of the hanger to align with the pipe and place the pipe into the slot.

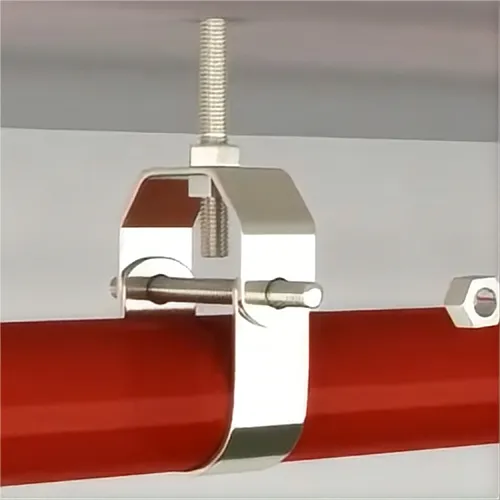

Install U-shaped clamps and fasteners to lock the device, ensuring the hanger is firmly connected.
| Product Name | Seismic support accessories |
|---|---|
| Seismic parts | Base/Connecting frame/Pipe clamp |
| Craftsmanship | Casting, laser forging |
| Certificates | FM, UL, CE Certificate |

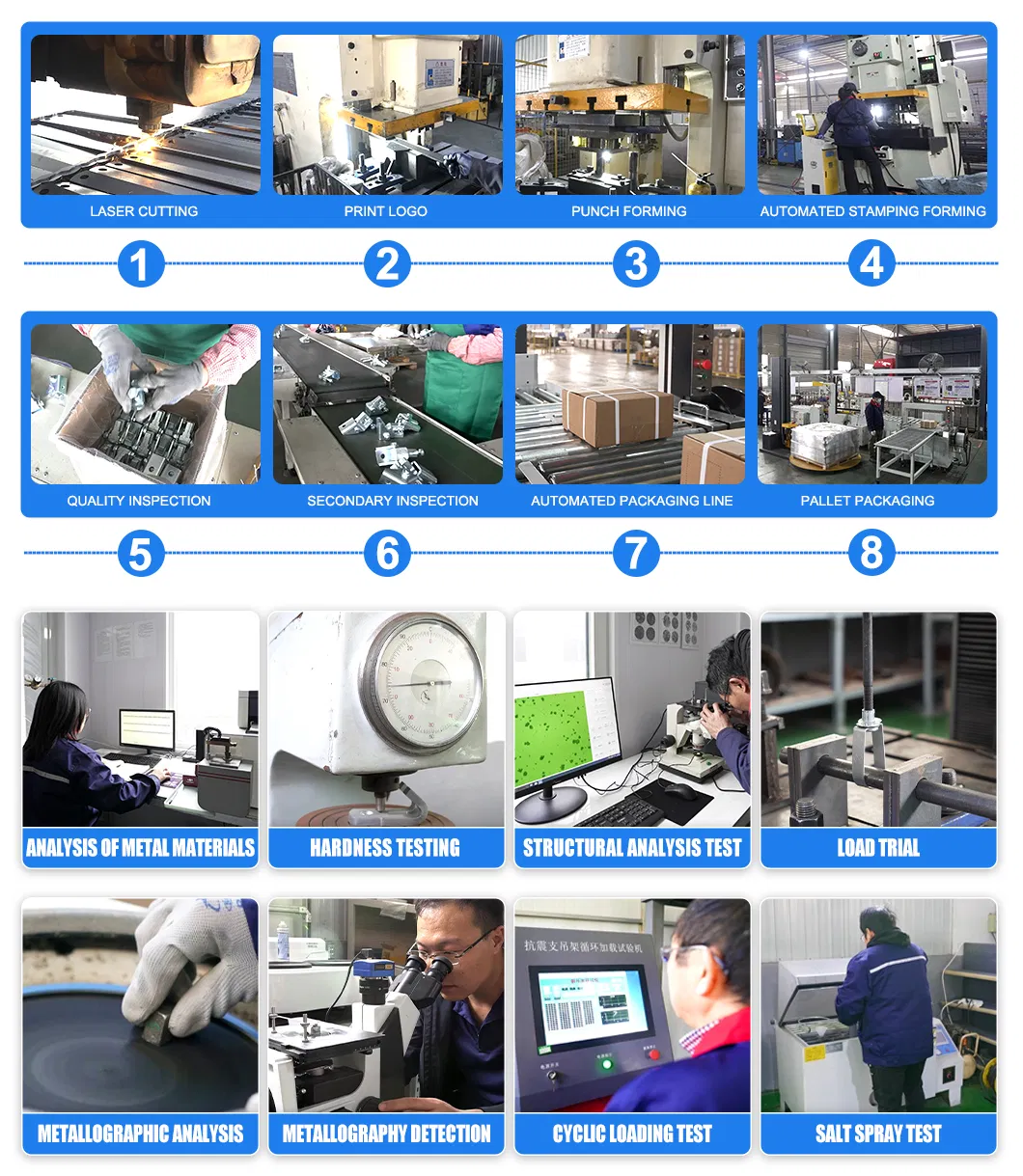

5 advanced laser cutters and high-quality casting equipment ensure smooth surfaces without defects.
Precise dedicated molds and hydraulic presses meet stringent OEM and ODM requirements.
Skilled teams manage testing and packaging using waterproof cartons and fumigated pallets.
