HDPE UPVC PP Pipe Fitting Saddle Clamp/Clamp Saddle Compression Fitting Irrigation System

i

Basic Information

Model NO.

PN16 or PN10

Specification

25-315

Trademark

OEM AVAILABLE

Origin

China

HS Code

3917400000

Capacity

8000ton/Year

D

Product Description

HDPE clamp Saddle, clamp saddle hdpe, hdpe pipe saddle clamp, saddle clamp hdpe, saddle clamp for hdpe pipe, hdpe pipe clamp fittings, HDPE Saddle, hdpe pipe saddle, PP saddle

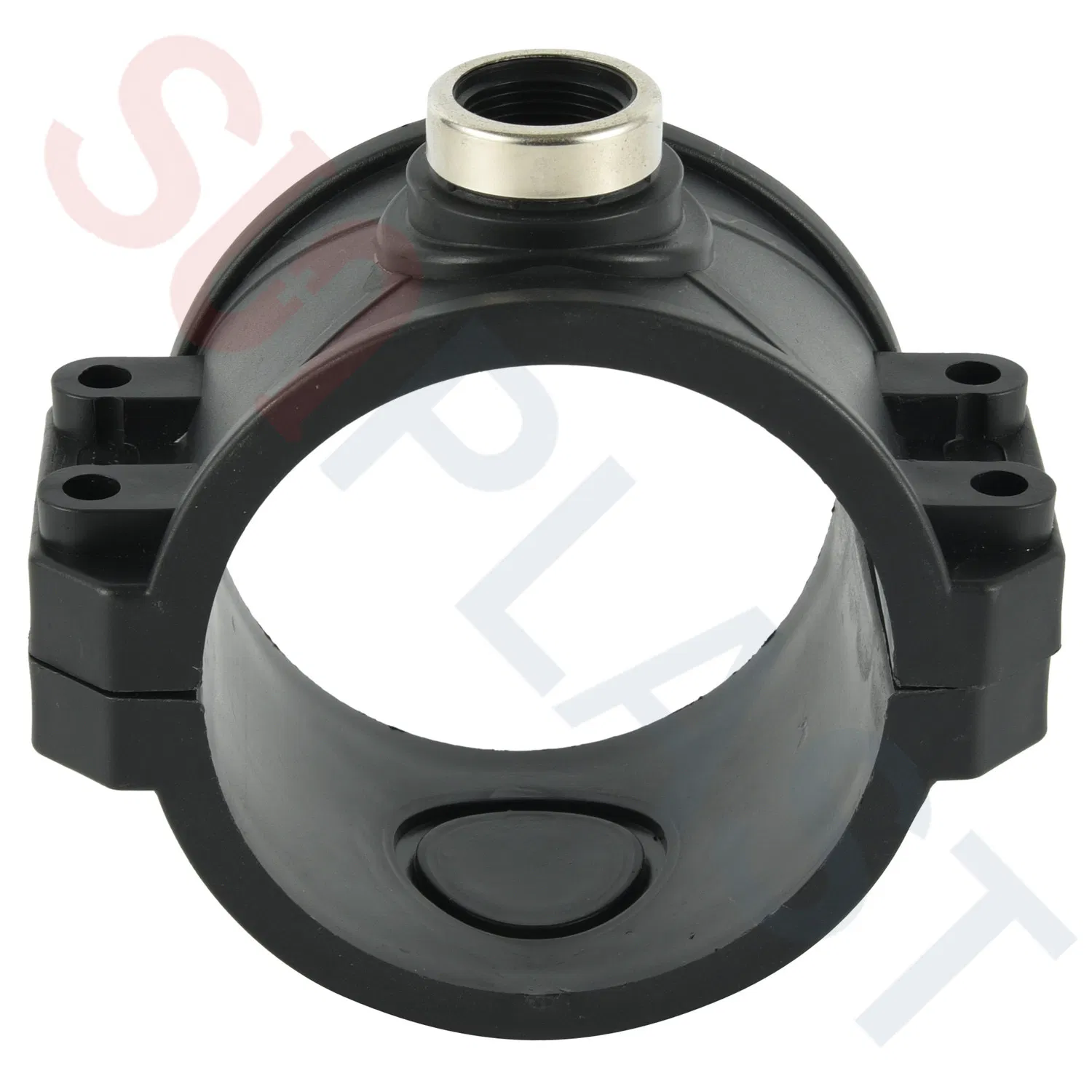

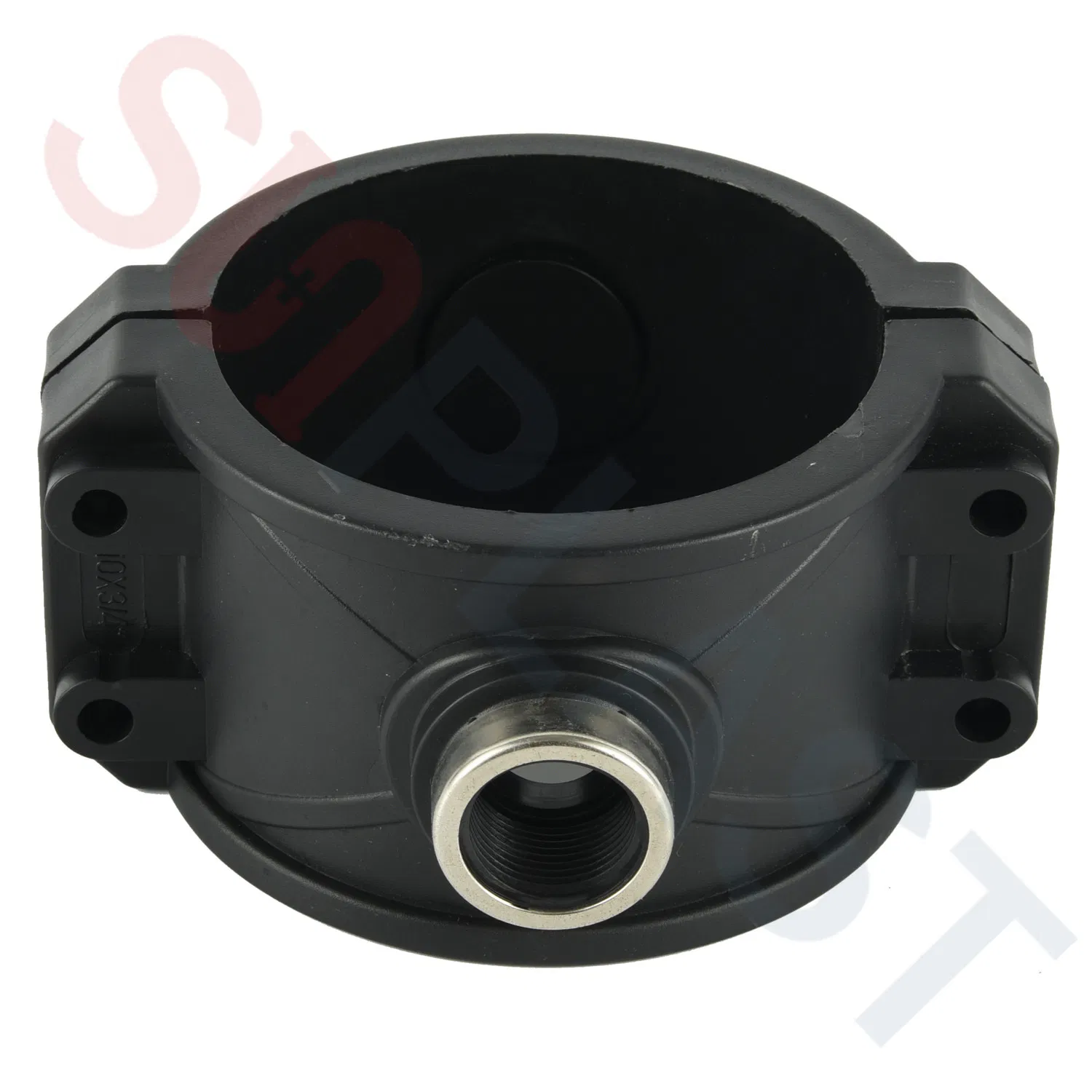

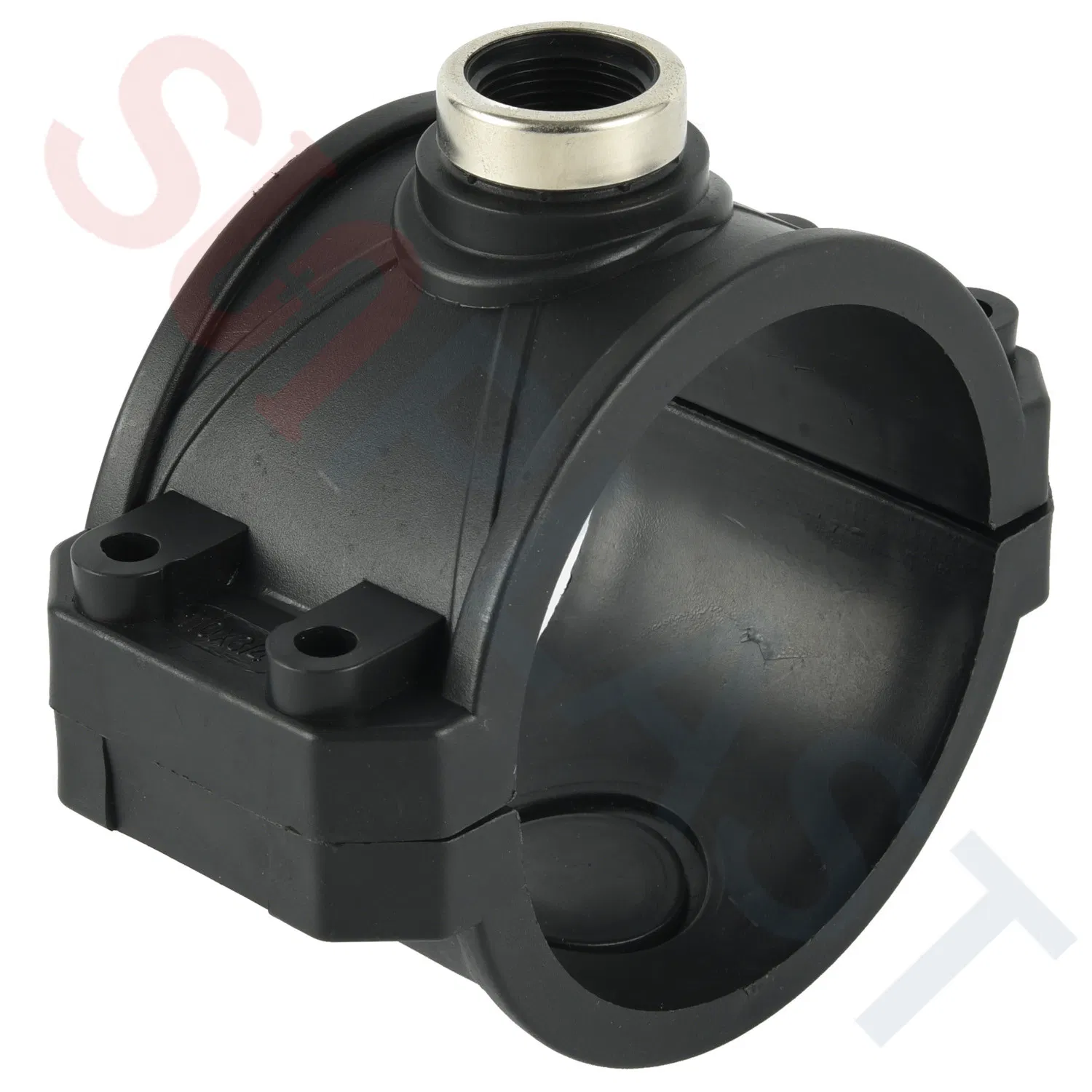

An HDPE clamp saddle fitting is used for joining an outlet into an existing pipeline. The fittings "tap into" the pipe, without requiring a cut and join in the main pipe.

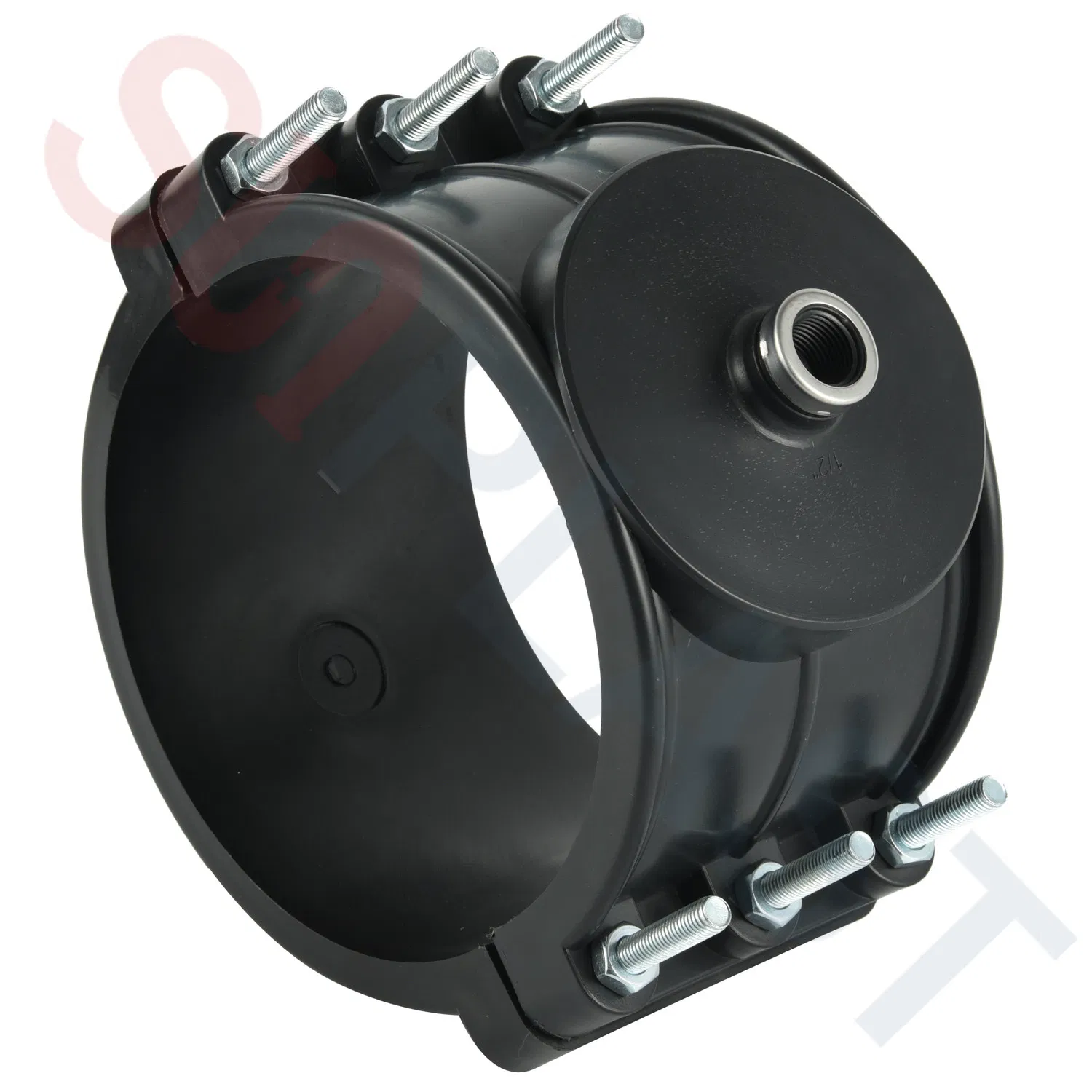

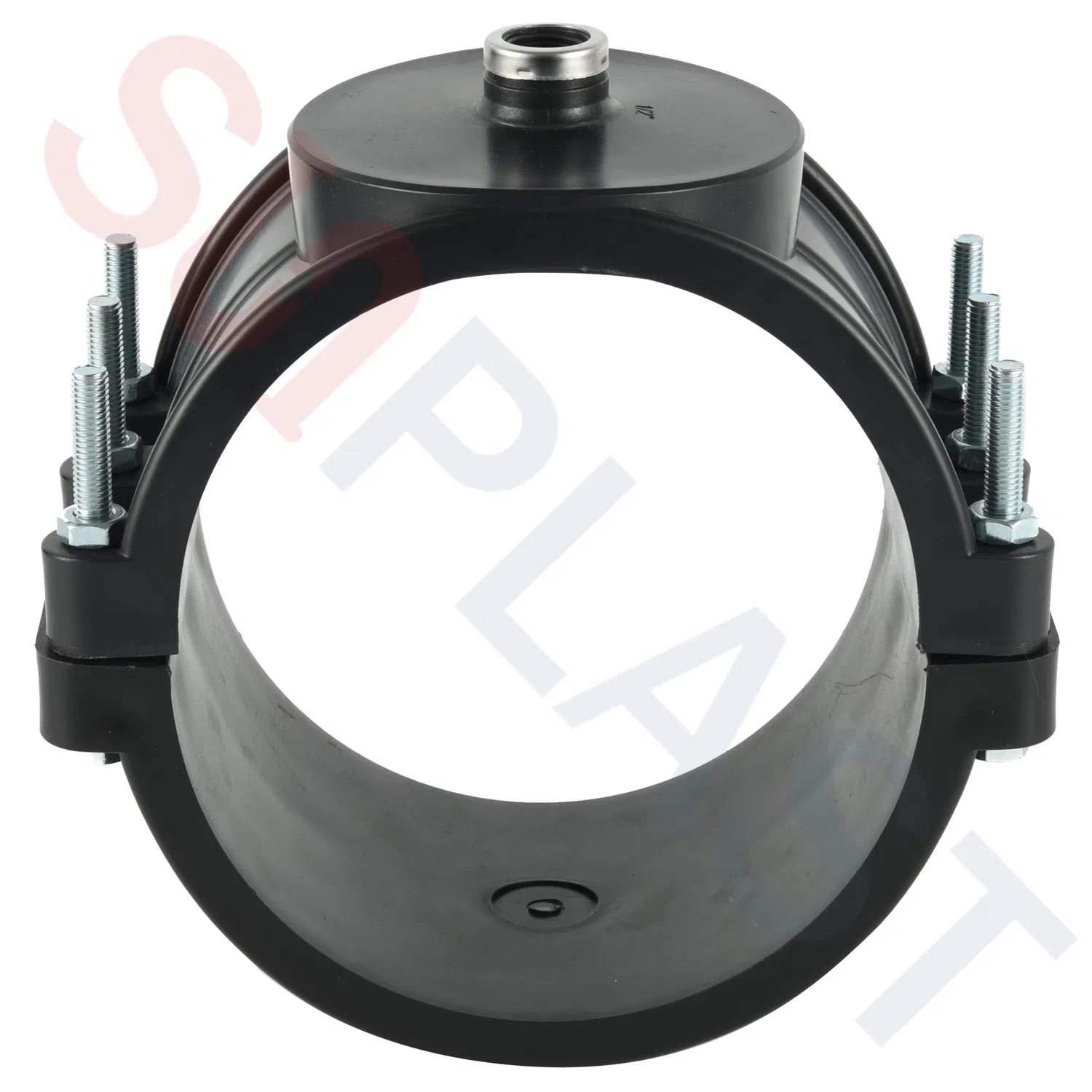

HDPE pipe saddle clamp, mainly used for water pipes, come in two parts, with four bolts joining them around the pipeline (same diameter with two bolts). The HDPE clamp saddle fittings are the ultimate solution for connection of HDPE main pipelines to branch pipelines for cold water. Made from high quality PP-B or PVC material, come with an EPDM rubber seal, the HDPE pipe clamp saddle fittings have a durable and leak free join, and they are resistant to etching by numerous chemical substances, and to UV rays, and are suitable for outdoor use.

Our HDPE clamp saddle fittings are available to join onto 25mm to 315mm pipelines, with pressures up to 16 bars, the branch outlets come from 1/2" to 6" BSP female thread, and provided with 2, 4 or 6 bolts according to the diameters and metal reinforcing ring on the threaded branches.

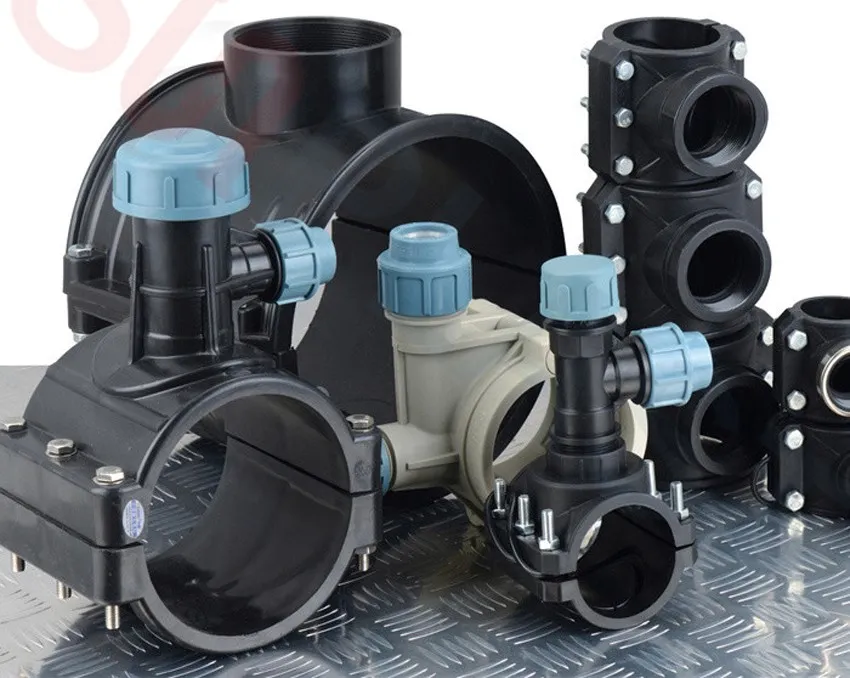

HDPE pipe clamp saddle fittings are regularly assembled with PP compression male thread fittings, like PP compression male thread adaptor/elbow/tee, or HDPE Ferrule Tee.

S

Technical Specifications

Product Details	Specifications
Specification	251/2" to 3156"
Pressure ratings	PN16 or PN10
Material	Saddle body in PP black co-polymer, zinc galvanized steel bolts, NBR O-ring, galvanized/SS reinforcing ring
Color	Black
Standards	ISO 3501/3503/3458/3459, DIN 8072/8074, ISO 7
Packing	Cartons
Warranty	1 Year (Normal use)

B

Benefits of HDPE Clamp Saddle

Fast assemble & disassemble: Simple installation without welding or special tools, ideal for irrigation systems.
Lower installation costs: Mechanical connection method reduces labor requirements and time.
Perfect watertight: Unique design with NBR "O" rings ensures long-term leak-proof performance.
UV Resistant: All fittings are stabilized for outdoor use and exposure to sunshine.
Broad Compatibility: Suitable for PE80 and PE100 pipes with diverse branch outlet options.

?

Frequently Asked Questions

1. What is an HDPE Clamp Saddle used for? They are used to create quick single branch outlets from an existing pipeline without cutting the main pipe. They are suitable for nominal pressures up to 16 bars.

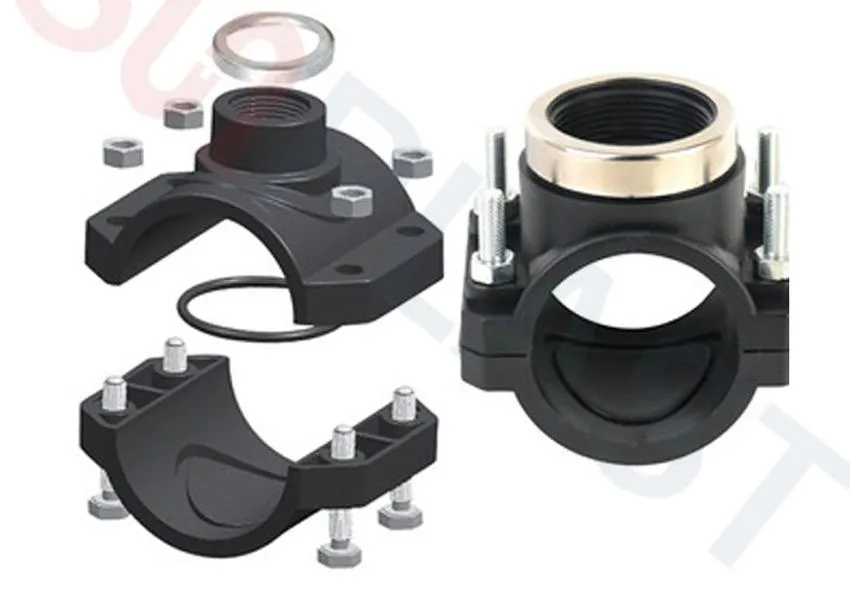

2. How do I install a PP clamp saddle? Clean the pipe surface, place the O-ring in its seat, position the upper and lower parts of the saddle, tighten the bolts diagonally, and drill the branch hole.

3. Are these saddles resistant to UV rays? Yes, all clamp saddle fittings are manufactured to be UV-resistant and are suitable for long-term outdoor use.

4. What is the difference between a clamp saddle and an electrofusion saddle? Clamp saddles require no welding or special tools and are easy to disassemble. Electrofusion saddles require a welding machine and are more permanent, robust joints.

5. What sizes are available for these fittings? We offer a wide range from 25mm to 315mm diameter for the main pipe, with threaded outlets ranging from 1/2" to 6".

6. Does the saddle prevent rotation on the pipe? Yes, our innovative design includes a spiked insert system that keeps the clamp saddle blocked over time, preventing it from rotating or sliding.
