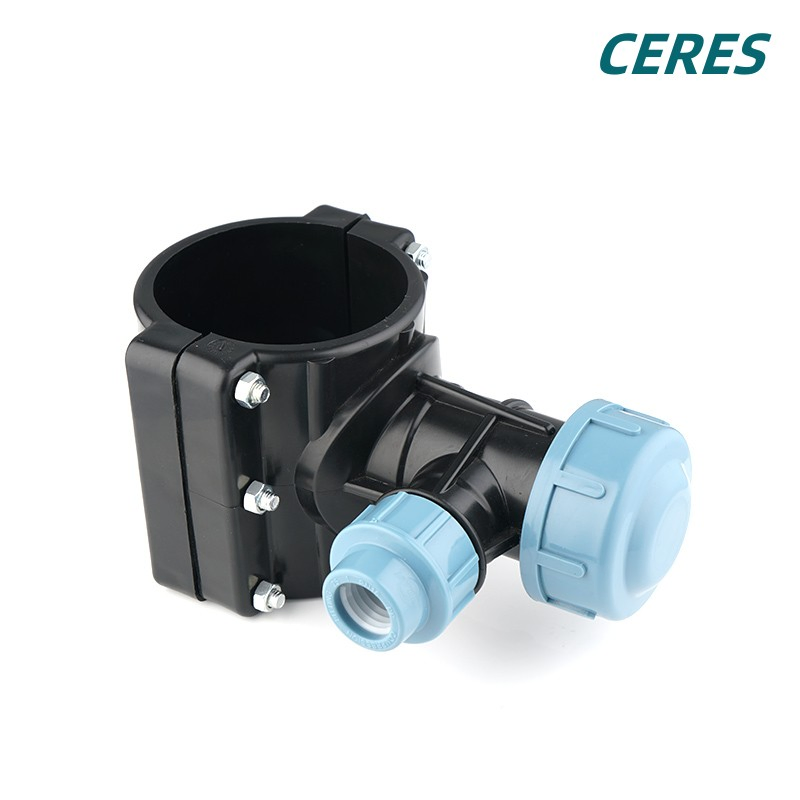

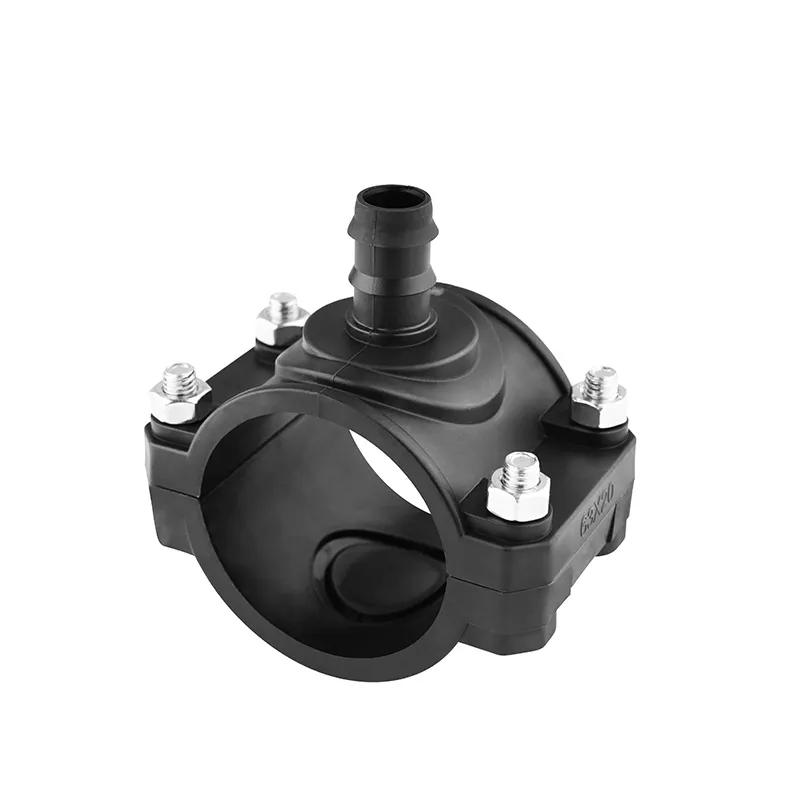

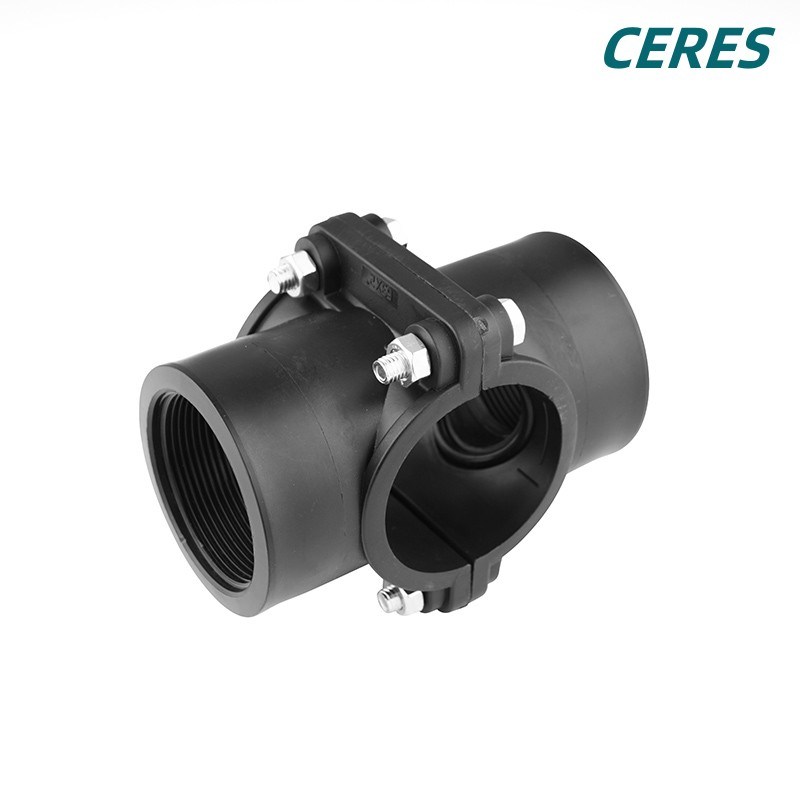

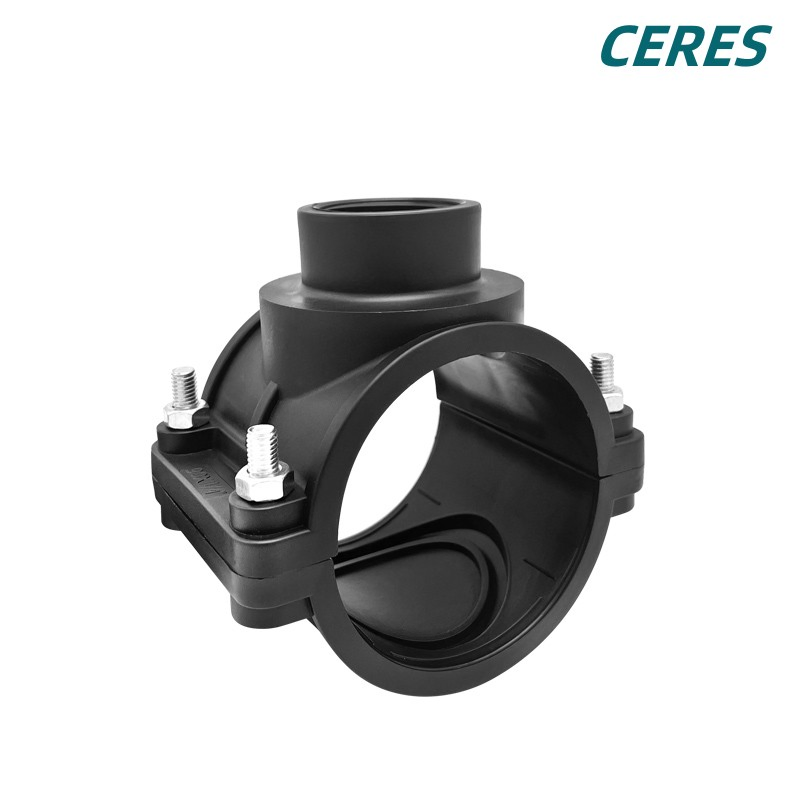

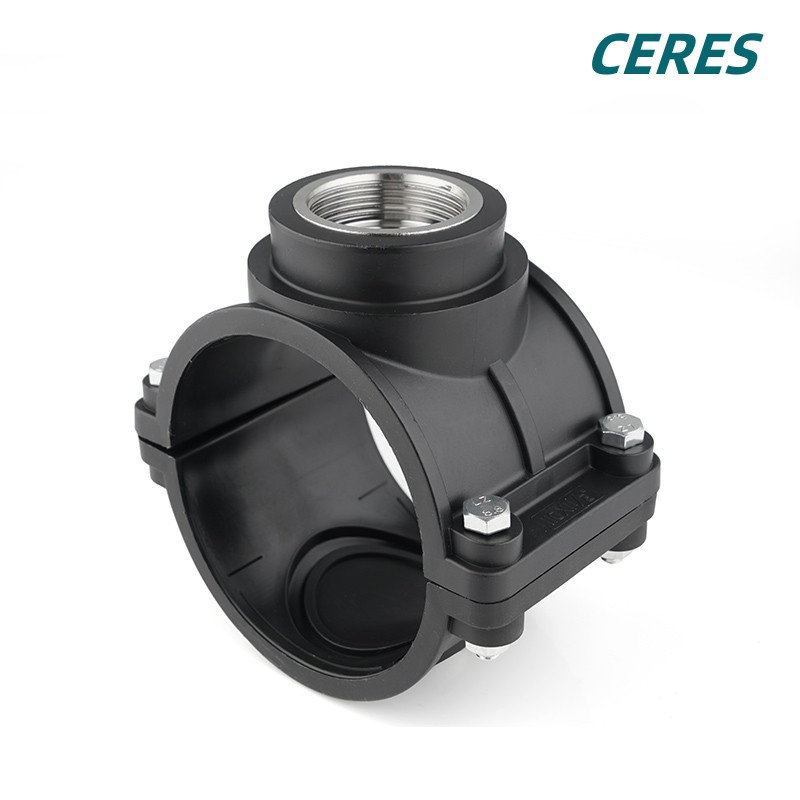

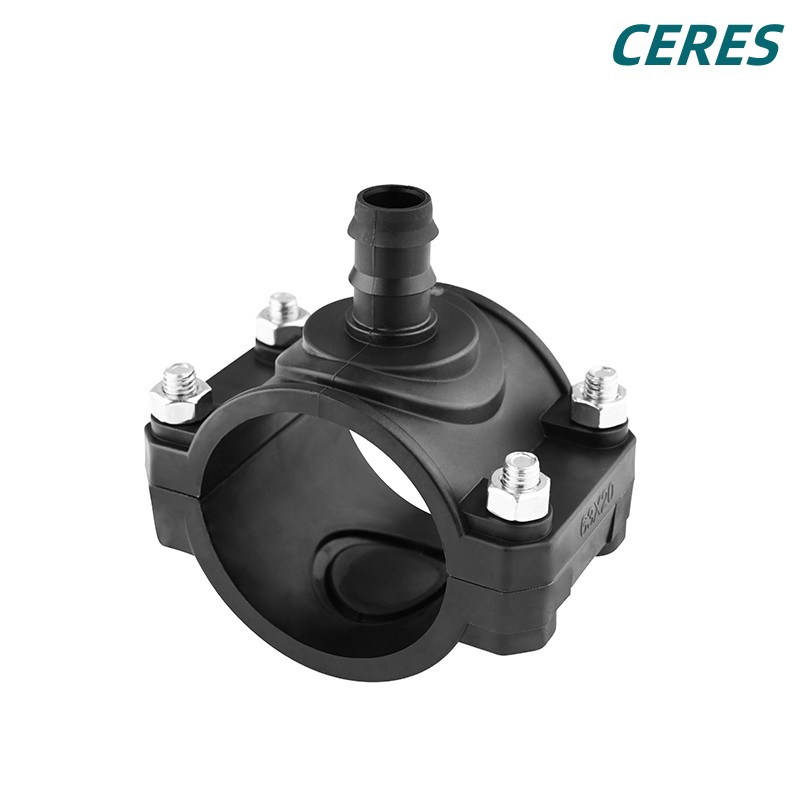

HDPE PP Compression Fitting Saddle for drip irrigation system
The saddle covers nearly 300 specifications and can effectively replace reducers. Using internal and external wire tees ensures low costs, and the main pipeline does not need to be cut off, allowing for quick repair. The entire series is suitable for various environments and is highly reliable.

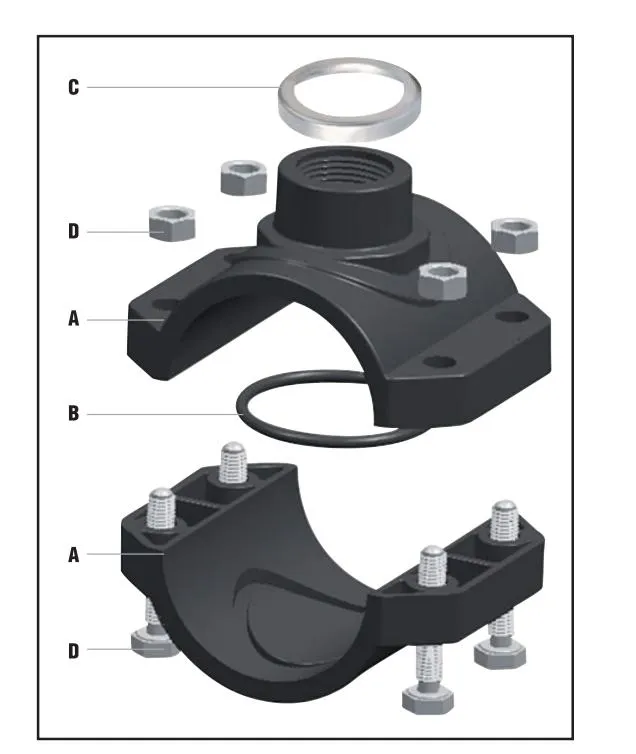

| Parts | Material |
|---|---|
| Body and cover (A) | Black mastered polypropylene copolymer, high UV stabilization |
| Gasket (B) | Acrylonitrile elastomeric Rubber (NBR) |
| Reinforcing ring (C) | Metal ring for female threaded from 1/2'' to 2'' |
| Bolts (D) | Chromium-plated galvanized steel screws and nuts |
Working pressure: Maximum working pressure from 4 to 16 bar, at temperature of 20 ºC.
Sanitary Prescriptions: Fit for conveying food fluids, conforming to international standards.
Reference Standards: Pipes (UNI7990, DIN8074), Threads (UNI ISO7/1, ANSI ASME B1-20.1), International (ISO 13460).
| Description | Code | Size | Weight (g/pc) | PCS/BAG | PCS/CTN | Bolt & Nuts |
|---|---|---|---|---|---|---|
| Irrigation Saddle | JFC-049S | 32*16 | 60 | 15 | 220 | 2 |
| Irrigation Saddle | JFC-049S | 32*20 | 59 | 15 | 220 | 2 |
| Irrigation Saddle | JFC-049S | 40*20 | 98 | 8 | 200 | 2 |
| Irrigation Saddle | JFC-049S | 50*25 | 170 | 6 | 126 | 4 |
| Irrigation Saddle | JFC-049S | 63*25 | 190 | 5 | 100 | 4 |
We are a professional facility agriculture and water-saving irrigation installation and design provider. Our team consists of chief engineers, project managers, and experienced technicians specializing in smart digital agriculture and agricultural Internet of Things projects.

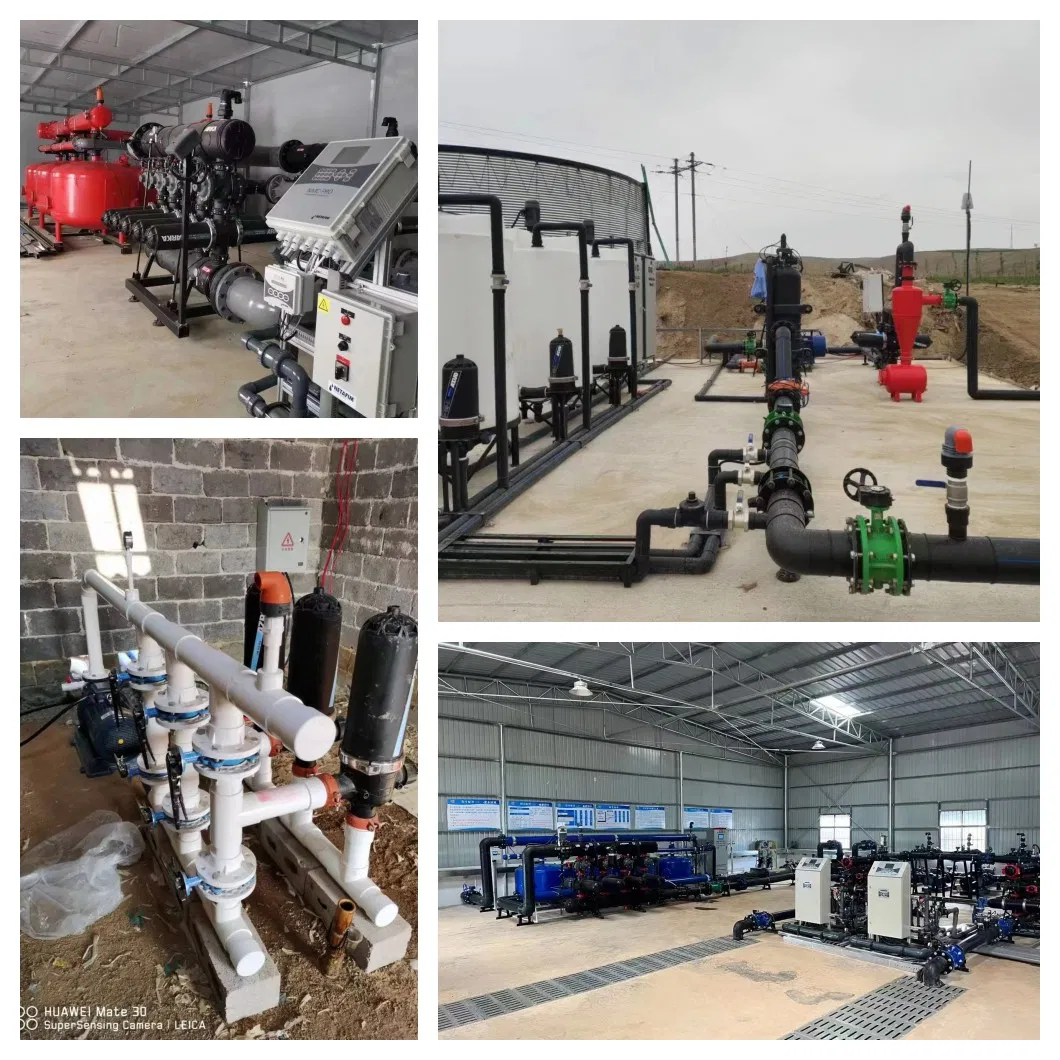

With a 4000 square meter quality inspection workshop, we provide one-stop solutions for agricultural irrigation and construction projects worldwide.
