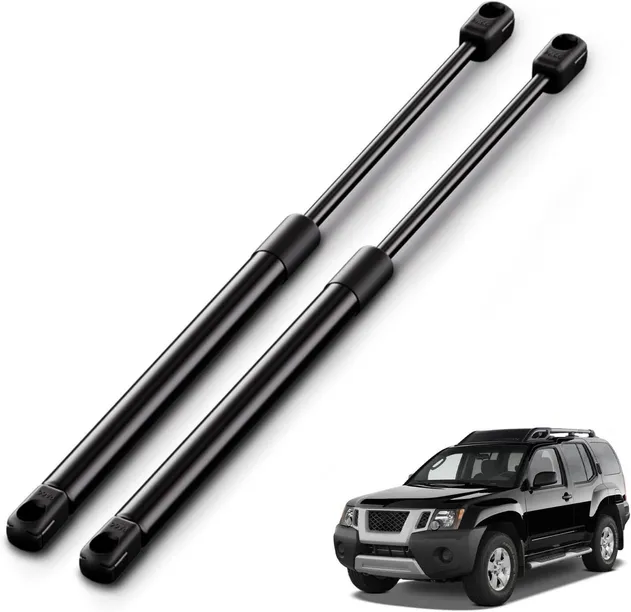

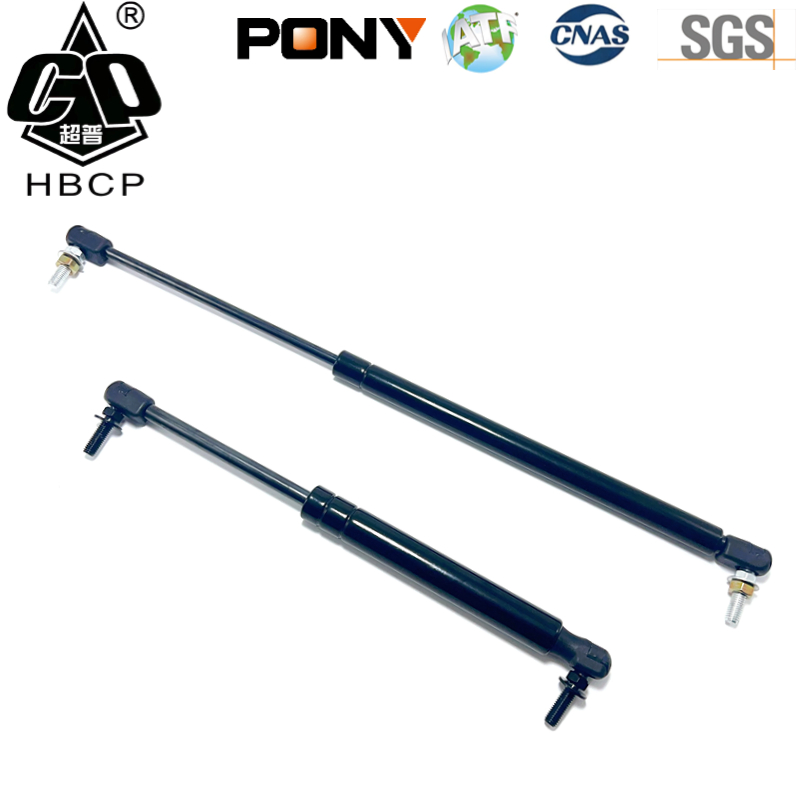

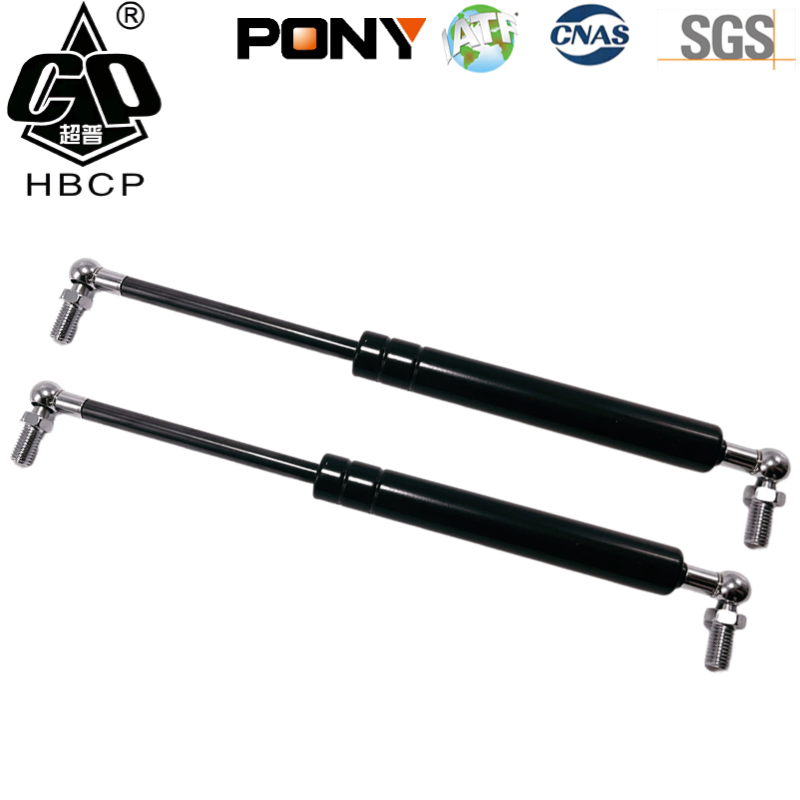

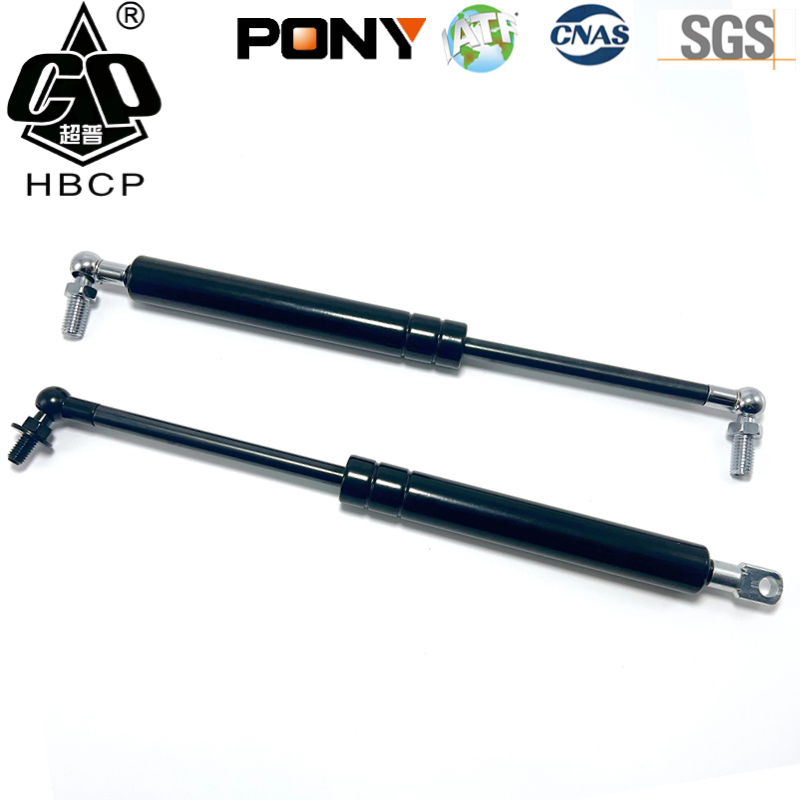

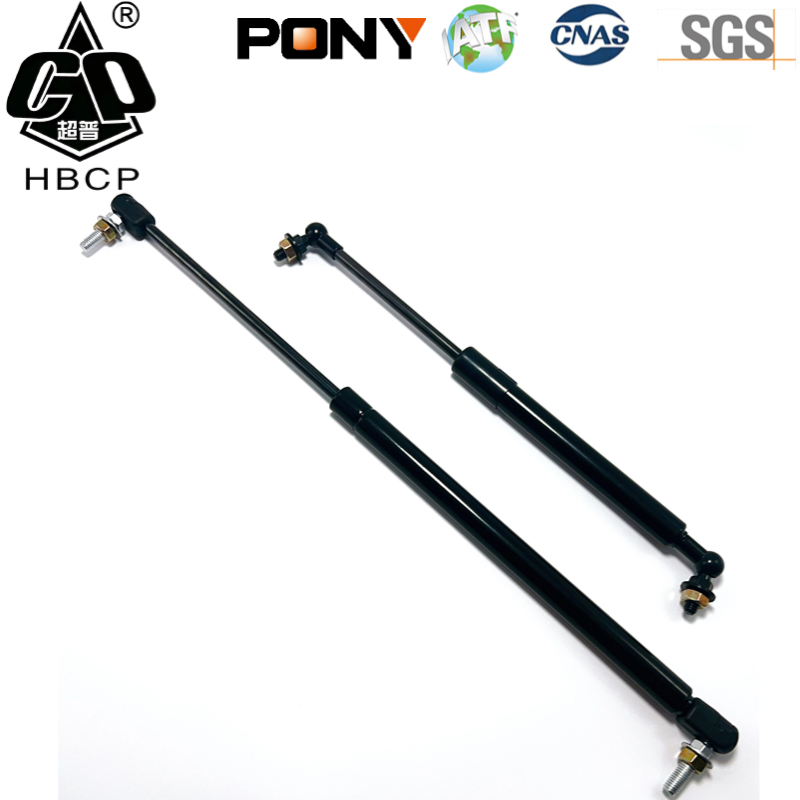

Gas Spring Hydraulic Support Rod for Truck's Upturned Door Trunk Tailgate

1 / 5

Gas Spring Hydraulic Support Rod for Truck's Upturned Door Trunk Tailgate

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

10/22 550-180-680N

Usage

Industrial, Auto, Furniture, Motorcycle, Home Appliance

Load Type

Compression

Production Process

Cold Roll

Shape

Cylinder

Installation

Any Angle

Service Life

150,000 to 300,000 Times

Production Capacity

300,000 Units Per Month

Product Description

High Quality Gas Springs - Stable & Trustworthy Support

Our company has been focusing on gas spring manufacturing for more than 20 years, committed to providing high-quality, long-life, and high-reliability products for automobiles, construction machinery, agricultural equipment, and industrial fields.

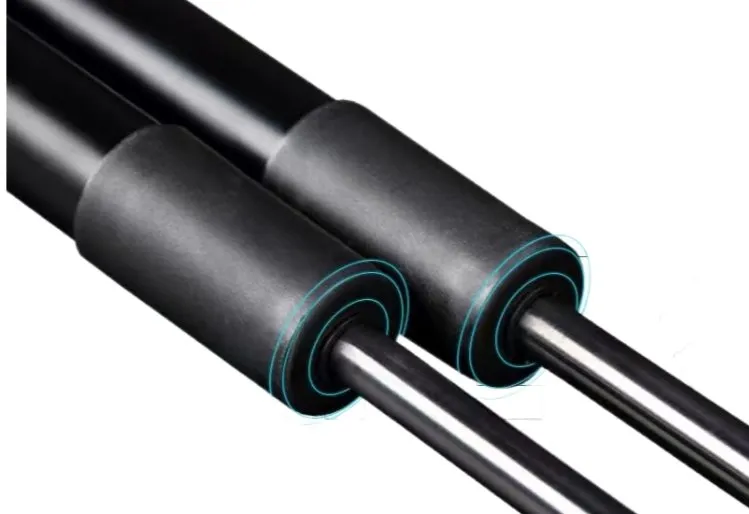

Core Benefits

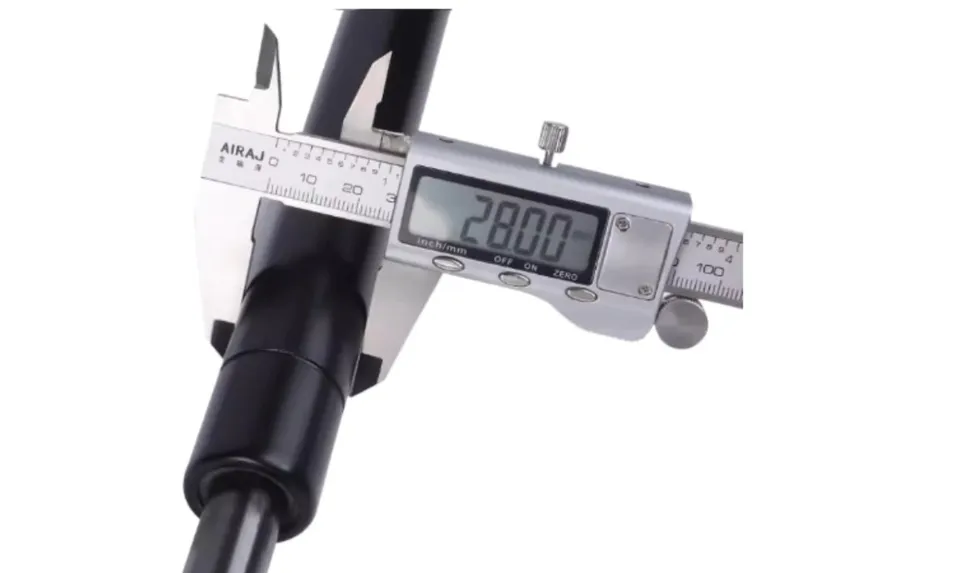

✓High-strength alloy steel cylinder body, seamless steel pipe, precision grinding of inner wall, strong corrosion resistance.
✓Piston rod made of high-quality 45# steel, nitrided twice for wear and rust resistance.
✓Double-layer sealing technology for longer service life and zero air leakage.

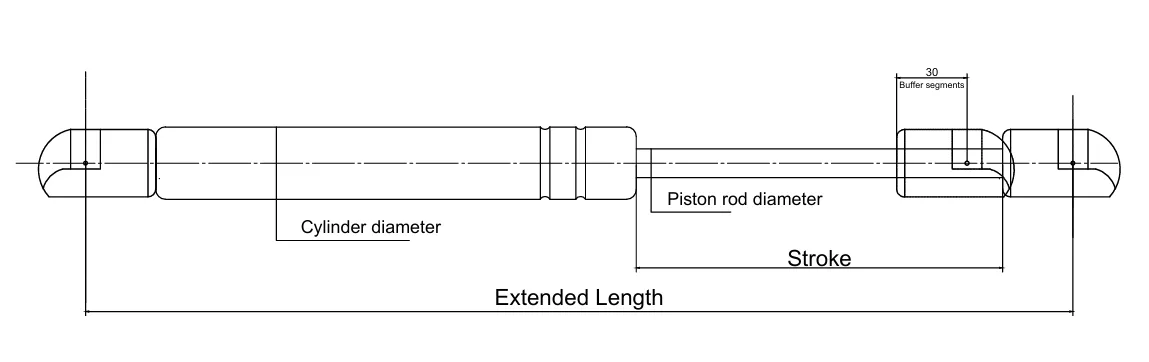

Technical Parameters

Piston Rod (mm)	Cylinder (mm)	Extended Length (mm)	Stroke (mm)	Force (N)
Φ6	Φ15	150-400	30-150	30-150
Φ8	Φ18	150-730	30-350	50-600
Φ10	Φ22	200-1000	30-450	50-1100
Φ12	Φ22	200-1000	30-450	50-1100
Φ12	Φ27	200-1100	50-500	100-1500
Φ14	Φ28	300-1500	80-600	100-2200

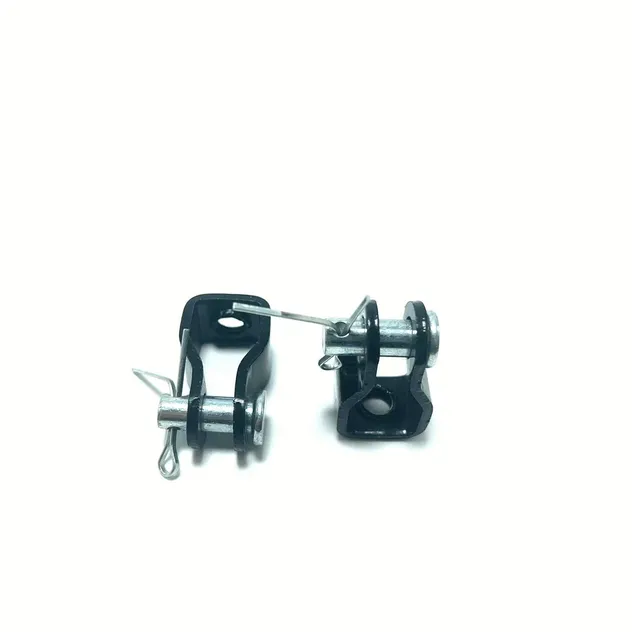

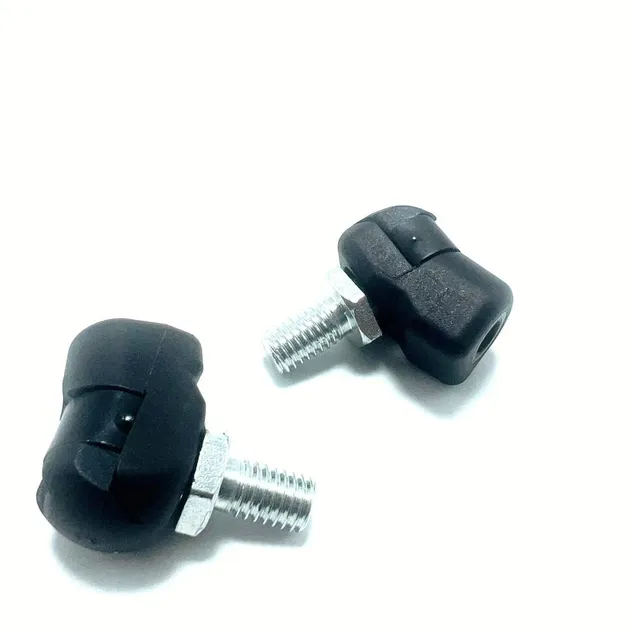

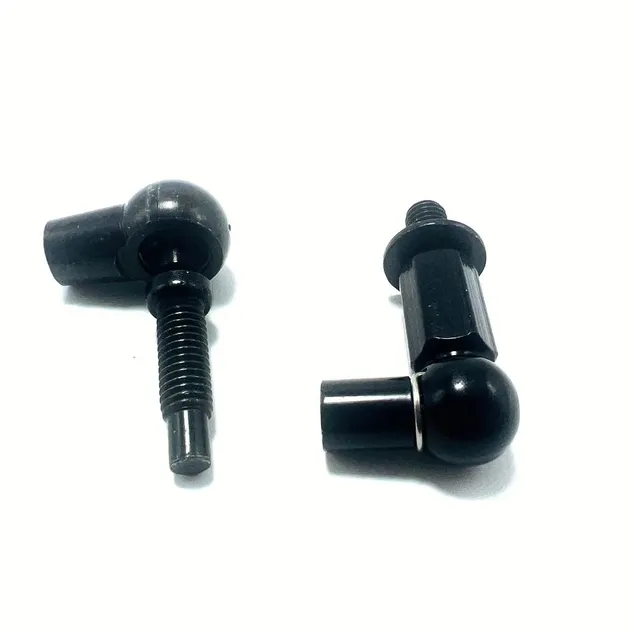

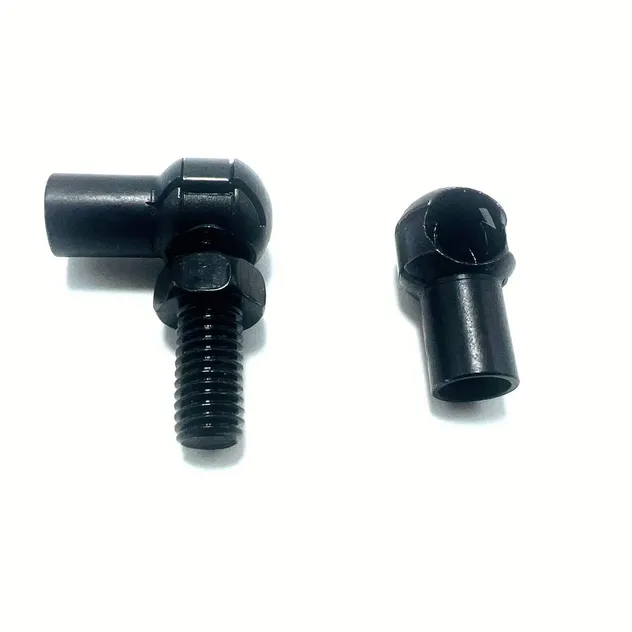

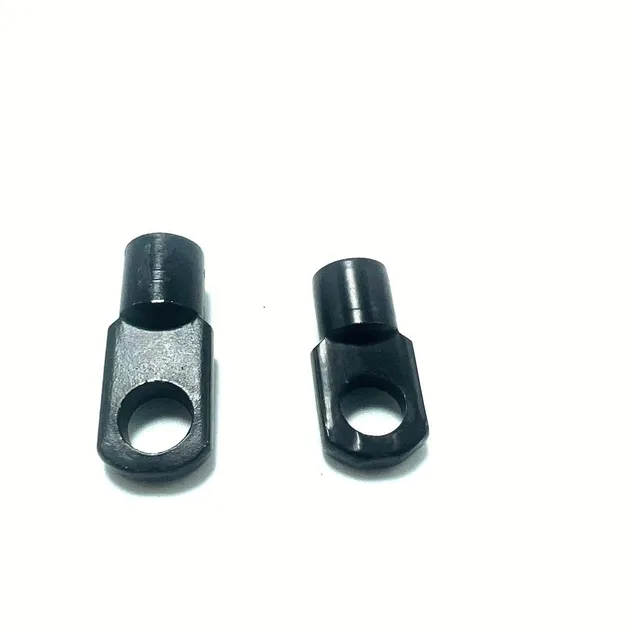

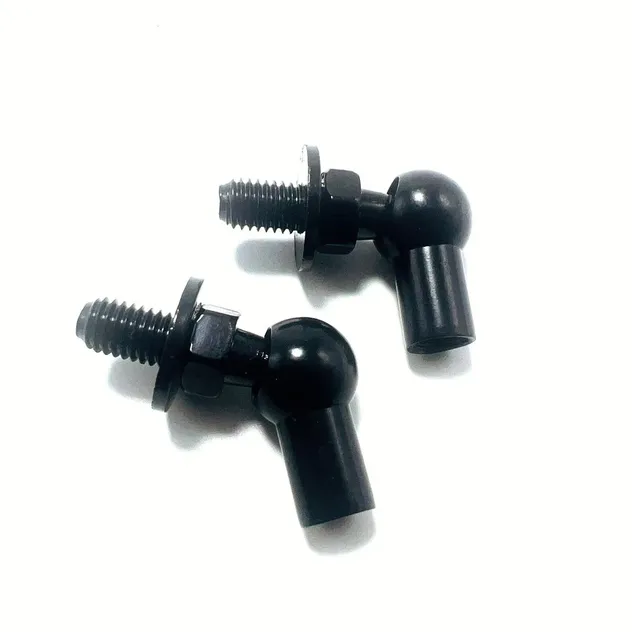

Custom Connector Solutions

Over 1000 connector types available for professional customized solutions.

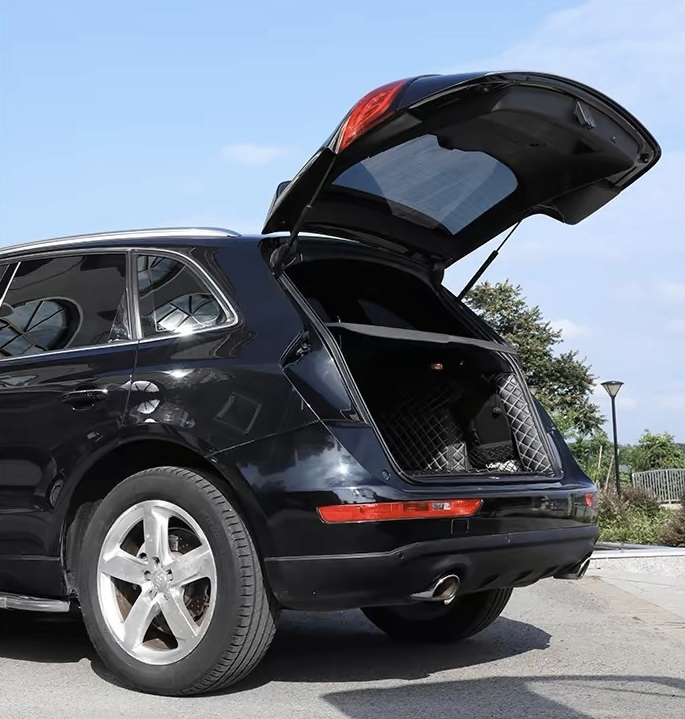

Scope of Application

Quality Management

IATF 16949 System Implementation: Every link, from raw material warehousing to finished product delivery, is strictly controlled according to standardized processes to ensure product stability and consistency.
