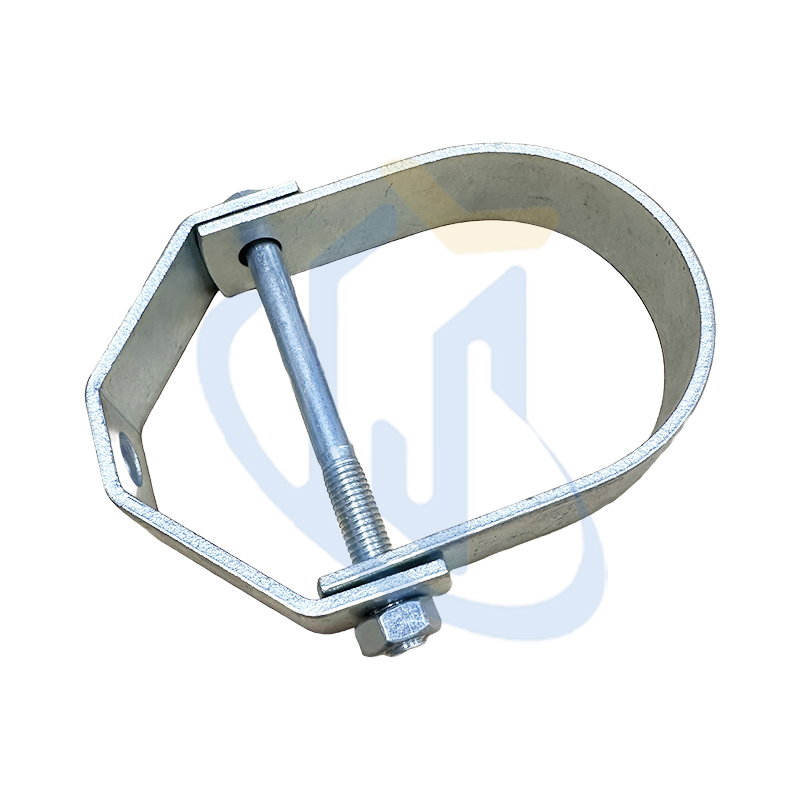

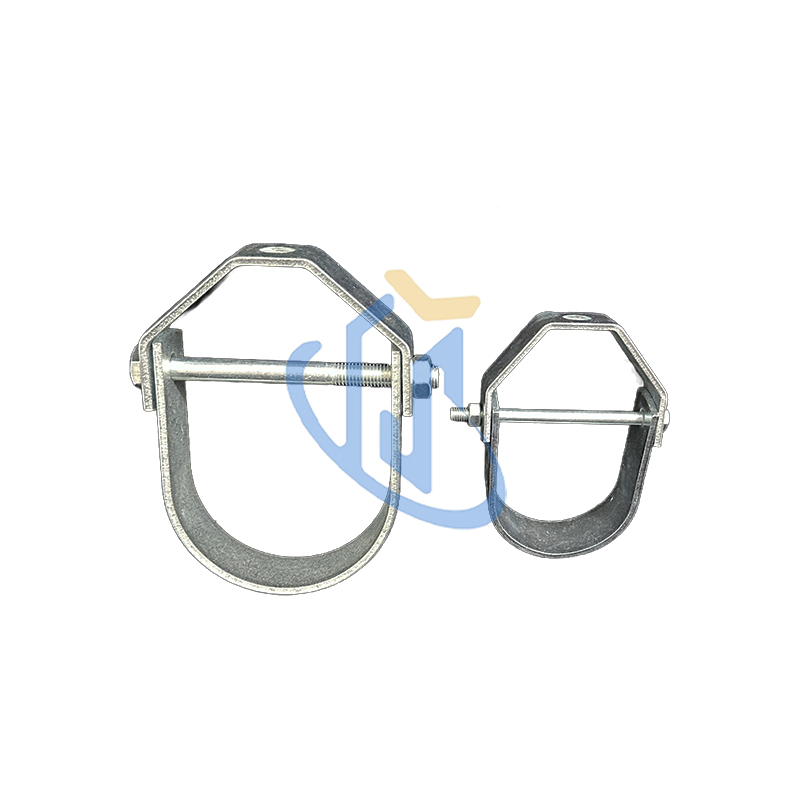

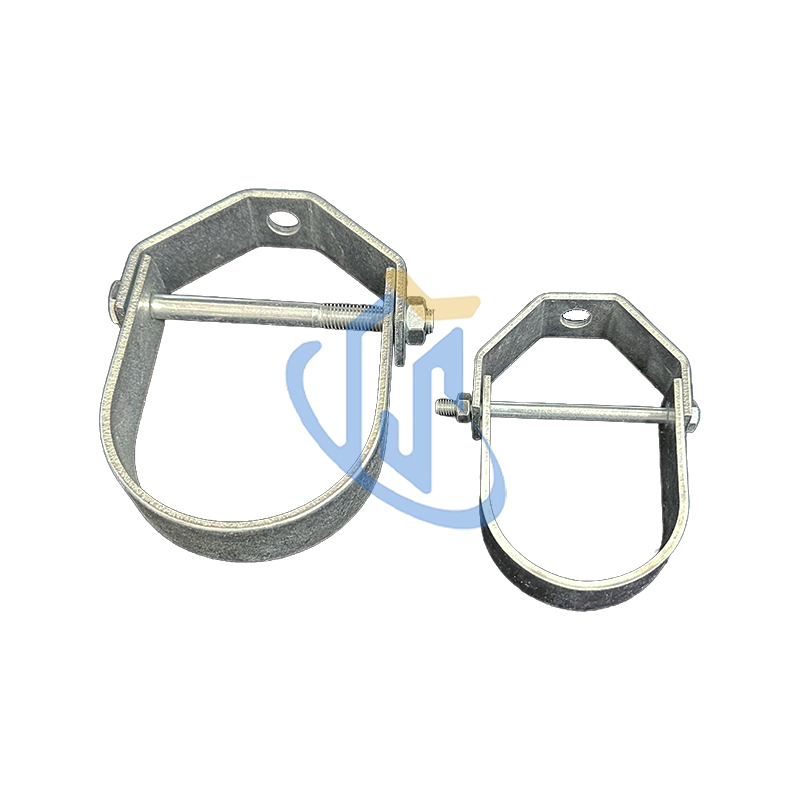

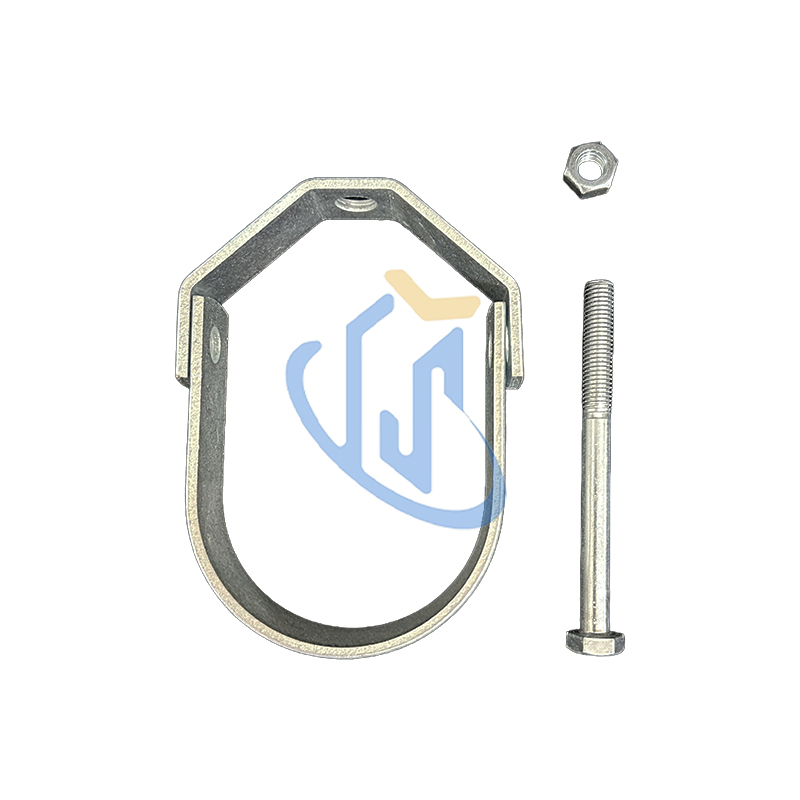

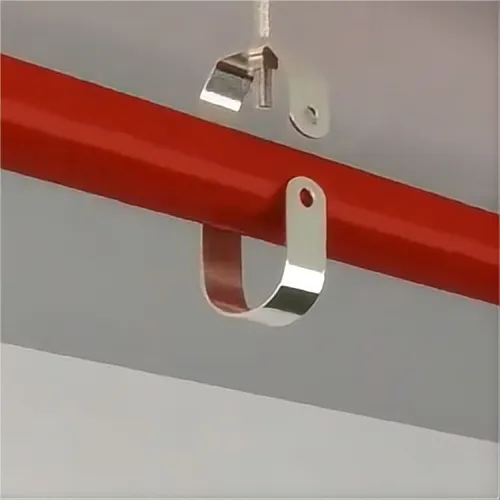

The product features a horseshoe-like design for easy installation and removal, significantly reducing labor time and effort. Its innovative shape allows it to be simply slid onto the pipe or conduit and securely snapped into place without the need for complex tools or fasteners.

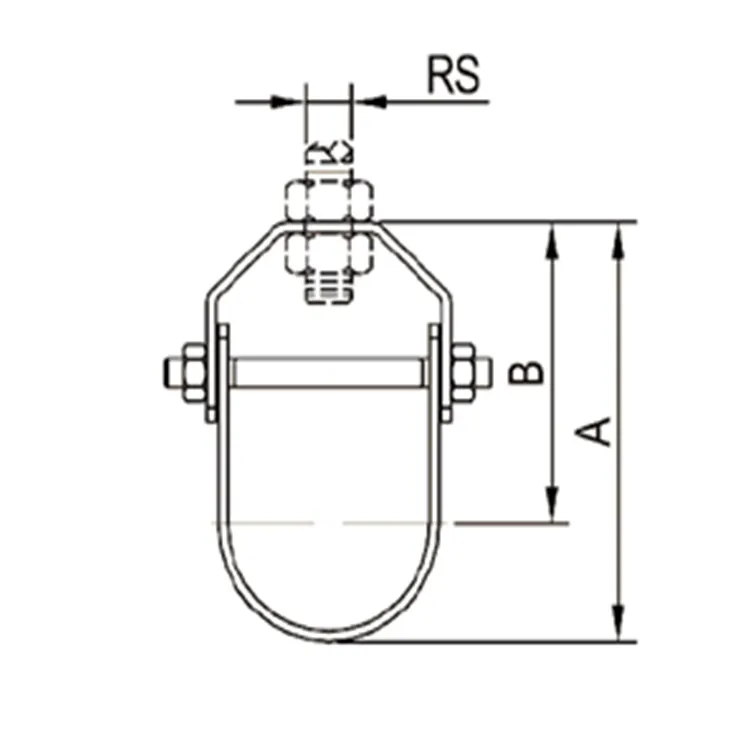

| Size | B (mm) | C (Rod) | D (Pipe OD) | W (Width) | |||||
|---|---|---|---|---|---|---|---|---|---|
| 1/2" | DN15 | 1.57 | 39.4 | 1/4" | M6 | 1/2" | 21.3 | 0.87 | 22 |
| 3/4" | DN20 | 1.57 | 39.4 | 1/4" | M6 | 3/4" | 26.7 | 0.87 | 22 |
| 1" | DN25 | 1.62 | 40.6 | 1/4" | M6 | 1" | 33.4 | 0.87 | 22 |
| 2" | DN50 | 2.13 | 53.5 | 1/4" | M6 | 2" | 60.3 | 0.98 | 25 |
| 4" | DN100 | 3.31 | 83.2 | 1/2" | M12 | 4" | 114.3 | 1.18 | 30 |
| 8" | DN200 | 5.64 | 141.6 | 5/8" | M16 | 8" | 219.1 | 1.57 | 40 |
A: It is primarily used for suspending non-insulated stationary pipelines, commonly in building and bridge piping support systems for gas or water pipes.
A: Our clevis hangers are FM and UL certified, meeting international safety and quality standards for fire protection and industrial use.
A: Yes, the design allows for vertical adjustment of the pipe after installation, providing flexibility for precise leveling.
A: Plain carbon steel hangers can withstand up to 650°F, while galvanized versions are rated for up to 450°F.
A: Yes, our engineers can customize pipe support accessories according to the engineering drawings provided by the customer.
A: Products are securely packed in waterproof cartons with desiccants and placed on fumigated wood pallets wrapped in plastic film to ensure transit safety.
