📋 Basic Specifications
Usage
Fire Sprinkler Seismic Bracing
Standard
GB, ASTM, DIN, JIS, AISI, BS
Connection Form
Bolt Connection
Material
Carbon Structural Steel Q235
📖 Product Description

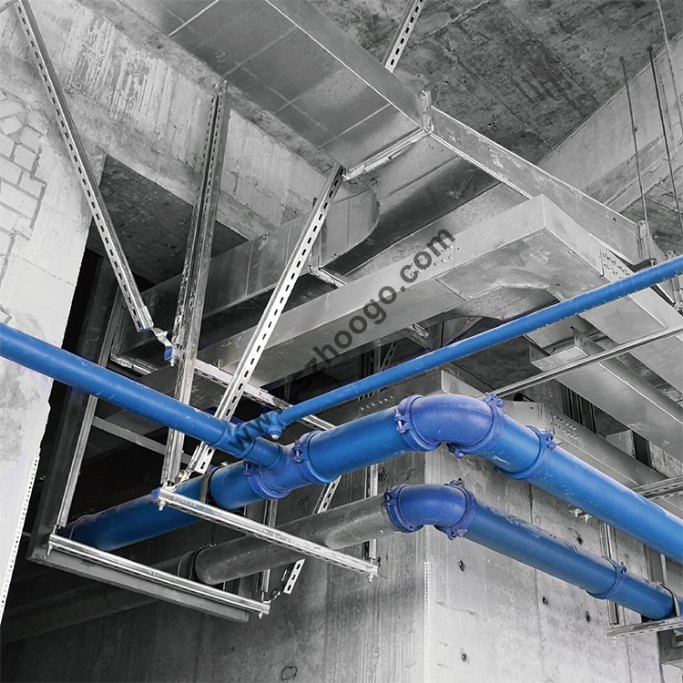

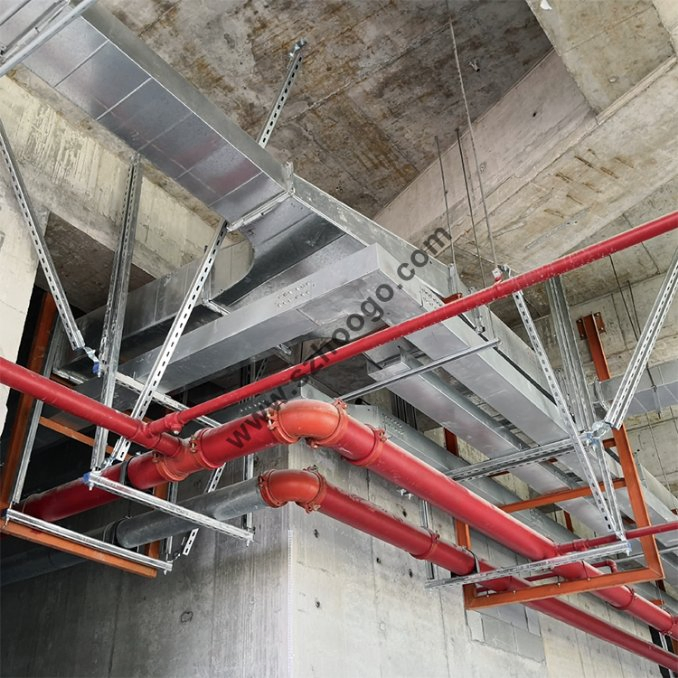

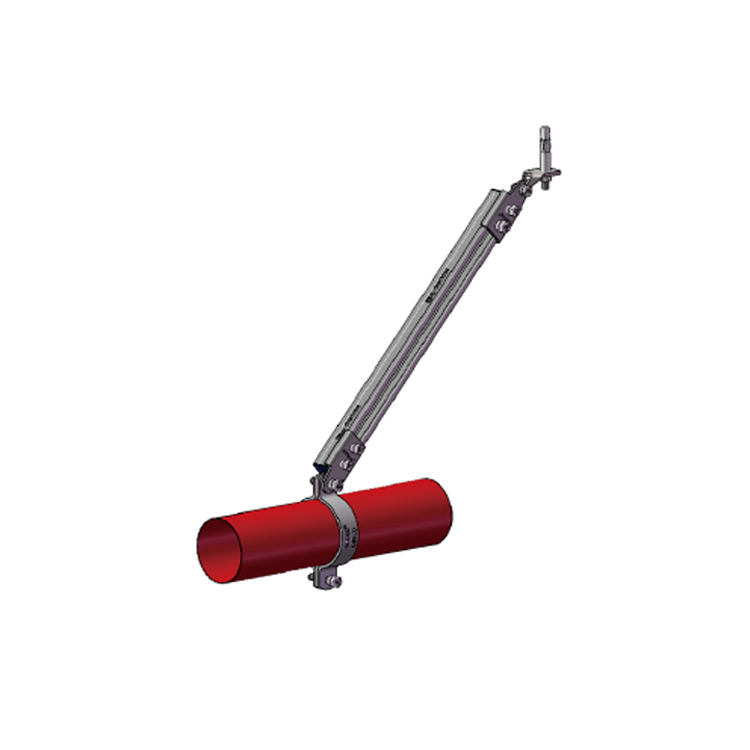

Longitudinal Seismic Bracing - Concrete Structure
This system is specifically engineered for fire sprinkler seismic bracing applications. It provides essential support and stability for piping systems during seismic events.
Application Area:
Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Steel Walkway and Floor, Steel Structure Bridge.
Technical Data:
DN25 ~ DN300
About FM Certification:
FM Approvals provides testing and certification services for industrial and commercial products worldwide. FM Approved certificates are recognized globally, indicating that products have passed the highest international standards. The FM certification body is a key organization for fire protection product verification.
📊 Technical Specifications
| No. |
Bracing Code |
Item Name |
Pipe Diameter |
| 1 | HS(FM)-25S | FM longitudinal seismic bracing | DN25 |
| 2 | HS(FM)-32S | FM longitudinal seismic bracing | DN32 |
| 3 | HS(FM)-40S | FM longitudinal seismic bracing | DN40 |
| 4 | HS(FM)-50S | FM longitudinal seismic bracing | DN50 |
| 5 | HS(FM)-65S | FM longitudinal seismic bracing | DN65 |
| 6 | HS(FM)-80S | FM longitudinal seismic bracing | DN80 |
| 7 | HS(FM)-100S | FM longitudinal seismic bracing | DN100 |
| 8 | HS(FM)-125S | FM longitudinal seismic bracing | DN125 |
| 9 | HS(FM)-150S | FM longitudinal seismic bracing | DN150 |
| 10 | HS(FM)-200S | FM longitudinal seismic bracing | DN200 |
| 11 | HS(FM)-250S | FM longitudinal seismic bracing | DN250 |
| 12 | HS(FM)-300S | FM longitudinal seismic bracing | DN300 |

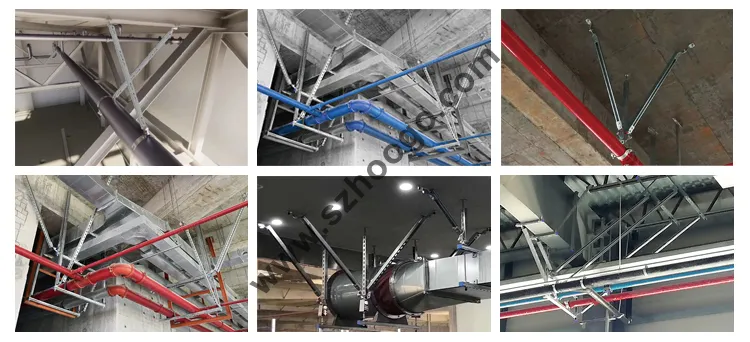

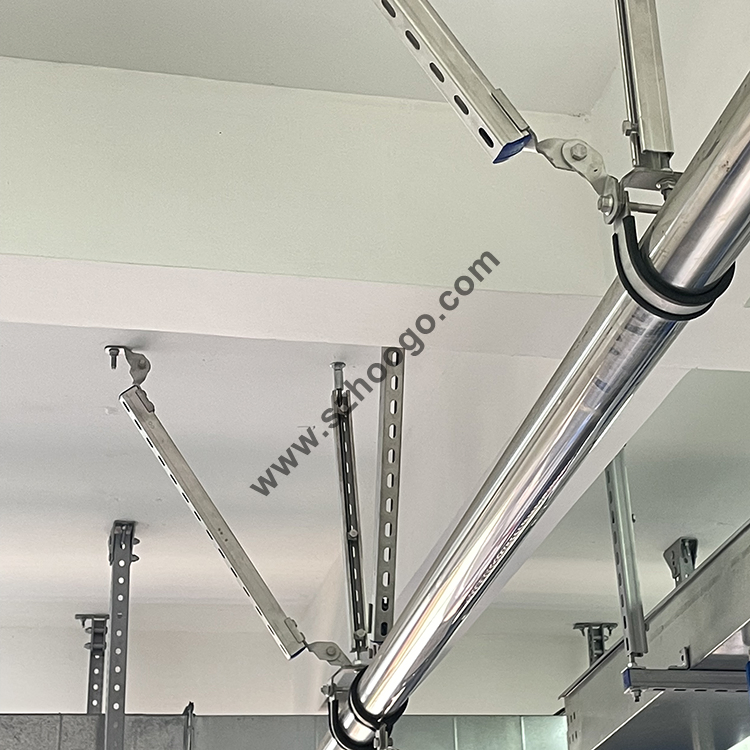

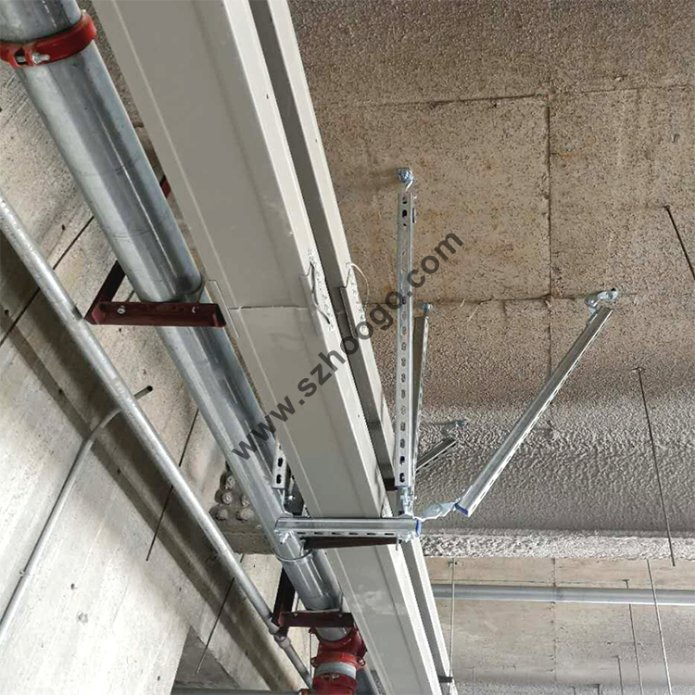

📷 Product Showcase
📜 Certificates & Logistics

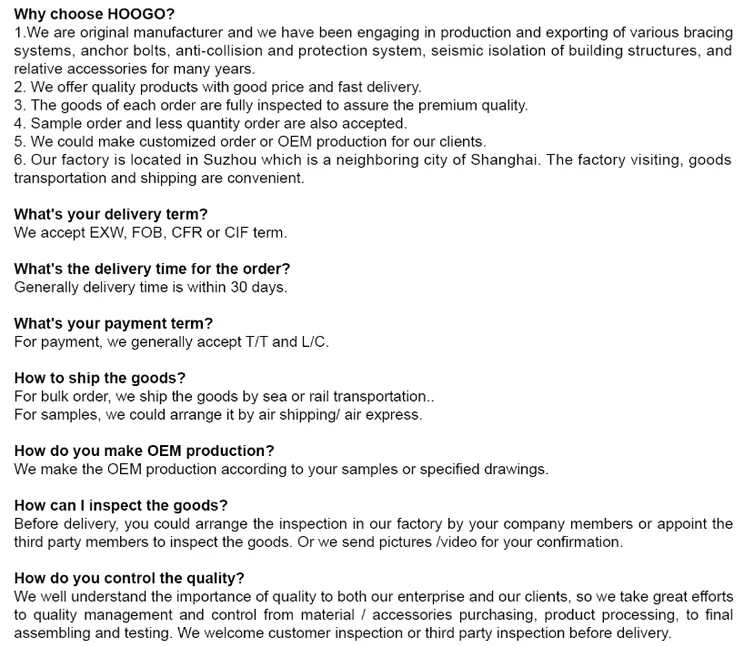

❓ Frequently Asked Questions
What is the primary application of this seismic bracing?
It is specifically designed for fire sprinkler systems in concrete structures to ensure stability and safety during seismic activity.
Which pipe diameters are compatible with this system?
The system supports a wide range of pipe diameters, from DN25 up to DN300.
What material is used in the construction?
The bracing is made from high-quality Q235 Carbon Structural Steel with bolt connections for maximum durability.
Does the product hold any international certifications?
Yes, the product is associated with FM Global testing standards, ensuring it meets high-level industrial and commercial safety requirements.
What are the available international standards?
The products are manufactured to comply with GB, ASTM, DIN, JIS, AISI, and BS standards.
What is the warranty period provided?
A standard 12-month warranty is provided for the seismic bracing components.
