FM Seismic Sway Brace Pipe Hanger Support for FM Fire Sprinklers

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.GHS(FM)-100C

UsageApplicable to Fire Sprinkler Seismic Bracing

TypeChannel Steel

StandardGB, ASTM, DIN, JIS, AISI, BS

Connection FormBolt Connection

MaterialQ235 Carbon Structural Steel

Warranty12 Months

FormingCold Forming

MemberSeismic Bracing

SpecificationDN25-DN300

Product Description

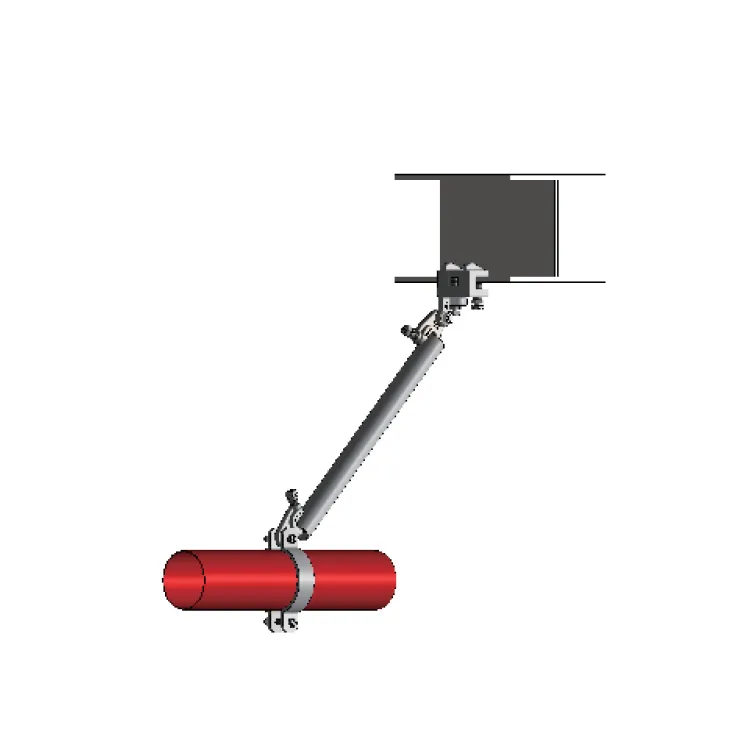

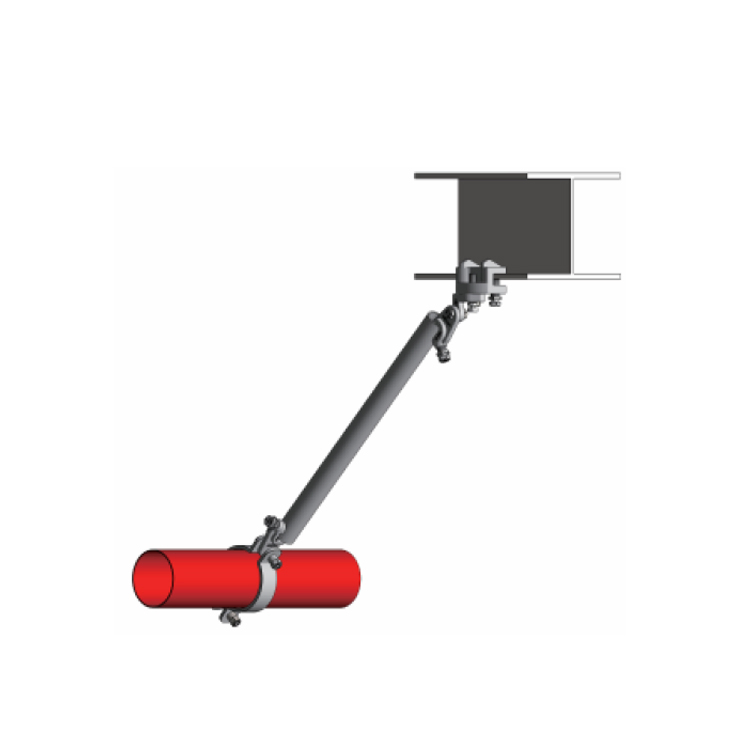

Lateral seismic bracing - Steel structure: It is applicable to fire sprinkler seismic bracing system with technical data ranging from DN25 to DN300.

FM Global provides testing and certification services to industrial and commercial products around the world through its FM Approvals agency. FM Approved certificates are generally recognized worldwide, indicating to consumers that the product or service has passed the highest U.S. and international standards. The FM certification body is also the only organization outside of Europe that can directly issue CE marks to fire protection products.

Detailed Specifications

No.	Bracing Code	Item Name	Pipe Diameter
1	GHS(FM)-25S	FM longitudinal seismic bracing	DN25
2	GHS(FM)-32S	FM longitudinal seismic bracing	DN32
3	GHS(FM)-40S	FM longitudinal seismic bracing	DN40
4	GHS(FM)-50S	FM longitudinal seismic bracing	DN50
5	GHS(FM)-65S	FM longitudinal seismic bracing	DN65
6	GHS(FM)-80S	FM longitudinal seismic bracing	DN80
7	GHS(FM)-100S	FM longitudinal seismic bracing	DN100
8	GHS(FM)-125S	FM longitudinal seismic bracing	DN125
9	GHS(FM)-150S	FM longitudinal seismic bracing	DN150
10	GHS(FM)-200S	FM longitudinal seismic bracing	DN200
11	GHS(FM)-250S	FM longitudinal seismic bracing	DN250
12	GHS(FM)-300S	FM longitudinal seismic bracing	DN300

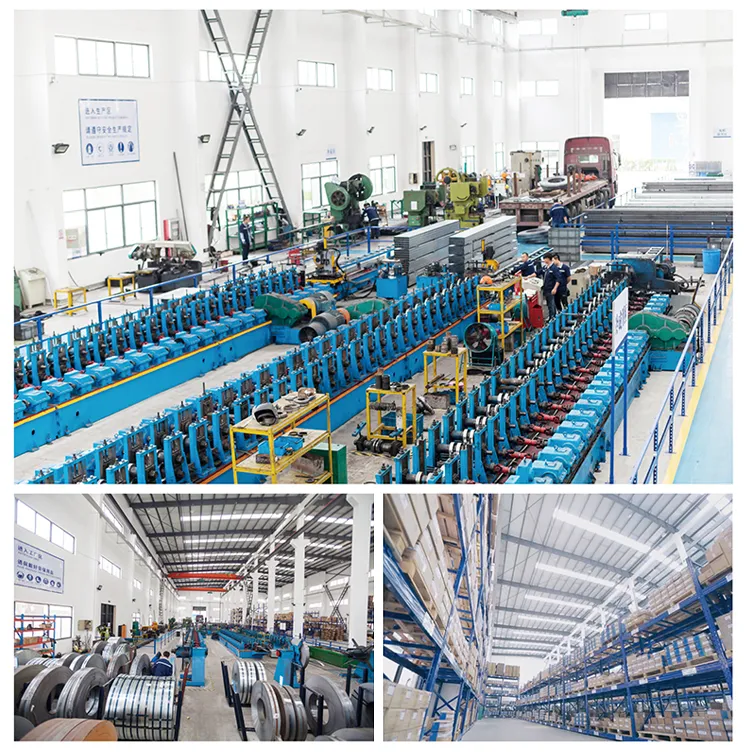

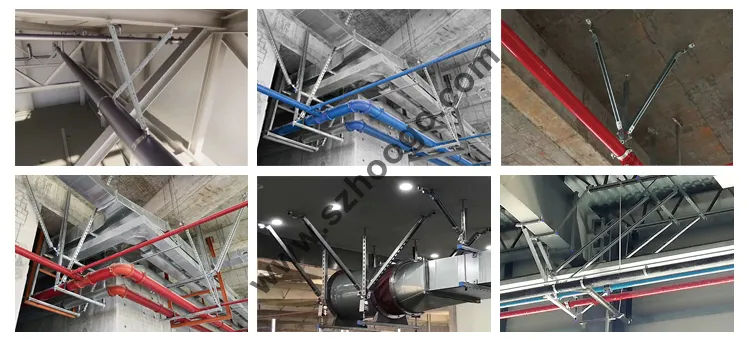

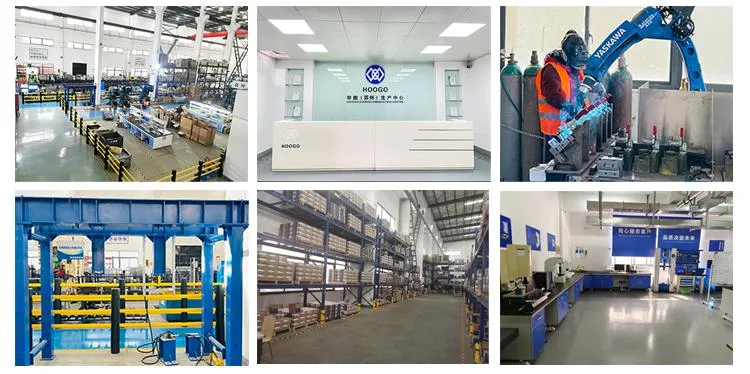

Product & Factory Display

Certificates & Logistics

Frequently Asked Questions

Q1: What is the primary application for this seismic bracing? A: It is specifically designed for fire sprinkler seismic bracing systems, suitable for various steel structures including workshops, platforms, and bridges.

Q2: What material is used in the construction? A: The product is made from high-quality Q235 Carbon Structural Steel through a cold forming process for enhanced durability.

Q3: Does the product have international certifications? A: Yes, it is FM Approved. FM Global is a world-recognized agency that ensures products meet the highest U.S. and international safety standards.

Q4: What range of pipe diameters do you support? A: Our standard specifications cover pipe diameters from DN25 up to DN300.

Q5: What is the standard warranty period? A: We provide a 12-month warranty on these seismic bracing components.

Q6: How is the connection formed during installation? A: The system utilizes a secure Bolt Connection form, meeting standards such as GB, ASTM, DIN, and JIS.
