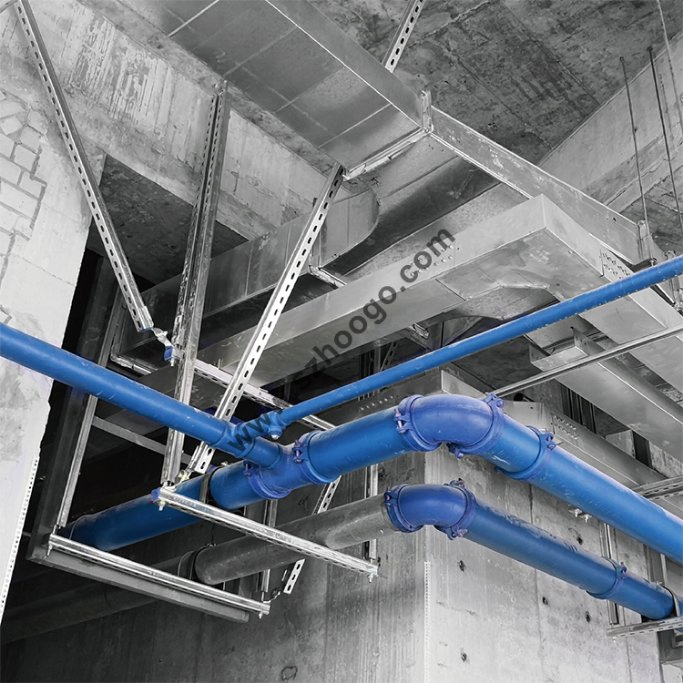

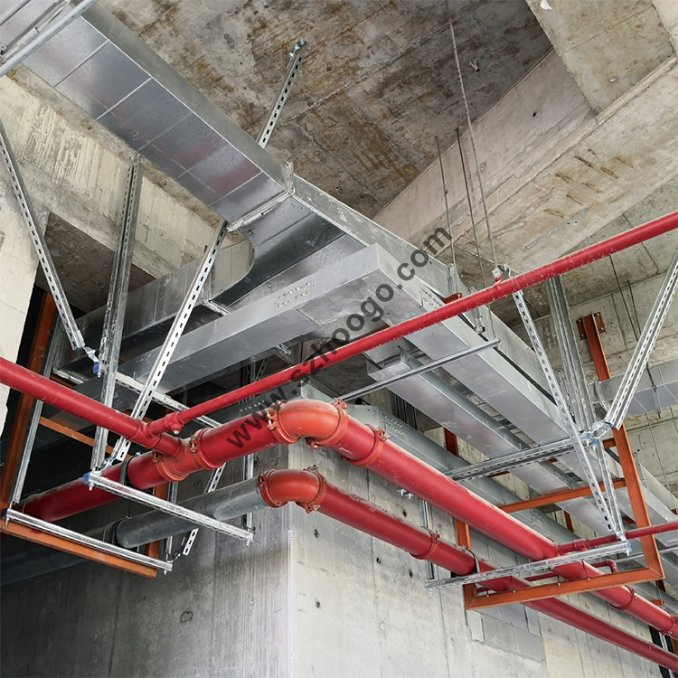

FM Approved Sway Brace Seismic Pipe Supports for Sprinkle System

Basic Specifications

📋 Model NO.

GHS(FM)-25C

🛠️ Usage

Fire Sprinkler Seismic Bracing

🏗️ Type

Channel Steel

📜 Standard

GB, ASTM, DIN, JIS, AISI, BS

🔩 Connection

Bolt Connection

💎 Material

Q235 Carbon Structural Steel

🛡️ Warranty

12 Months

❄️ Forming

Cold Forming

📏 Specification

DN25-DN300

📦 Package

Standard Export Package

Product Description

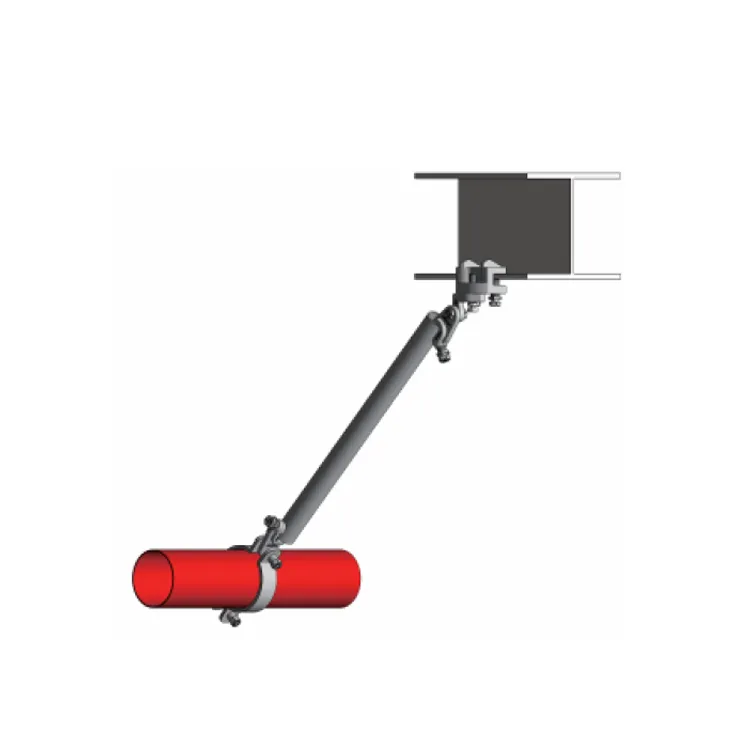

Lateral Seismic Bracing - Steel Structure: Specifically designed for fire sprinkler seismic bracing systems to ensure stability during seismic events.

Product Features: FM Global provides testing and certification services to industrial and commercial products around the world through its FM Approvals agency. FM Approved certificates indicate that the product has passed the highest international standards. The FM certification body is the only organization outside of Europe that can directly issue CE marks to fire protection products.

Lateral Seismic Bracing Technical Overview
Application	Fire sprinkler seismic bracing system
Technical Data	DN25 ~ DN300
Testing

Technical Specifications

No.	Bracing Code	Item Name	Pipe Diameter
1	GHS(FM)-25C	FM lateral seismic bracing	DN25
2	GHS(FM)-32C	FM lateral seismic bracing	DN32
3	GHS(FM)-40C	FM lateral seismic bracing	DN40
4	GHS(FM)-50C	FM lateral seismic bracing	DN50
5	GHS(FM)-65C	FM lateral seismic bracing	DN65
6	GHS(FM)-80C	FM lateral seismic bracing	DN80
7	GHS(FM)-100C	FM lateral seismic bracing	DN100
8	GHS(FM)-125C	FM lateral seismic bracing	DN125
9	GHS(FM)-150C	FM lateral seismic bracing	DN150
10	GHS(FM)-200C	FM lateral seismic bracing	DN200
11	GHS(FM)-250C	FM lateral seismic bracing	DN250
12	GHS(FM)-300C	FM lateral seismic bracing	DN300

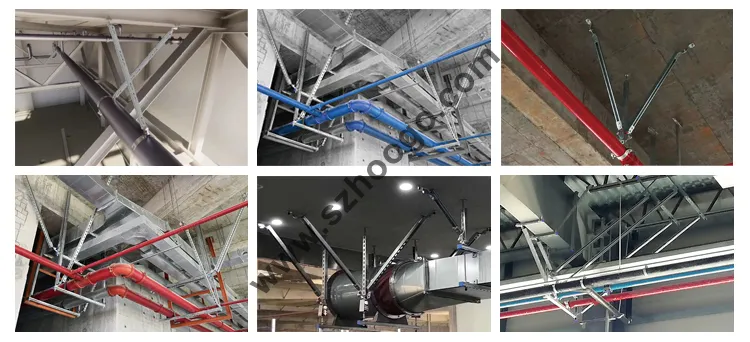

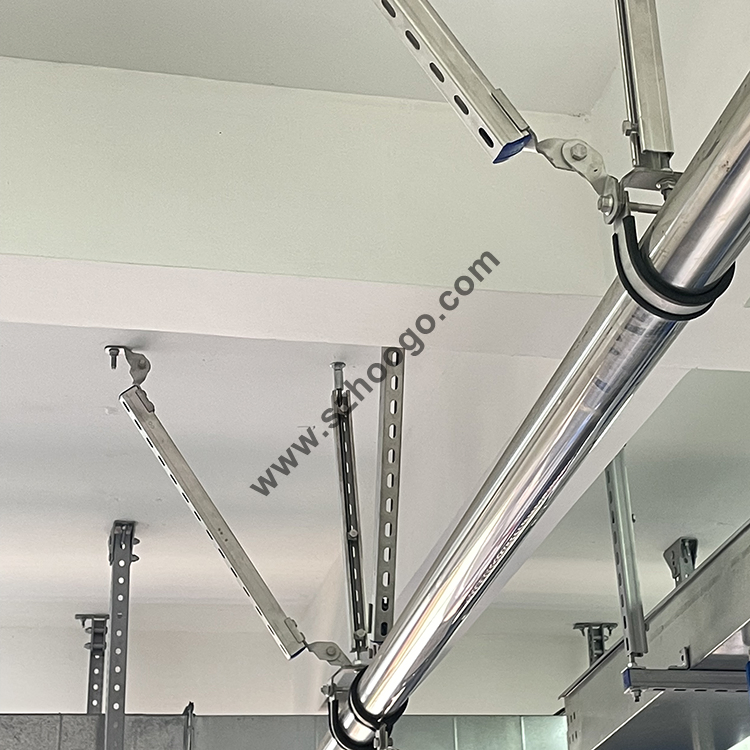

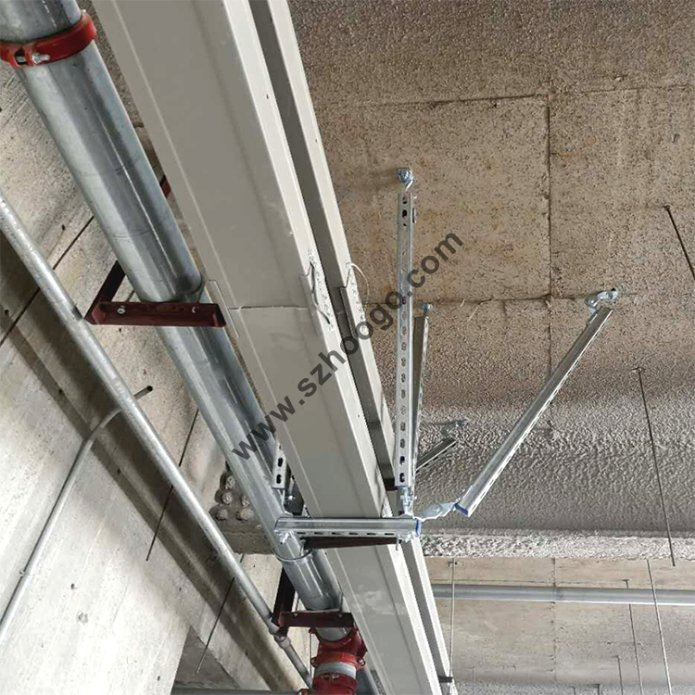

Product Showcase

Structural Details

Certificates & Quality

Logistics & Handling

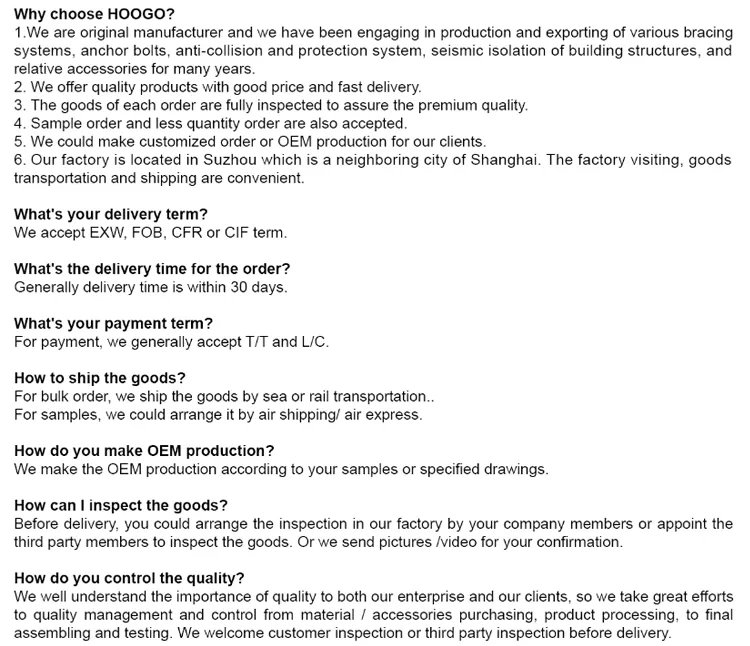

Frequently Asked Questions

What is the primary application of this seismic bracing?

It is primarily used for fire sprinkler systems to provide lateral seismic support, ensuring the piping remains secure during earthquake activity.

What does FM Approval signify for this product?

FM Approval means the product has undergone rigorous testing and meets the highest international standards for safety and reliability in fire protection.

What materials are used in the construction?

The bracing is made from Q235 Carbon Structural Steel, providing high strength and durability for structural safety.

What range of pipe diameters do you support?

Our standard lateral seismic bracing covers a range from DN25 up to DN300 pipe diameters.

What standards do these products comply with?

The products are manufactured according to GB, ASTM, DIN, JIS, AISI, and BS international standards.

Is there a warranty provided for the bracing?

Yes, we provide a 12-month warranty on these seismic bracing products starting from the date of delivery.
