Product Description

Basic Information

Application

Industrial, Ventilation System

Shape

Round

Performance

for Ventilation

Certification

ISO, CE

Thickness

1.5mm, 1.8mm, 2.0mm

Width

20mm, 25mm

Rubber

PVC, EPDM

Finish

Zinc Plating, Dacromet

Transport Package

Carton, Pallet

Specification

from 80 to 1250

Origin

China

Production Capacity

100000PCS/Week

Product Description

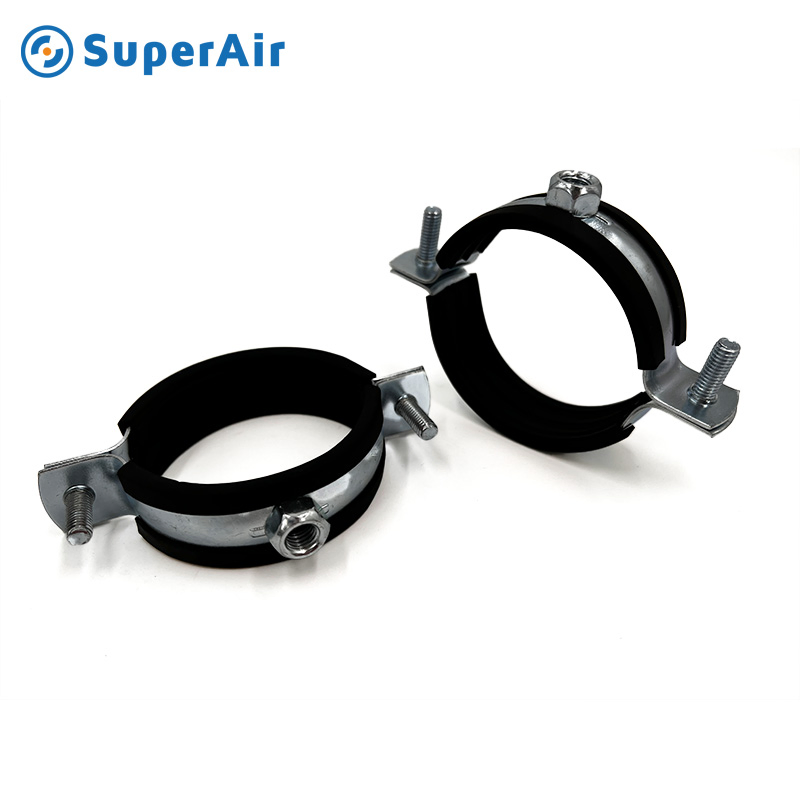

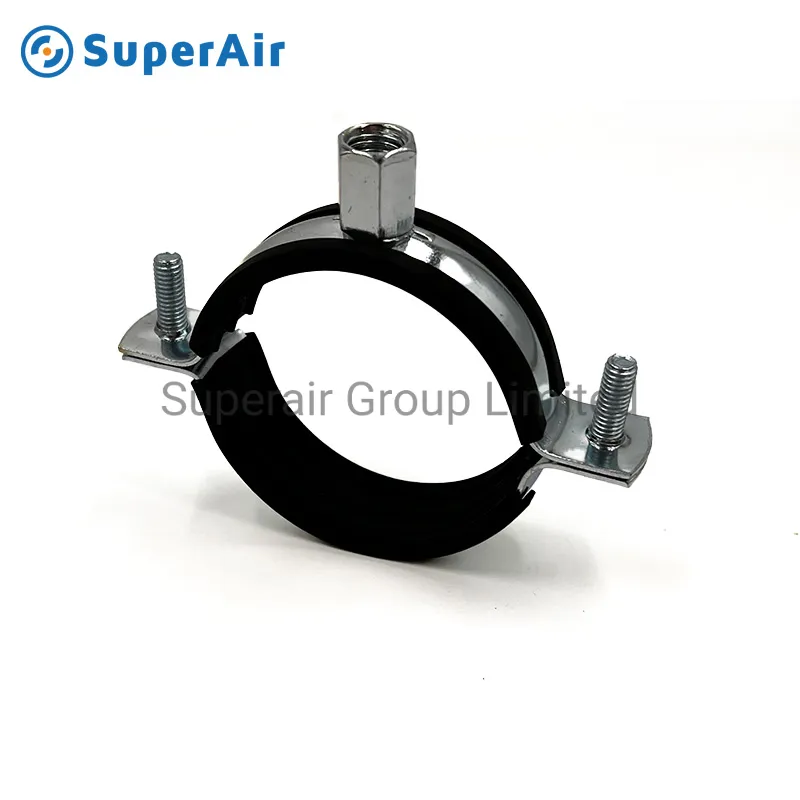

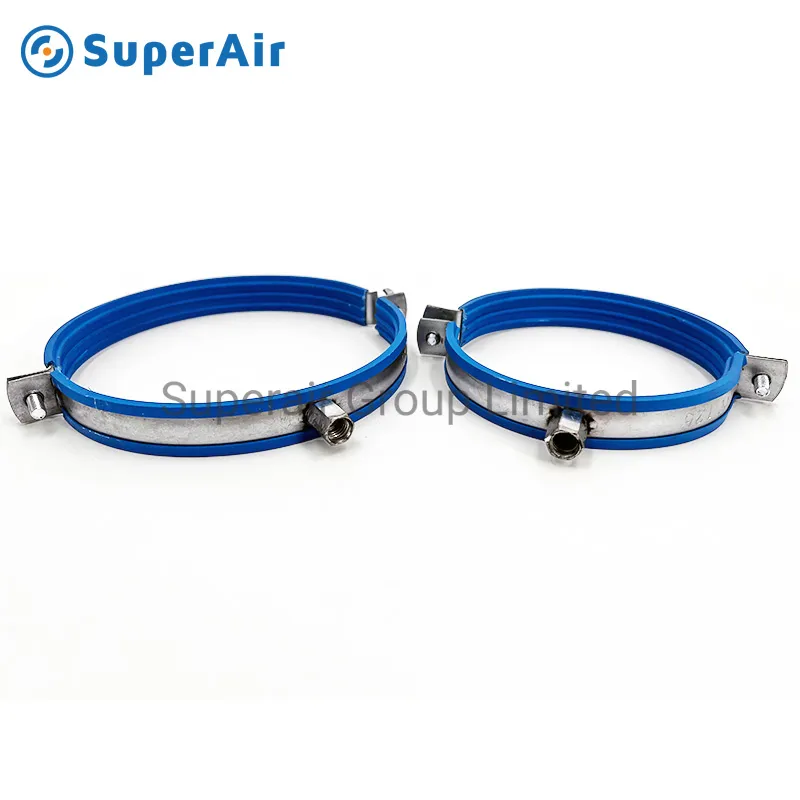

HVAC Galvanized Steel Pipe Clamp Used for suspension of rigid circular ducts

Spiral Clamp Features

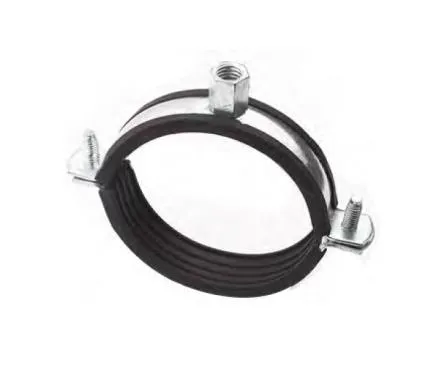

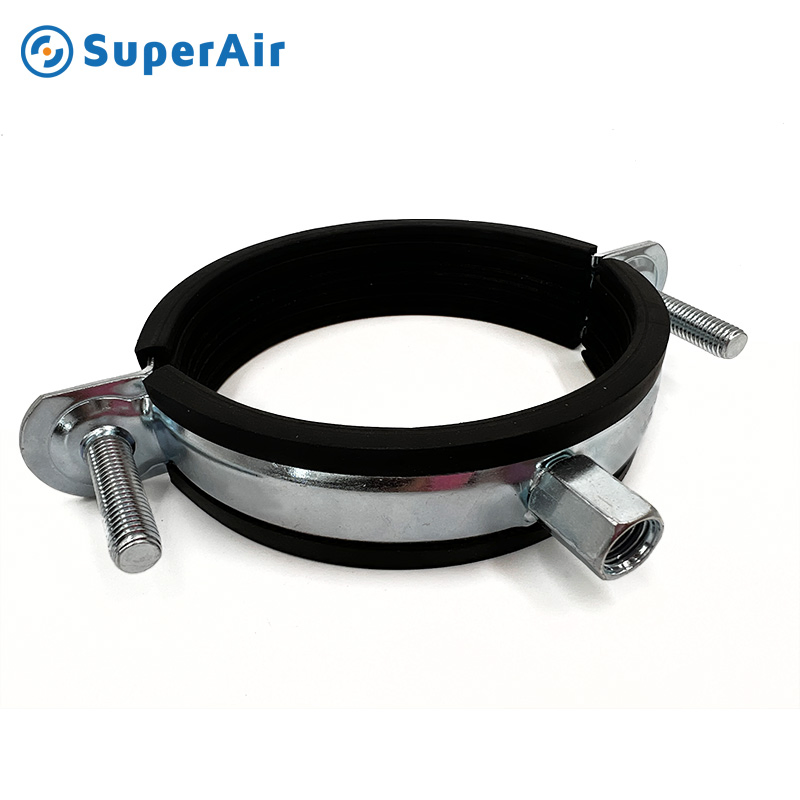

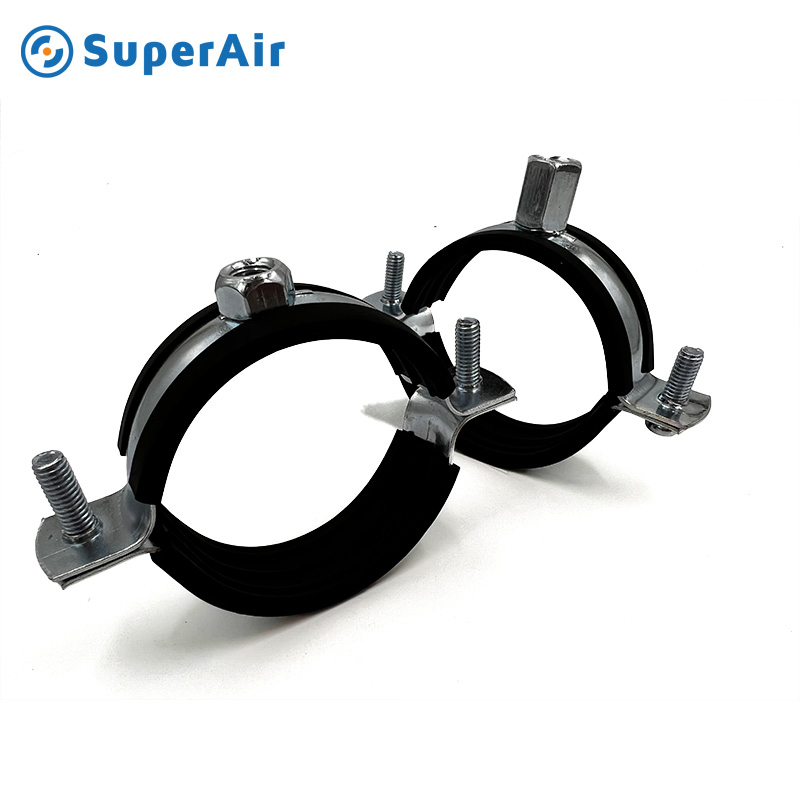

Spiral Clamp with Combi Nut: SCP-A/SCP-B

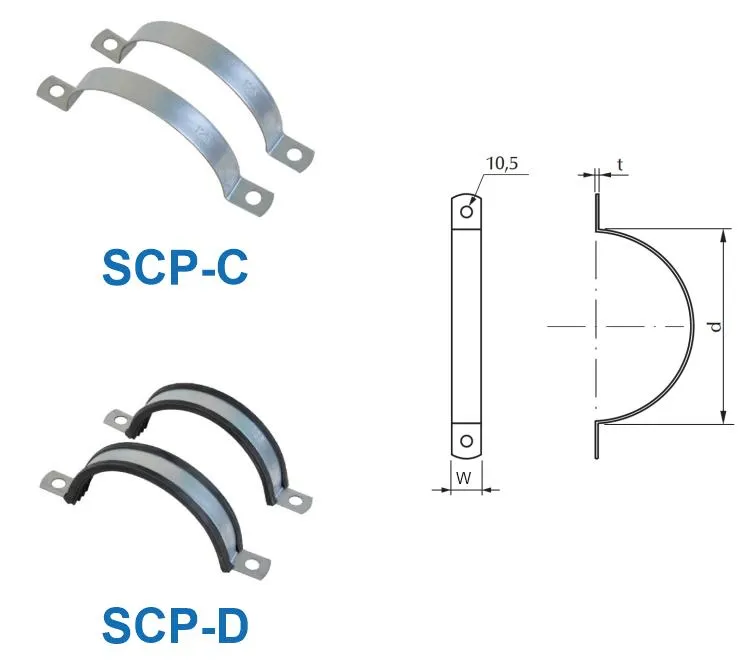

Spiral Clamp Standard: SCP-C/SPC-D

Designed specifically for the suspension of rigid circular ducts. The system ensures fast assembly thanks to an easy system of locking and tightening.

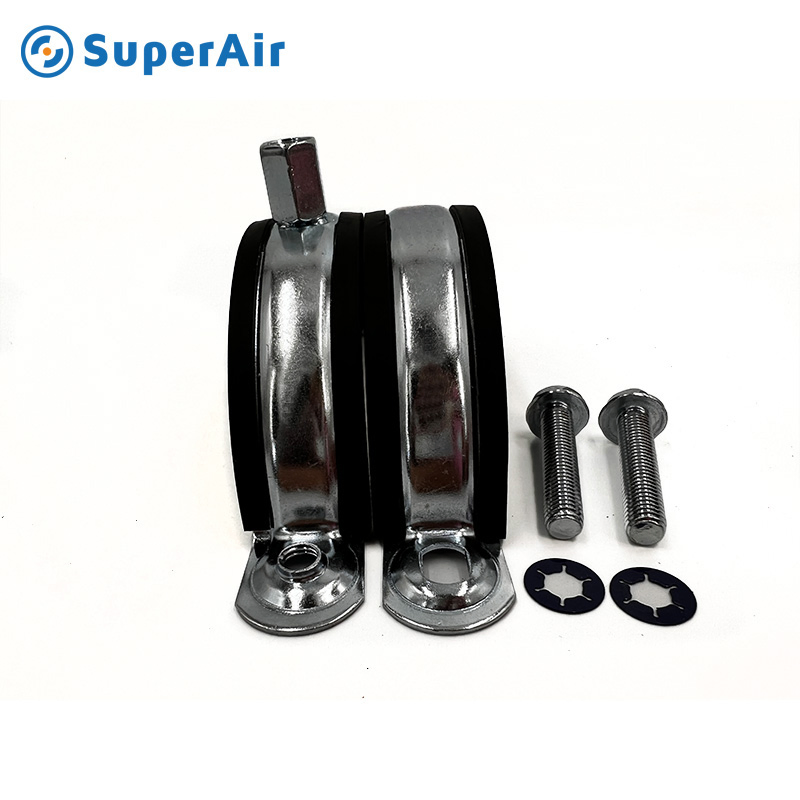

Size 80 to 400 mm: Equipped with M6x20 screws on either side, 1-point suspension with M8/M10 nut on top.
Size 450 to 800 mm: Equipped with 2-point suspension with M10 holes on either side.
Material: High-quality Galvanized Steel.
Gasket: Durable PVC.

Technical Drawings & Specifications

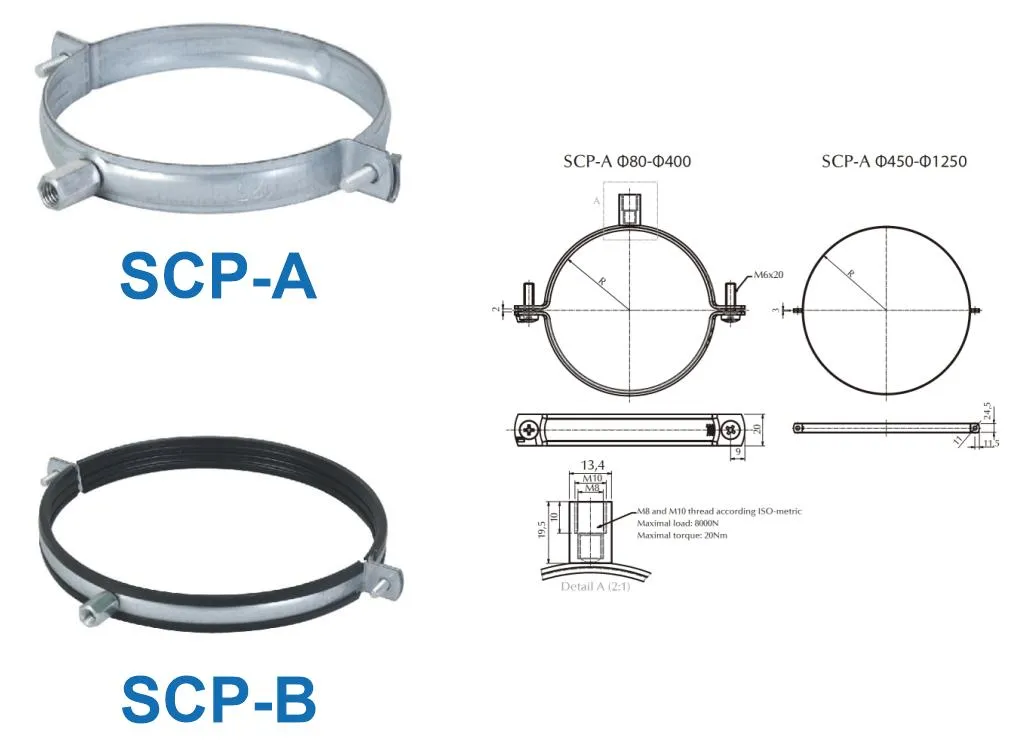

Engineering Drawings

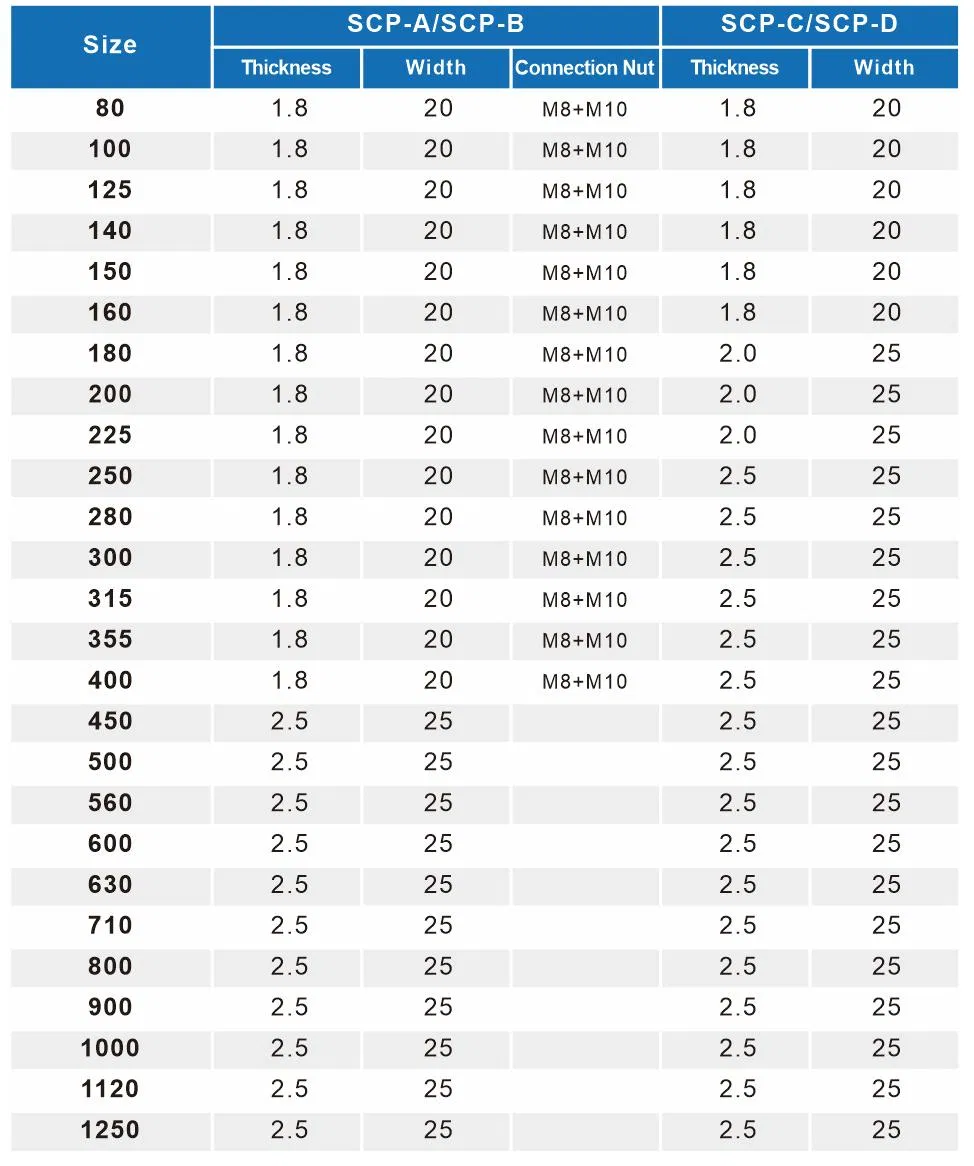

Dimensions & Table Specs

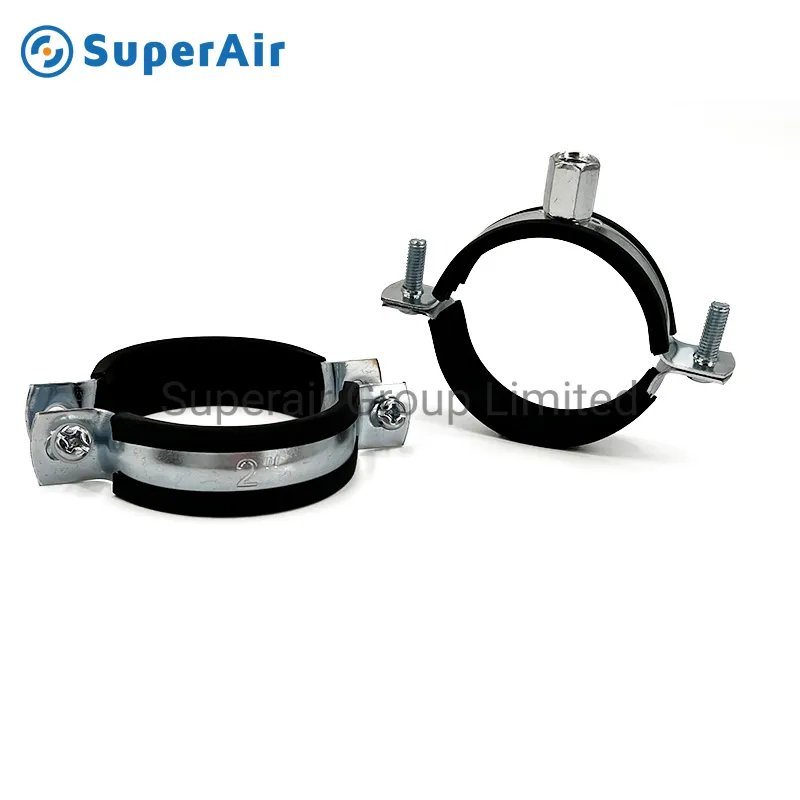

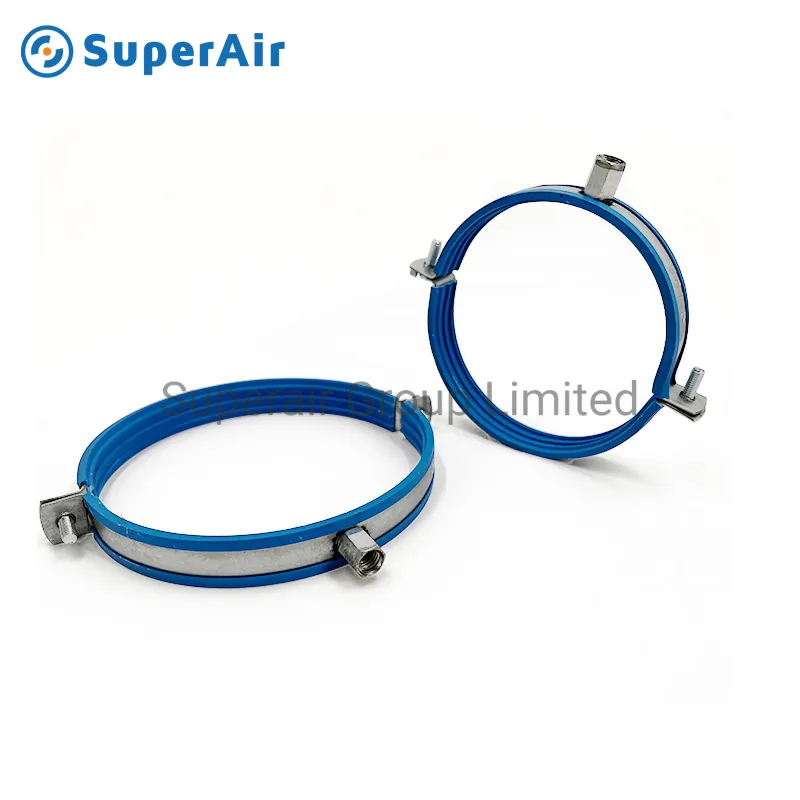

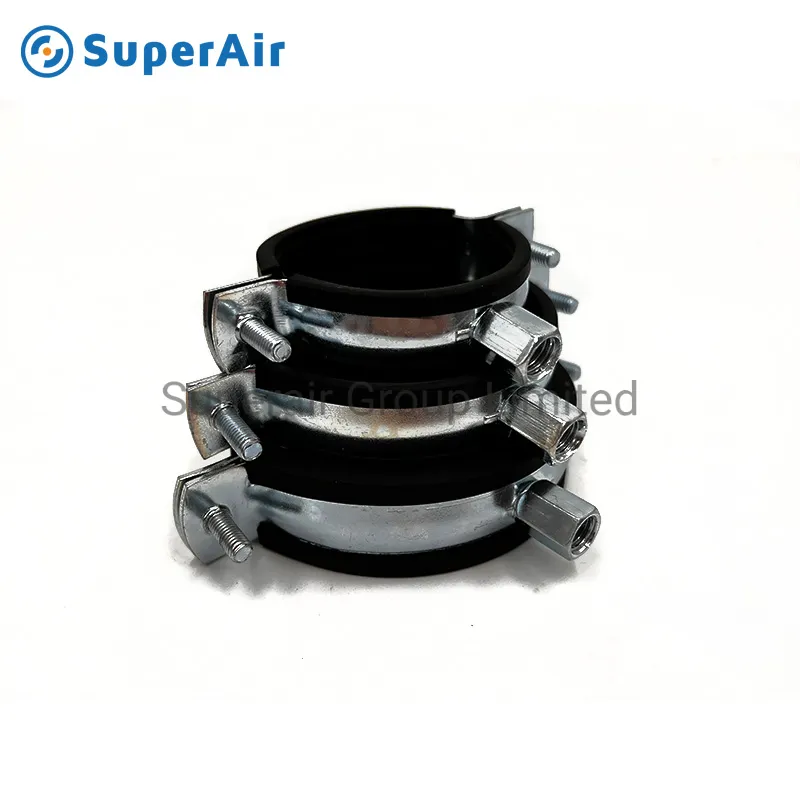

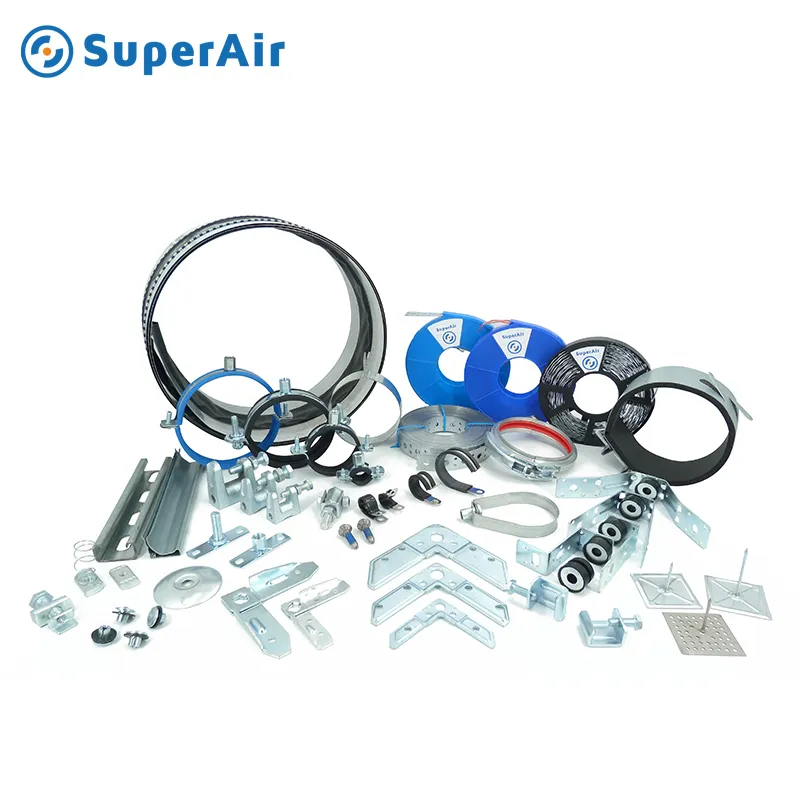

Product Gallery

Manufacturing Excellence

Frequently Asked Questions

Q1: What materials are used for the HVAC pipe clamps?

The clamps are manufactured from high-grade galvanized steel to prevent corrosion, and they feature a PVC or EPDM gasket for enhanced sealing and vibration damping.

Q2: What is the size range available for these clamps?

We provide a wide range of specifications, covering diameters from 80mm up to 1250mm, suitable for various industrial ventilation needs.

Q3: How are the larger diameter clamps suspended?

For diameters between 80mm and 400mm, a 1-point suspension is used. For larger ducts ranging from 450mm to 800mm, we utilize a 2-point suspension system with M10 holes on either side for increased stability.

Q4: What types of finishes can be applied to the clamps?

Standard finishes include Zinc Plating and Dacromet, both of which offer excellent protection against environmental wear and tear in industrial settings.

Q5: What is the production capacity for bulk orders?

Our manufacturing facility has a production capacity of approximately 100,000 pieces per week, ensuring timely delivery for large-scale projects.

Q6: Are the pipe clamps certified for international use?

Yes, our pipe clamps are produced under strict quality management systems and hold ISO and CE certifications to meet international safety and quality standards.
