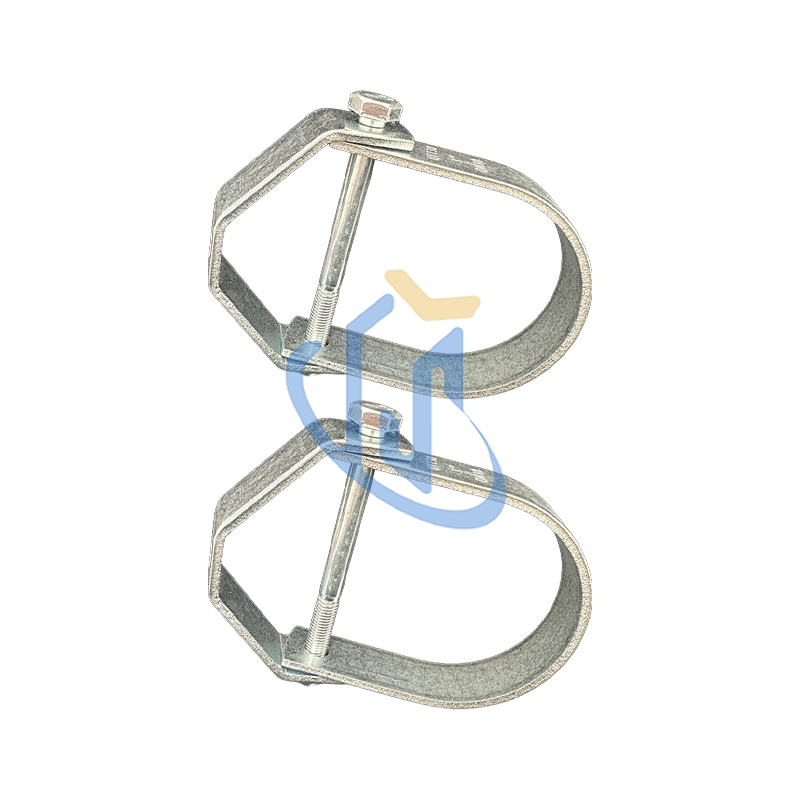

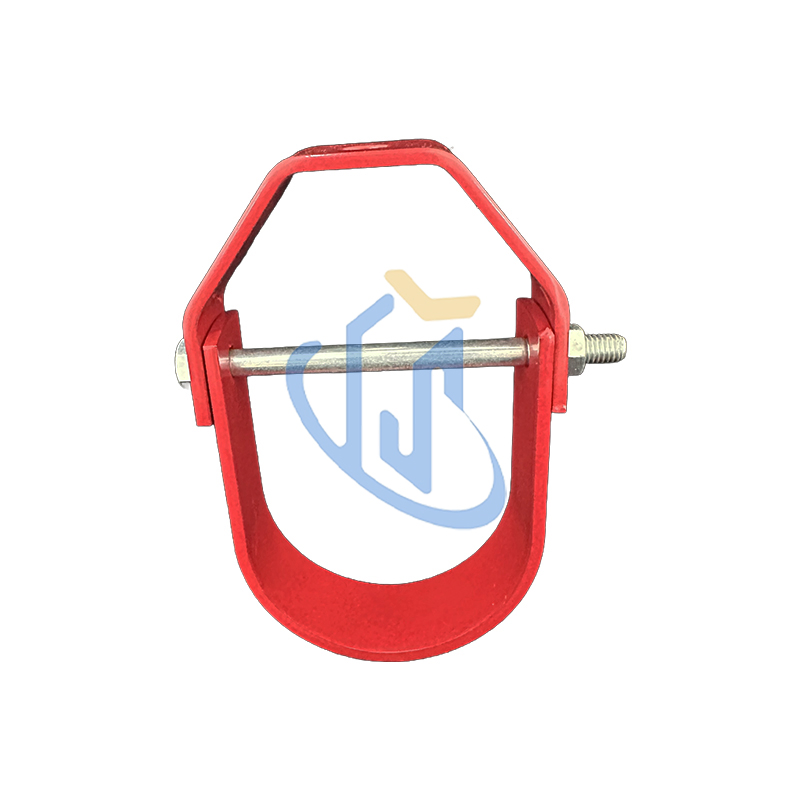

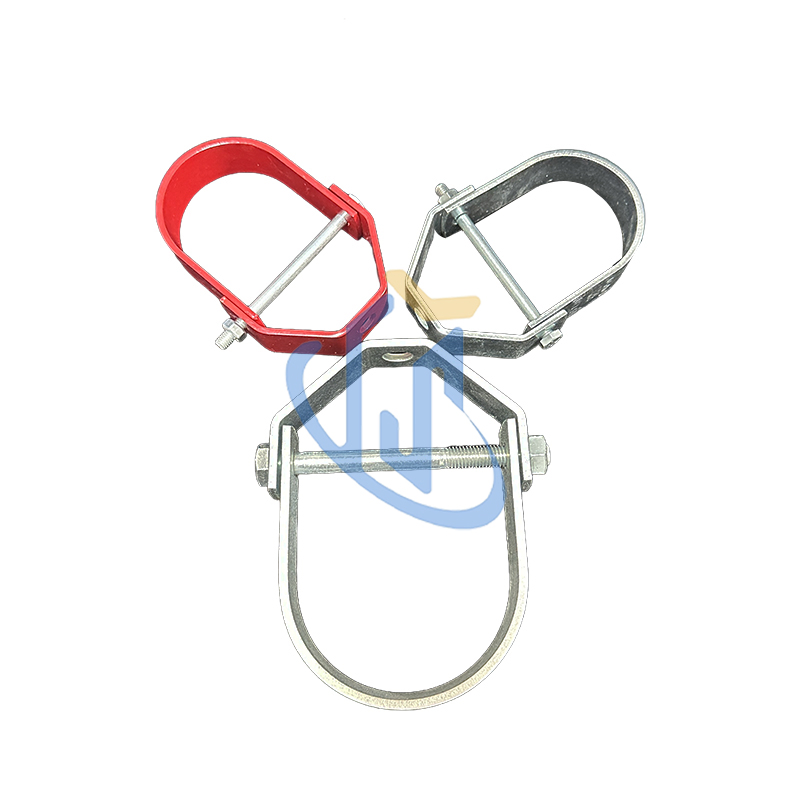

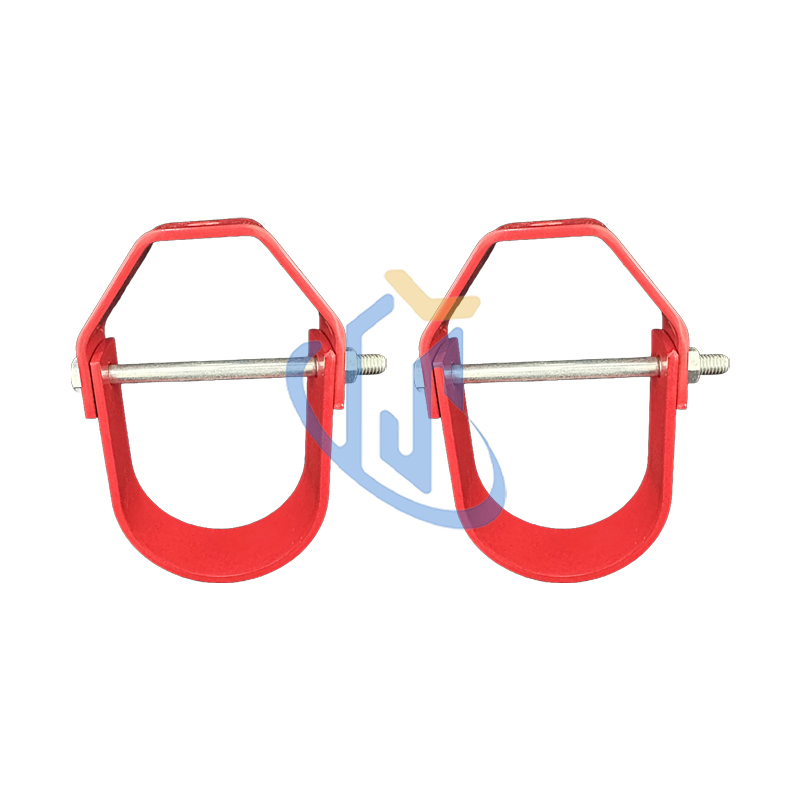

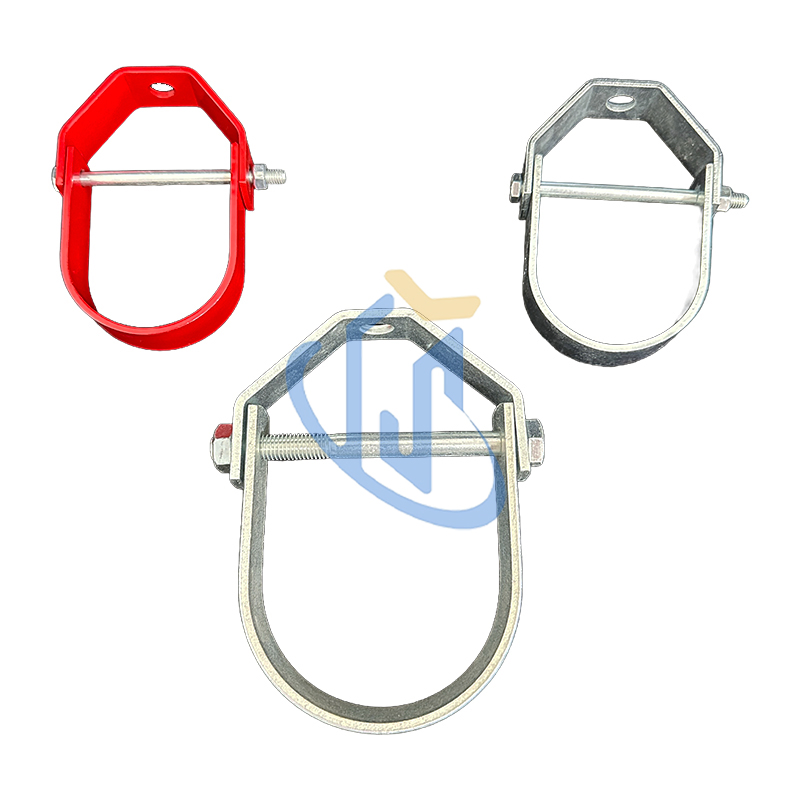

The product features a horseshoe-like design for easy installation and removal, significantly reducing labor time and effort. Its innovative shape allows it to be simply slid onto the pipe or conduit and securely snapped into place without the need for complex tools or fasteners.

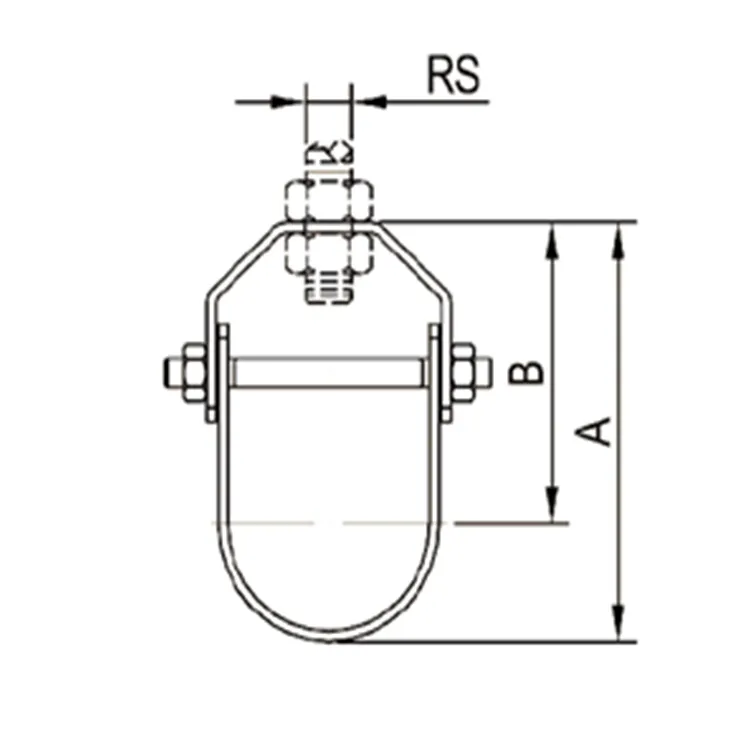

| Size (in/mm) | B (in/mm) | C (in/mm) | D (in/mm) | Max Load (lbs/KN) | |||||
|---|---|---|---|---|---|---|---|---|---|
| 1/2" | DN15 | 1.57 | 39.4 | 1/4" | M6 | 1/2" | 21.3 | 750 | 3.34 |
| 3/4" | DN20 | 1.57 | 39.4 | 1/4" | M6 | 3/4" | 26.7 | 750 | 3.34 |
| 1" | DN25 | 1.62 | 40.6 | 1/4" | M6 | 1" | 33.4 | 750 | 3.34 |
| 2" | DN50 | 2.13 | 53.5 | 1/4" | M6 | 2" | 60.3 | 750 | 3.34 |
| 4" | DN100 | 3.31 | 83.2 | 1/2" | M12 | 4" | 114.3 | 1500 | 6.67 |
| 8" | DN200 | 5.64 | 141.6 | 5/8" | M16 | 8" | 219.1 | 4050 | 18.02 |
| 12" | DN300 | 6.14 | 154 | 3/4" | M20 | 12" | 323.9 | 7900 | 35.14 |

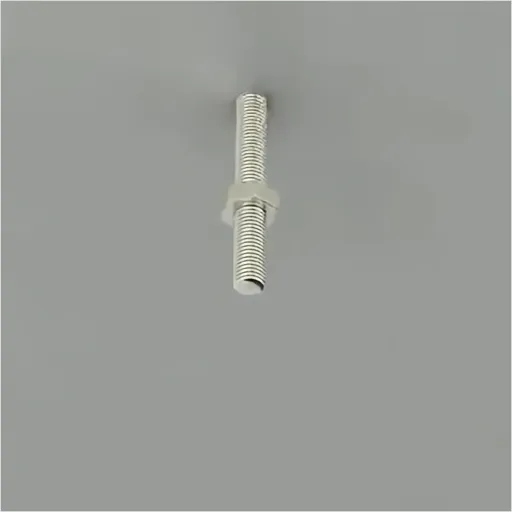

Secure the screw to the mounting base surface (e.g., ceiling), then install the nut onto the screw.

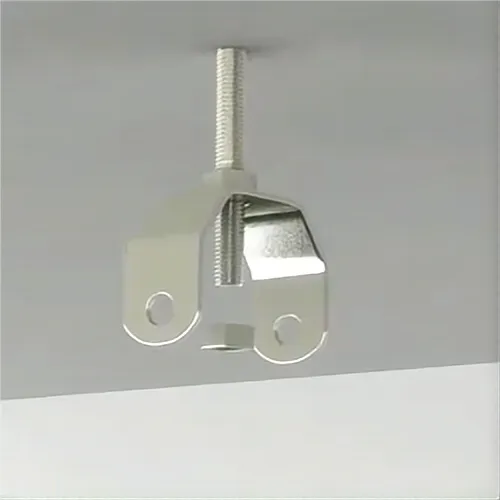

Install the main part of the clevis hanger onto the screw, and initially fix it using the nut.

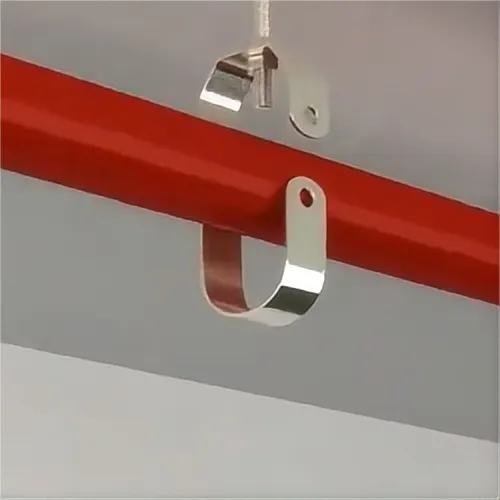

Adjust the position so it aligns with the pipe and place the pipe into the slot.

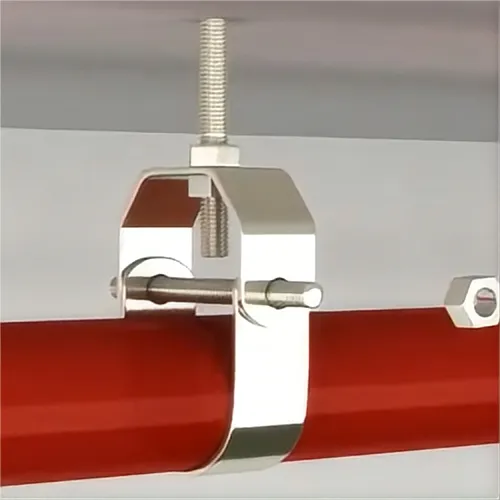

Install U-shaped clamps and fasteners to lock the device, ensuring a firm connection.
Utilizing 5 advanced laser cutters and high-quality casting equipment to ensure smooth surfaces without cracks or defects.
Our products are galvanized for a beautiful, smooth finish and exceptionally long service life.
