Electrogalvanized Pipe Sliding Support for Thermal Pipe Installation with Large Displacements

i

Basic Information

Model NO.:

HOHD-01-ZE

Trademark:

Carbon Structural Steel

Connection:

Bolt Connection

Application:

Steel Workshop, Fabricated House, Bridge

Service:

Within 48 Hours

Warranty:

12 Months

Member:

Pipe Slide Connector

Specification:

Q235B

P

Product Description

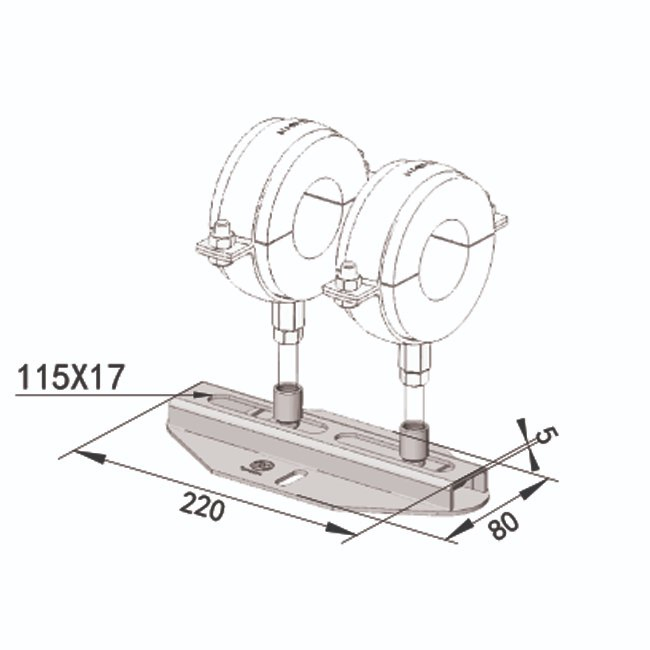

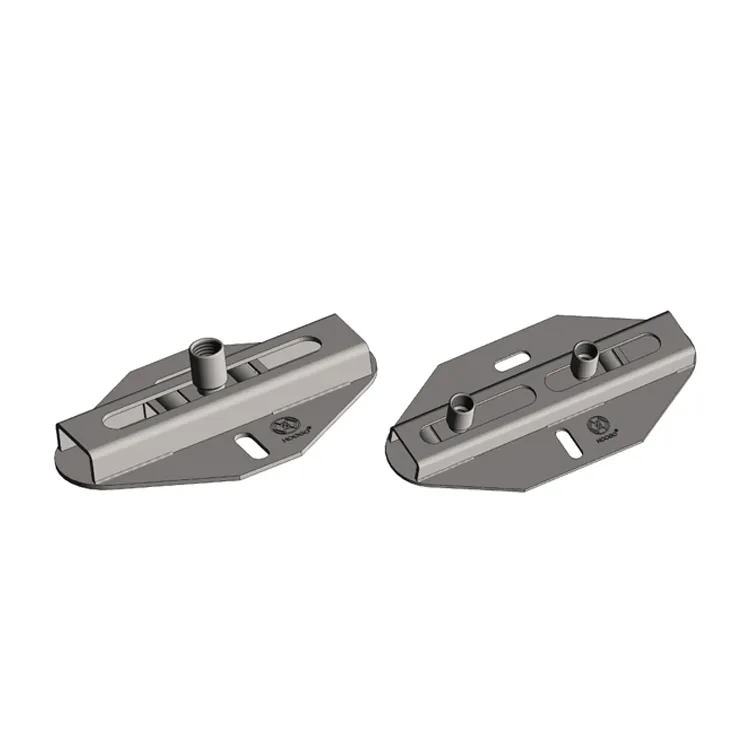

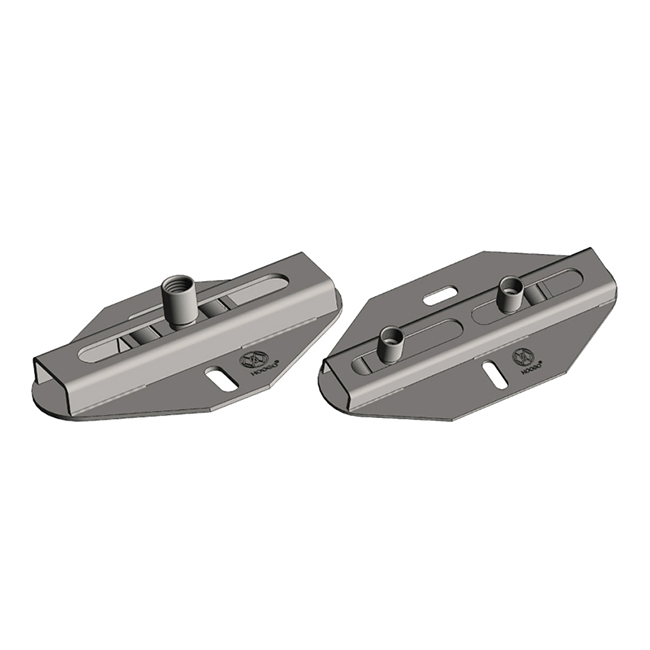

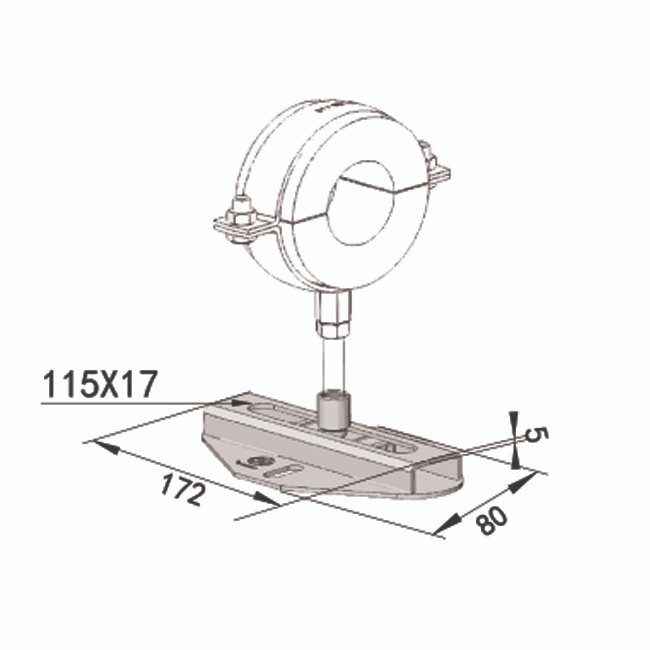

Pipe slide connector HOHD

✓ Application: Designed for DN100 heat pipe installation.

✓ Material: High-quality Q235B structural steel.

✓ Surface Treatment: Zinc galvanized, hot dip galvanized, or zinc chrome coating.

✓ Key Features: Supports both hanging and support methods; slider remains secure during movement; rapid installation.

Product Name	Surface Treatment	Item No.	Product Code
Slide connector (single connection)-ZE	Zincate galvanized	HOHD-01	5011311
Slide connector (single connection)-ZCC	Zinc chrome coating	HOHD-01	50113111
Slide connector (double connections)-ZE	Zincate galvanized	HOHD-02	5011321
Slide connector (double connections)-ZCC	Zinc chrome coating	HOHD-02	50113211

V

Product Gallery

L

Delivery & Support

?

Frequently Asked Questions

1. What materials are used for the pipe slide connector?

The product is manufactured using high-quality Q235B Carbon Structural Steel, ensuring high strength and durability for industrial applications.

2. Which pipe sizes is this connector suitable for?

The HOHD series pipe slide connector is specifically designed for DN100 heat pipe installations.

3. What surface treatments are available to prevent corrosion?

We offer three main surface treatments: Zincate galvanized (ZE), Hot-dip galvanized, and Zinc chrome coating (ZCC) for superior weather resistance.

4. Does the slider stay in place during thermal expansion?

Yes, the product is engineered so that the slider does not come out even as it moves, providing stable support during pipe displacement.

5. What is the standard warranty period?

We provide a 12-month warranty for all our pipe slide connectors, along with after-sales service response within 48 hours.

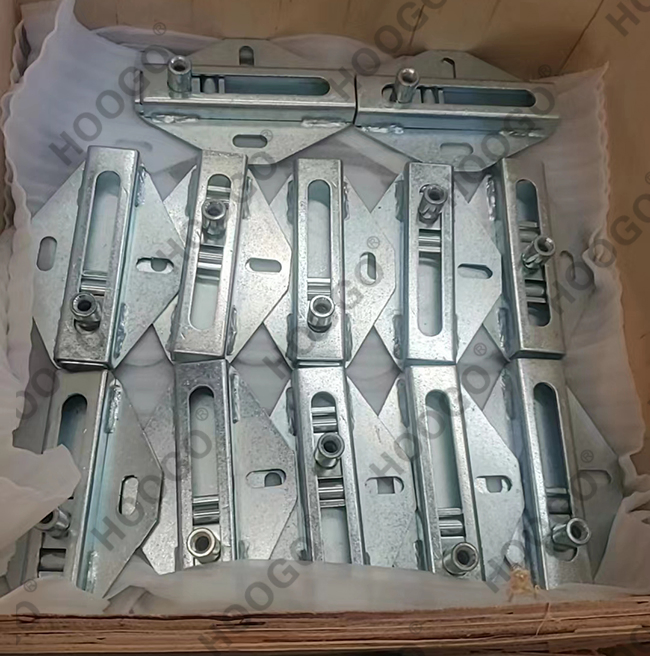

6. How is the product shipped?

Standard transport is via sea shipping, with products securely packed to ensure safe delivery to international destinations.
