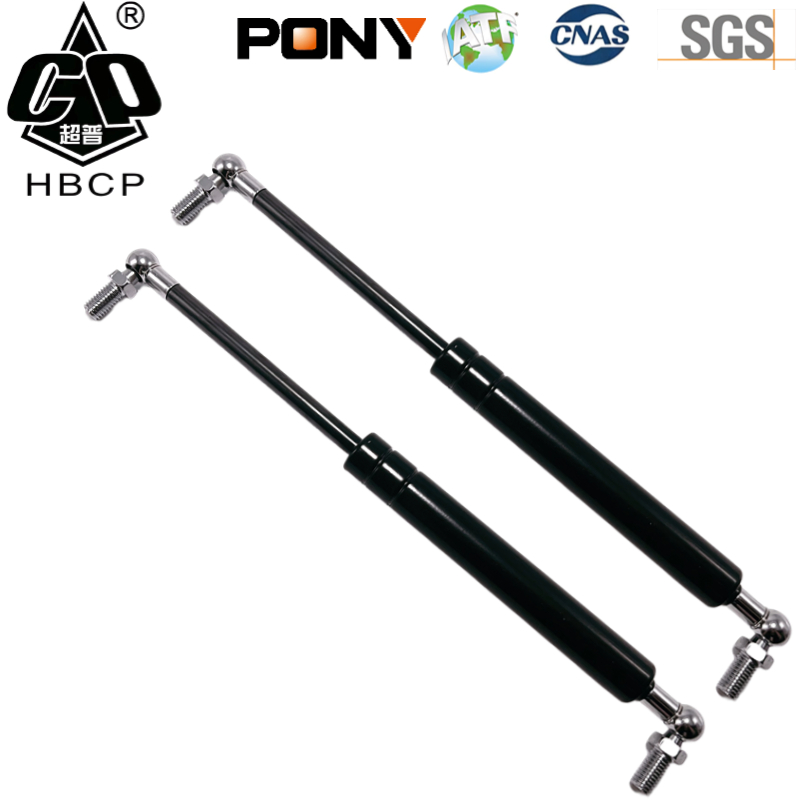

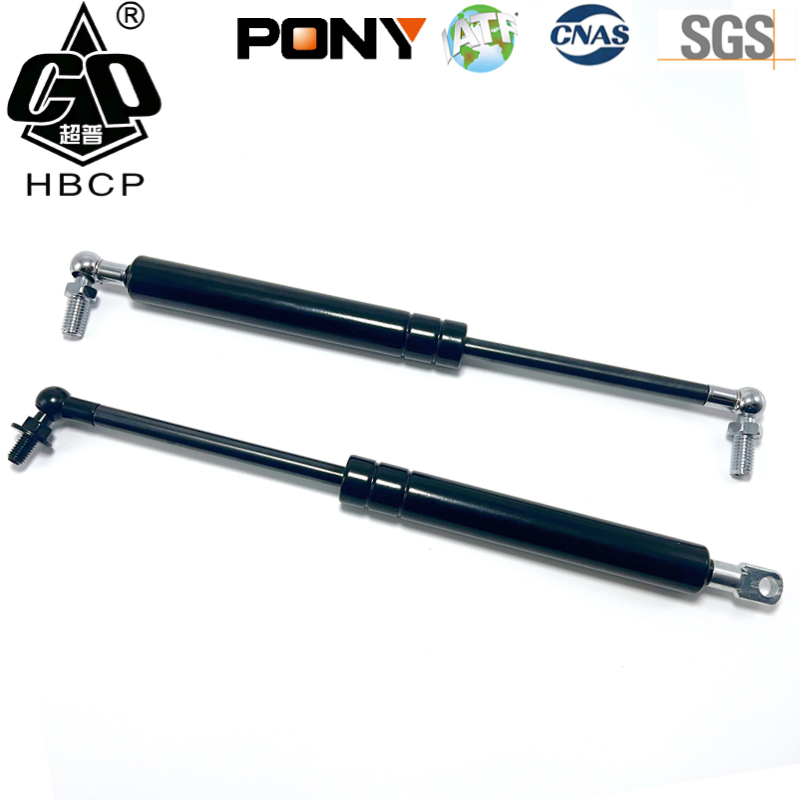

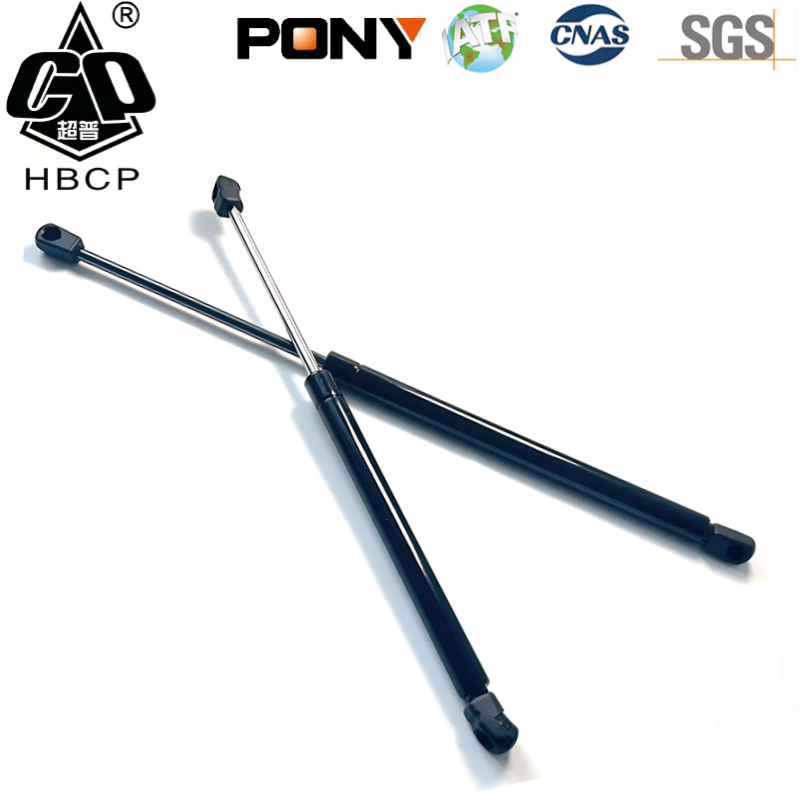

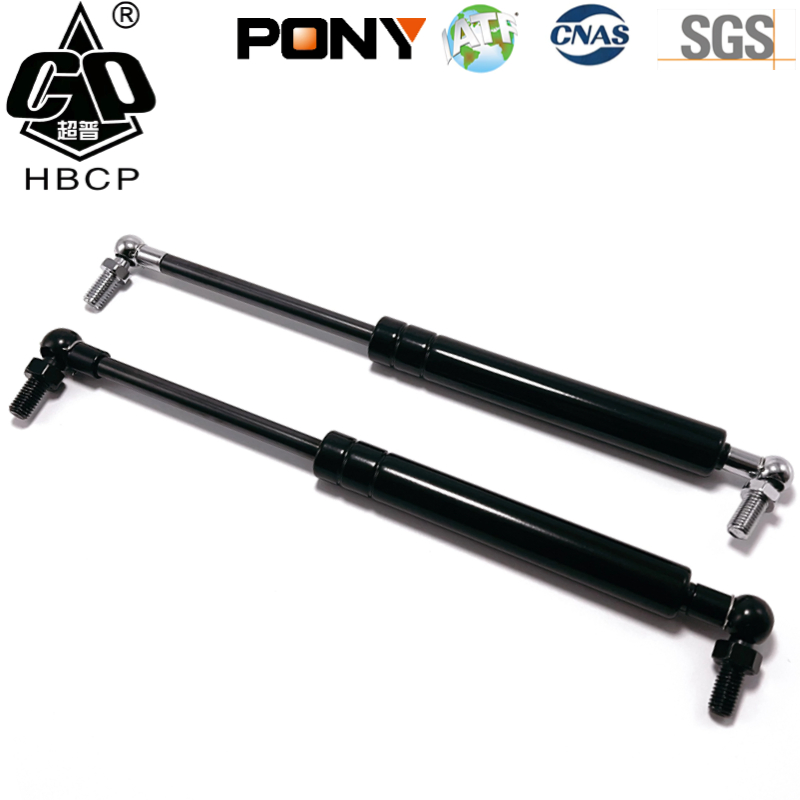

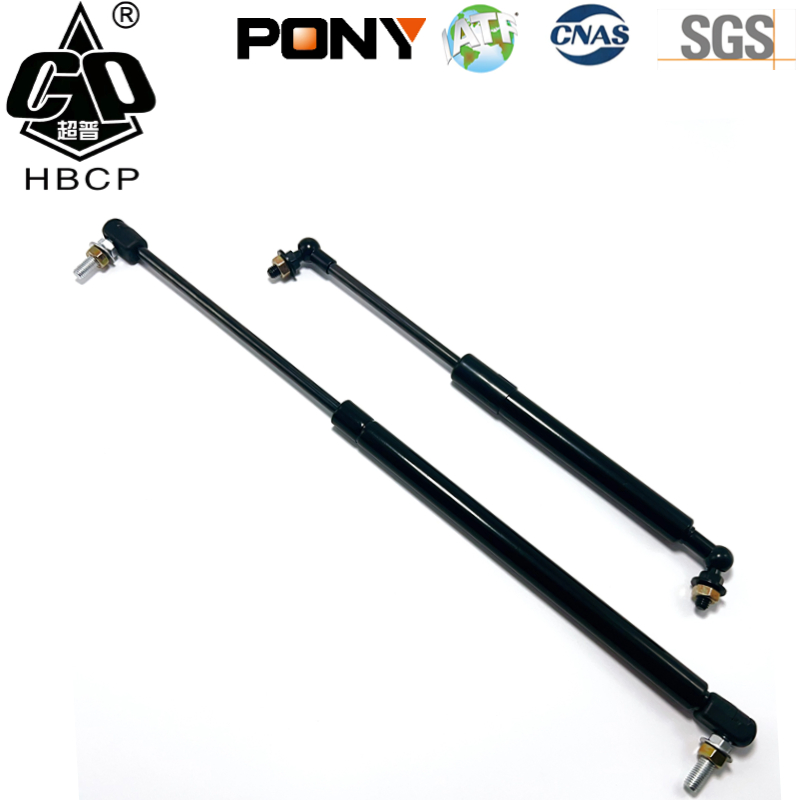

Focusing on gas spring manufacturing for more than 20 years, committed to providing high-quality, long-life, and high-reliability products for automobiles, construction machinery, agricultural equipment, industrial devices, and medical fields.

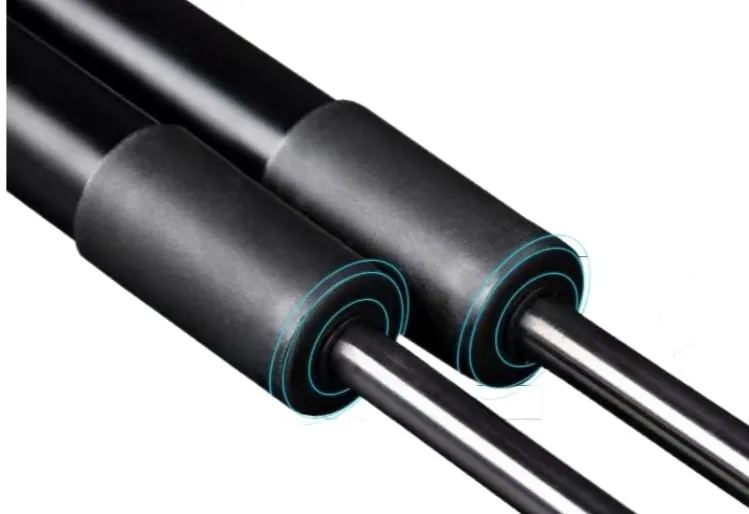

High-strength alloy steel cylinder body, seamless steel pipe, and precision grinding of inner walls for strong corrosion resistance.
Made of high-quality 45# steel with double nitriding and salt spray testing for superior wear and rust resistance.
Double-layer sealing technology ensures stable buffering and no air leakage for long-term use.
1. Automatic CNC Production: Strictly controlled processes through more than 28 specific channels.

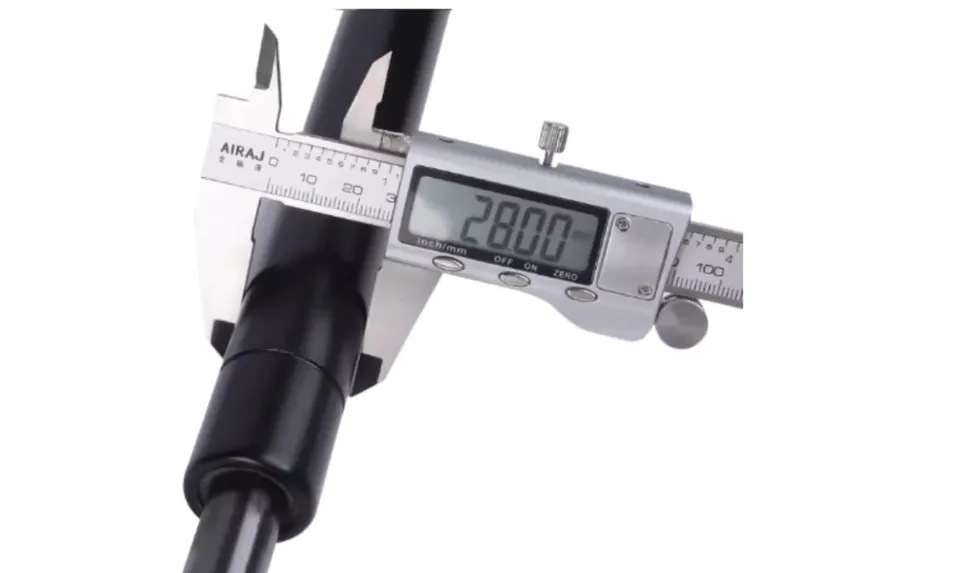

2. Digital Detection: Every station implements digital checks to ensure dimensional consistency.
3. Nitrogen Filling: Constant pressure technology with force accuracy error ≤±5%.

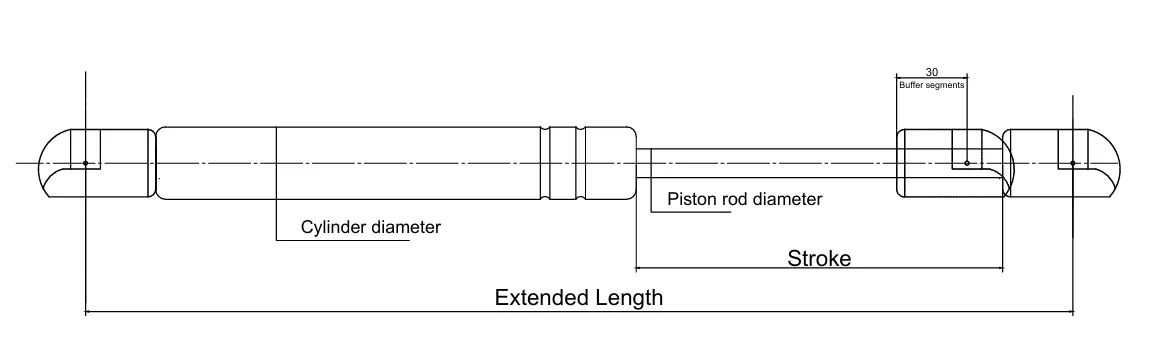

| Piston Rod (mm) | Cylinder (mm) | Extended Length (mm) | Stroke (mm) | Force (N) |
|---|---|---|---|---|
| Φ6 | Φ15 | 150-400 | 30-150 | 30-150 |
| Φ8 | Φ18 | 150-730 | 30-350 | 50-600 |
| Φ10 | Φ22 | 200-1000 | 30-450 | 50-1100 |
| Φ12 | Φ22 | 200-1000 | 30-450 | 50-1100 |
| Φ12 | Φ27 | 200-1100 | 50-500 | 100-1500 |
| Φ12 | Φ28 | 200-1100 | 50-500 | 100-1500 |
| Φ14 | Φ28 | 300-1500 | 80-600 | 100-2200 |

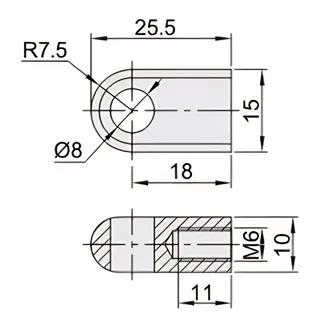

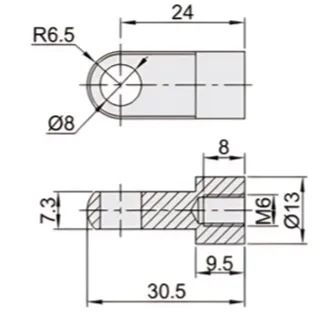

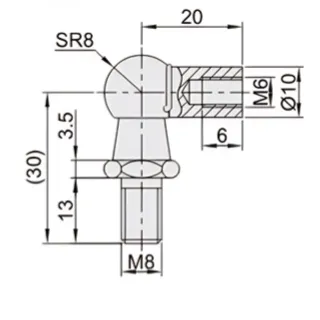

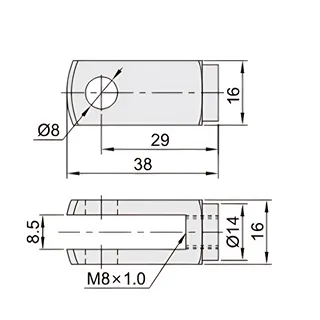

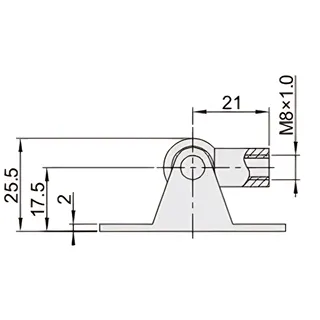

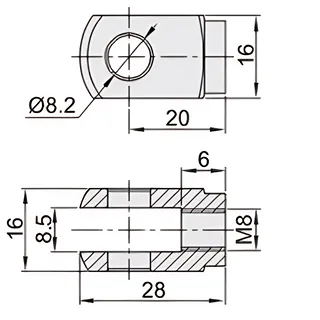

We offer over 1000 types of connectors to meet your professional customization requirements.

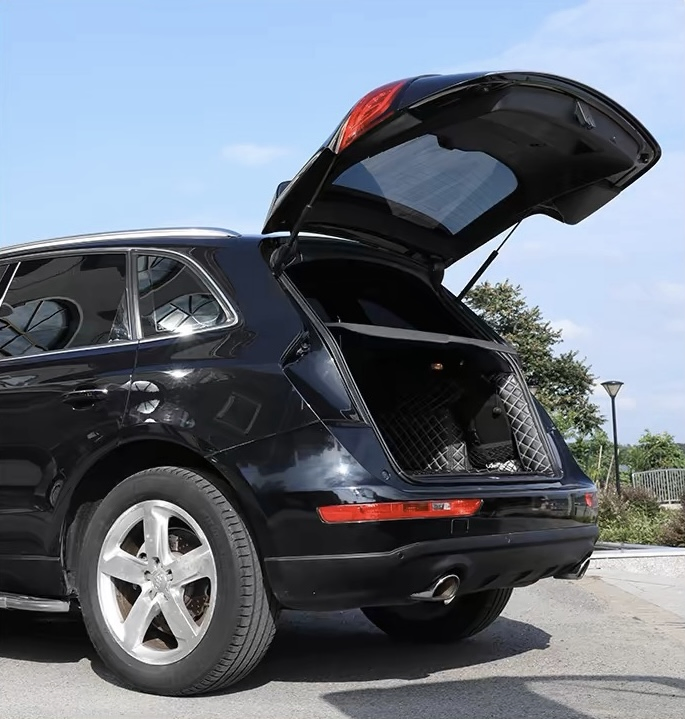

Car hood/trunk support
Automobile And Pickup Truck
Universal Car Models
IATF 16949 Certified: We strictly implement international automotive quality standards. From raw material procurement to final assembly, every link is standardized to ensure product consistency, reliability, and traceability.
