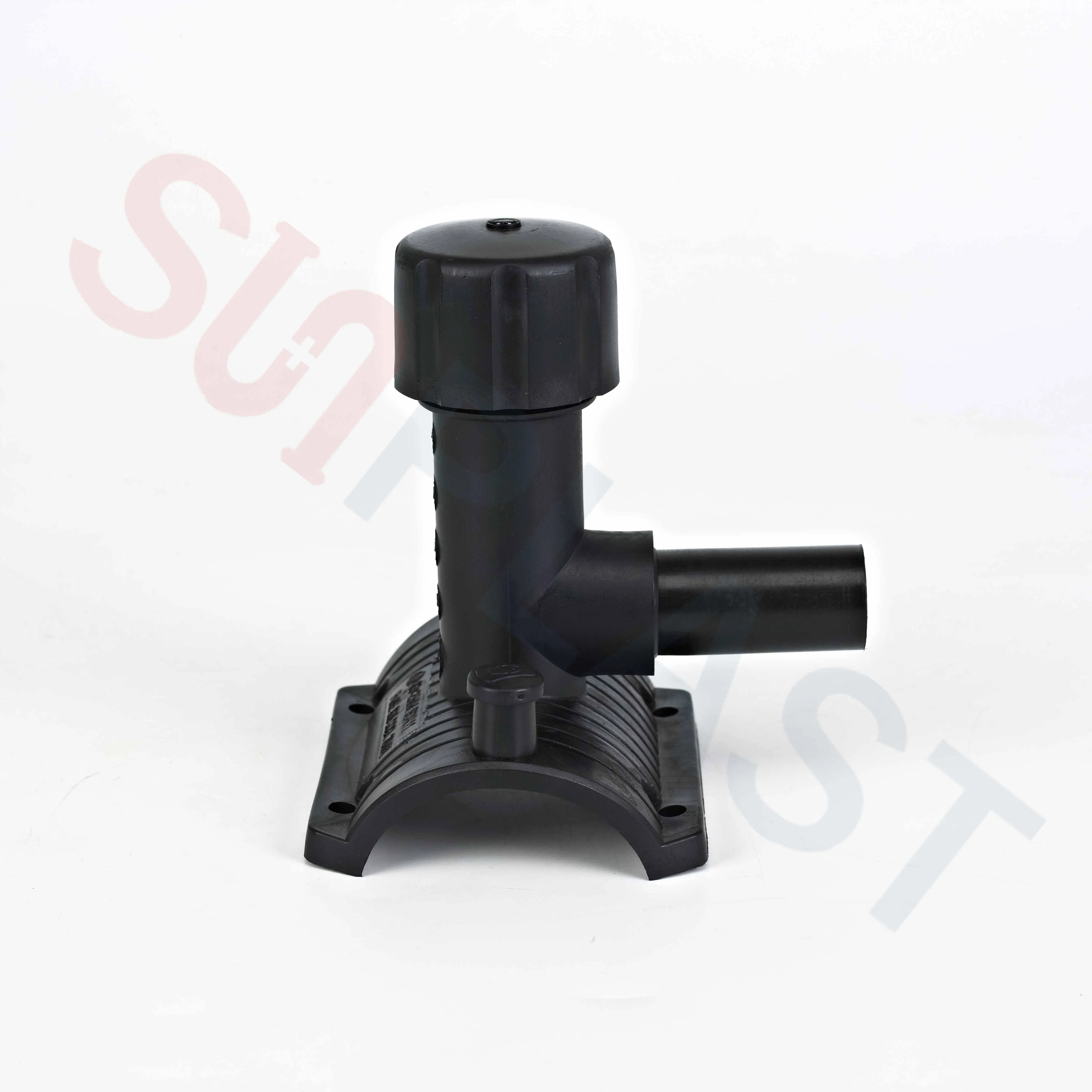

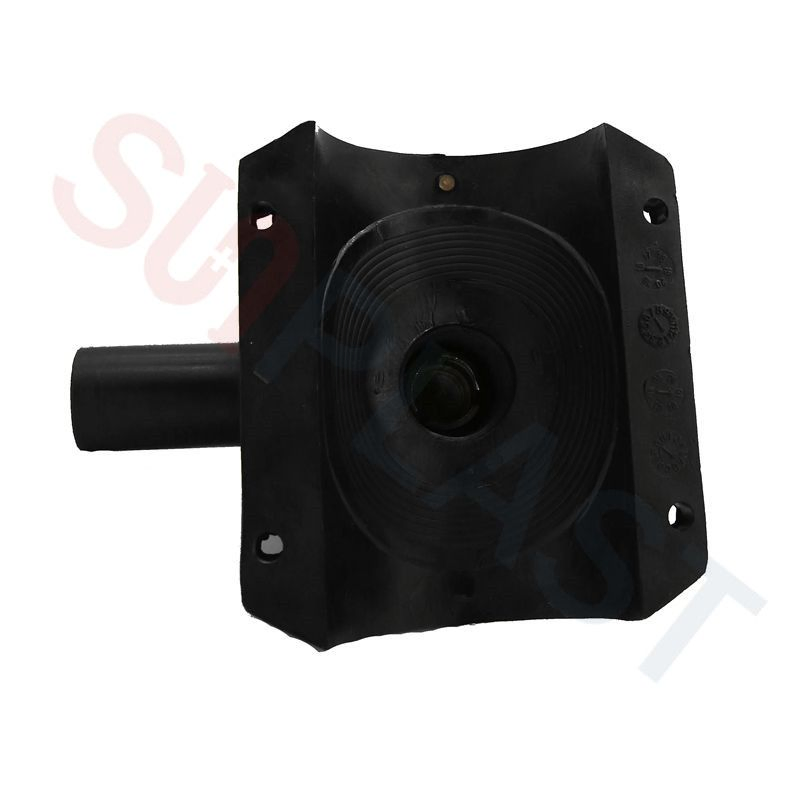

Durable Electro Fusion Saddle for Different Pipe Sizes

1 / 5

Durable Electro Fusion Saddle for Different Pipe Sizes

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

63*25mm~315*90mm

Connection

Socket

Transport Package

Cartons

Specification

20-1000

Trademark

OEM AVAILABLE

Origin

China

HS Code

3917400000

Capacity

8000ton/Year

✔

Product Description

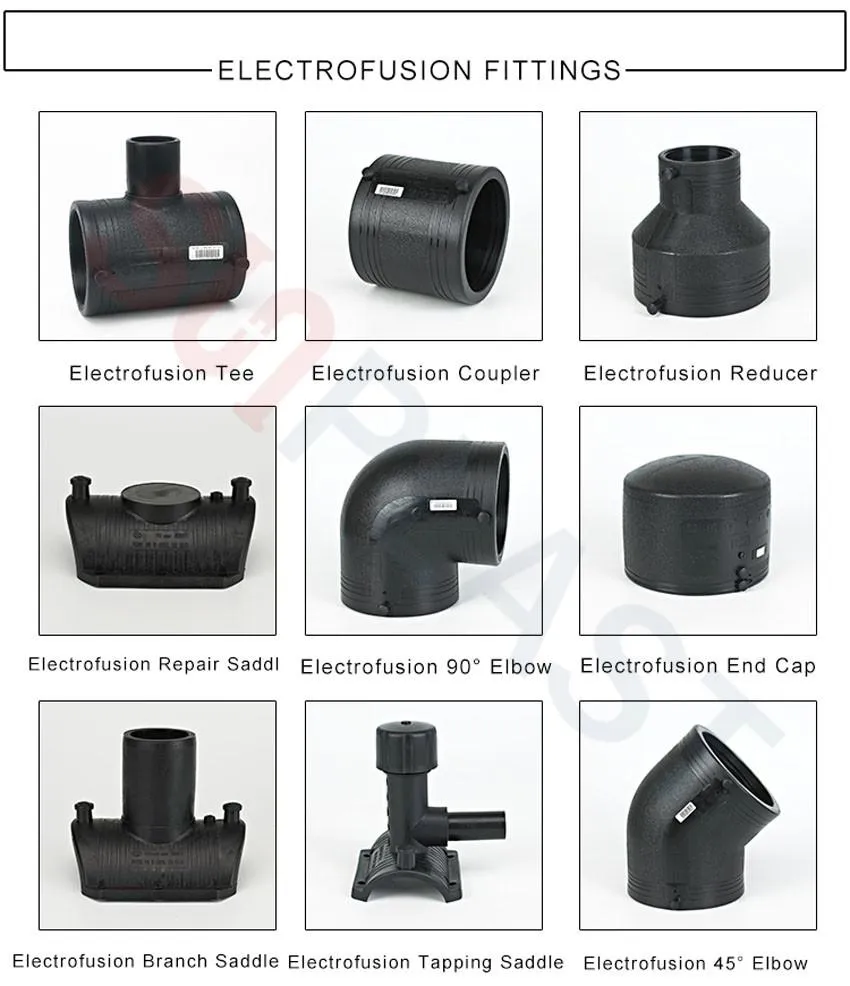

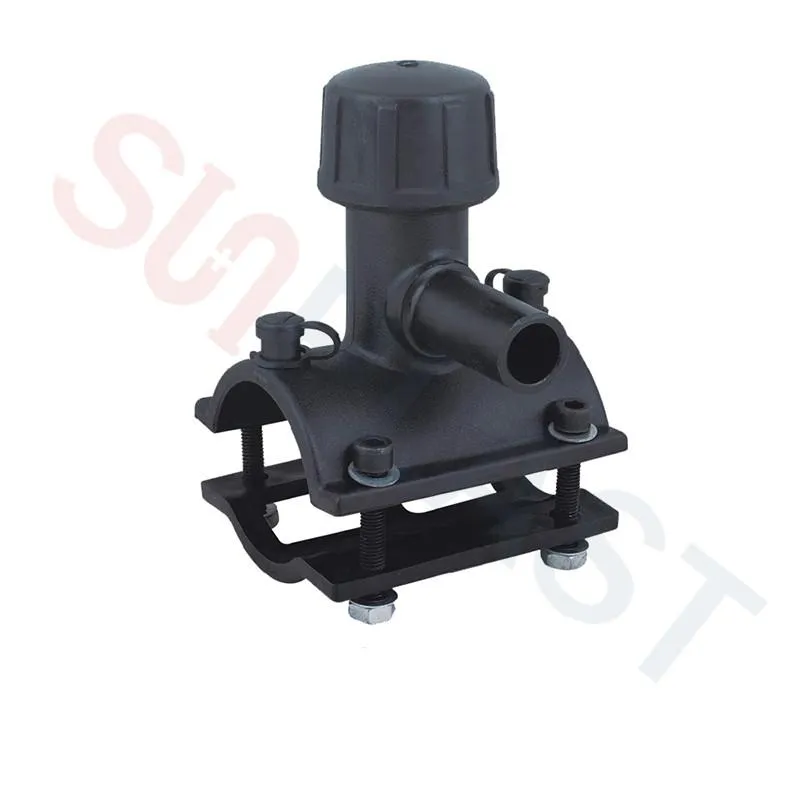

HDPE Electrofusion Tapping Saddle is used to tap into a HDPE pipeline. Manufactured and tested in world-class facilities, this range of electrofusion tapping saddles offers a solution for bypass, purging and off-takes.

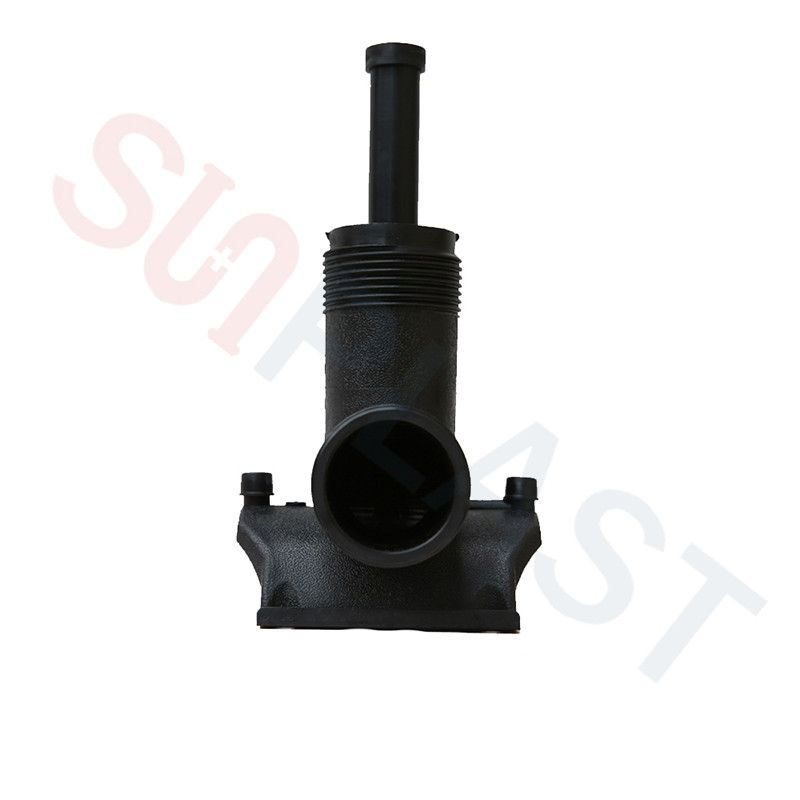

Also known as an electrofusion tapping tee or EF tapping saddle, it has implanted metal coils placed around the inner surface. The branch outlet is a long spigot type, requiring a coupler to join it to another pipe or fittings. The tapping tee is assembled with an internal metal cutter. After welding, installers use a special tool to screw down the cutter to tap the hole, then screw it up to seal the access, allowing flow into the branch outlet.

Technical Brief Details

Feature	Details
Specification	63×25mm~315×90mm
SDR/Pressure Ratings	SDR11-PN16
Material	Virgin PE100 Material
Process	Injection Molded
Standard	ISO4427-3, EN12201-3, AS/NZS 4129, EN1555, EN ISO15494
Warranty	10 years for normal use

📐

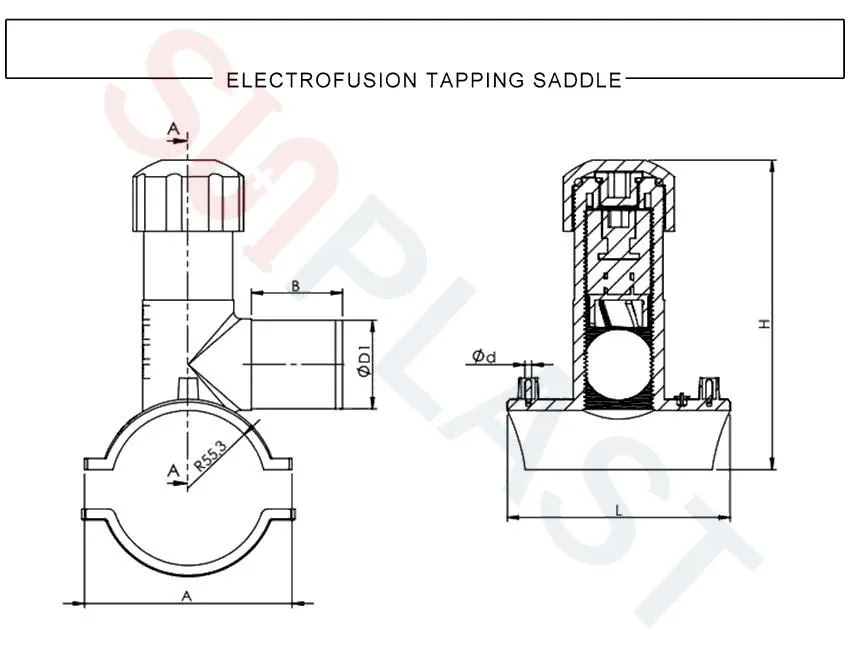

Product Specifications

ΦD×ΦD1	L	A	B	H	Φd	SDR17	SDR11
63×25	110	104	50	129	4.0/4.7	×	√
90×25	140	130	75	185	4.0/4.7	×	√
110×32	130	155	55	145	4.0/4.7	×	√
160×63	190	240	85	225	4.0/4.7	×	√
250×90	190	265	160	215	4.0/4.7	×	√
315×90	190	310	160	215	4.0/4.7	×	√

★

Key Advantages

● Simple installation process with lightweight machines.
● Lower installation and labor costs compared to traditional methods.
● Highly reliable joints, preferred for gas distribution.
● Easy repair capabilities, including secondary welding.

⚙

Quality & Manufacturing

Utilizing premium PE100 materials such as HE3490-LS from Borealis and P6006 from Sabic, we ensure maximum stability. Our ISO9001 certified facility operates over 10 sets of injection machines, capable of producing fittings up to 800mm with an annual capacity of 5,000 tons.

Frequently Asked Questions

What is the electrofusion welding process?

It involves preparing the pipe (cleaning and removing gaps), marking and rubbing the surface, reinforcing the connection, applying electrical current via an electrofusion machine, and finally cooling.

HDPE butt fusion vs electrofusion fittings, which one is better?

Both have benefits. Butt fusion is generally lower in material cost, while electrofusion offers lower installation labor costs and more reliable joints in tight spaces or repair scenarios.

Can HDPE electrofusion coupler be used for PPR pipe?

No, HDPE electrofusion couplers are designed and manufactured exclusively for welding HDPE pipelines and are not suitable for PPR pipes.

Is there a barcode on the electrofusion fittings?

Yes, all fittings include a barcode. On-site workers can scan this with the electrofusion machine to input all welding parameters automatically.

Is scraping necessary before Electrofusion?

Yes, it is essential. The installer must scrape the oxidation layer (approx. 0.3mm depth) on the pipe edge to ensure a successful molecular bond during fusion.

What are the typical reasons for electrofusion welding failure?

The majority of failures are caused by incorrect installation, specifically poor joint preparation, contamination during the process, or misalignment of the pipe within the fitting.
