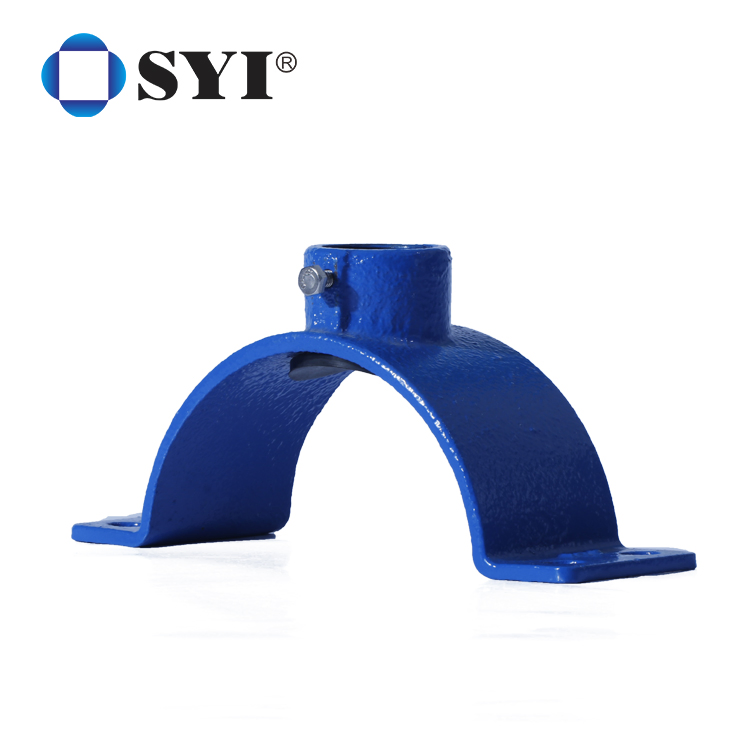

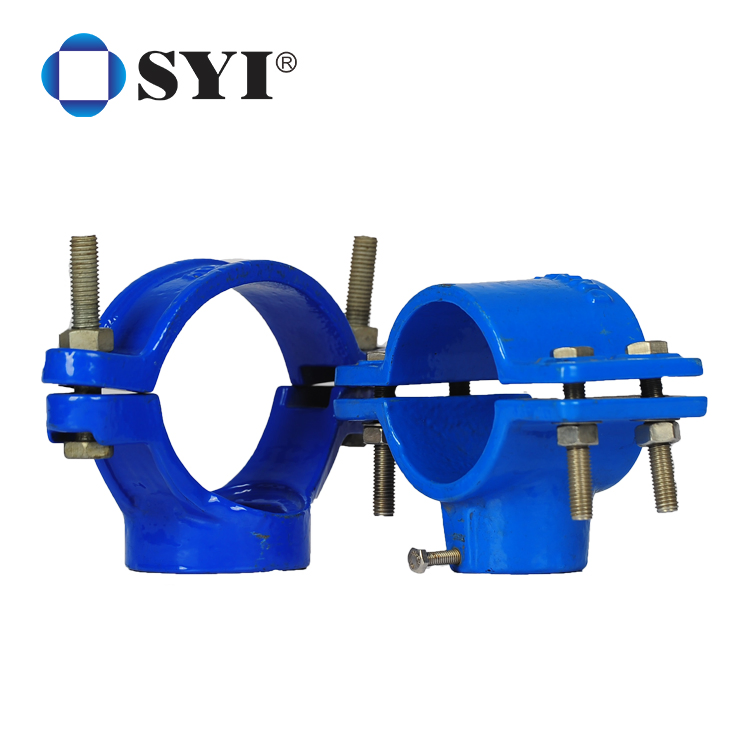

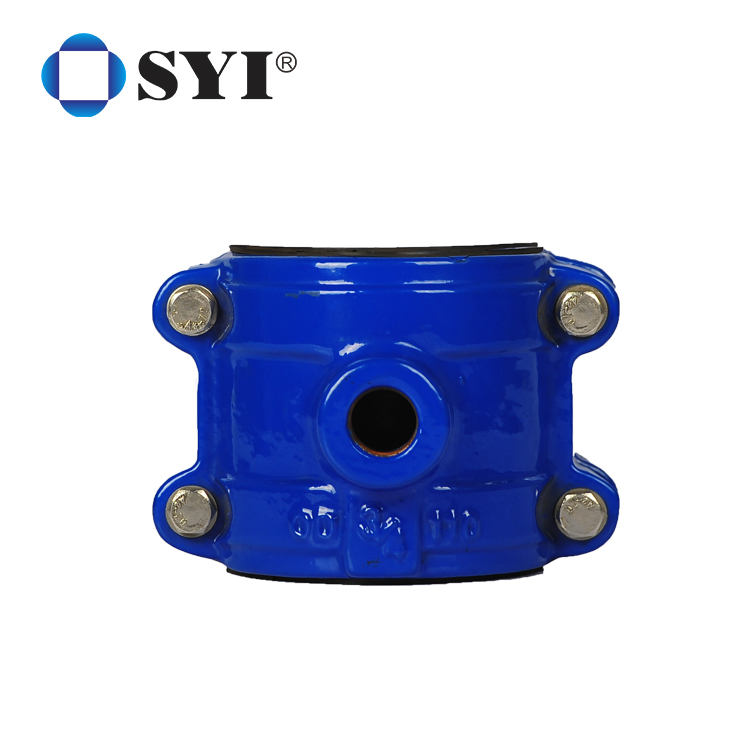

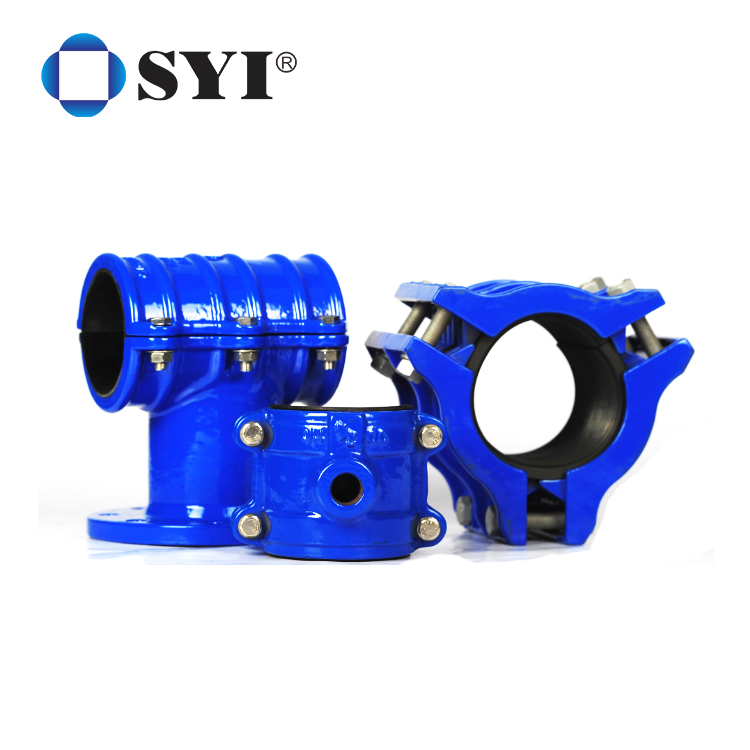

Syi Factory Directly Sale Ductile Iron Tapping Saddle with Ss Band Strapped for Di/Steel Pipe

1 / 5

Syi Factory Directly Sale Ductile Iron Tapping Saddle with Ss Band Strapped for Di/Steel Pipe

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

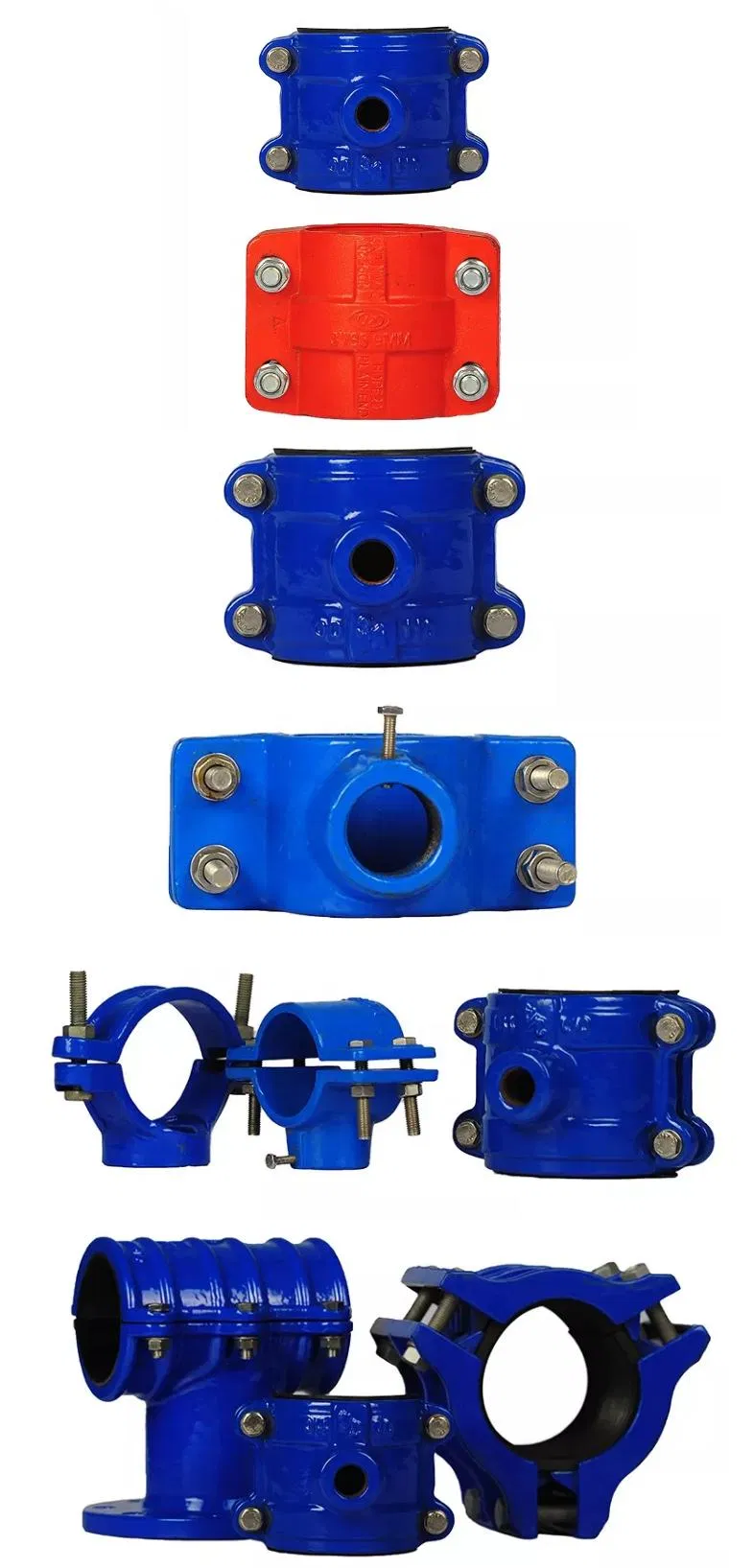

Model NO.: Saddle Clamp

Material: Iron / Ductile Iron

Connection: Welding

Name: Saddle Clamp

Transport Package: Standard Export Package

Specification: Different sizes available

Production Capacity: 1500 tons/Month

Product Description

The simplicity and versatility of Saddle Clamps make them extremely easy to install. They can be installed under pressure for the entire pipeline, eliminating the cost of shutting down the pipeline supply. This ensures no pipeline interruption and brings great convenience to users.

Technical Specifications
Material	Body: Ductile Iron grade 500-7/450-10 (ISO 1083) or 70-50-05/65-45-12 (ASTM A536) Gasket: Rubber E.P.D.M./NBR/SBR (EN 681.1) Bolts & Nuts: Carbon steel grade 8.8/6.8/4.8 with dacromet coating/galvanization
Working Pressure	16 Bar or 250 PSI
External Coating	Liquid epoxy resin painting / FBE (Fusion Bonded Epoxy) according to requirements
Internal Coating	Liquid epoxy resin painting / FBE according to requirements
Reference Rules	Designed and tested in accordance with EN14525, ANSI/AWWA C219 and EN545
Accessories	Gasket, stub(screw) bolts, washer, nuts, etc. Usually supplied pre-assembled.

Key Features

Permanent Tapping: Used to make permanent (hot) tapping on existing or new pipelines for water and gas applications.
Superior Sealing: High-performance gaskets positioned within the saddle ensure a secure and leak-proof seal.
Easy Installation: The simplicity and versatility allow for installation under full pipeline pressure, avoiding costly shutdowns.

Frequently Asked Questions (FAQ)

Q1: Can the saddle clamp be installed without shutting down the water supply? A1: Yes, these saddle clamps are designed for hot tapping, allowing installation under the full pressure of the pipeline without interrupting the supply.

Q2: What materials are the body and gaskets made of? A2: The body is made of high-quality Ductile Iron (Grade 500-7/450-10), and the gaskets are available in EPDM, NBR, or SBR rubber according to EN 681.1 standards.

Q3: What is the maximum working pressure for these clamps? A3: The standard working pressure is 16 Bar (approximately 250 PSI).

Q4: What types of coatings are applied to protect against corrosion? A4: We use liquid epoxy resin painting or Fusion Bonded Epoxy (FBE) for both internal and external surfaces to ensure long-term durability.

Q5: Are the necessary bolts and nuts included? A5: Yes, the accessories including gaskets, bolts, washers, and nuts are usually supplied pre-assembled on the clamp body.

Q6: Which international standards do these products comply with? A6: Our saddle clamps are designed and tested in accordance with EN14525, ANSI/AWWA C219, and EN545.
