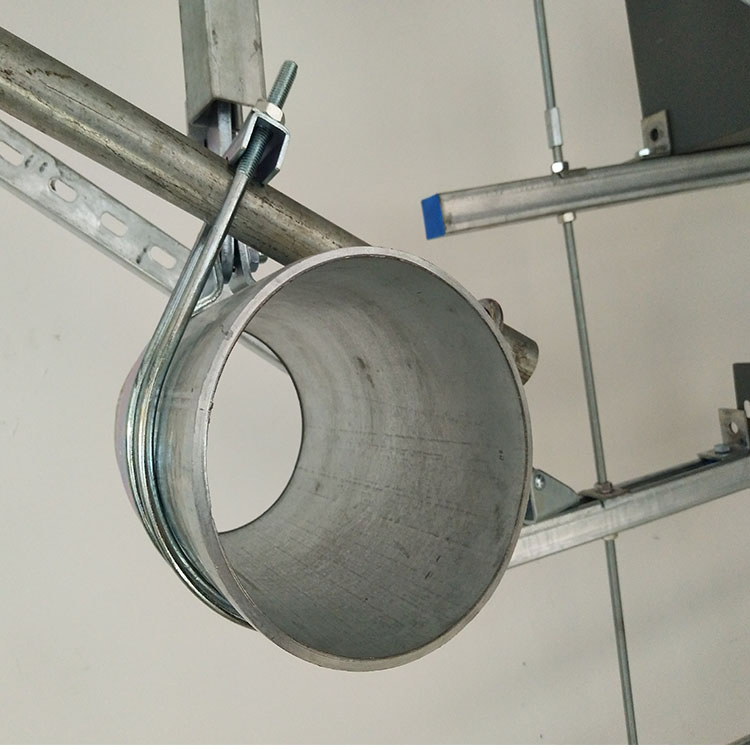

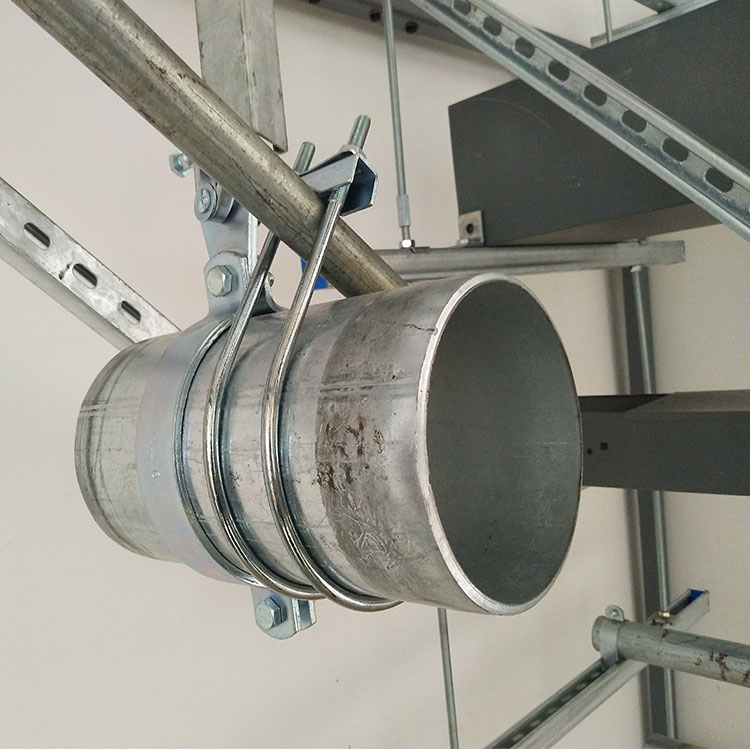

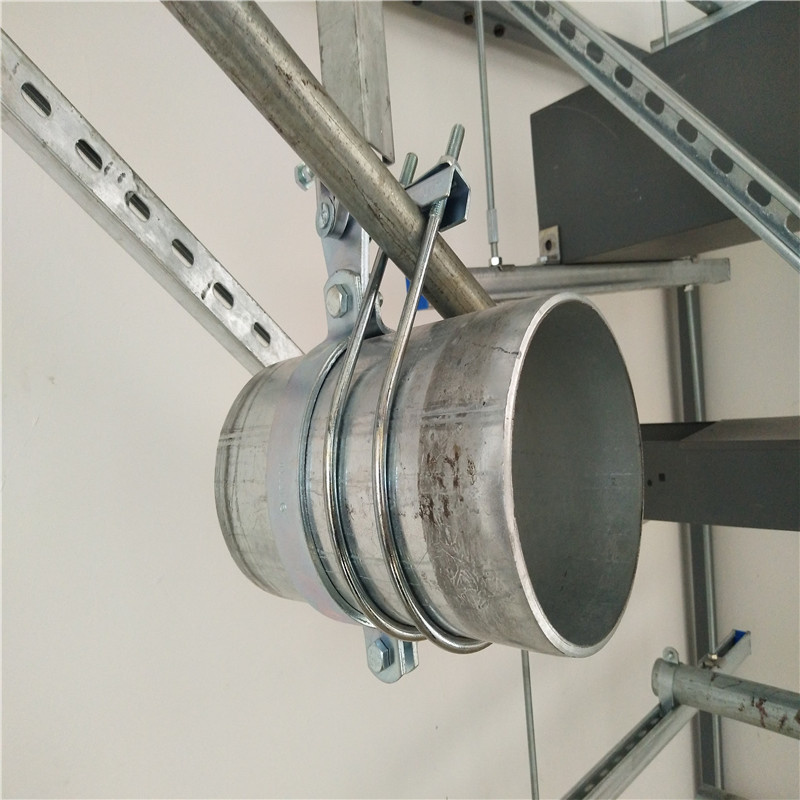

Dual U-Bolt Pipe Support Bracket and Saddle

1 / 5

Dual U-Bolt Pipe Support Bracket and Saddle

Customization:	Available
After-sales Service:	One Year
Warranty:	One Year

Send Inquiry

Product Description

Basic Information

Model NO.	UTT13
Connection	Coupling, Screw
Structure	Customize
Flexible or Rigid	Rigid
Material	Alloy/Carbon Steel/Stainless Steel
Standard	Standard
Molding Method	Casting, Laser Forging
Adaptive Domain	Building/Bridge Piping Support
Package Size	35.00cm * 35.00cm * 15.00cm
Package Gross Weight	17.000kg

Product Description

Construction Structural Parts/Fitting Lateral/Longitudinal Utt20-DN150 water/gas/sprinkler/mud/cable Pipe Clamp Hanger

Pipeline support systems are widely used for various types of pipeline support of hotels, office buildings, residential buildings, bridges and other construction projects. It has the function of quakeproof, vibration reduction, and buffering for the pipeline.

Pipe support accessories are made of carbon steel, ductile iron, or stainless steel by casting or forging. According to the different requirements of customers, we provide support sets of corresponding models. The system consists of a base, support rod, and pipe clamp.

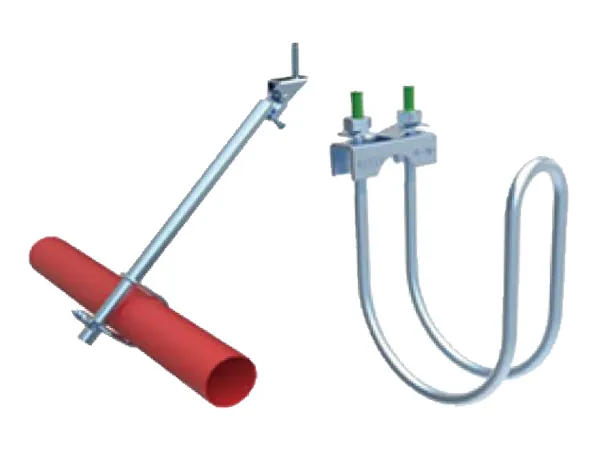

Function: Designed for bracing pipe against sway and seismic disturbance. Forms a complete sway brace assembly when used with structural attachment fittings.

Type: Sprinkler Pipe Sch 10, Sch 40, GB/T 3091, JIS G3454

Size: Pipe size 1"(25) thru 8"(200)

Material: Carbon steel

Finish: Electro-galvanized

Approvals: UL listed and FM approved

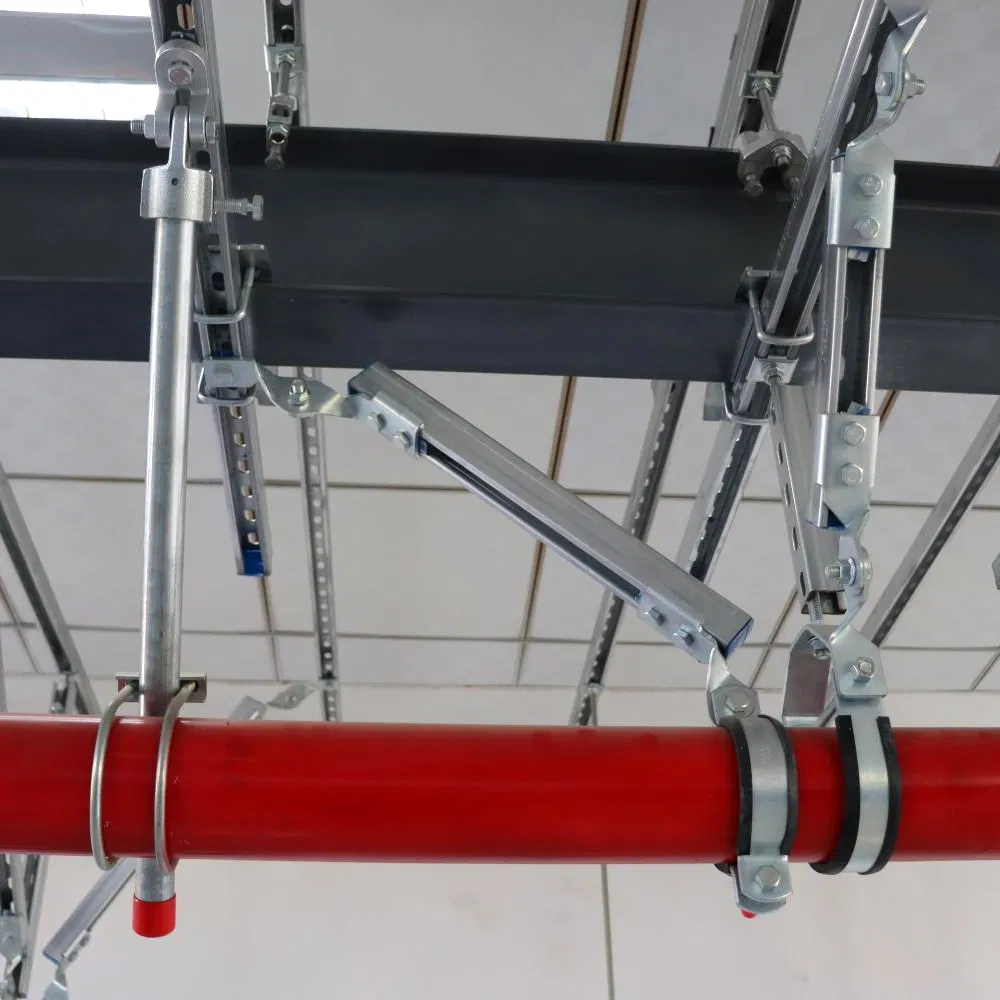

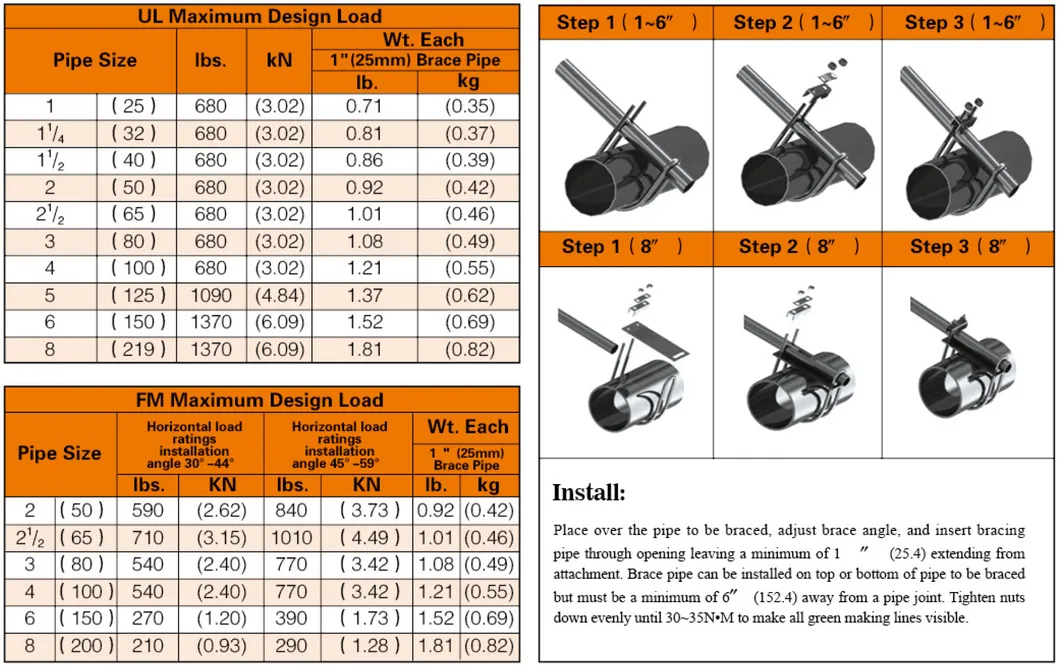

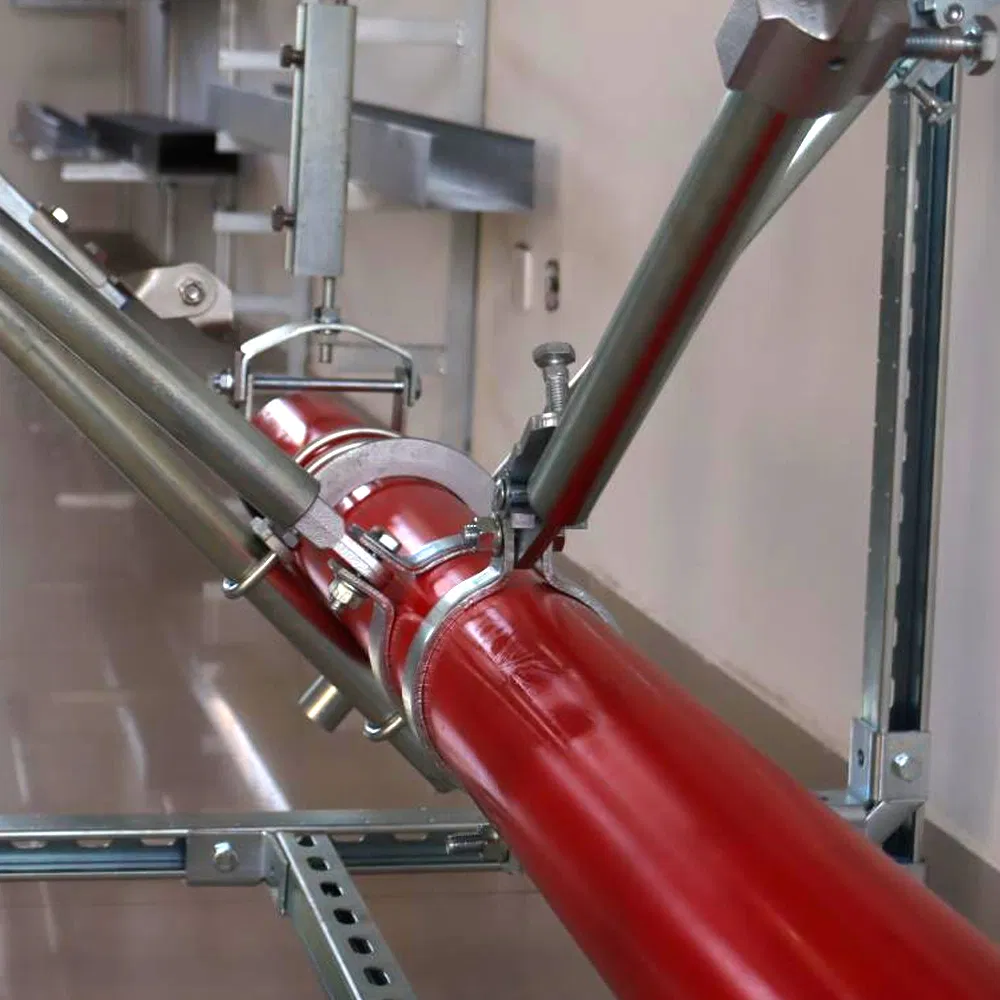

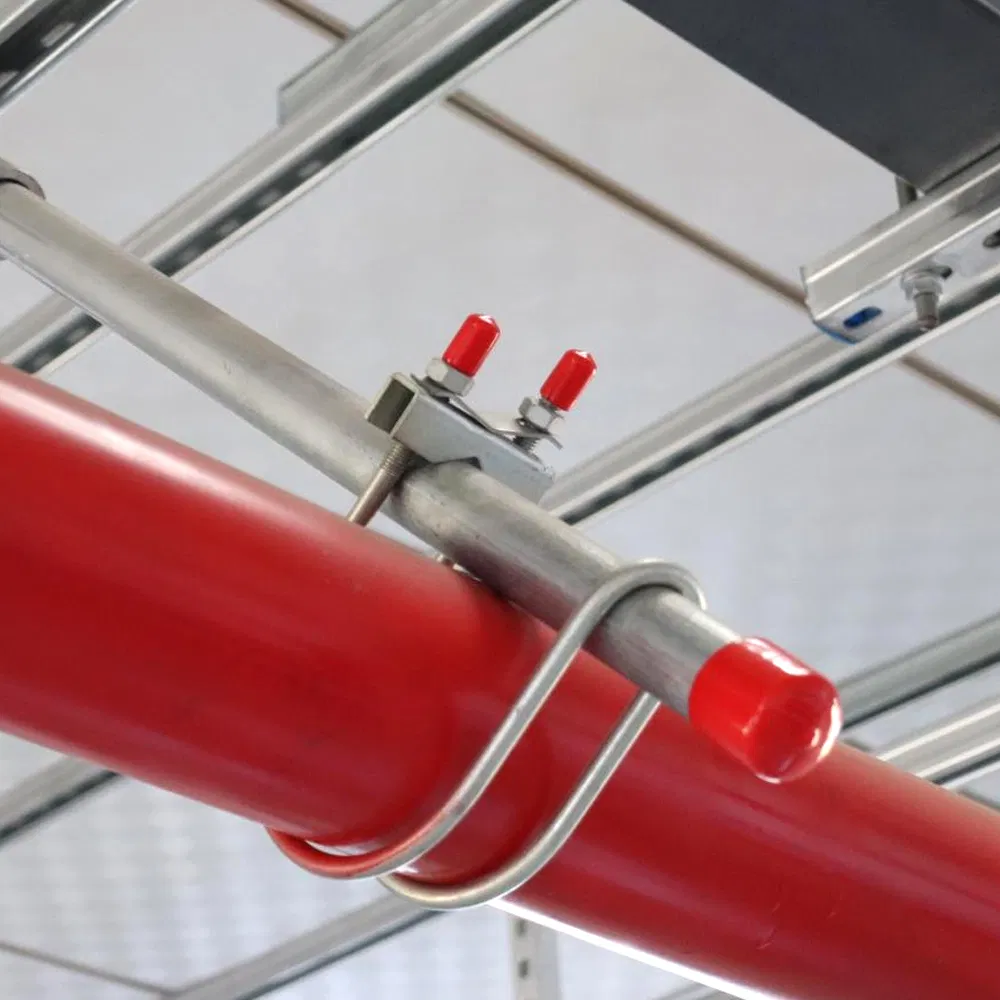

Installation Instructions

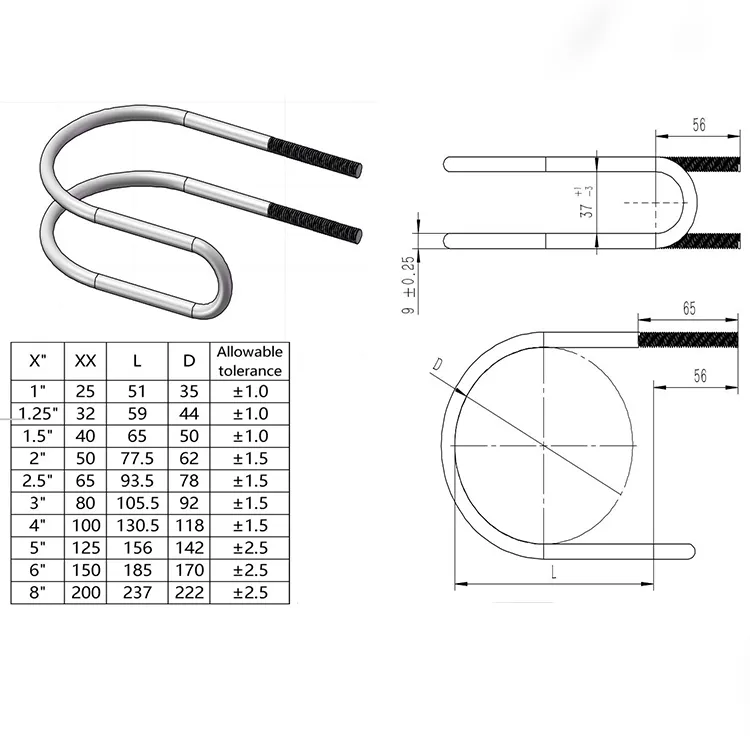

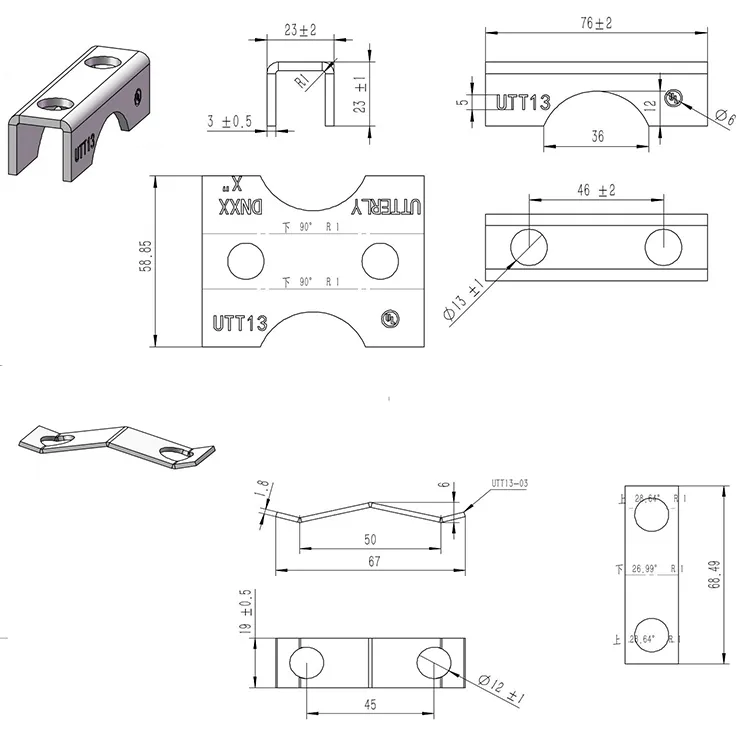

Component Diagram

Product Features

Products pass UL or FM industry certification standards.

Customizable special pipe support system accessories based on engineering drawings.

Made of high-quality carbon steel or ductile iron via hydraulic forging.

Electro-galvanized finish for anti-corrosion, aesthetics, and long service life.

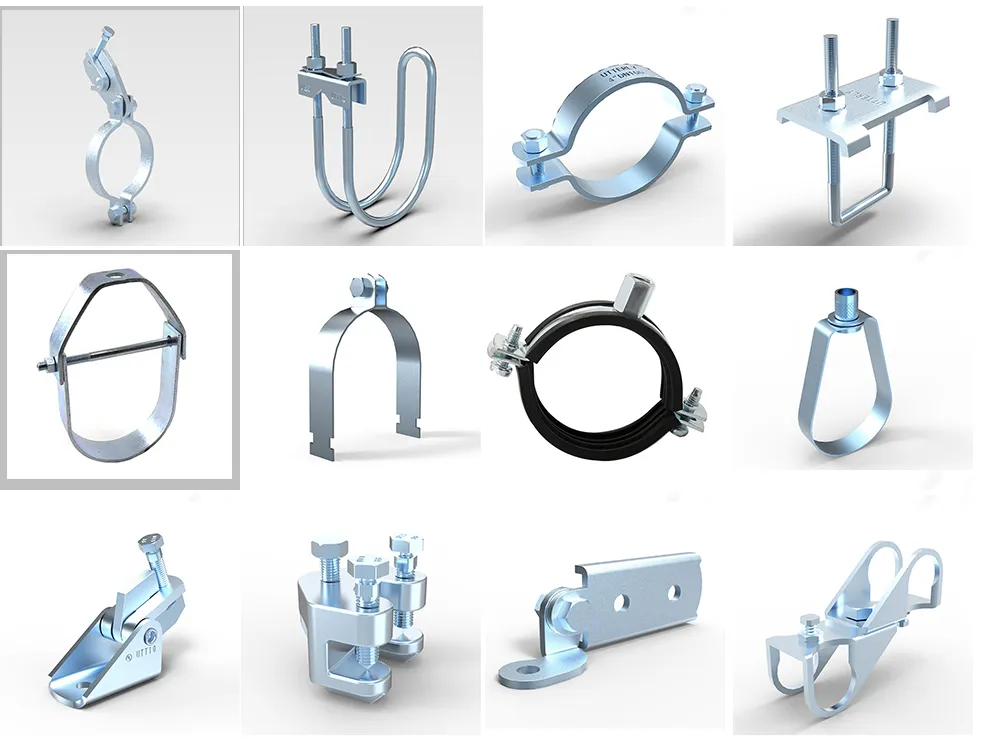

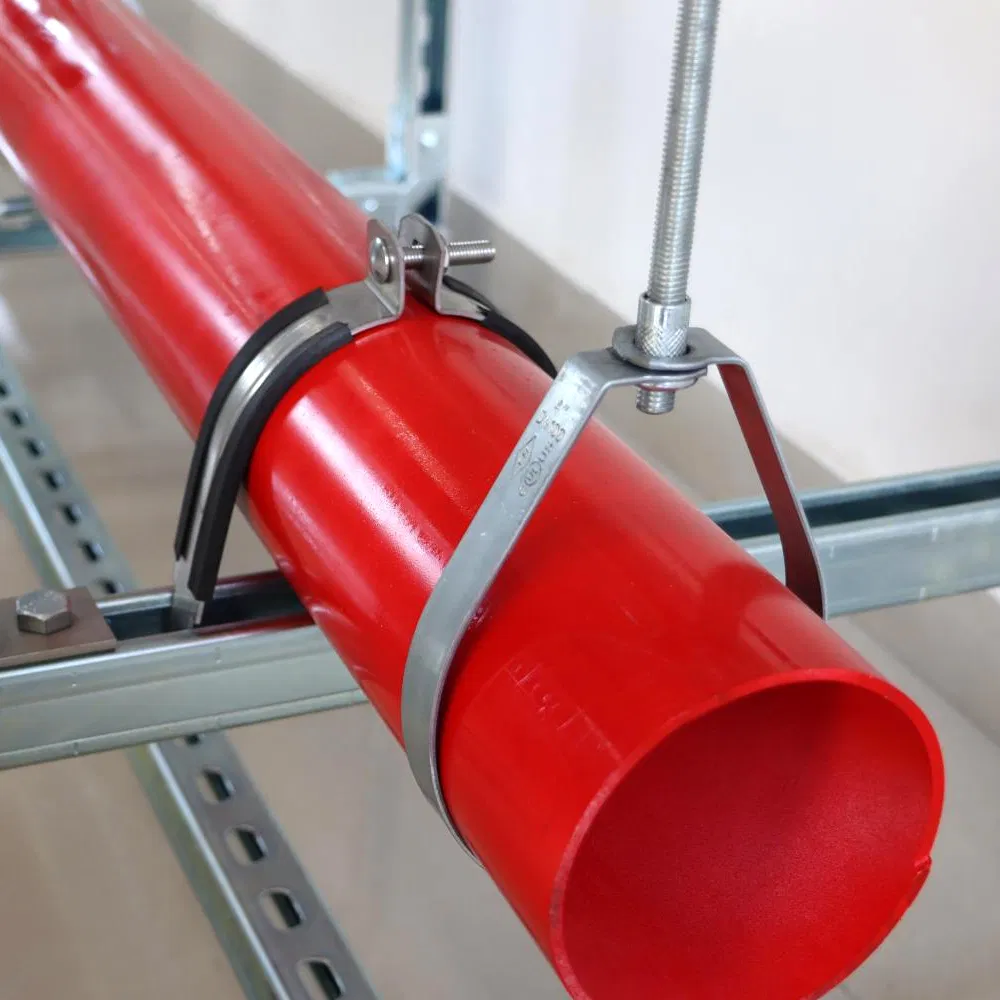

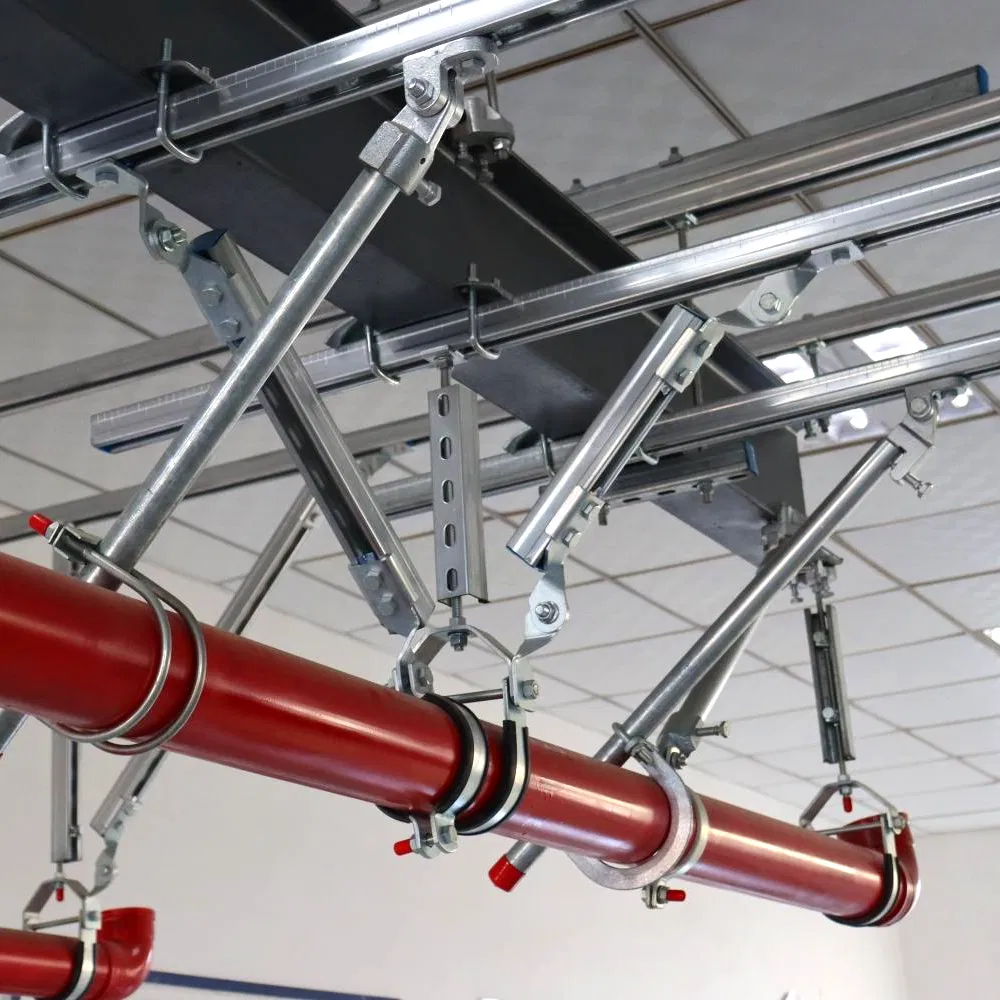

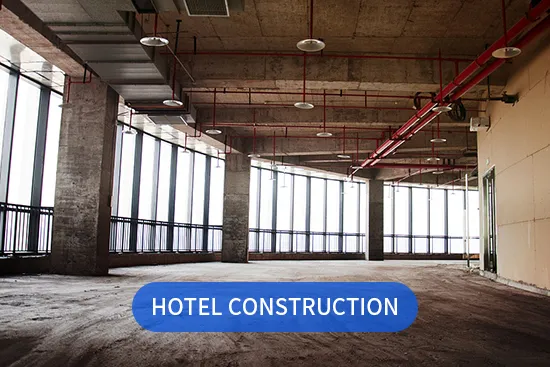

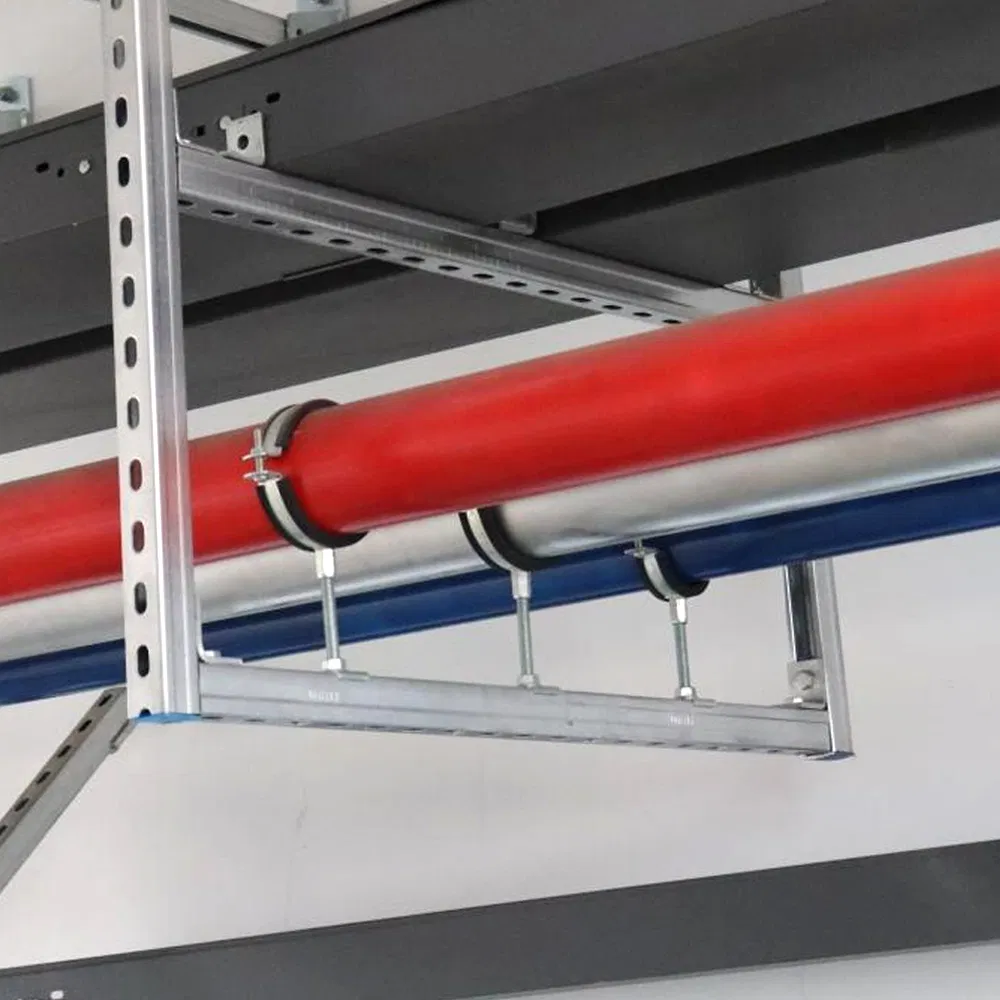

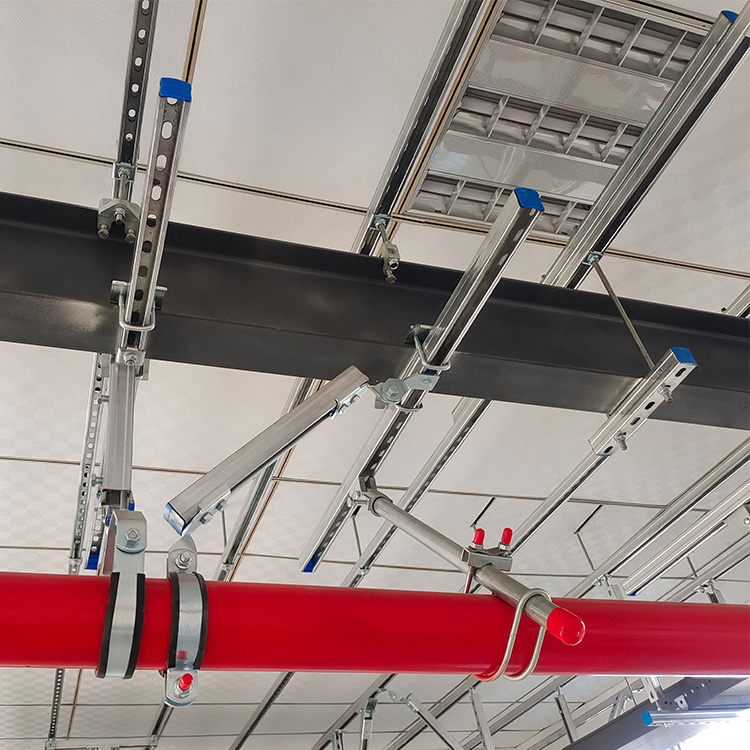

Product Show & Case Study

Technical Specifications

Product Name	Seismic support system accessories
Seismic parts	Base/Connecting support frame/pipe clamp
Craftsmanship	Laser cutting, hydraulic forging
Product material	Carbon steel, ductile iron
Approval Standards	FM, UL Certificate

Frequently Asked Questions

● What certifications do your seismic supports have?

Our products are certified by both UL and FM, ensuring they meet rigorous international safety and performance standards for seismic bracing.

● Can you customize the pipe support system?

Yes, our engineers can customize the entire pipe support system and accessories based on the specific engineering drawings and technical requirements you provide.

● What materials are used in production?

We primarily use high-grade carbon steel, ductile iron, and stainless steel, processed through advanced laser cutting and hydraulic forging methods.

● What kind of surface treatment is applied?

The products are typically electro-galvanized, providing a smooth, anti-corrosive finish that significantly extends the service life in various environments.

● What applications are these supports suitable for?

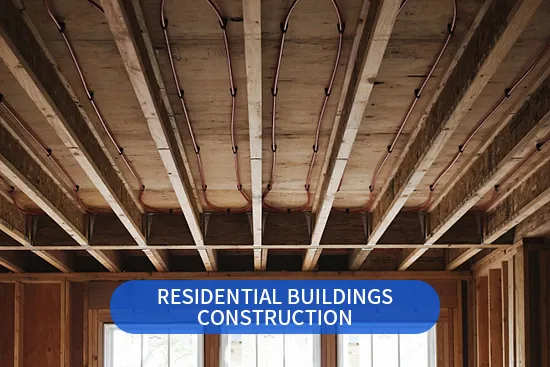

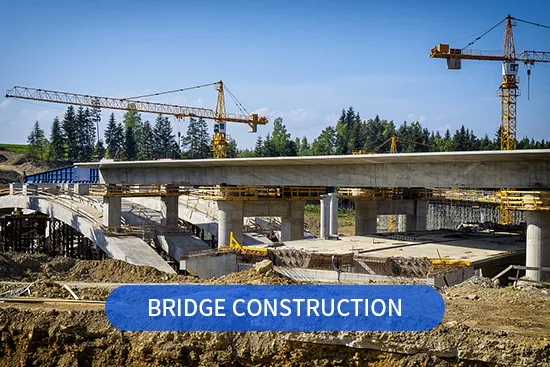

They are designed for water, gas, sprinkler, mud, and cable piping in hotels, office buildings, residential projects, and bridge infrastructure.

● Do you provide OEM/ODM services?

Yes, we offer comprehensive OEM and ODM services, serving customers across Europe, America, the Middle East, and Southeast Asia.
