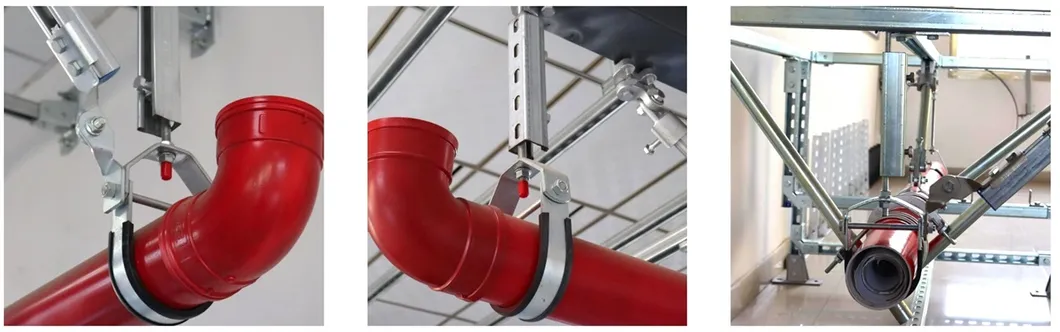

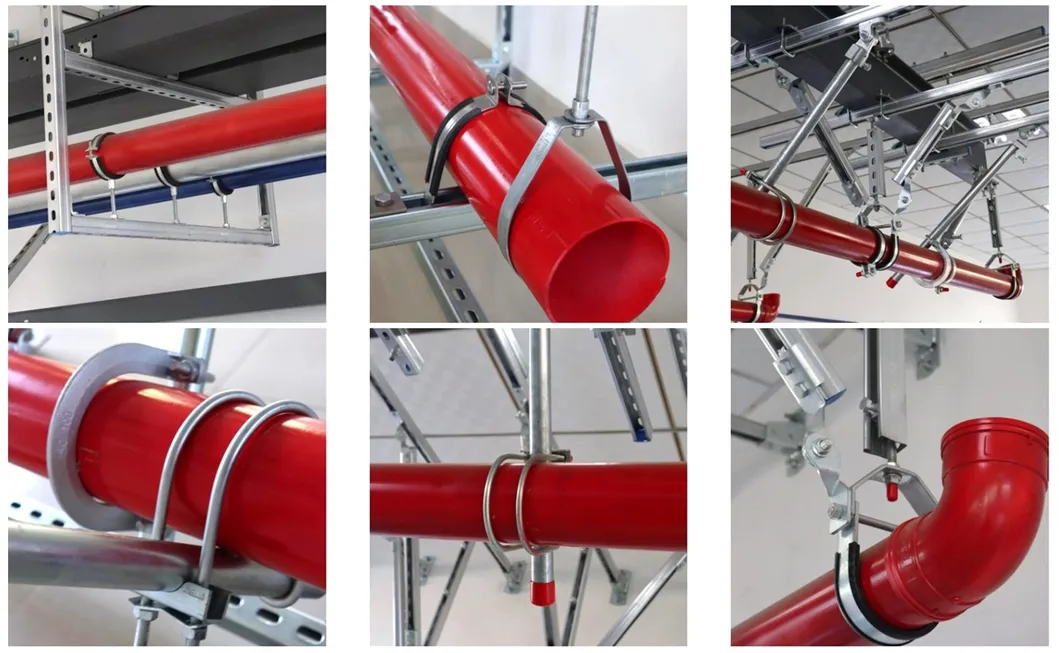

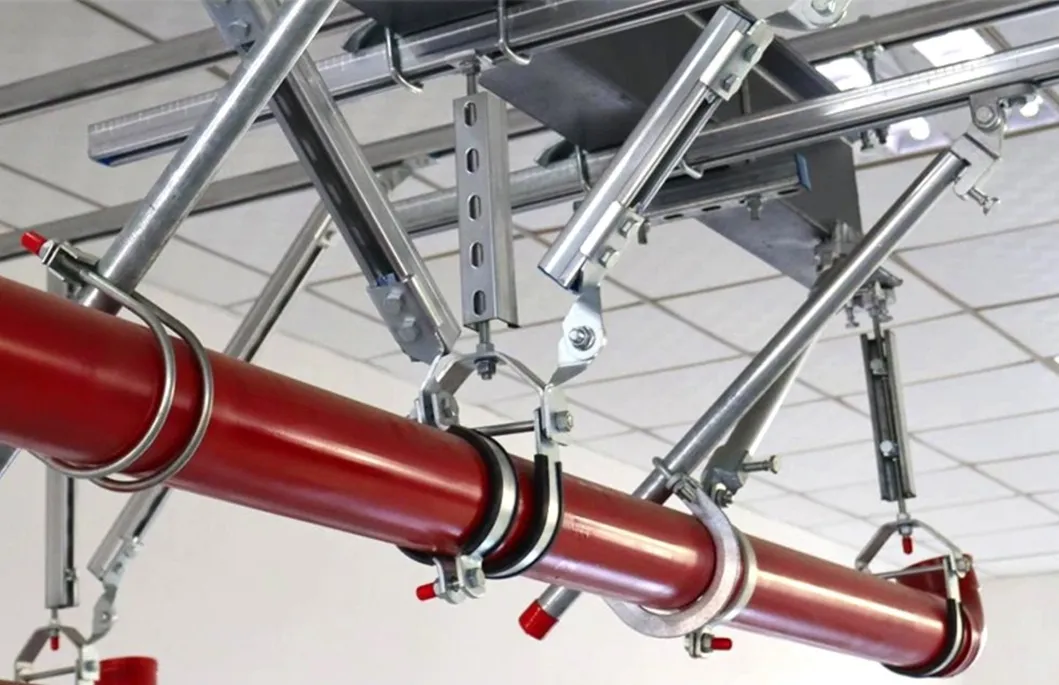

Seismic supports can minimize the economic losses caused by earthquakes and prevent casualties. Their role cannot be underestimated. Seismic supports protect waterways and power channels, prevent the collapse of other building facilities, and ensure safety during seismic events, thereby reducing economic losses to a greater extent.

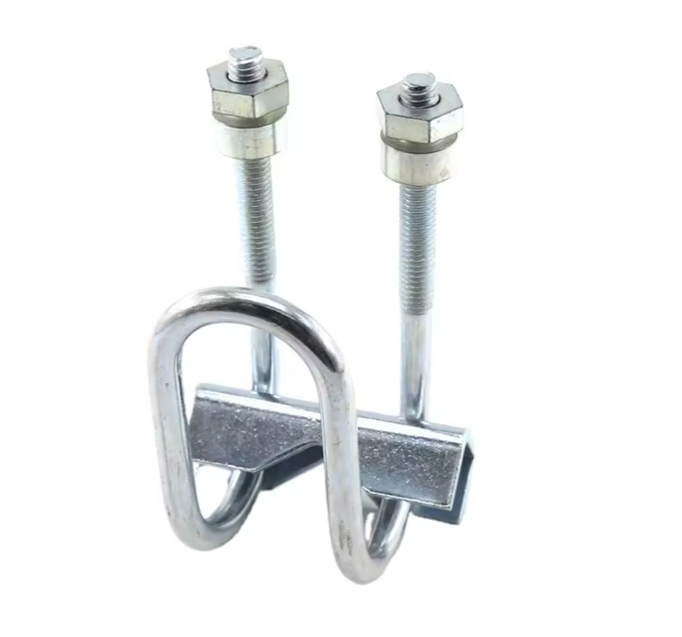

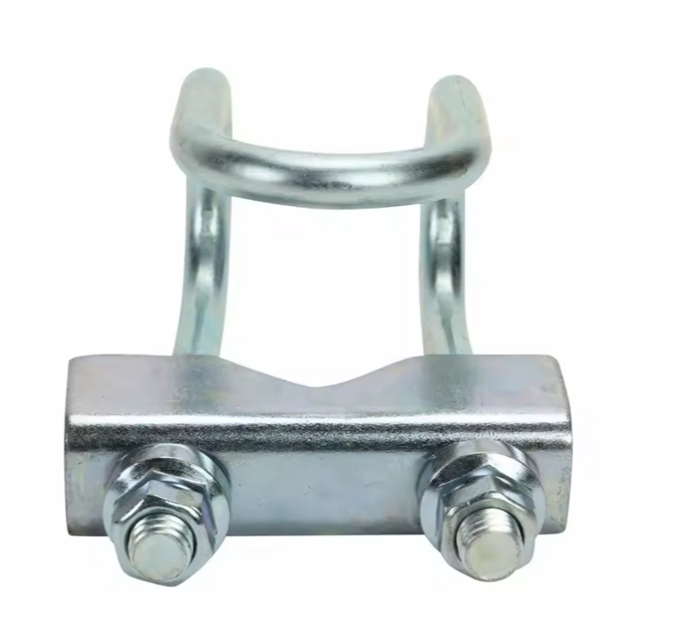

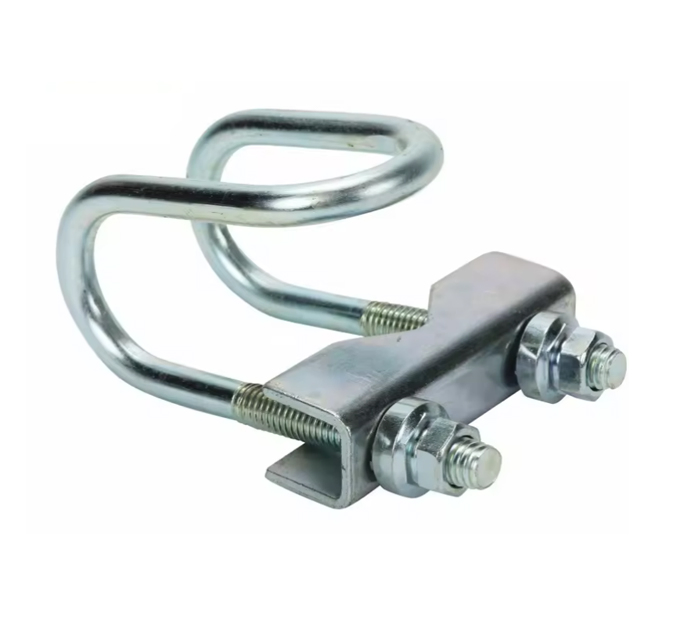

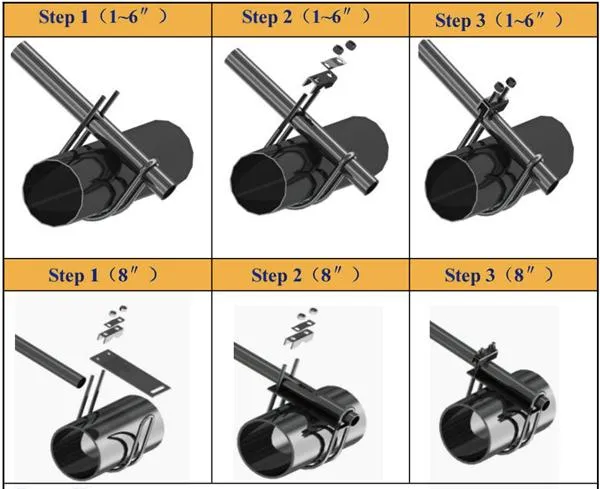

▶ Place over the pipe to be braced, adjust brace angle, and insert bracing pipe through opening leaving a minimum of 1" (25.4mm) extending from attachment.
▶ Brace pipe can be installed on top or bottom of pipe to be braced but must be a minimum of 6" (152.4mm) away from a pipe joint.
▶ Tighten nuts down evenly until 30~35N·M to make all green marking lines visible.
| UL Maximum Design Load | |||||
|---|---|---|---|---|---|
| Pipe Size (in) | Pipe Size (mm) | Max Load (lbs) | Max Load (kN) | Weight (lb) | Weight (kg) |
| 1 | (25) | 680 | (3.02) | 0.71 | (0.35) |
| 2 | (50) | 680 | (3.02) | 0.92 | (0.42) |
| 4 | (100) | 680 | (3.02) | 1.21 | (0.55) |
| 6 | (150) | 1370 | (6.09) | 1.52 | (0.69) |
| 8 | (219) | 1370 | (6.09) | 1.81 | (0.82) |
We provide a wide variety of pipe fittings for piping systems, including Steel Pipe Fittings, Nipples, Couplings, and Stainless Steel variants. All products are manufactured to rigorous international standards including API, DIN, and British Standards. Inquiry for specific requirements is always welcome.
