Spring supports and hangers are generally used in places where displacement stress needs to be reduced, such as power station boiler body, suspended parts of steam, water, smoke duct and burner of power plant, as well as petrochemical equipment and other places where displacement stress needs to be reduced.

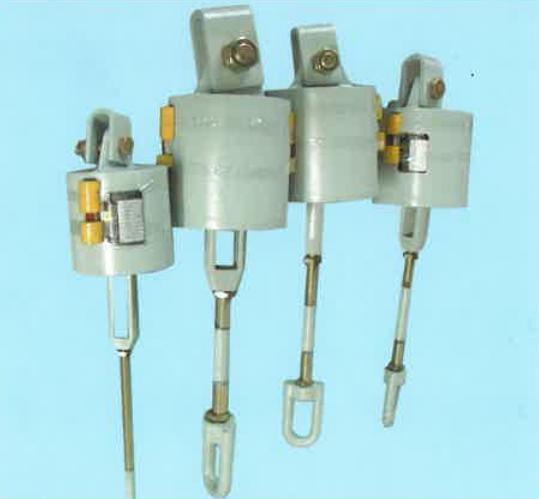

The variable spring hanger is mainly composed of cylindrical spiral spring, displacement indicator board, shell and elastic nut. Variable spring support hangers are divided into seven types according to installation methods:
Type A ---- Upper thread suspension type
Type B ---- Single ear suspension type
Type C ---- Binaural suspension
Type D ---- On adjusting shelving type
Type E ---- Under adjustment shelving type

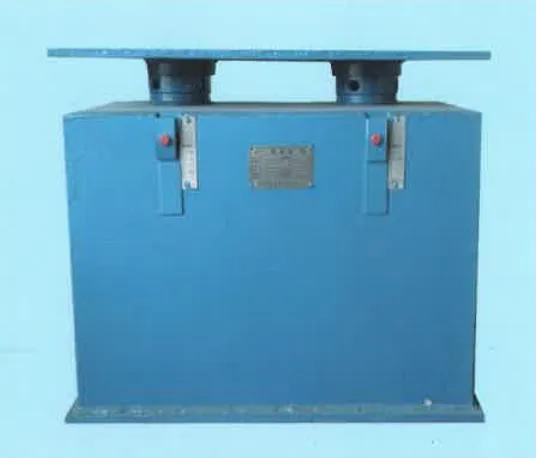

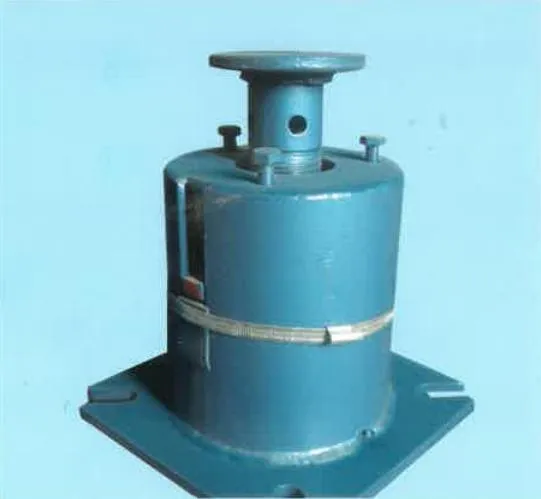

Type F ---- Support shelving type
Type G ---- Parallel suspension type
Frequently Asked Questions
What are spring supports and hangers used for?
They are primarily used to reduce displacement stress in high-temperature systems such as power station boilers, steam and water pipes, smoke ducts, and petrochemical equipment.
What is the surface treatment for the JN-SS03 model?
The JN-SS03 model features a galvanized sheet surface treatment for enhanced durability and corrosion resistance.
How many installation types are available for variable spring hangers?
There are seven standard types available, ranging from Type A (upper thread suspension) to Type G (parallel suspension), catering to various installation requirements.
What is the travel range capacity of these hangers?
Our spring hangers offer five travel ranges spanning from 0 to 400 mm (0 to 15.75 inches).
Can the specifications be customized?
Yes, the specifications and head types are fully customizable based on the specific requirements of the customer and project.
What is the annual production capacity?
Our facility has a production capacity of approximately 50,000 pieces per year to ensure a stable supply for large-scale projects.
