Basic Information
Material
Polyurethane Foam Board
Temp Range
-196°C to 120°C
Technical Specifications
| Version |
Unit |
9160 |
9220 |
9320 |
9340 |
| Density |
Kg/m³ |
160 |
220 |
320 |
340 |
| Thermal Conductivity |
W/(m.k) |
≤0.036 |
≤0.040 |
≤0.050 |
≤0.048 |
| Water absorption |
% |
≤2 |
≤2 |
≤1.8 |
≤1.6 |
| Closed cell |
% |
≥95 |
≥95 |
≥95 |
≥98 |
| Compressive strength |
Mpa |
≥1.6 |
≥4 |
≥6 |
≥9 |
Product Description
High-performance cold insulation is typically designed to provide optimal thermal insulation for various low-temperature applications, such as cryogenic pipelines in the petrochemical industry, LNG, and LPG pipelines. We offer innovative concepts and solutions for high-performance cold insulation, suitable for a wide range of pipe support applications in temperatures ranging from -196°C to 120°C.

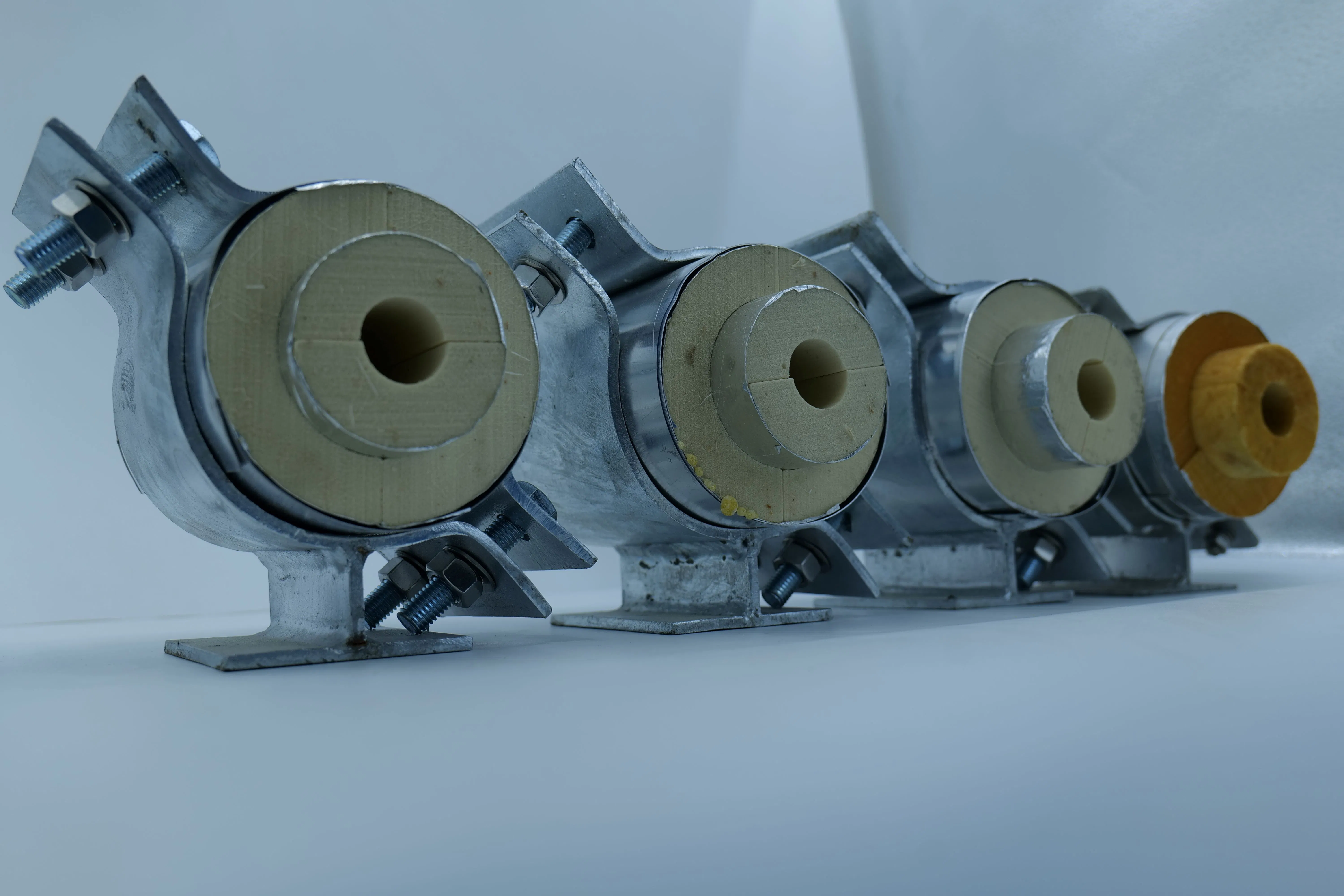

Our cold pipe support products feature a specially formulated insulation layer that outperforms other products in key performance indicators, including high mechanical properties, flame retardancy, and thermal conductivity. These products have been thoroughly and successfully tested in real-world environments.
We provide comprehensive high-performance insulation system services, from design and calculation to production and installation. These products range from single insulated pipe shells and insulation pads to complete cold pipe support systems. Our systems have always been recognized for their emphasis on quality stability, innovative design, and their commitment to providing customers with safe and stable cold pipe support solutions.

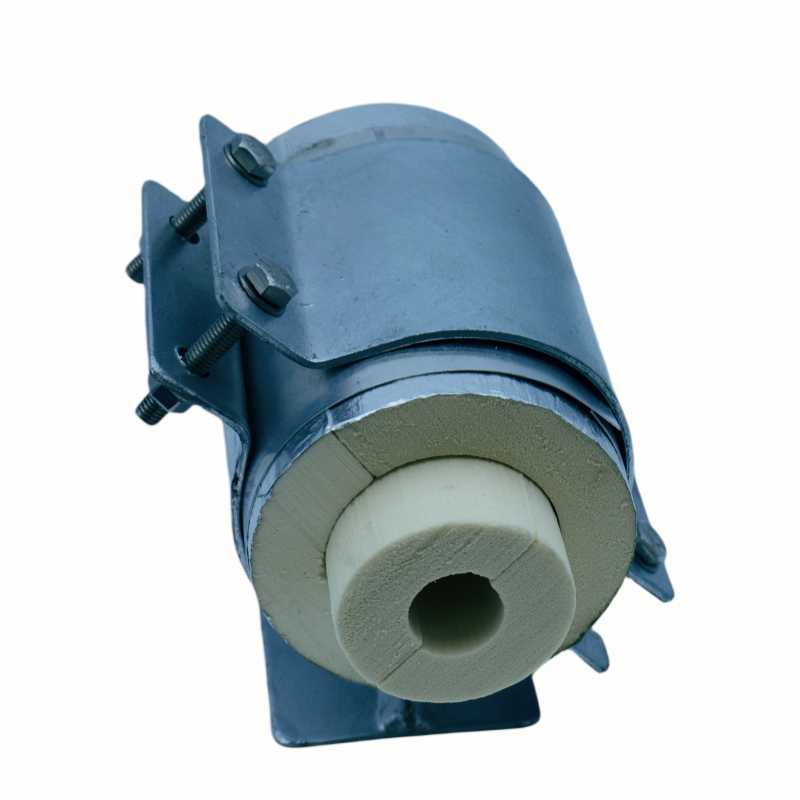

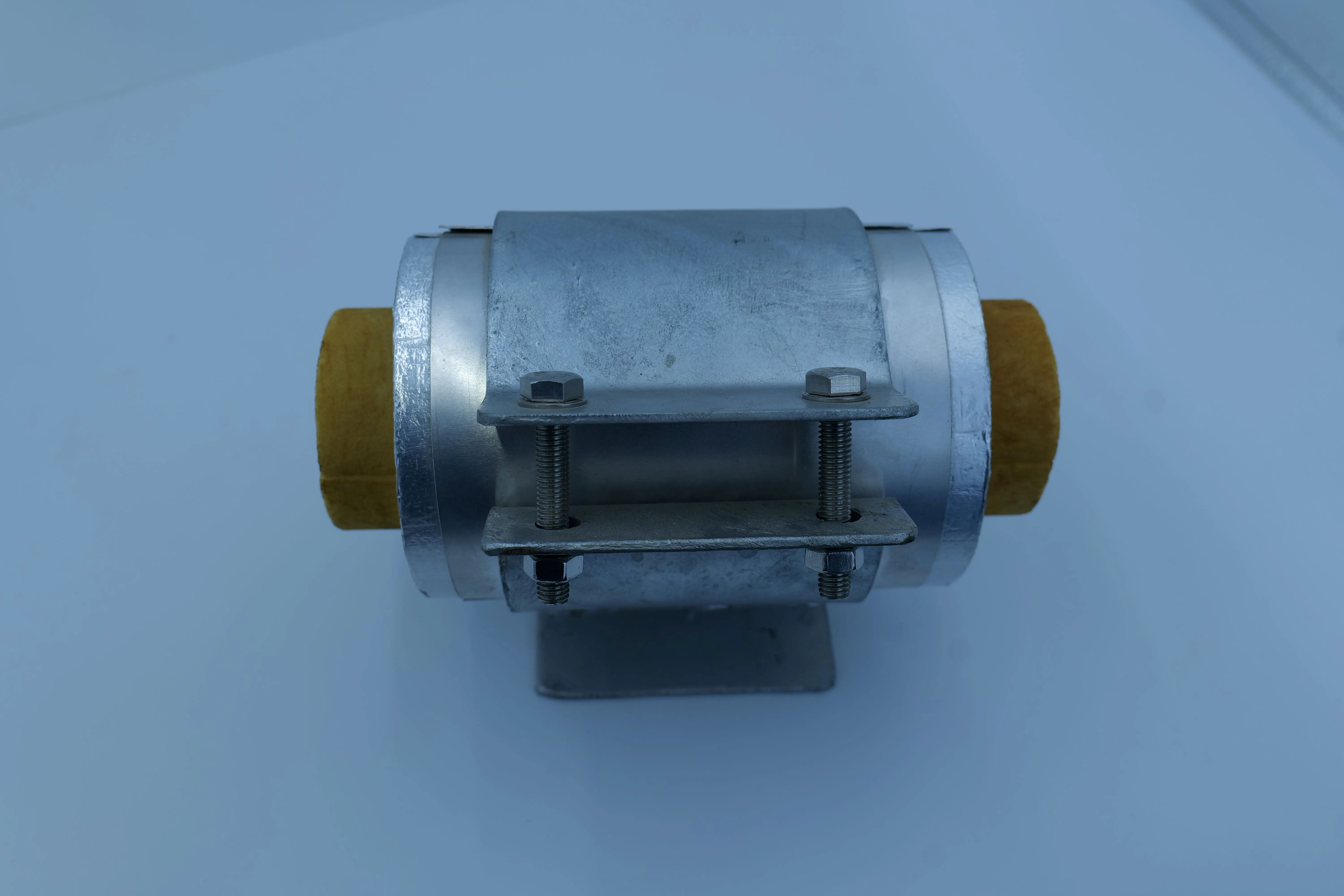

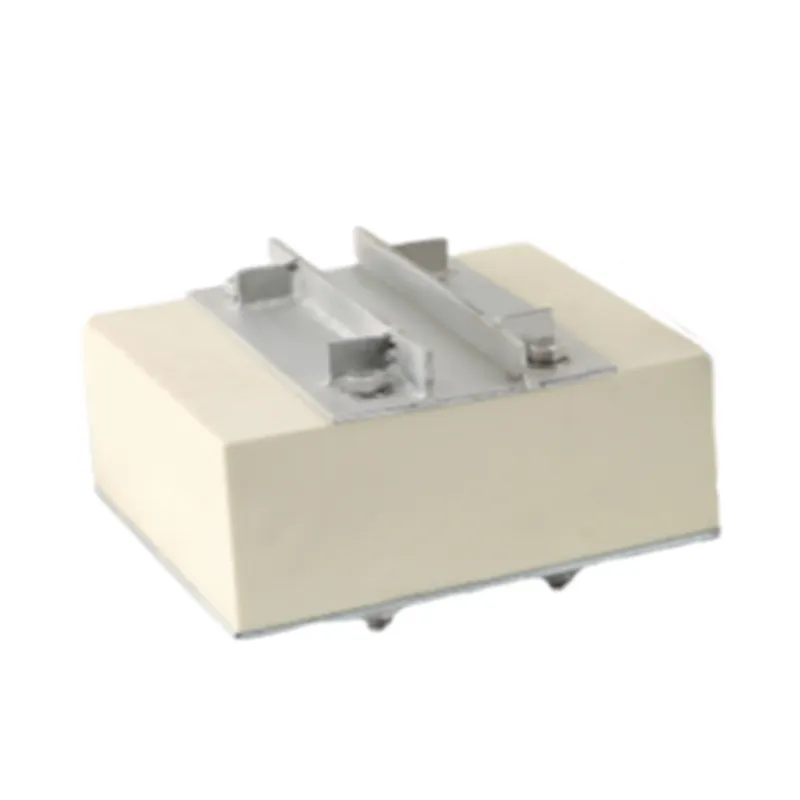

Fixed Tube Bracket

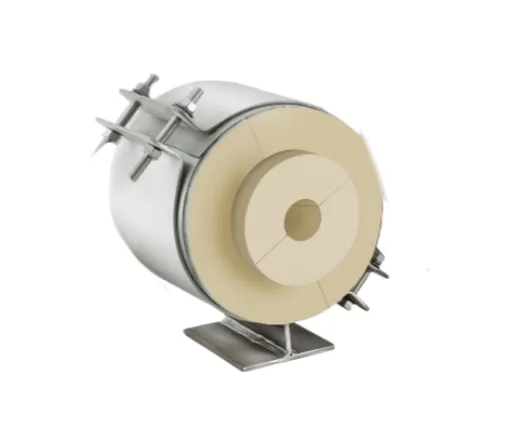

Sliding Tube Holder

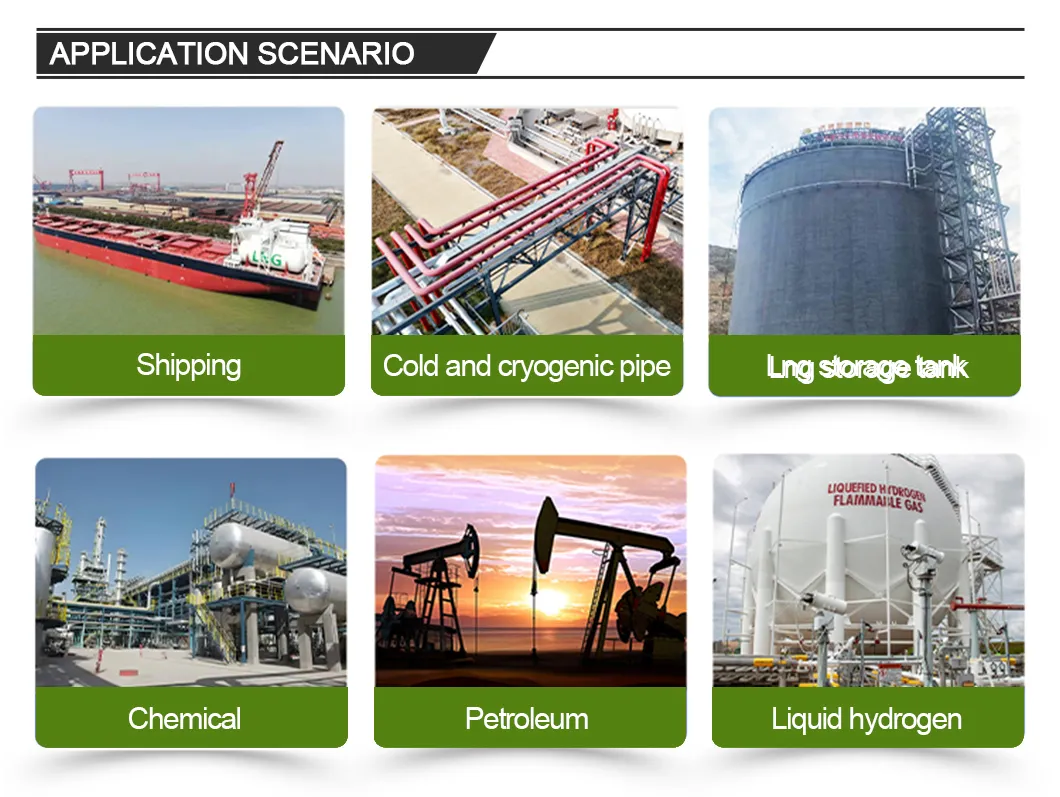

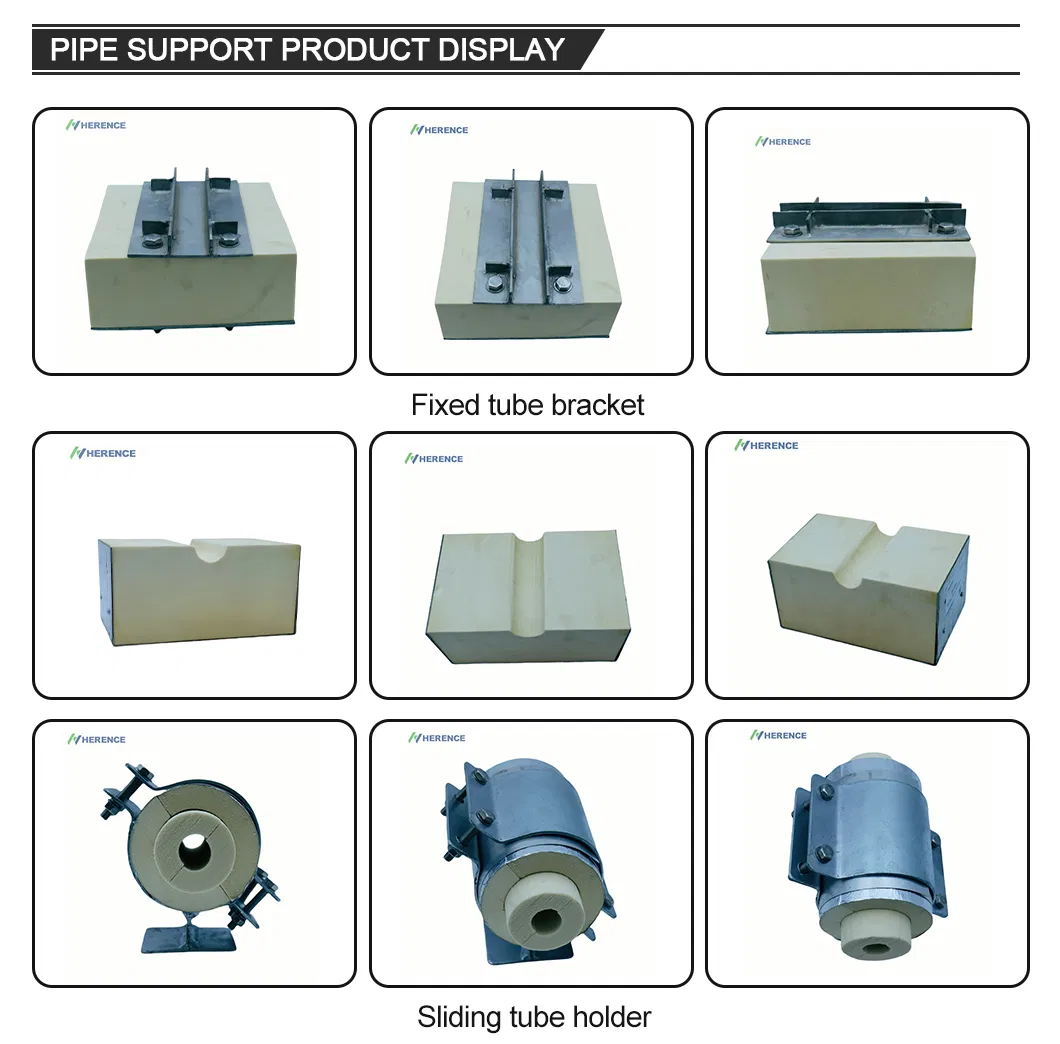

Product Display

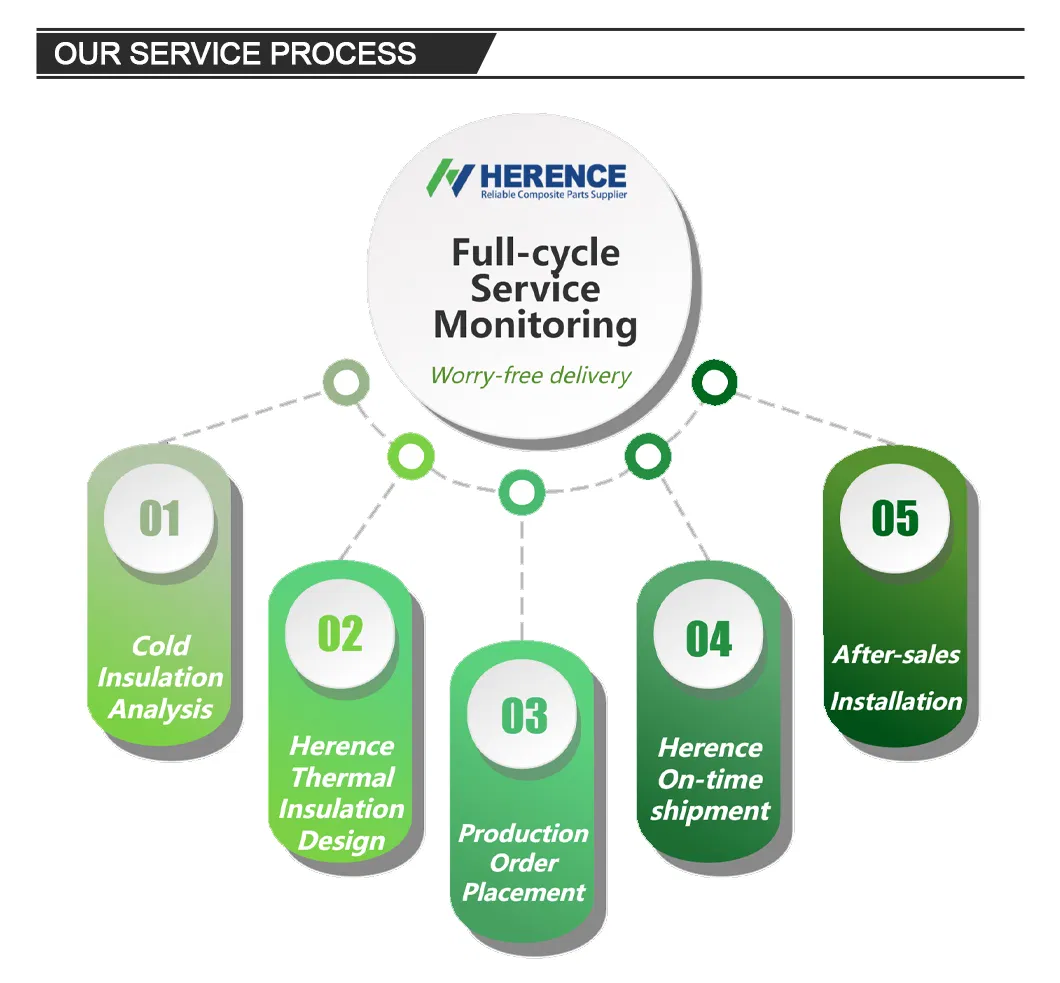

Production Process

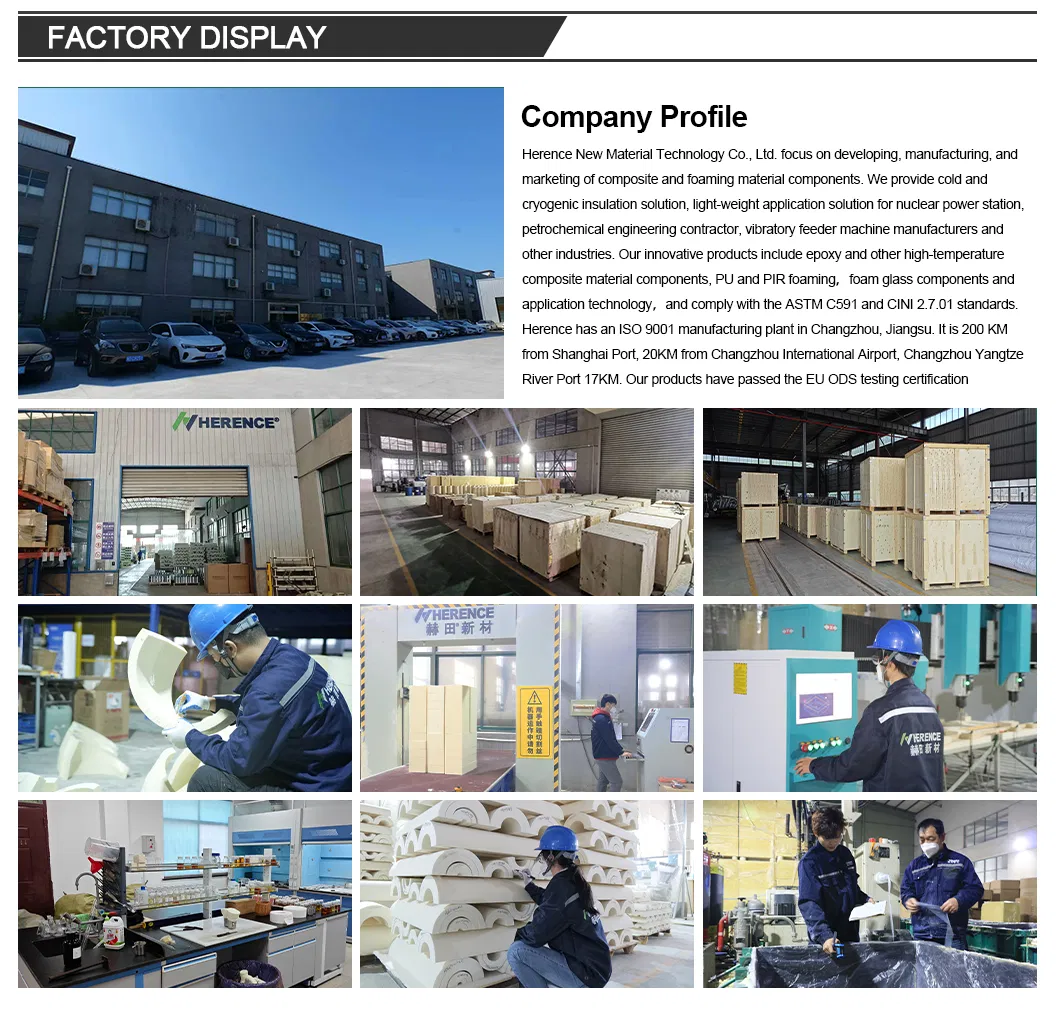

Company Profile
We are an R&D-driven company dedicated to the development, manufacture and global promotion of advanced foamed and composite molded components. We specialize in providing cryogenic and ultra-cryogenic insulation solutions as well as lightweight-application solutions for a wide range of industries.
We currently hold 2 invention patents and 23 utility-model patents. By continuously exploring and analyzing the specific needs of each sector, we design products that are highly targeted, exceptionally durable and meticulously detailed. Our solutions—covering complete pipeline cold insulation, electrical insulation and composite lightweight systems—serve city-gas operators, petrochemical EPC contractors, air-separation plants, nuclear-power facilities, LNG pipelines, LNG shipping, medical-device manufacturers, and many other industrial applications.
Core innovations include PIR rigid foam, HDPIR, epoxy and bismaleimide (BMI) resin-based composite molded parts, foam-glass components, application technologies and integrated construction services. All products comply with ASTM C591 and CINI 2.7.01 standards.
Our Advantage & Certifications
Packaging & Shipping
Frequently Asked Questions
Are you a manufacturing company or a trading company?
We are a professional manufacturer in China and have been in this field for more than 10 years.
What information is needed for a quote?
Please provide the flame retardant level, pressure requirements, specific dimensions/specifications, and your purchase quantity.
Is customization available?
Yes, we have a professional design team that can work according to your specific drawings and technical requirements.
What is the typical delivery lead time?
Typically, our lead time spans 15-30 days after receipt of advance payment, ensuring timely delivery for your project.
How do you protect products during transport?
We use anti-collision wraps, special reinforced boxes for fragile parts, and carefully arranged layouts. All products undergo a final inspection before shipment.
Can I obtain samples for testing?
Yes, samples can be provided for evaluation. Logistics costs can be negotiated and are often refundable upon order confirmation.
