Manufacturer Customize Oval Pear Shape Gas Water Cable Sprinkler Loop Pipe Hanger

Customization:	Available
After-sales Service:	One Year
Warranty:	One Year

Send Inquiry

Product Description

Basic Information

Model NO.

UTT40 pipe hanger

Connection

Forged

Structure

Universal

Flexible or Rigid

Flexible

Material

Carbon Steel & Ductile Iron Qt450

Size Range

DN15-DN300 (1/2''~12'')

Certificate

UL / FM

Feature

Heavy Duty / Seismic Resistant

Surface Treatment

Black, Painted or Galvanized

HS Code

7326909000

Certifications

Product Description

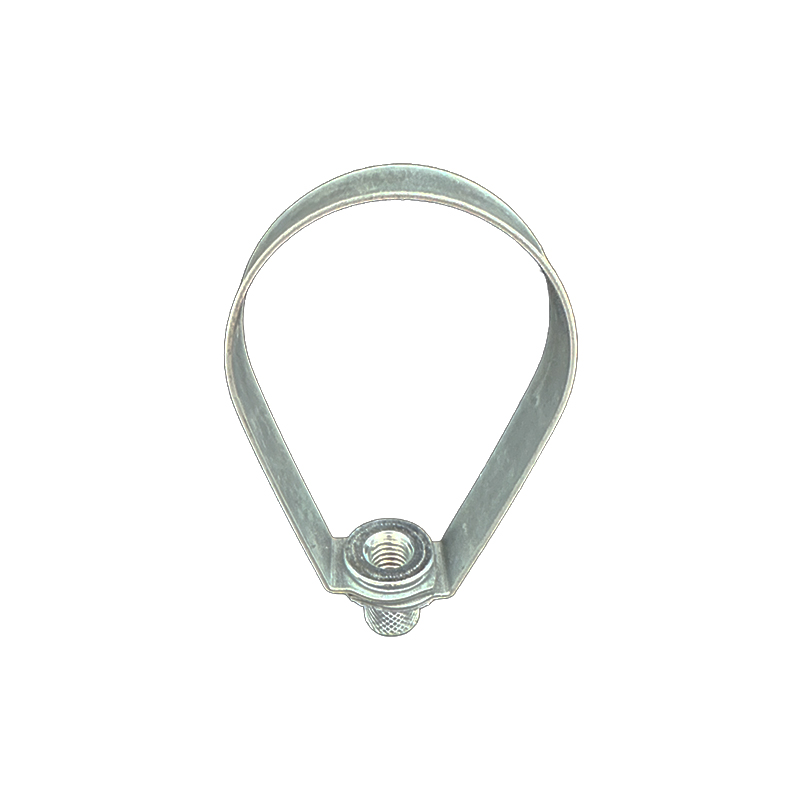

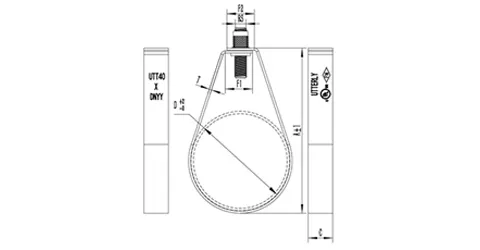

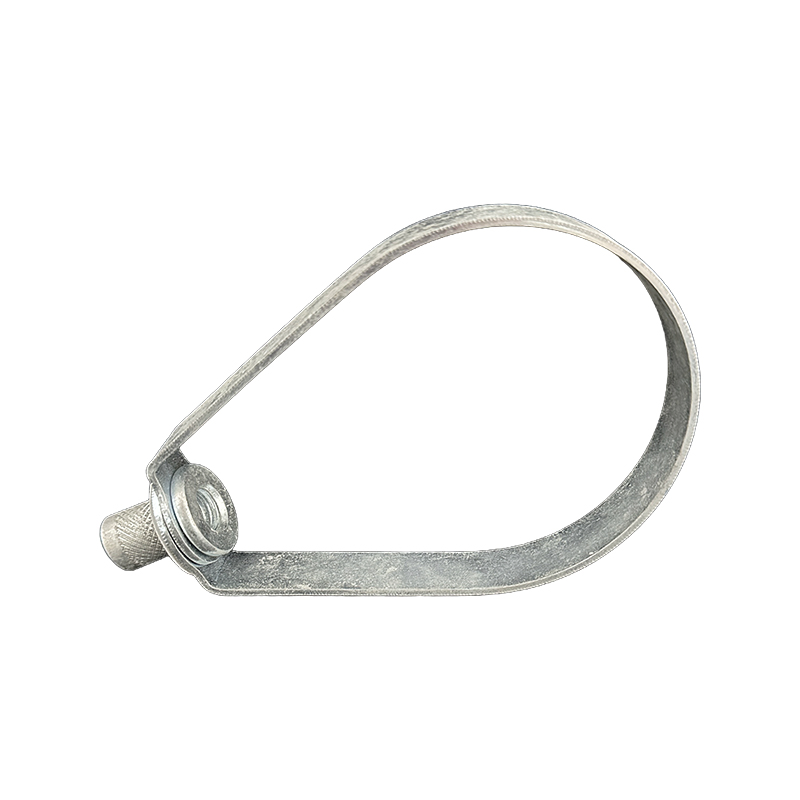

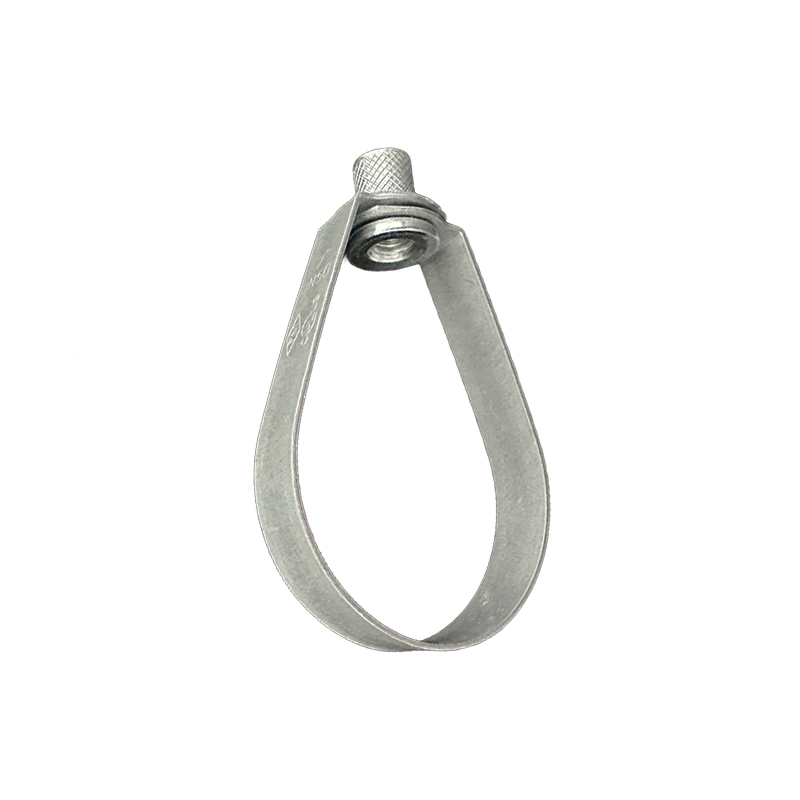

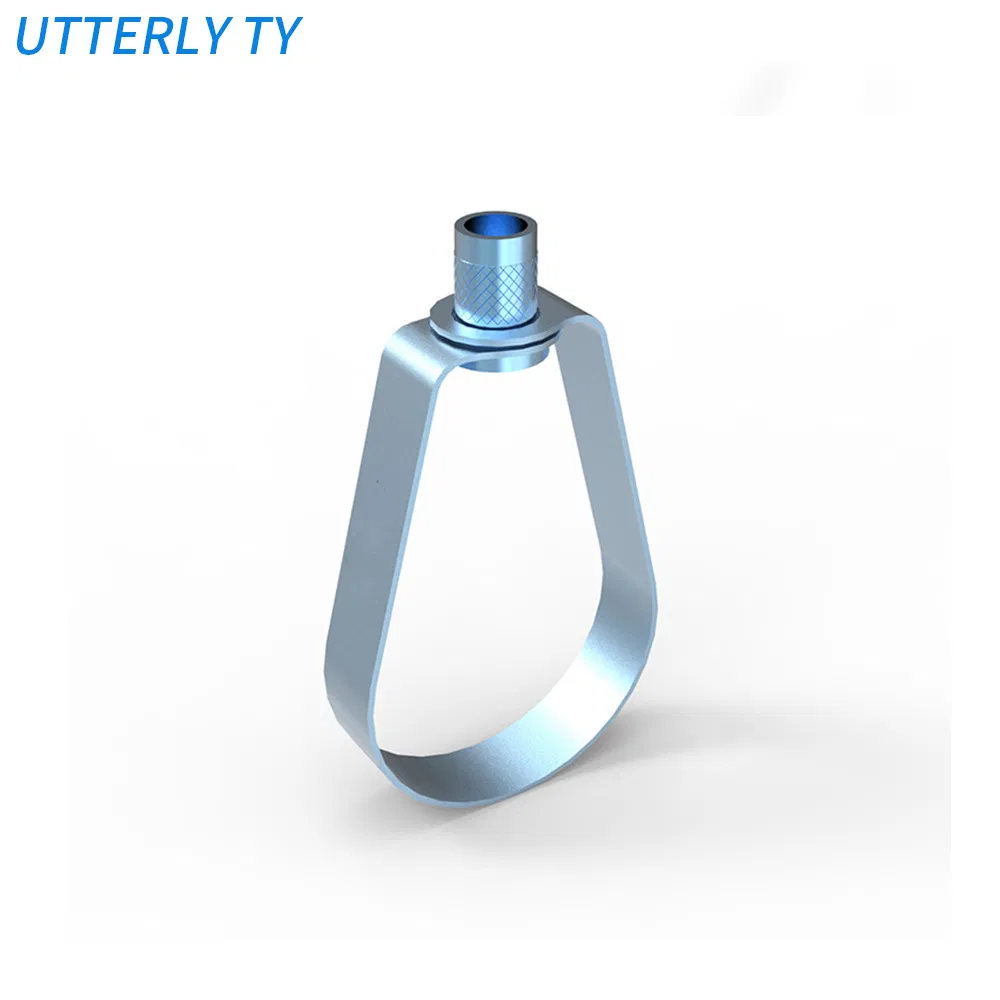

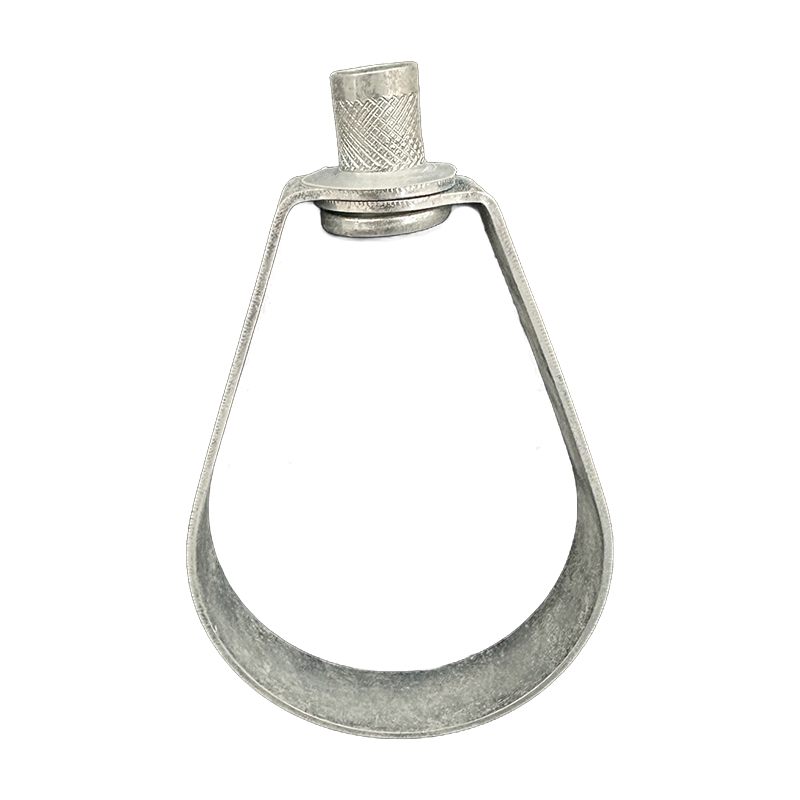

UTT40 Swivel Band Hanger

Function: Recommended for the suspension of stationary non-insulated pipe lines.

Features:

Keyed insert nut ensures the loop hanger and nut stay together.
Insert nut can be removed if required.
Complies with Federal Specification A-A-1192A (Type 10) and MSS SP-36 (Type 10).

Finish: Zinc Plate / Galvanized

Safety: FM Approved & UL Listed

Size (in/mm)		A (in/mm)		C (in/mm)		Max Rec. Load (lbs/KN)
1/2"	DN15	2.01	51	0.87	22	750	3.34
1"	DN25	2.56	65	0.87	22	750	3.34
2"	DN50	3.67	93.1	0.87	22	750	3.34
4"	DN100	6.84	173.7	0.87	22	1500	6.67
8"	DN200	12.04	305.9	1.02	26	4050	18.02
12"	DN300	17.6	447	1.57	40	7900	35.14

Installation Guide

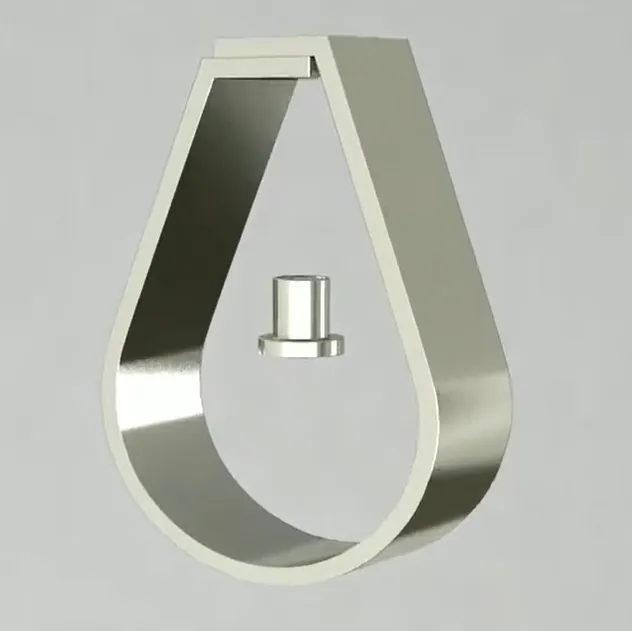

Step 1

Assemble the clamp and screw: Connect the screw with the Adjustable swivel band hanger.

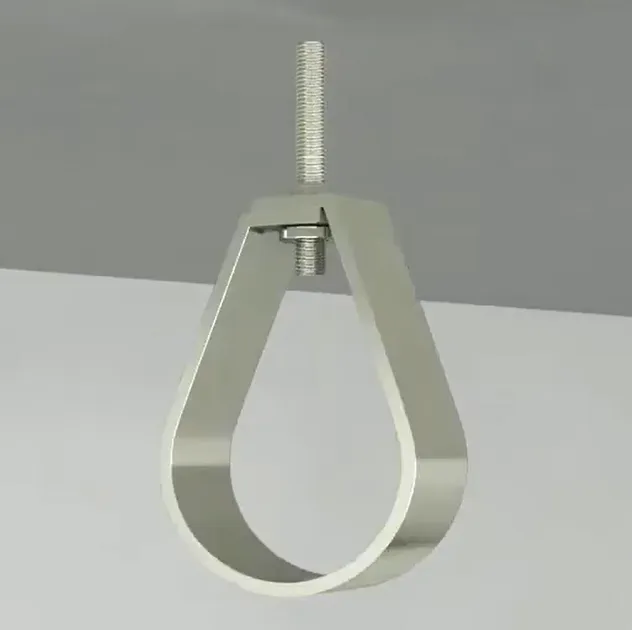

Step 2

Place the pipeline: Put the pipe into the pear-shaped slot of the hanger accurately.

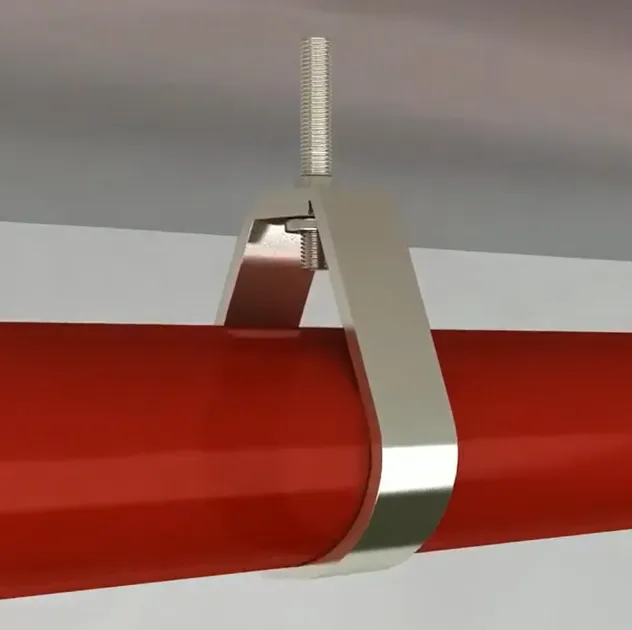

Step 3

Fix the device: Secure the hanger onto the installation base (ceiling) using the screw.

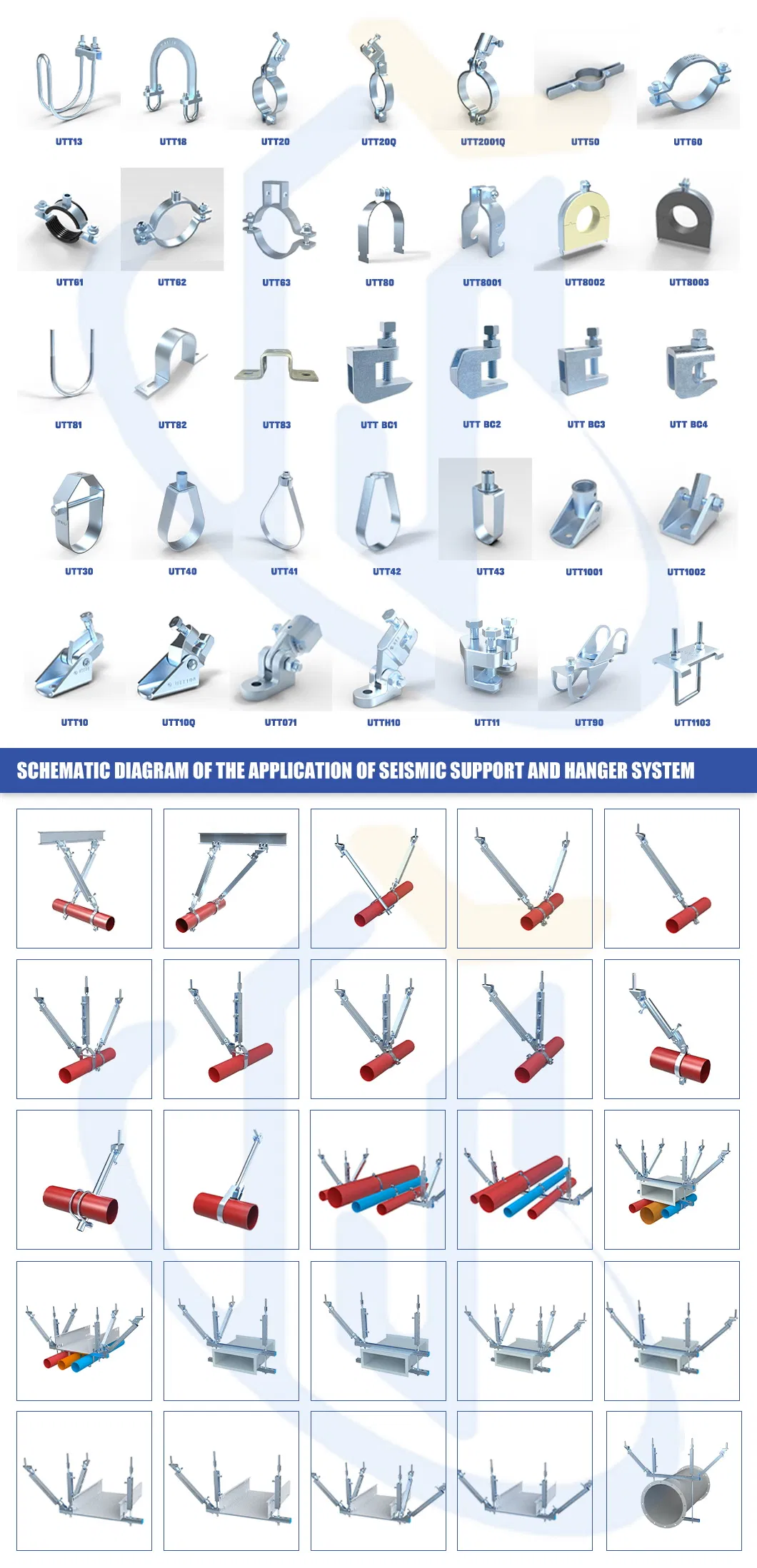

Product Gallery

Core Features

🛡️

Industry Standards: Our products strictly pass UL and FM industry certification standards.

⚙️

Customization: Engineers provide specialized pipe support system accessories based on customer engineering drawings.

🏗️

Premium Materials: Manufactured using high-quality carbon steel, ductile iron, or stainless steel via casting or forging.

✨

Durability: Galvanized, anti-corrosion finish ensures a smooth appearance and long service life.

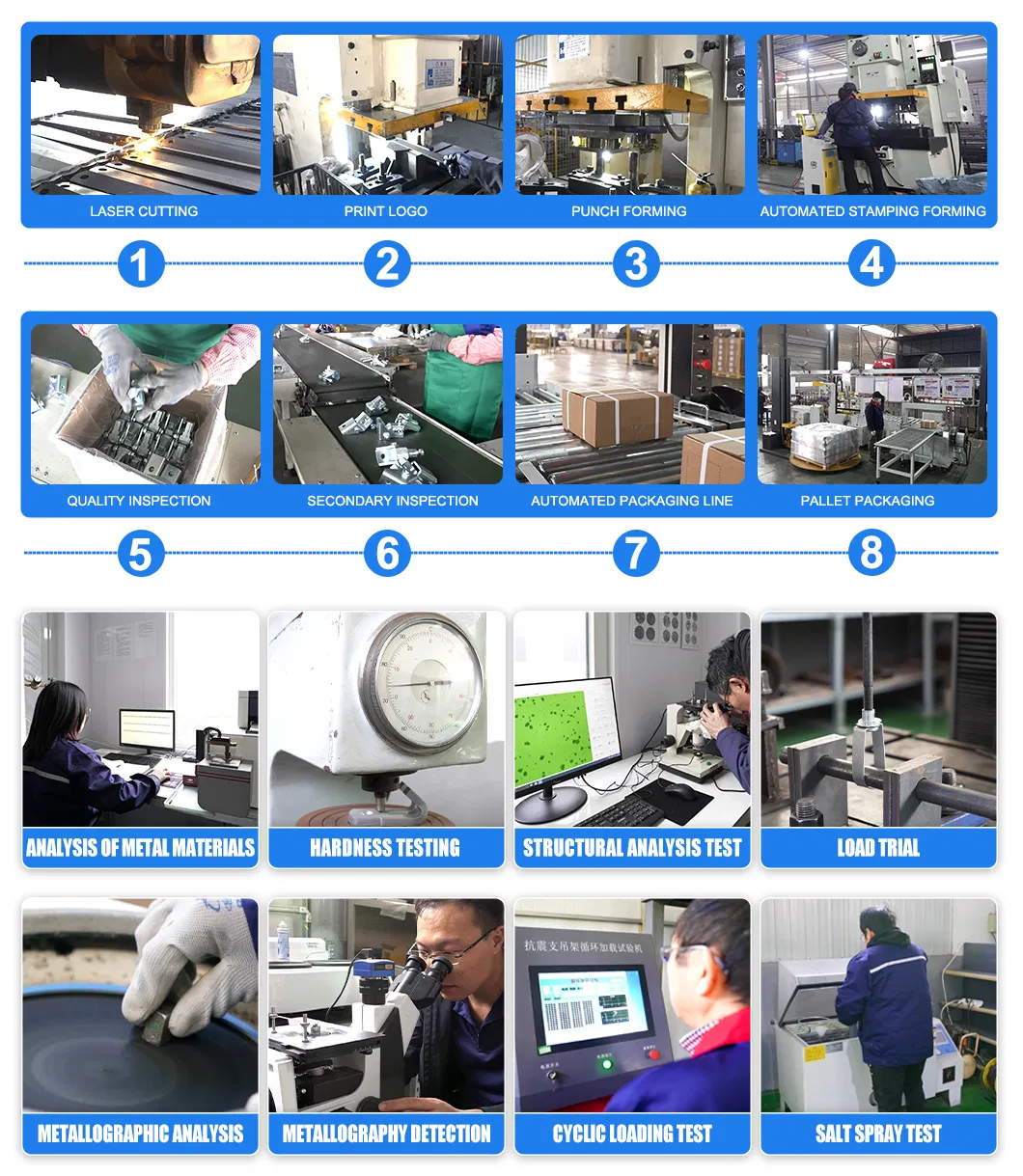

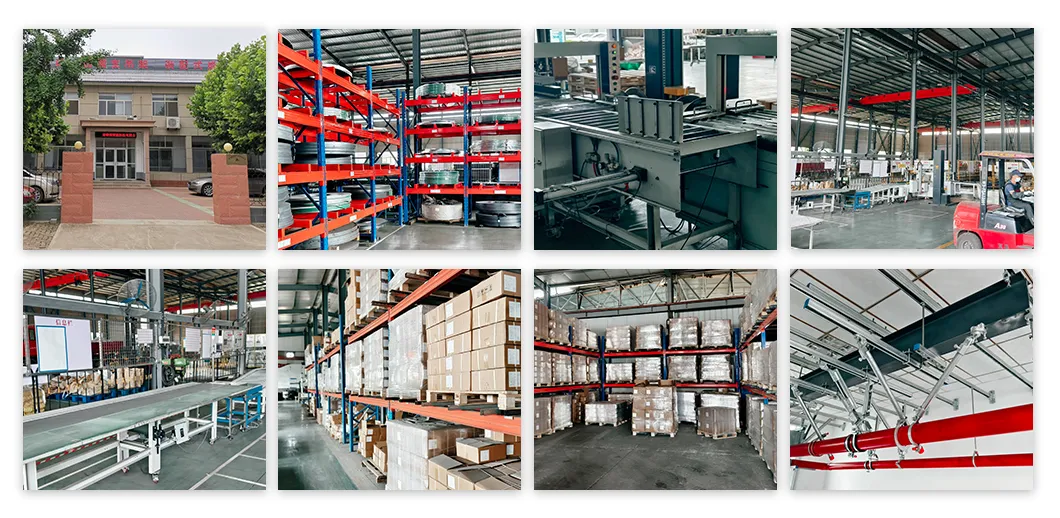

Production Process

Manufacturing Excellence

Advanced Production: Equipped with advanced laser cutters and high-quality casting equipment for defect-free results.

Precision Engineering: Use of dedicated molds and hydraulic presses to meet stringent OEM/ODM requirements.

Efficient Assembly: Streamlined testing and packing. Waterproof cartons and moisture protection used for transit safety.

Global Standards: Strict regulatory compliance with FM, UL, and CE quality certifications.

Frequently Asked Questions

What is the primary application for the UTT40 pipe hanger?

It is designed for the suspension of stationary non-insulated pipe lines, commonly used in fire sprinkler systems and gas/water plumbing.

Are these hangers seismic resistant?

Yes, the UTT40 is built for heavy-duty applications and is designed to be seismic resistant, meeting industry safety standards.

What materials are available for the swivel band hangers?

We offer hangers made from Carbon Steel, Ductile Iron (Qt450), and Stainless Steel, depending on your project requirements.

Does the product come with a warranty or certification?

The products are UL listed and FM approved, ensuring they meet rigorous international safety and quality benchmarks.

What surface finishes do you provide?

Common finishes include black coating, industrial painting, and zinc plating (galvanization) for superior corrosion resistance.

Can these hangers be customized for specific pipe sizes?

Yes, we provide standard sizes from 1/2" up to 12", and our engineering team can customize accessories based on your specific technical drawings.
