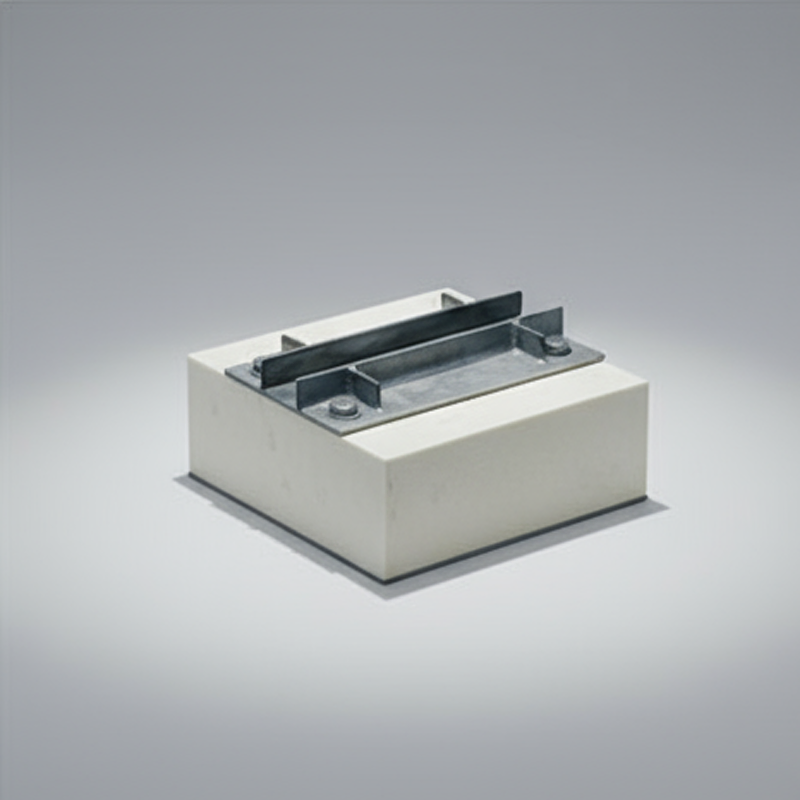

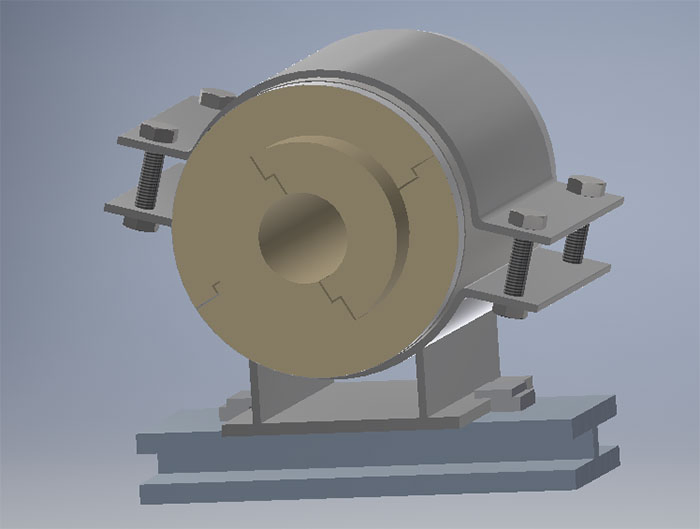

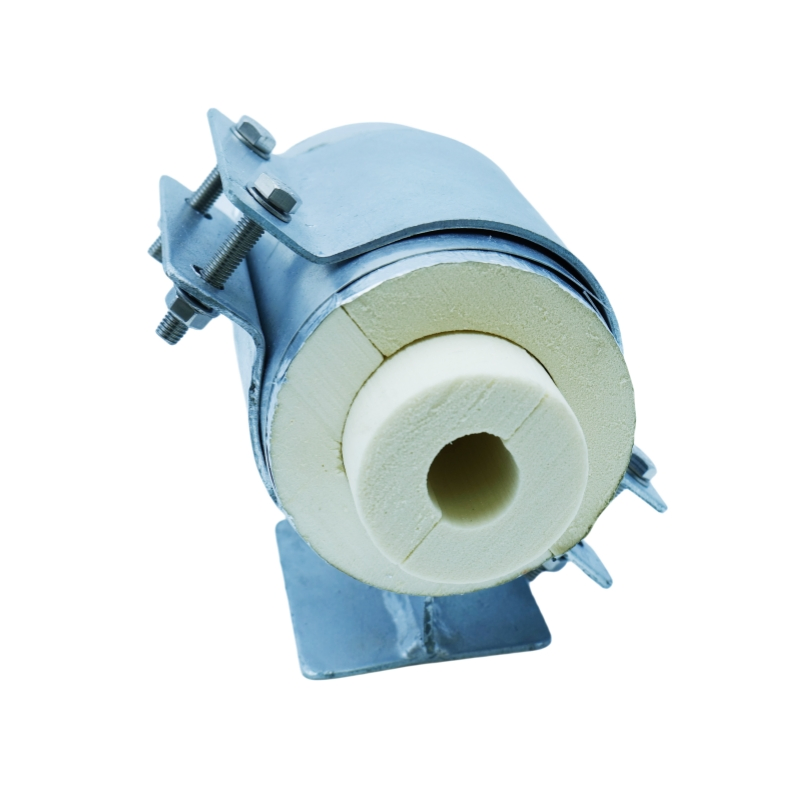

Cryogenic & Thermal Insulation with Sliding Metal Pipe Supports

Customization:	Available
After-sales Service:	Installation Guide
Highest Working Temperature:	-196℃-120℃

📋

Basic Information

Model NO.

9220

Material

Polyurethane Foam Board

Temperature

-196°C to 120°C

Density

160-340 Kg/M³

Customization

Available

Origin

China

🛠️

Product Description

High-performance cold insulation is typically designed to provide optimal thermal insulation for various low-temperature applications, such as cryogenic pipelines in the petrochemical industry, LNG, and LPG pipelines. We offer innovative concepts and solutions for high-performance cold insulation, suitable for a wide range of pipe support applications in temperatures ranging from -196°C to 120°C.

The Insulation System cold pipe support products feature a specially formulated insulation layer that outperforms other products in key performance indicators, including high mechanical properties, flame retardancy, and thermal conductivity.

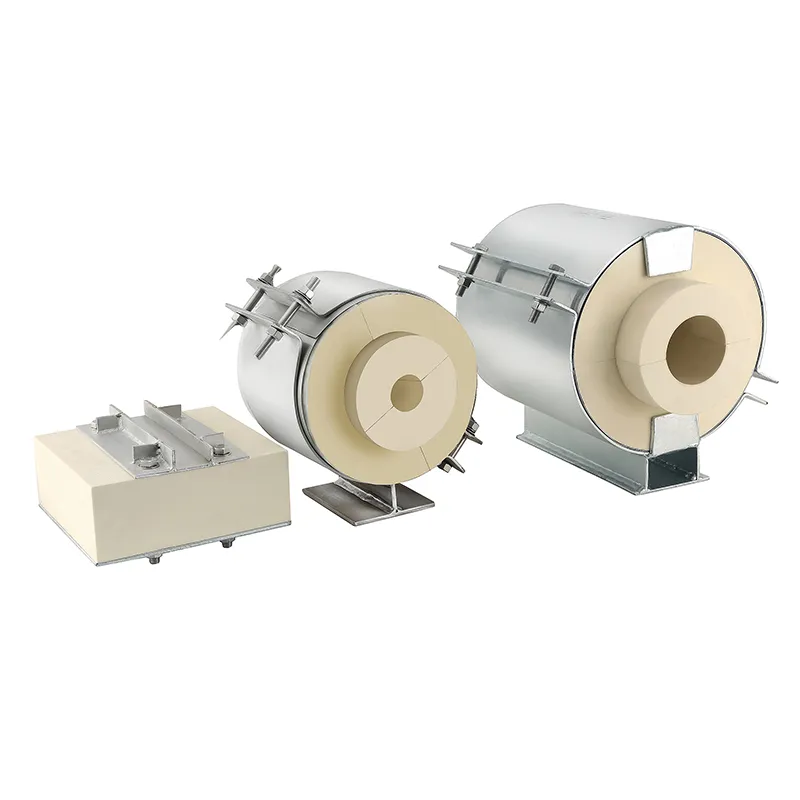

Insulation Support System

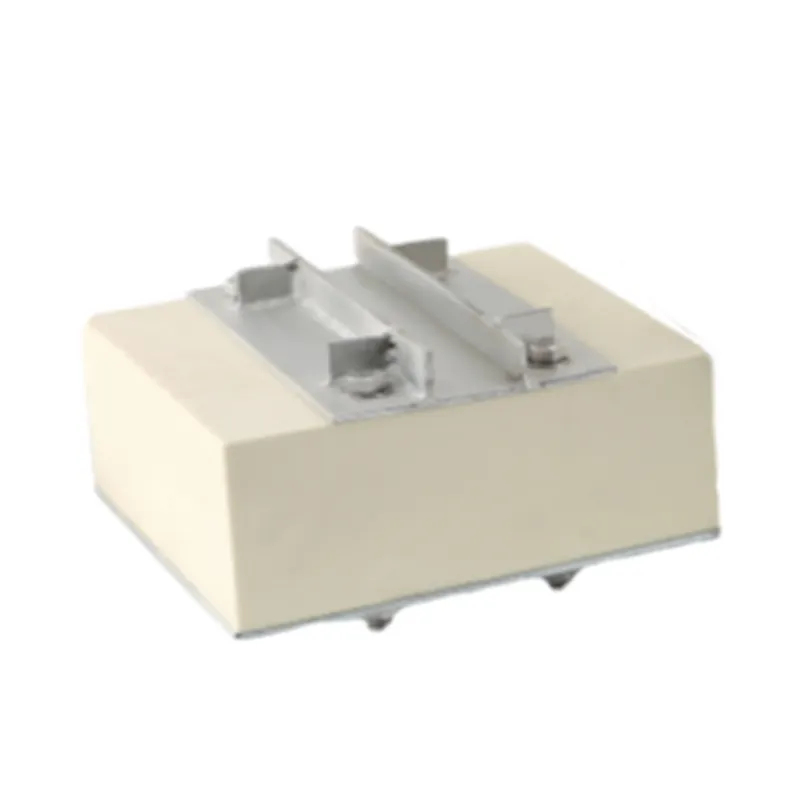

Fixed Tube Bracket

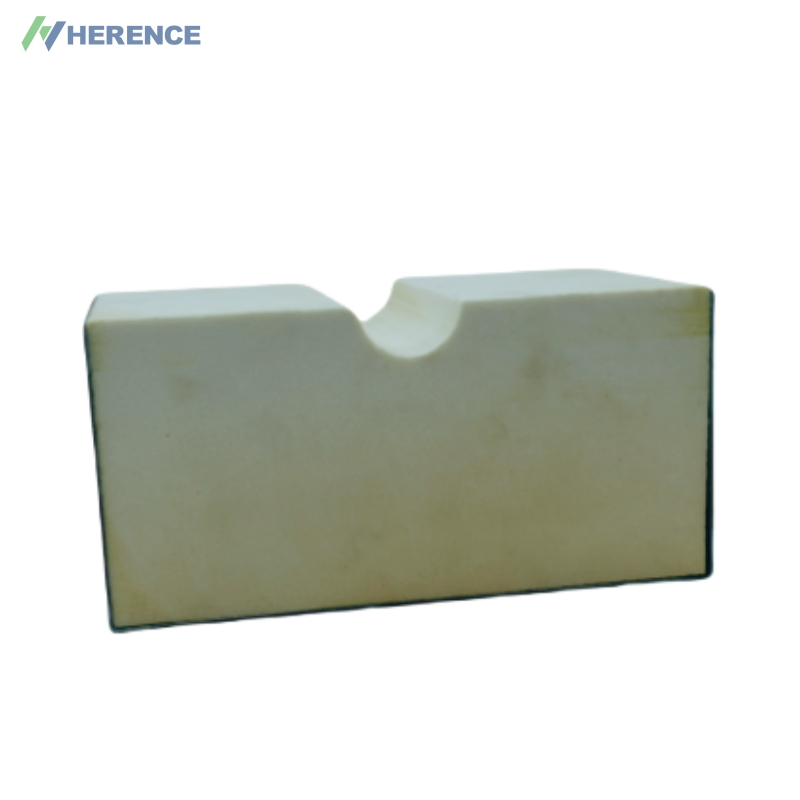

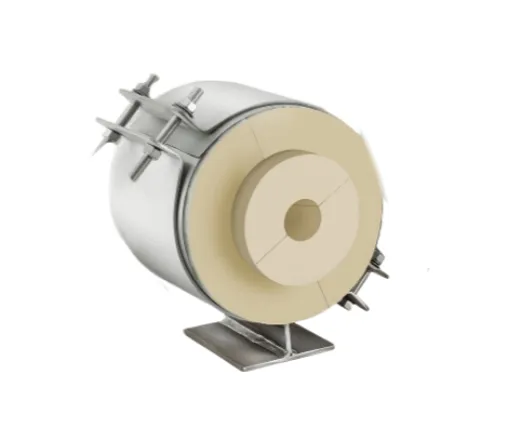

Sliding Tube Holder

📊

Technical Specifications

Version	Unit	9160	9220	9320	9340
Density	Kg/m³	160	220	320	340
Thermal Conductivity	W/(m.k)	≤0.036	≤0.040	≤0.050	≤0.048
Water absorption	%	≤2	≤2	≤1.8	≤1.6
Closed cell	%	≥95	≥95	≥95	≥98
Compressive strength	Mpa	≥1.6	≥4	≥6	≥9

🖼️

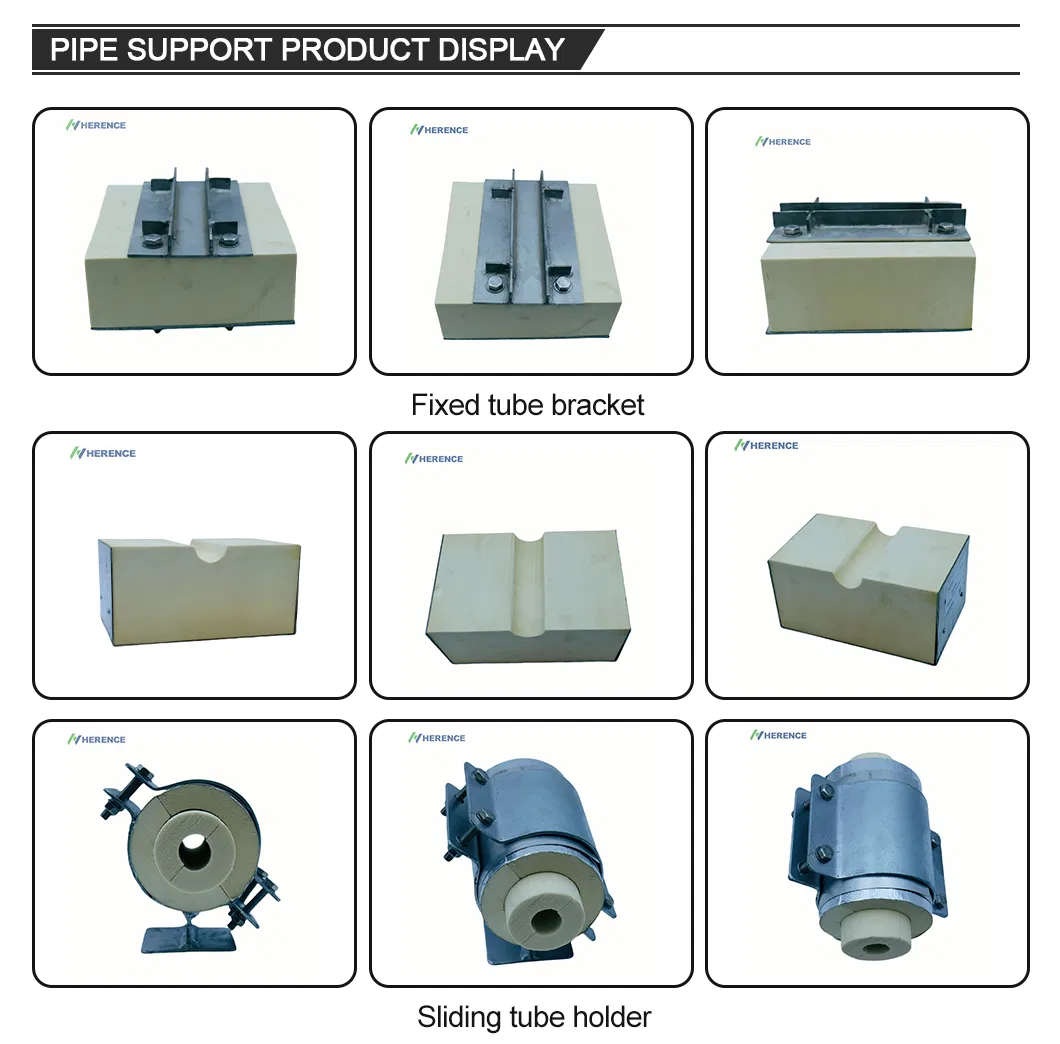

Product Display

⚙️

Production Process

🏢

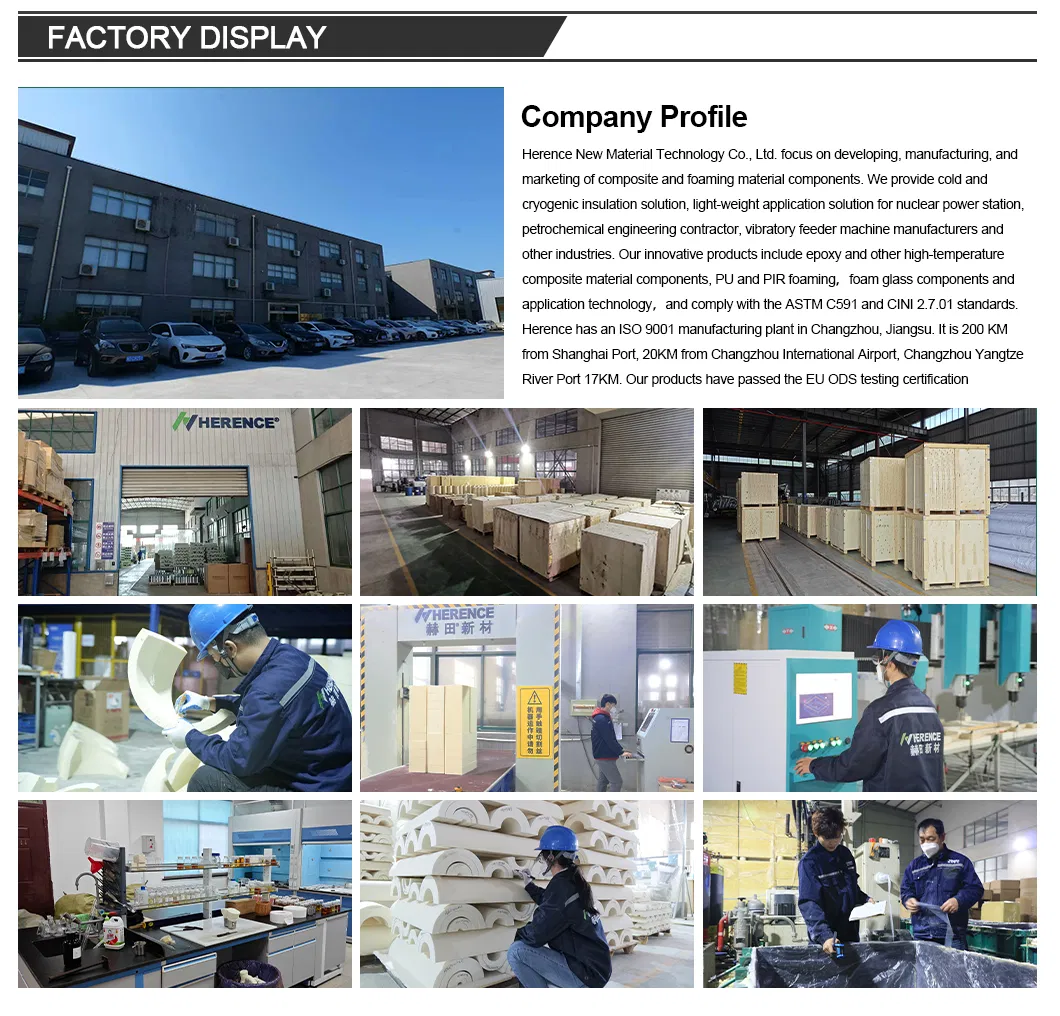

Expertise & Capabilities

We are an R&D-driven company dedicated to the development, manufacture and global promotion of advanced foamed and composite molded components. We specialize in providing cryogenic and ultra-cryogenic insulation solutions as well as lightweight-application solutions for a wide range of industries.

By continuously exploring and analyzing the specific needs of each sector, we design products that are highly targeted, exceptionally durable and meticulously detailed. Our solutions—covering complete pipeline cold insulation, electrical insulation and composite lightweight systems—serve city-gas operators, petrochemical EPC contractors, air-separation plants, nuclear-power facilities, LNG pipelines, and medical-device manufacturers.
