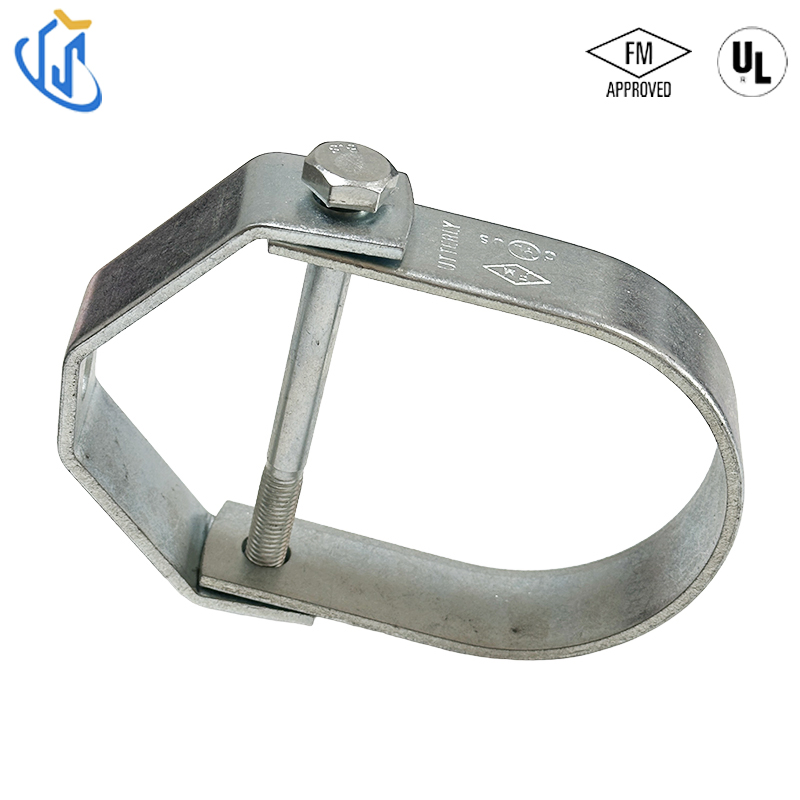

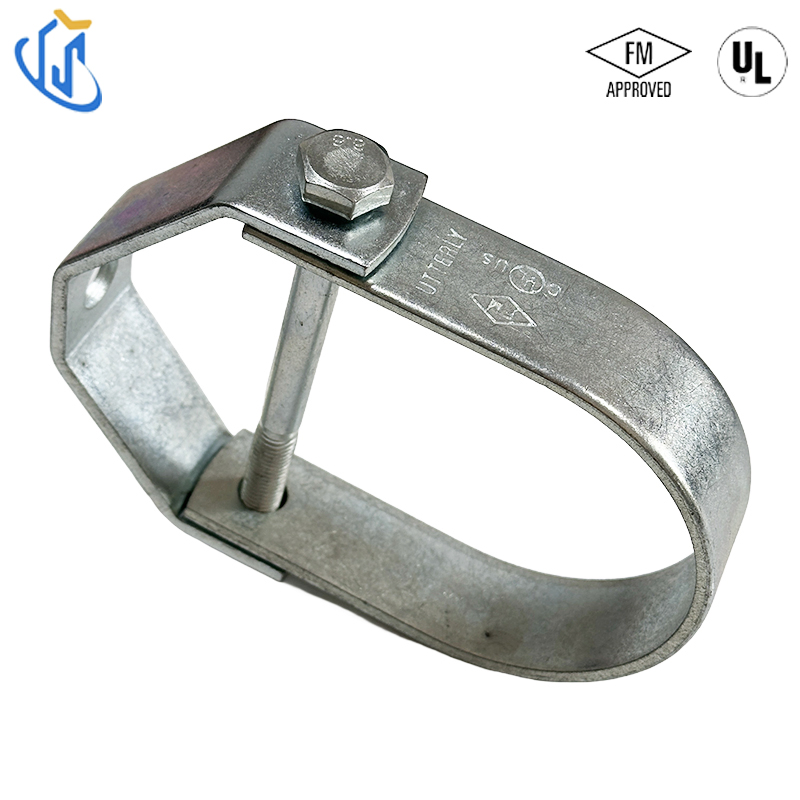

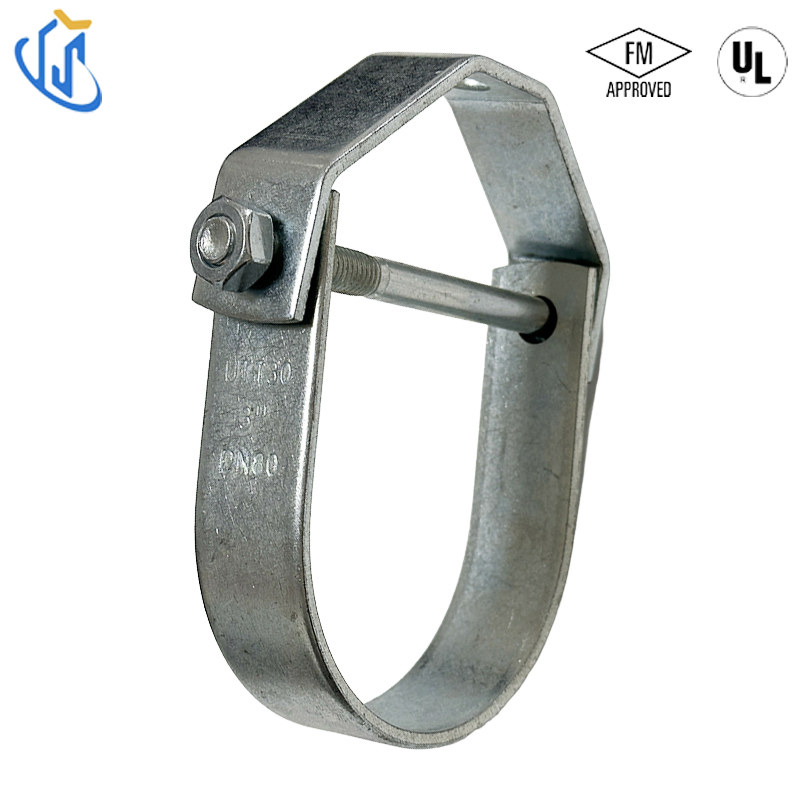

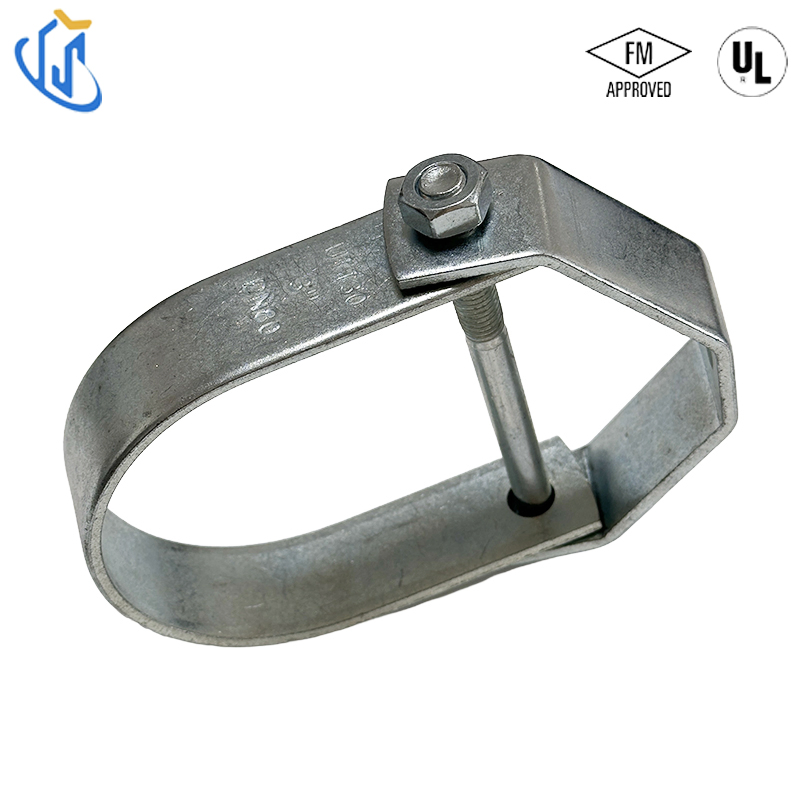

The product features a horseshoe-like design for easy installation and removal, significantly reducing labor time and effort. Its innovative shape allows it to be simply slid onto the pipe or conduit and securely snapped into place without the need for complex tools or fasteners.
Function: Allows vertical adjustment of pipe after installation.
Standard: Conforms with Federal Specification WW-H-171 (Type 1) and MSS SP-69 (Type 1).
Size Range: 1/2" Thru 12"
Material: Carbon steel, Pre-Galvanized with Zinc Plate finish.

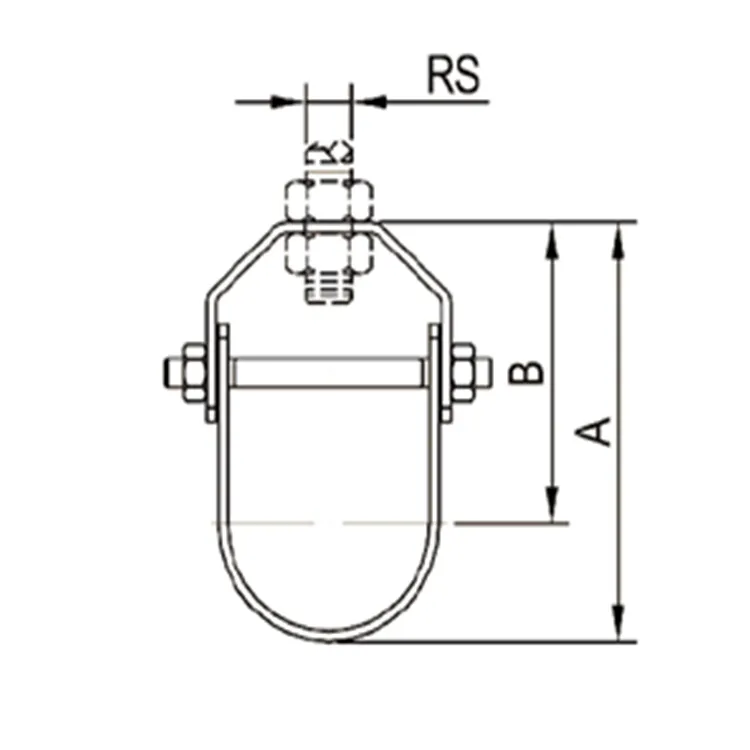

| Size (in/mm) | B (mm) | C (Thread) | D (Pipe OD) | Max Load (lbs) |
|---|---|---|---|---|
| 1/2" (DN15) | 39.4 | M6 | 21.3 | 750 |
| 1" (DN25) | 40.6 | M6 | 33.4 | 750 |
| 2" (DN50) | 53.5 | M6 | 60.3 | 750 |
| 4" (DN100) | 83.2 | M12 | 114.3 | 1500 |
| 8" (DN200) | 141.6 | M16 | 219.1 | 4050 |
| 12" (DN300) | 154 | M20 | 323.9 | 7900 |

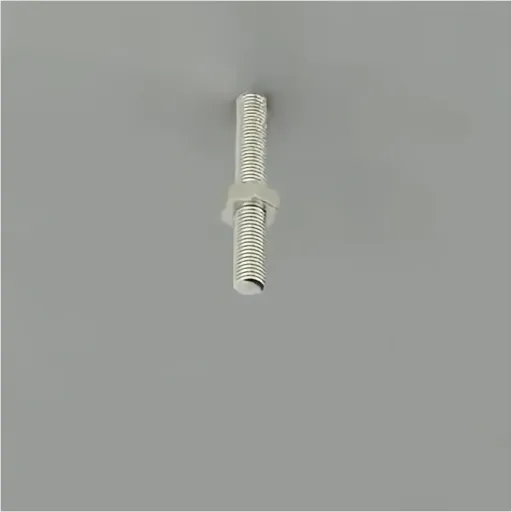

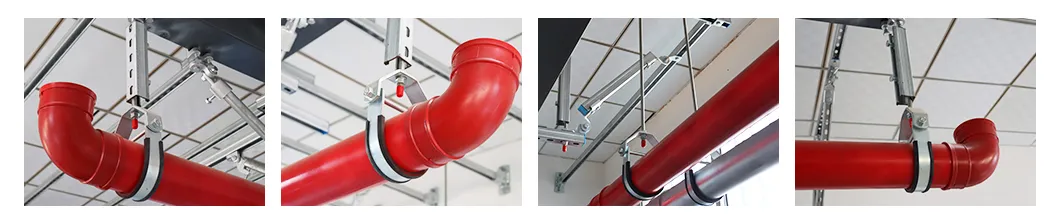

Step 1: Secure the screw to the mounting base surface (e.g., ceiling), then install the nut.

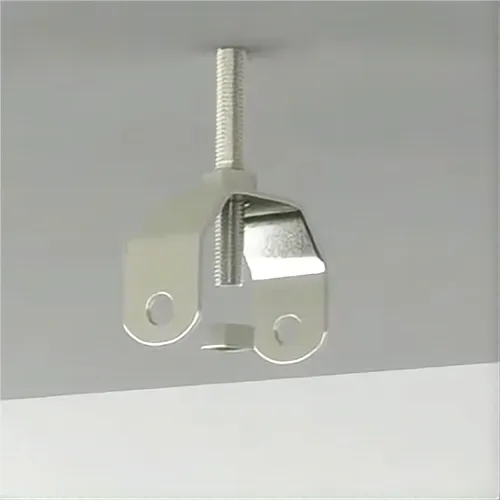

Step 2: Install the main part of the clevis hanger onto the screw and fix it initially.

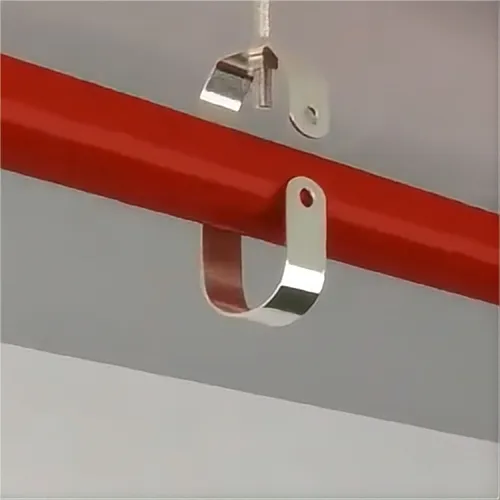

Step 3: Adjust the hanger position and place the pipe into the slot.

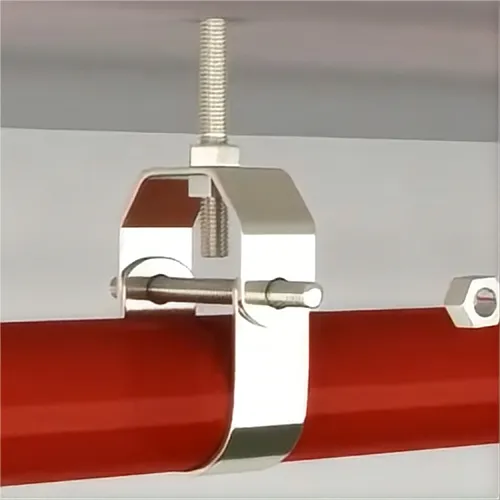

Step 4: Install U-shaped clamps and fasteners to lock the pipeline securely.

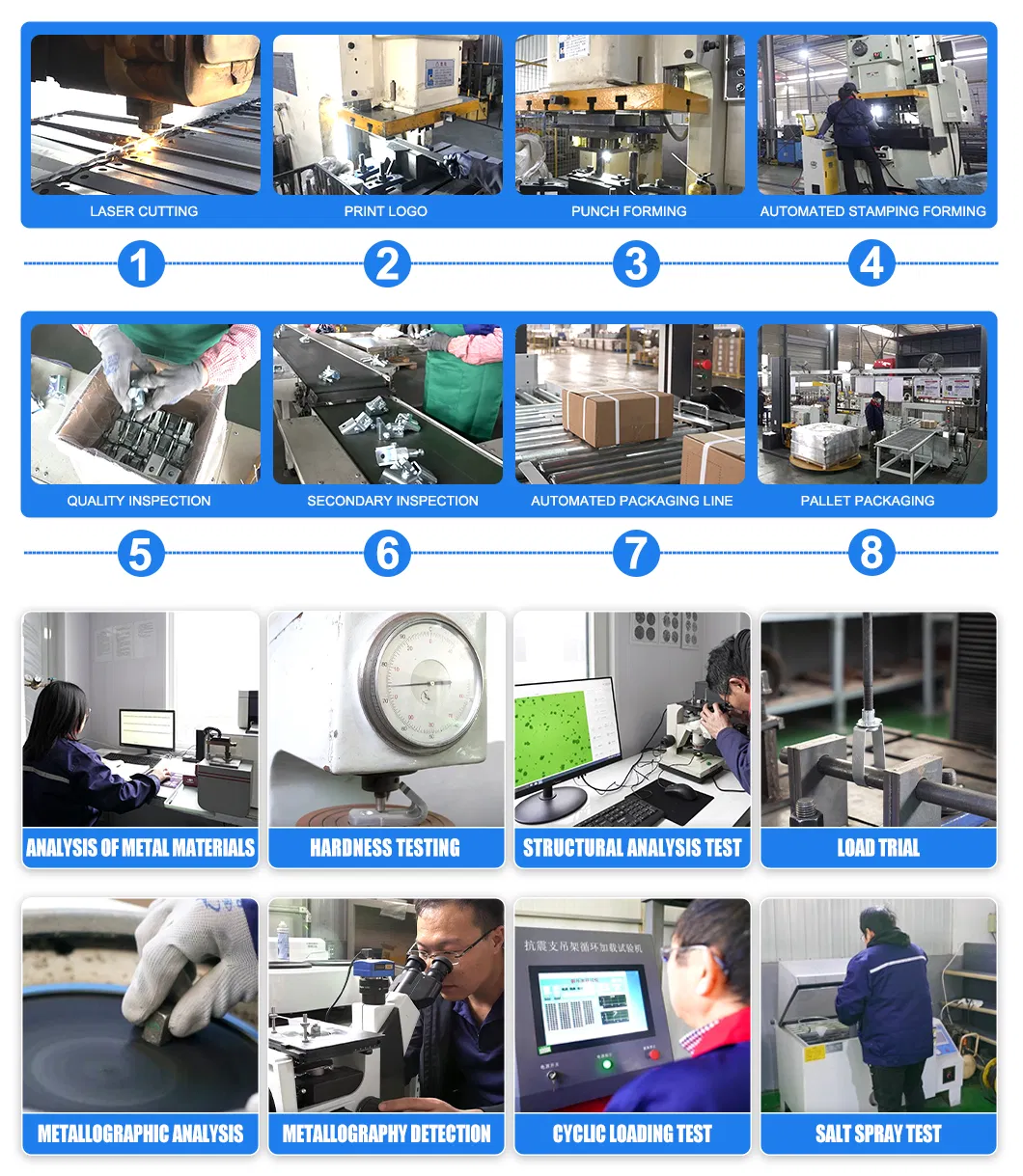

Advanced Production Systems: Utilizing 5 advanced laser cutters and high-quality casting equipment to ensure smooth surfaces without defects.
Precision Engineering: Dedicated molds and hydraulic presses enable accurate forming to meet stringent OEM/ODM requirements.
Efficient Assembly & Safety: Skilled teams manage testing and packing. Products are protected with waterproof cartons and desiccants on fumigated pallets.
Certifications: Compliance with FM, UL, and CE standards for guaranteed reliability.
