Ampy Pipe
1 / 5

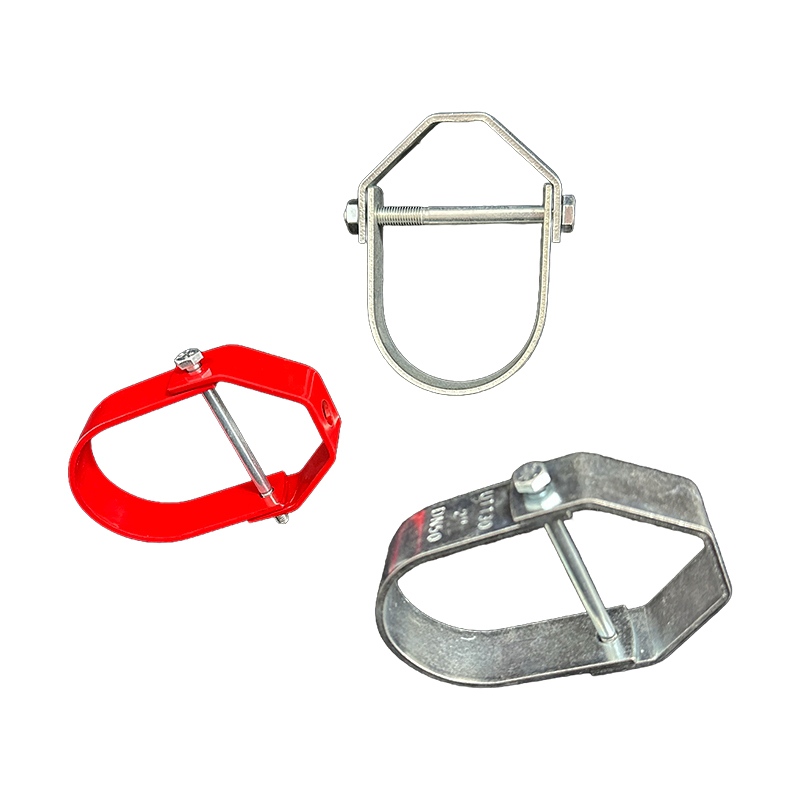

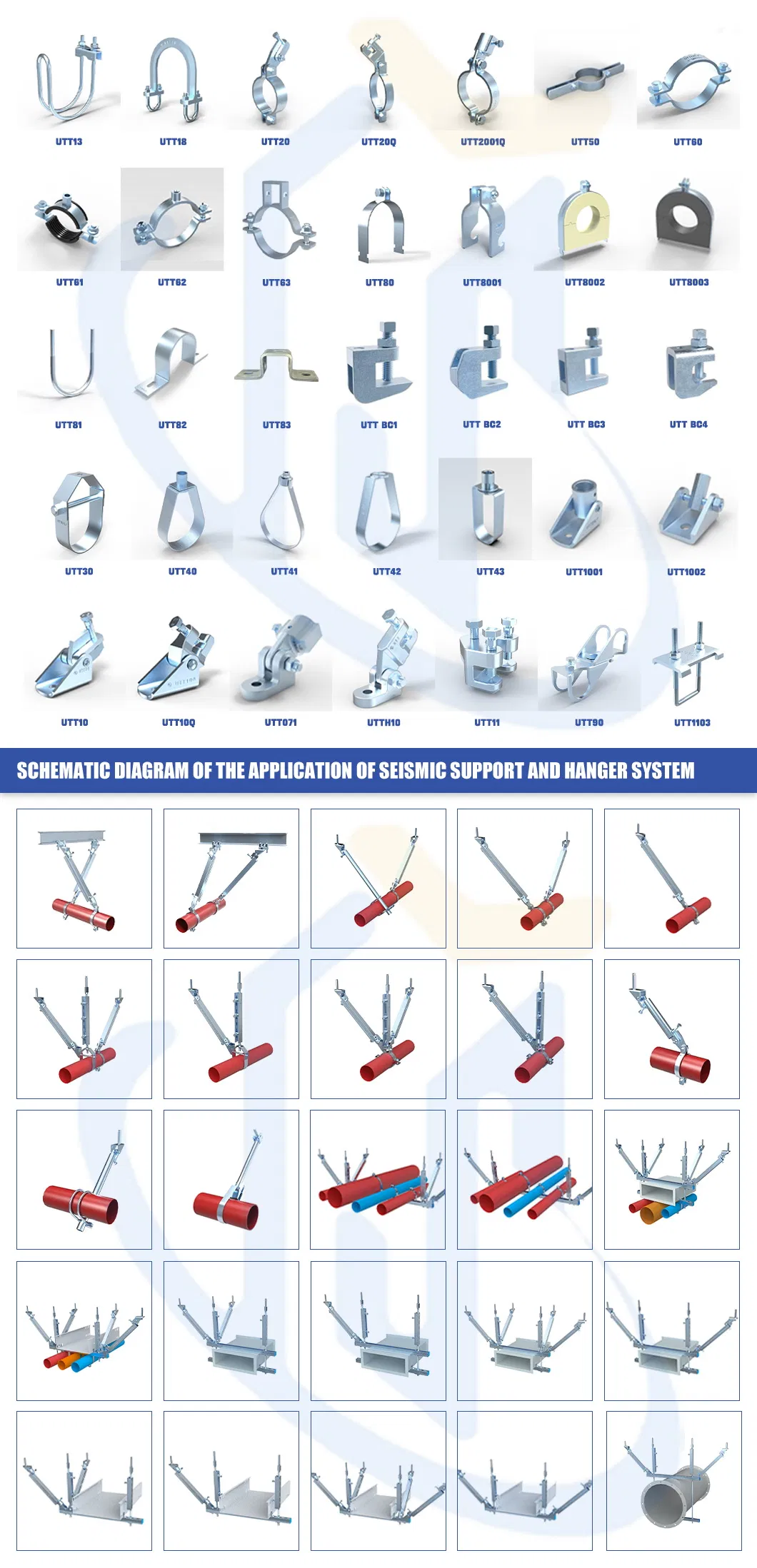

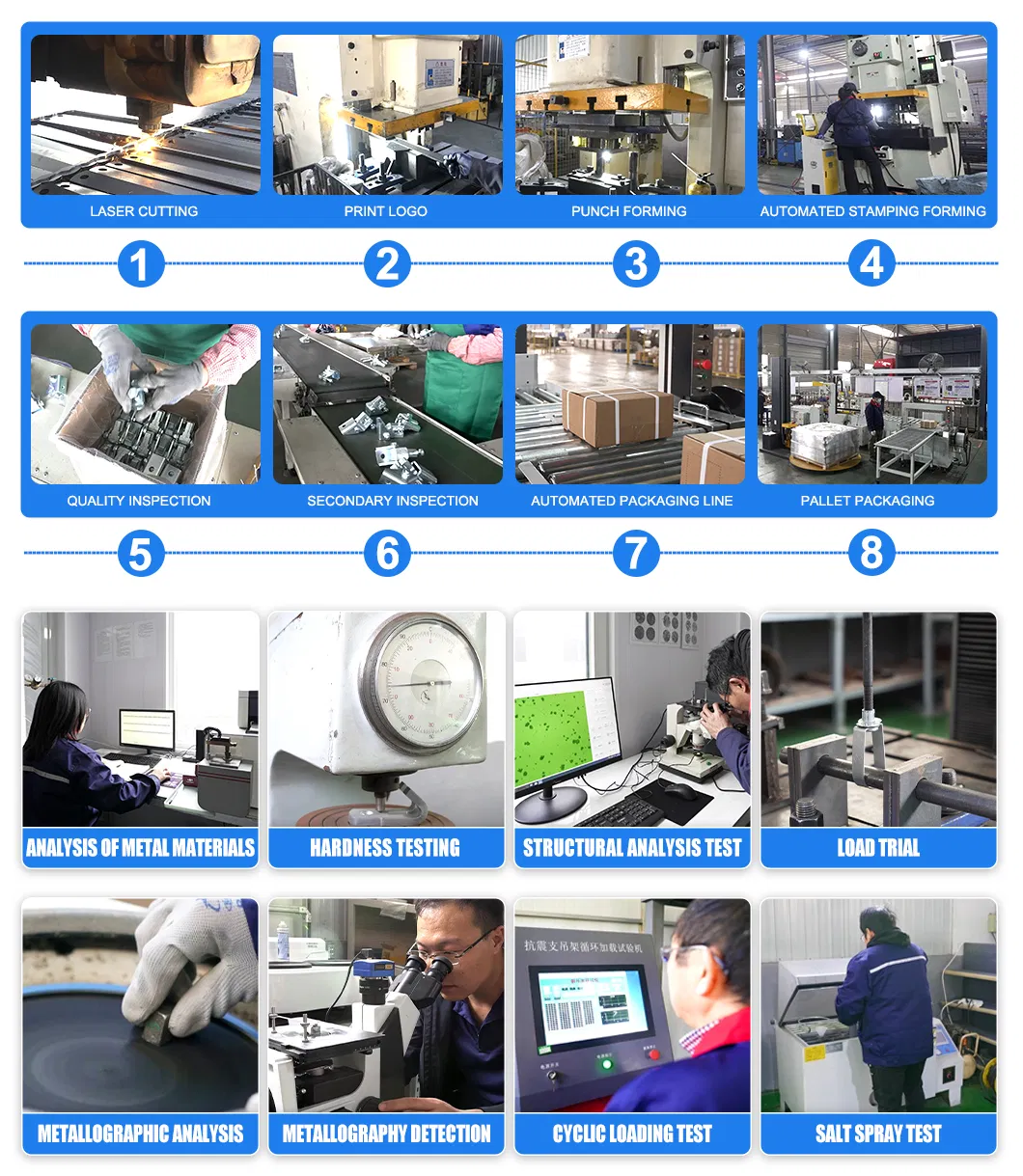

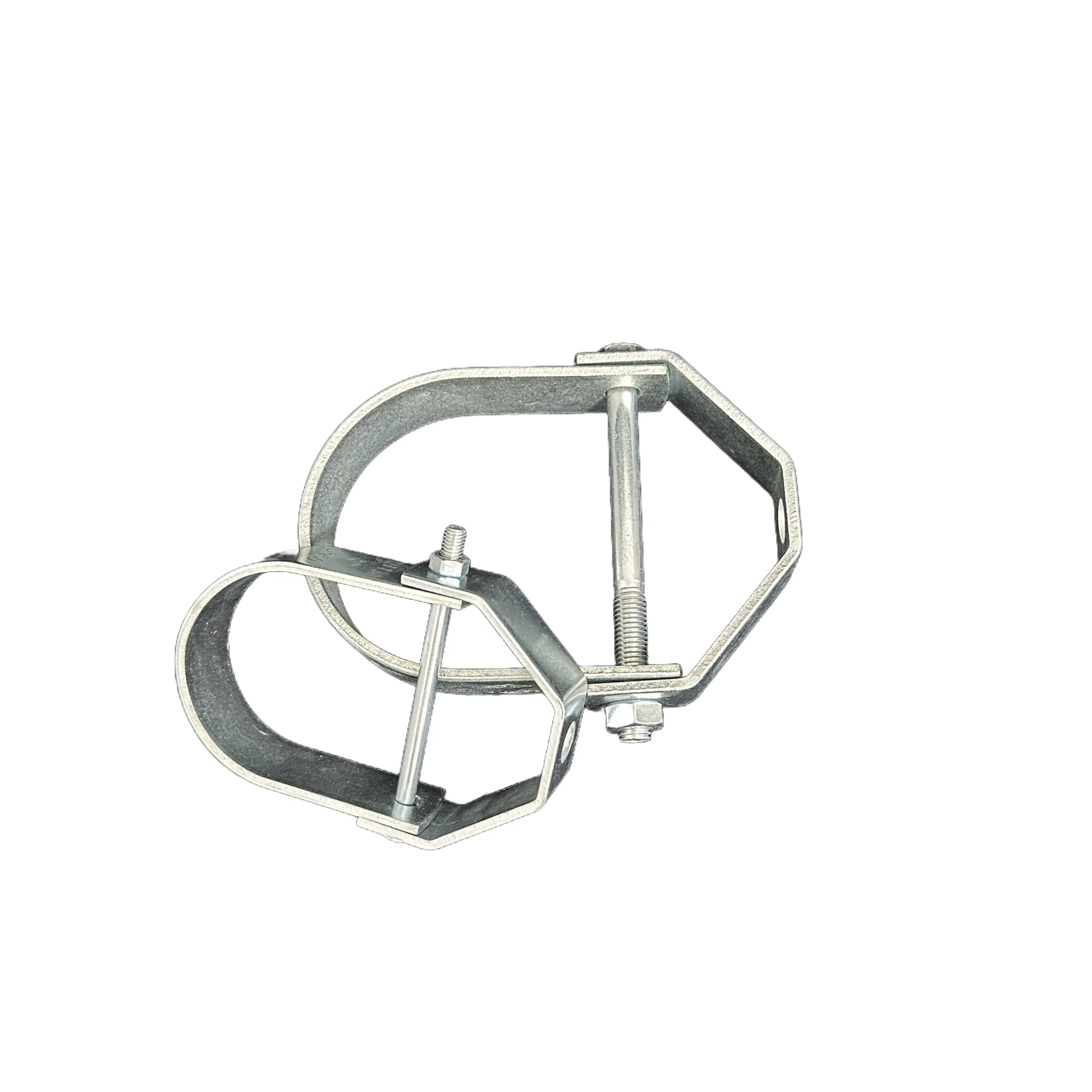

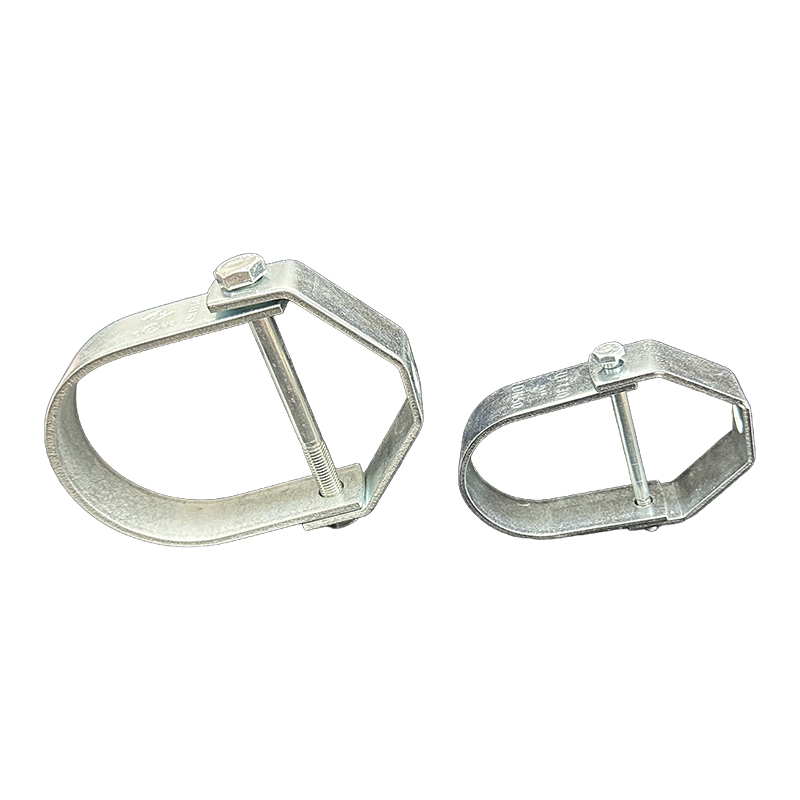

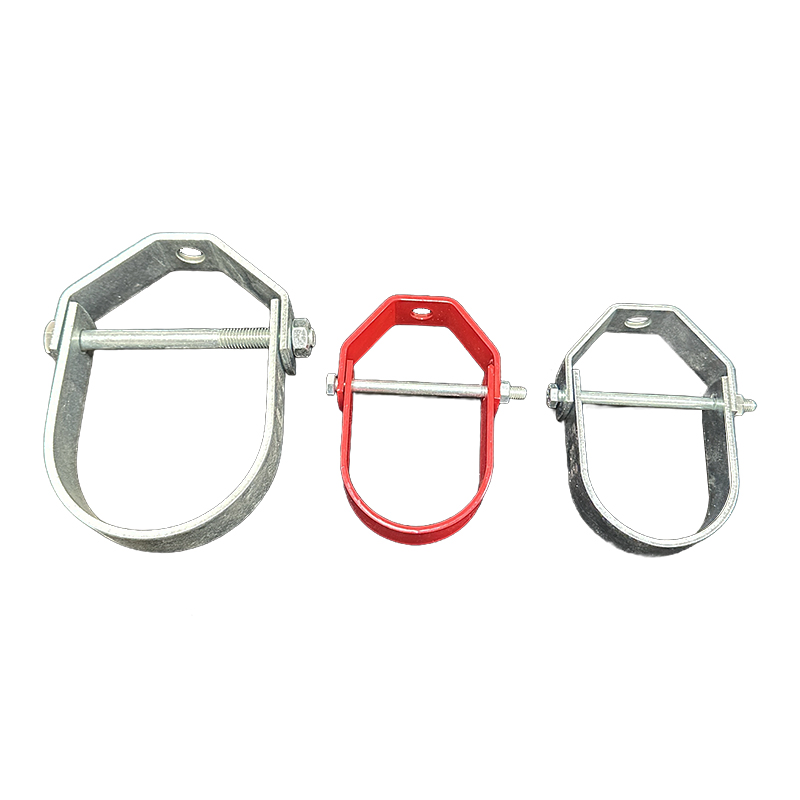

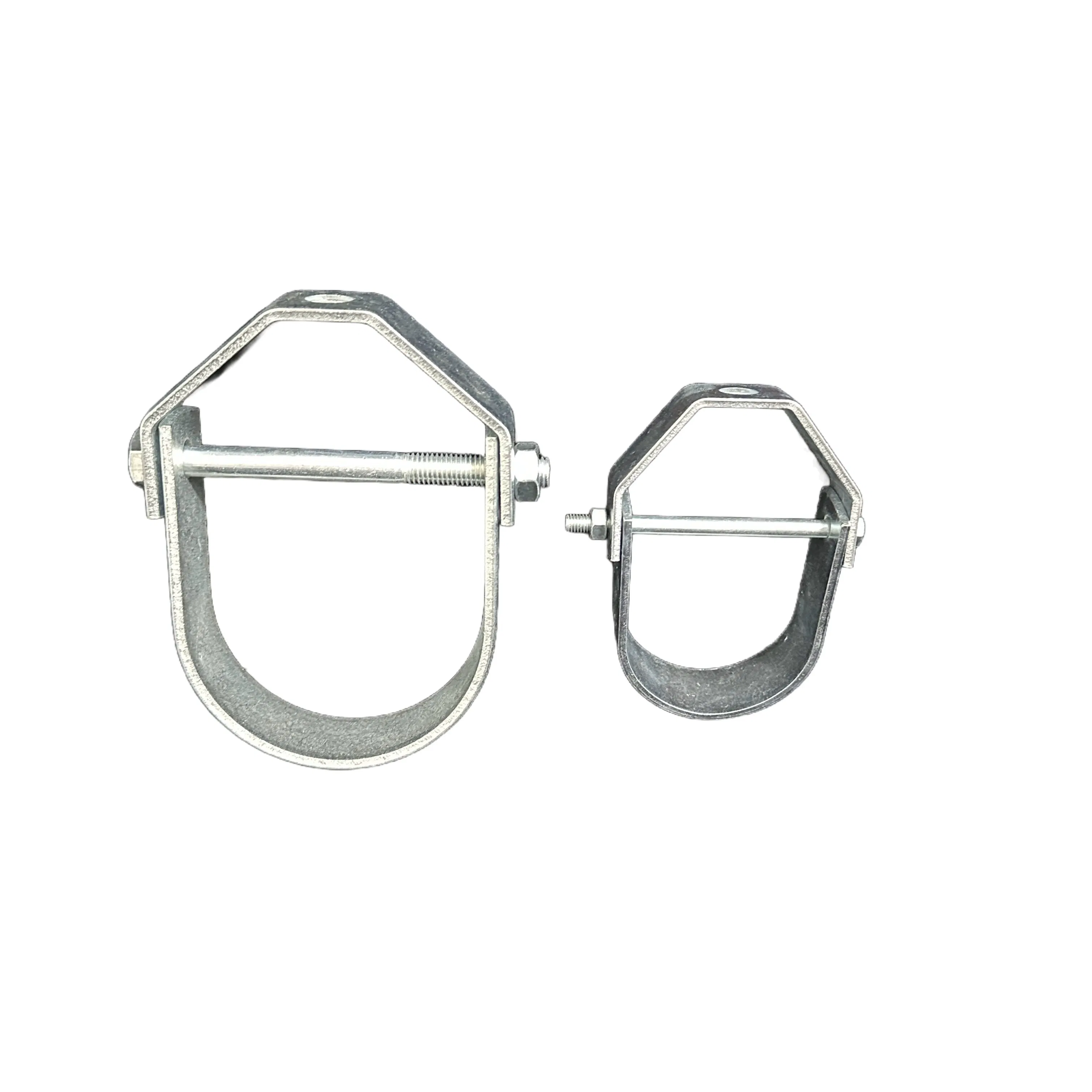

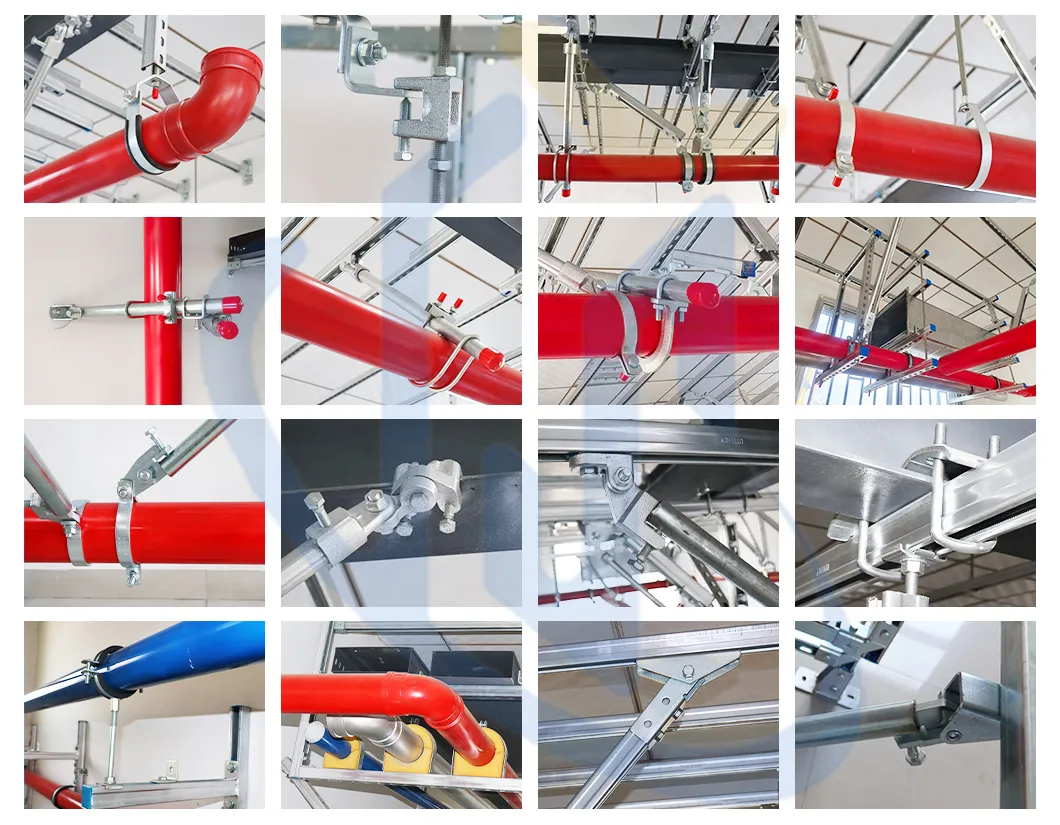

The product features a horseshoe-like design for easy installation and removal, significantly reducing labor time and effort. Its innovative shape allows it to be simply slid onto the pipe or conduit and securely snapped into place without the need for complex tools or fasteners.
Function: Allows vertical adjustment of pipe after installation.
Features: Maximum temperature Plain 650°F, Galvanized 450°F. Conforms with Federal Specification WW-H-171 (Type 1), Manufacturers Standardization Society (MSS) SP-69(Type 1).
Technical Note: When using an oversize clevis, it is recommended to install a full-width spacer on the cross bolt to prevent failure due to disfiguring the U-strap.

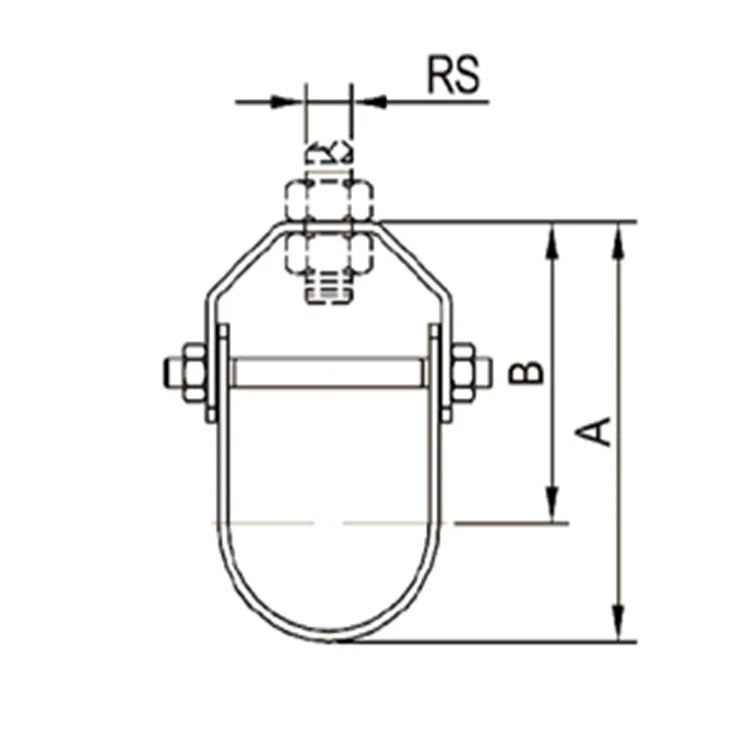

| Size | B | C | D | W | |||||
|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | in | mm | in | mm | in | mm |
| 1/2" | DN15 | 1.57 | 39.4 | 1/4" | M6 | 1/2" | 21.3 | 0.87 | 22 |
| 3/4" | DN20 | 1.57 | 39.4 | 1/4" | M6 | 3/4" | 26.7 | 0.87 | 22 |
| 1" | DN25 | 1.62 | 40.6 | 1/4" | M6 | 1" | 33.4 | 0.87 | 22 |
| 2" | DN50 | 2.13 | 53.5 | 1/4" | M6 | 2" | 60.3 | 0.98 | 25 |
| 4" | DN100 | 3.31 | 83.2 | 1/2" | M12 | 4" | 114.3 | 1.18 | 30 |
| 6" | DN150 | 5.17 | 129.8 | 1/2" | M12 | 6" | 168.3 | 1.57 | 40 |
| 12" | DN300 | 6.14 | 154 | 3/4" | M20 | 12 | 323.9 | 1.97 | 50 |

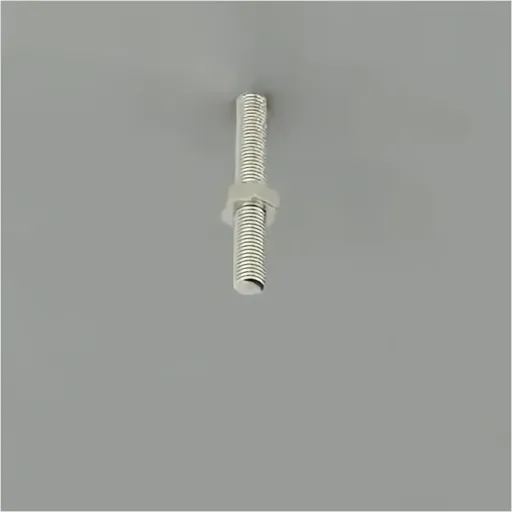

Step 1: Secure the screw to the mounting base surface (e.g., ceiling), then install the nut onto the screw.

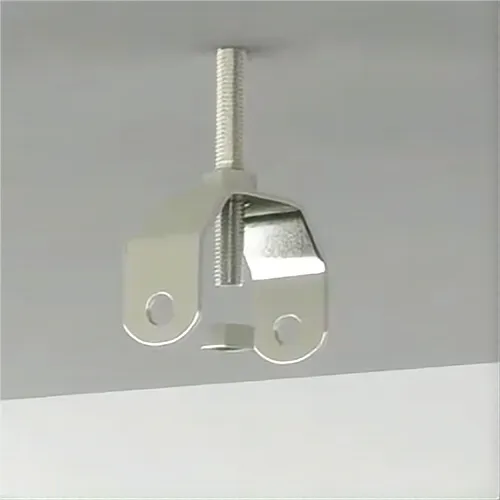

Step 2: Install the main part of the clevis hanger onto the screw, and initially fix it using the nut.

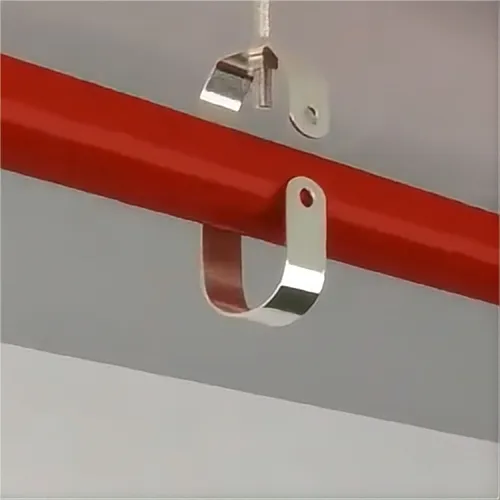

Step 3: Adjust the hanger position to align with the pipe. Place the pipe into the slot.

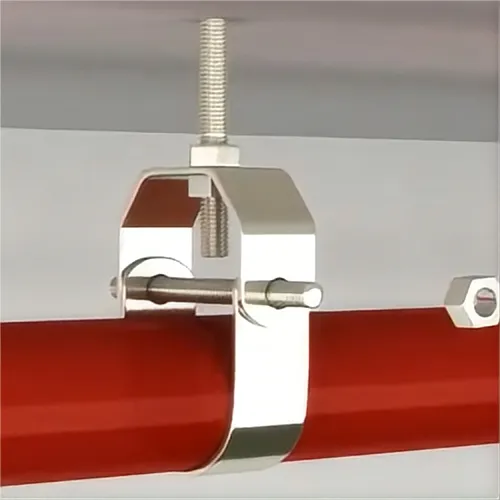

Step 4: Install U-shaped clamps and lock the device with nuts to ensure a firm connection.
