ASME Certified Constant Load Spring Hanger and Pipe Bracket for Pipe Engineering

📋Basic Information

Model NO.

JN-SS06

Specification

As customer's request

HS Code

8419500090

Capacity

50000 Pieces/Year

⚙Product Specification

Model No.	Vertical constant force spring hanger	Technics	Casting or Forging
Connection	Welding	Shape	Equal
Load Range	500-400000N	Displacement Range	50-500mm
Temperature Range	-20°C~ +200°C	Specification	ISO/GB
Transport Package	Wooden Box/Case/Pallet	HS Code	8402900000

💡Constant Load Spring Supports

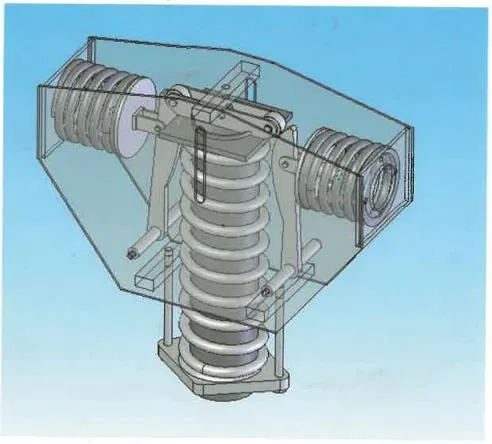

The Constant Load Spring Supports (Constant Supports) provide a constant supporting force through the total travel of the support. The simplified construction, together with the compression spring working in conjunction with a bell crank lever, achieves a mathematically perfect counter-balancing of spring and load moments about the main pivot point.

Constant Load Spring Supports are typically used when large vertical movements are present in critical piping to avoid the transfer of residual stresses to other process piping systems.

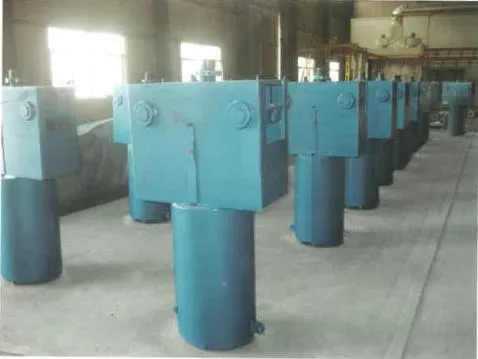

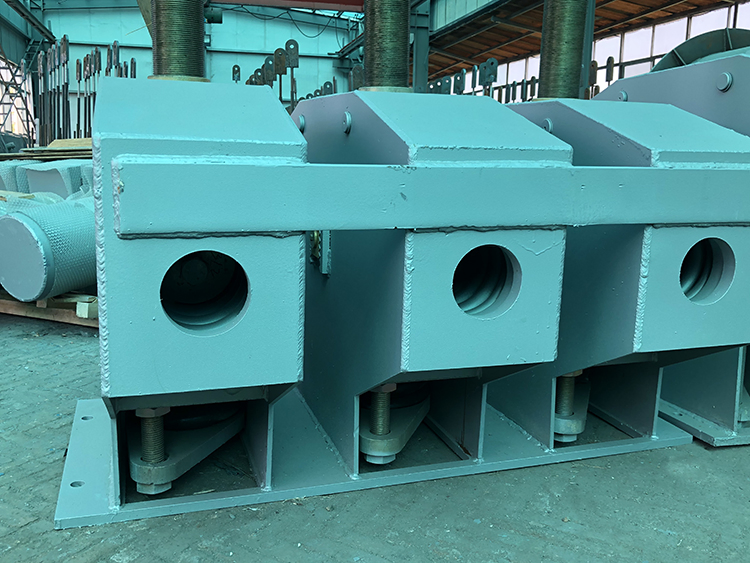

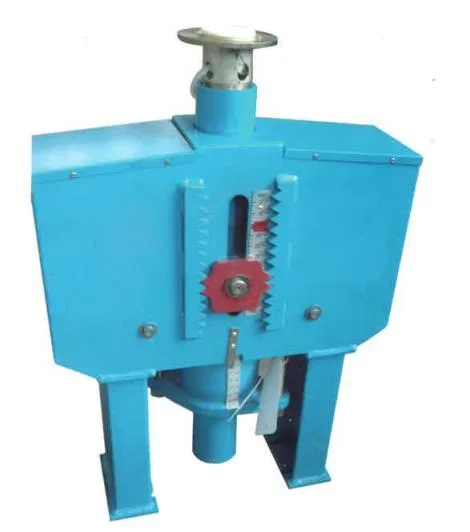

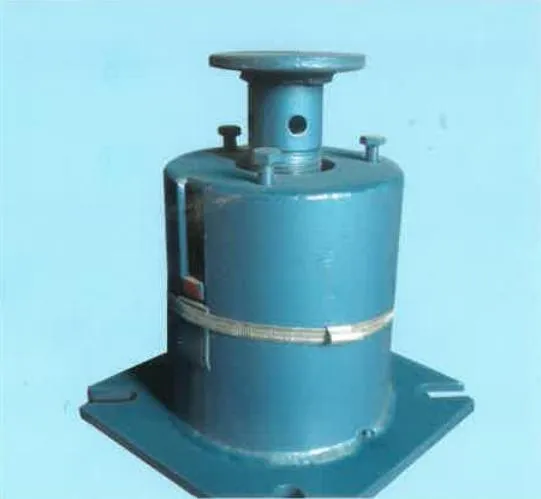

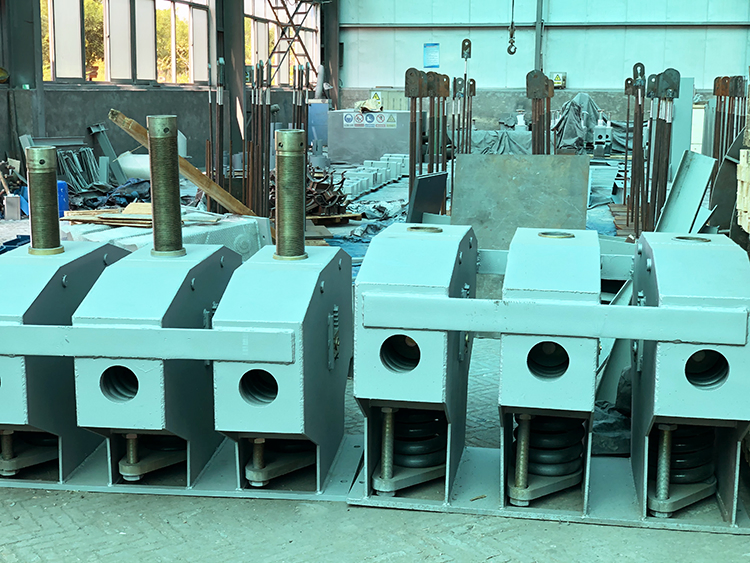

📷Product Display
