Ampy Pipe
1 / 5

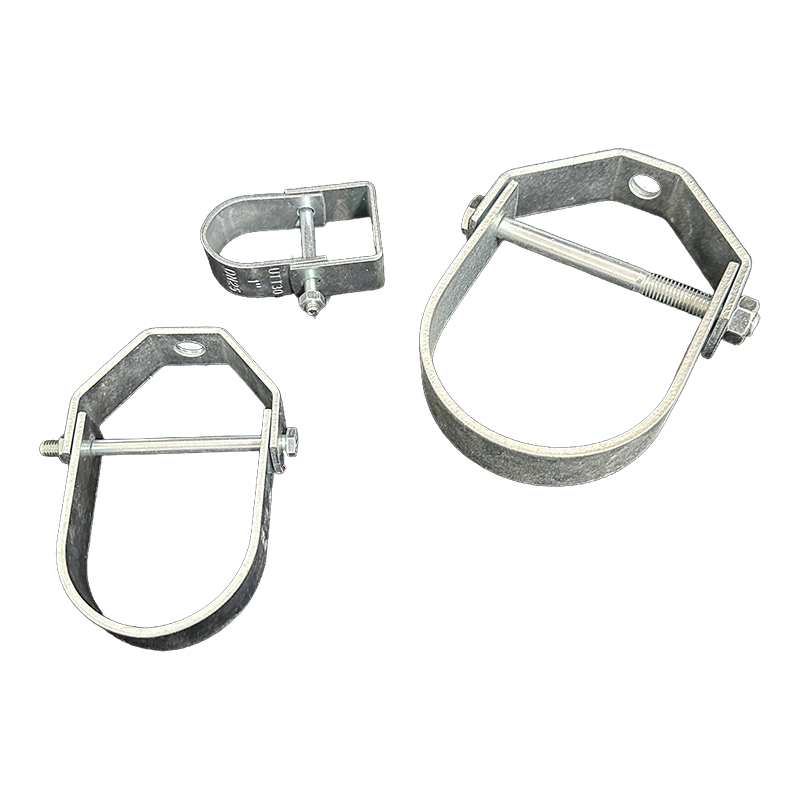

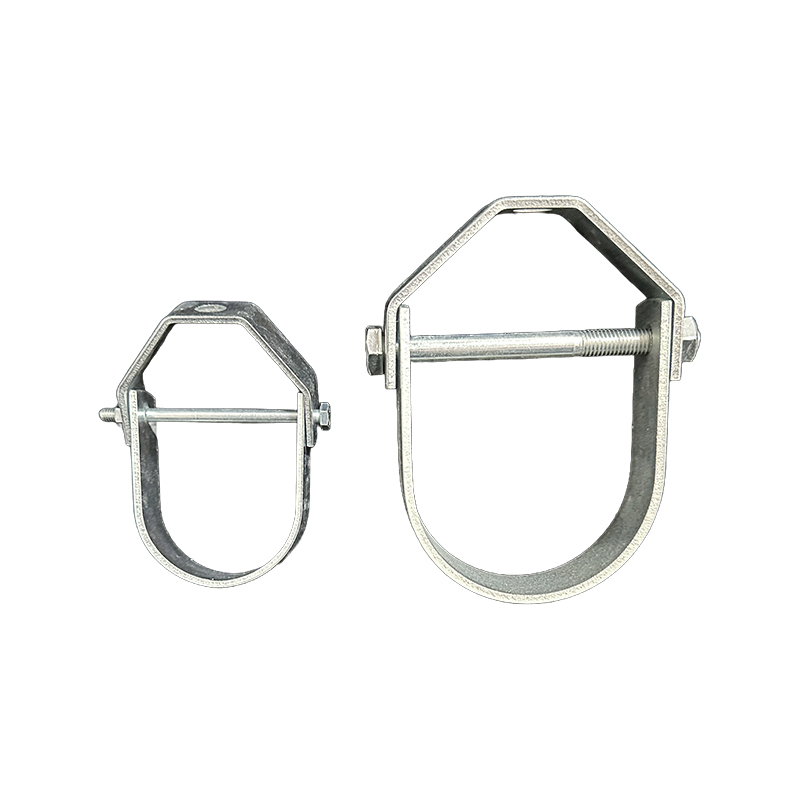

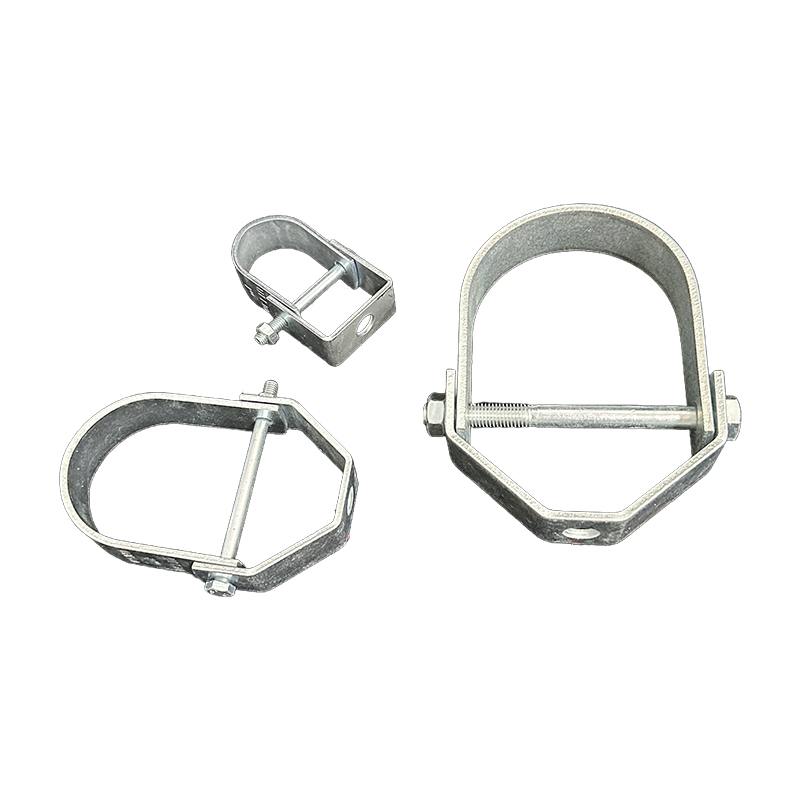

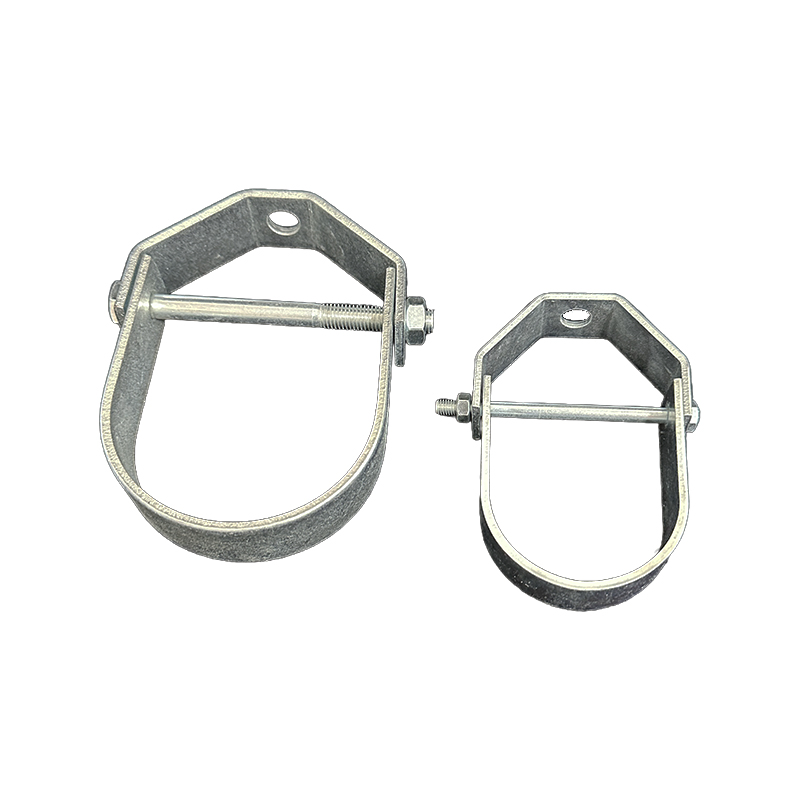

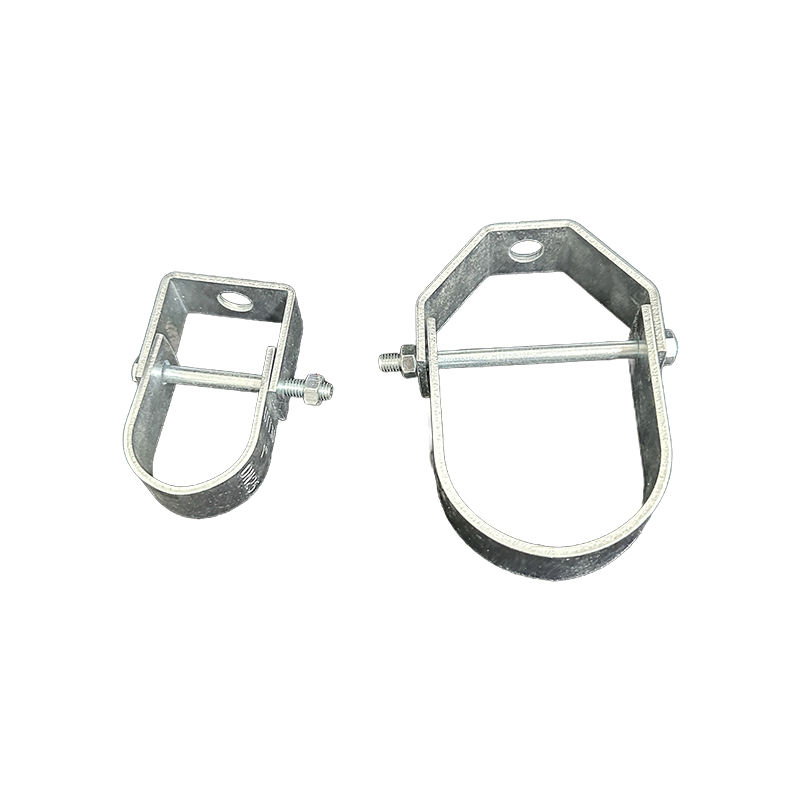

The product features a horseshoe-like design for easy installation and removal, significantly reducing labor time and effort. Its innovative shape allows it to be simply slid onto the pipe or conduit and securely snapped into place without the need for complex tools or fasteners.
Function: Allows vertical adjustment of pipe after installation.
Features:

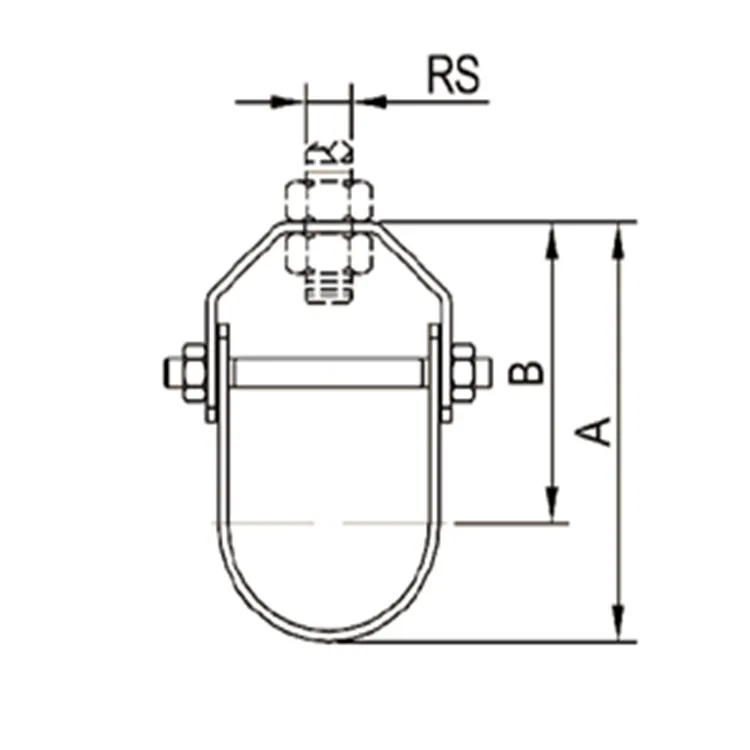

| Size (in) | Size (mm) | B (in) | C (Rod) | D (in) | W (in) | Max Load (lbs) | Max Load (KN) |
|---|---|---|---|---|---|---|---|
| 1/2" | DN15 | 1.57 | 1/4" | 1/2" | 0.87 | 750 | 3.34 |
| 3/4" | DN20 | 1.57 | 1/4" | 3/4" | 0.87 | 750 | 3.34 |
| 1" | DN25 | 1.62 | 1/4" | 1" | 0.87 | 750 | 3.34 |
| 2" | DN50 | 2.13 | 1/4" | 2" | 0.98 | 750 | 3.34 |
| 4" | DN100 | 3.31 | 1/2" | 4" | 1.18 | 1500 | 6.67 |
| 6" | DN150 | 5.17 | 1/2" | 6" | 1.57 | 2650 | 11.79 |
| 12" | DN300 | 6.14 | 3/4" | 12" | 1.97 | 7900 | 35.14 |

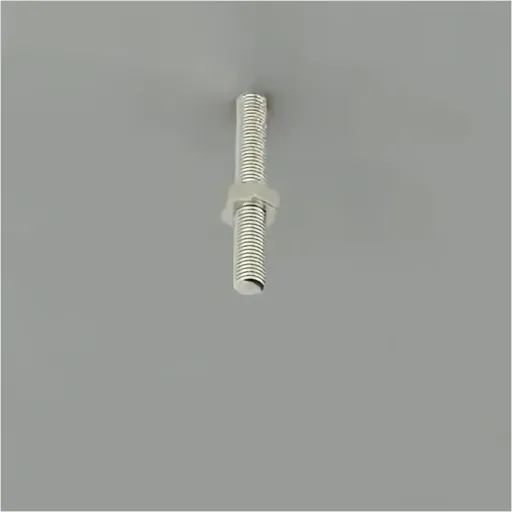

Step 1
Secure the screw to the mounting base surface (e.g., ceiling), then install the nut onto the screw.

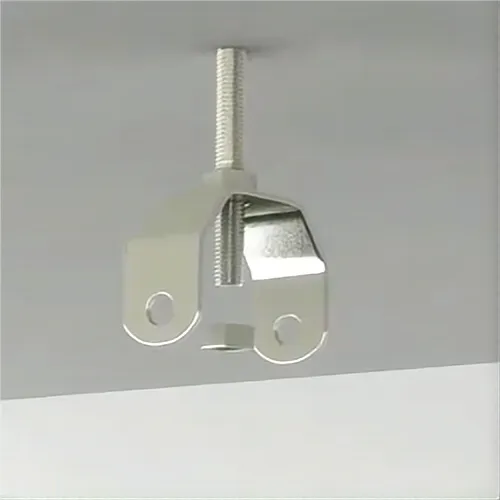

Step 2
Install the main part of the clevis hanger onto the screw, and initially fix it using the nut.

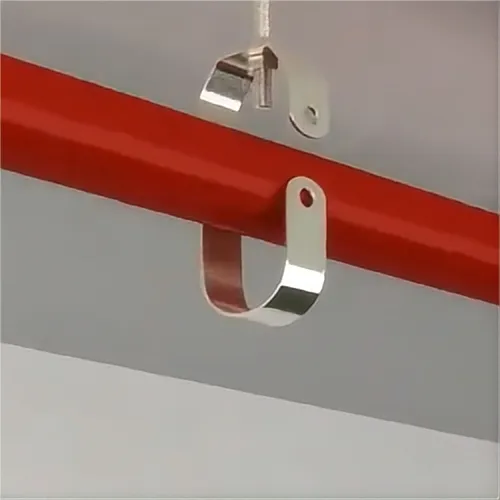

Step 3
Adjust the position of the hanger to align with the pipe and place the pipe into the slot.

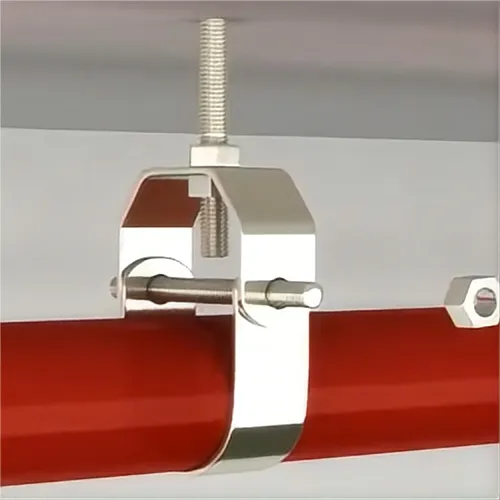

Step 4
Install U-shaped clamps and fasteners to ensure the pipeline is securely locked in place.
Our hangers are primarily made of high-grade Carbon Steel, but Ductile Iron and Stainless Steel options are also available upon request.
Yes, our products meet UL and FM industry certification standards, ensuring high reliability for seismic and structural support.
Plain carbon steel hangers can withstand up to 650°F, while Zinc-plated/Galvanized versions are rated up to 450°F.
Absolutely. The UTT30 design allows for vertical adjustment of the pipe even after the initial installation is complete.
We use a professional galvanizing process (Zinc Plating) that provides a smooth, anti-corrosive finish suitable for various environments.
We provide a full range of sizes from 1/2" (DN15) up to 12" (DN300) to fit various industrial piping needs.
