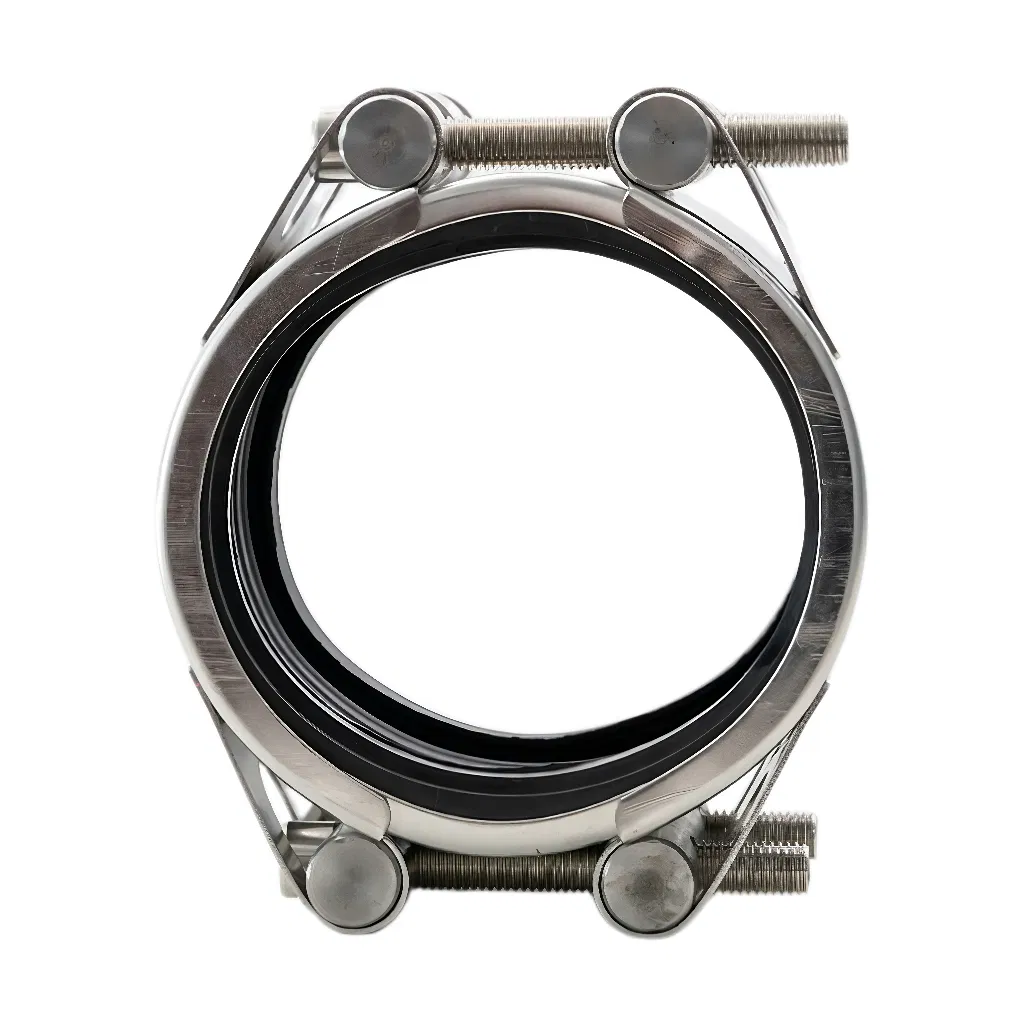

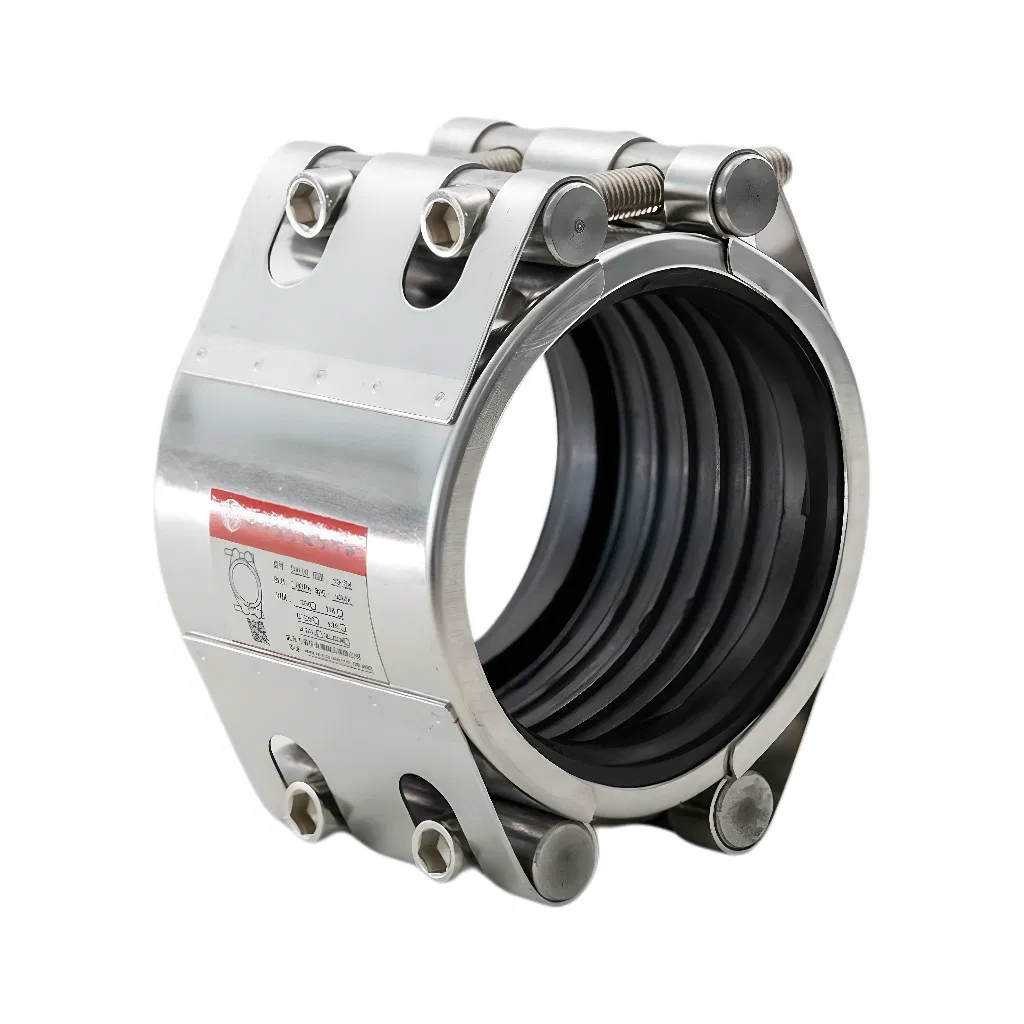

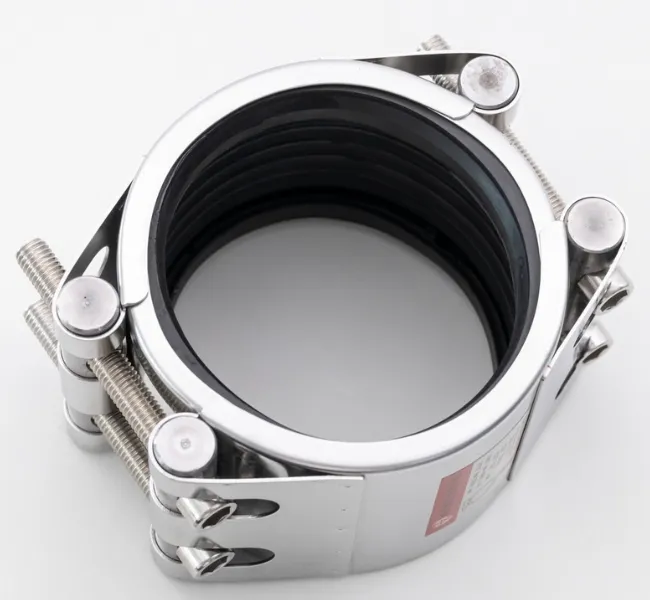

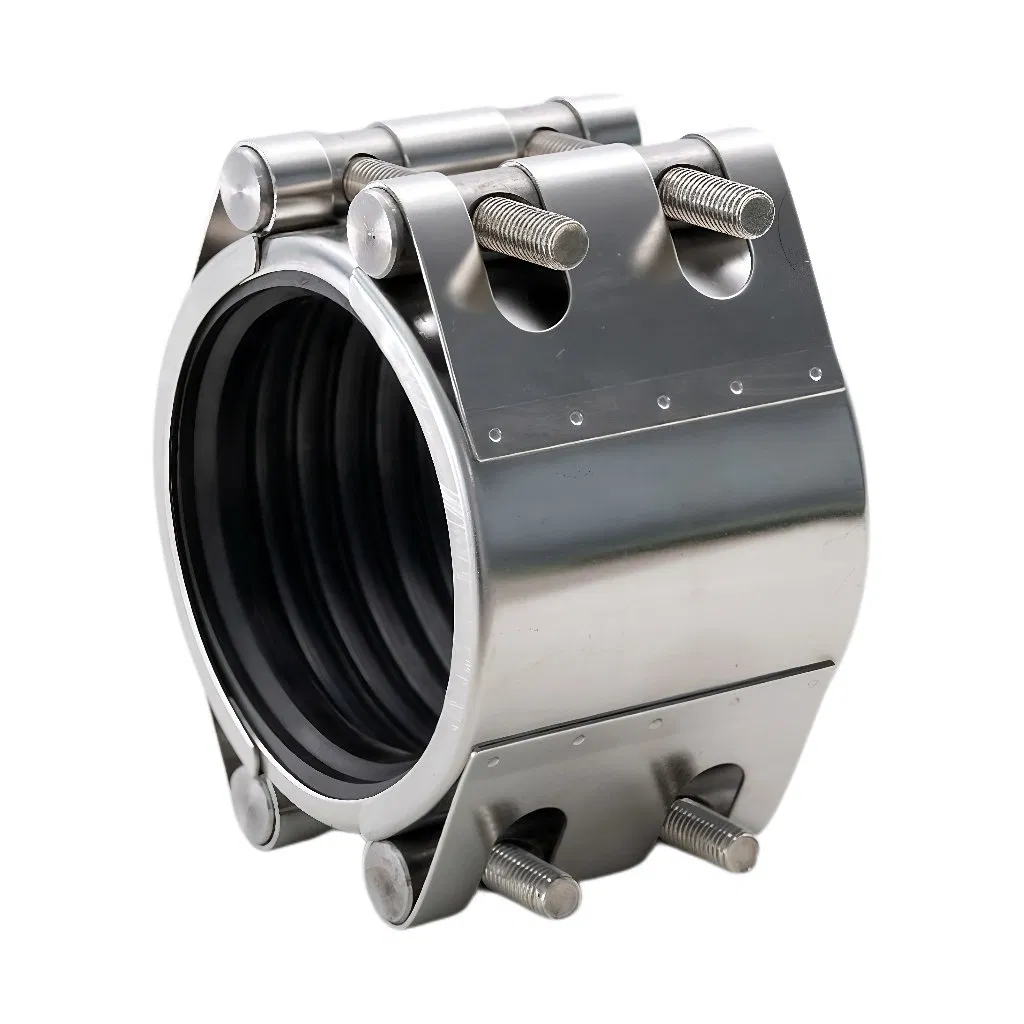

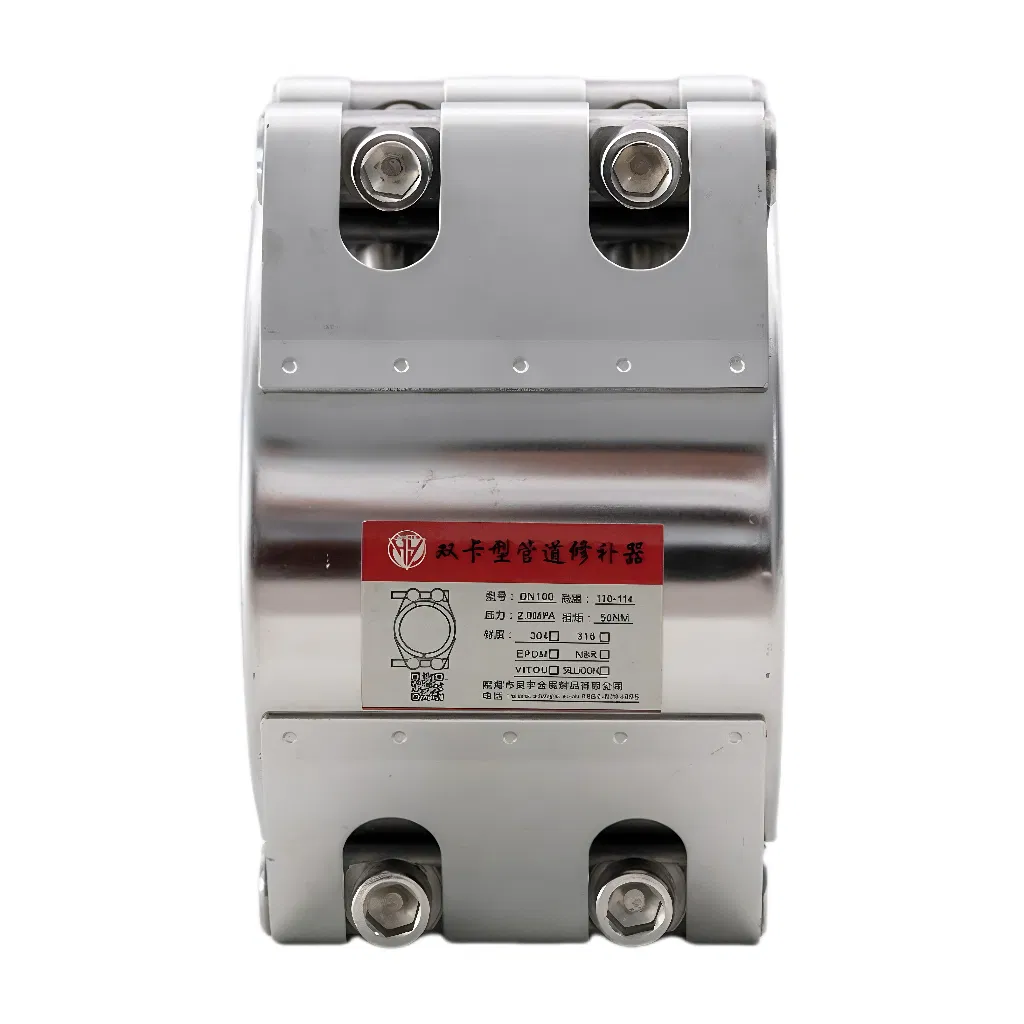

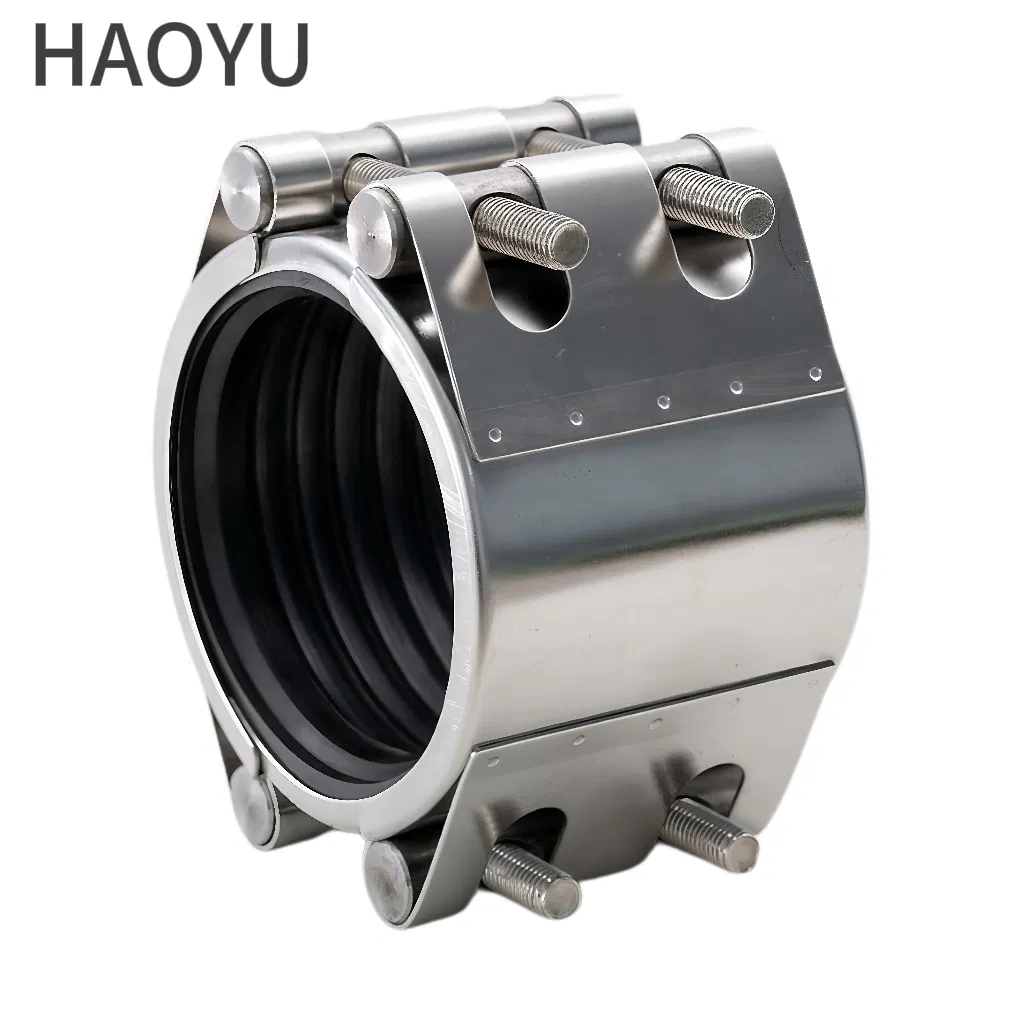

Double Lock Adjustable Pipe Clamp Leakage Repair Screw Fittings

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information

Model NO.:HY
Connection:Press Connection
Structure:Jaw / Spider
Flexible or Rigid:Flexible
Material:Stainless Steel
Standard:Nonstandard
Patent:Utility Model Patent
Applications:Oil, Chemical, Water, Mine, Gas
OEM:Available
Other Material:NBR & Neoprene
Specification:88-740mm
Origin:China
Capacity:500,000 PCS/Year
📦

Packaging & Delivery

Package Size:40.00cm * 30.00cm * 30.00cm
Gross Weight:3.000kg
Transport:Wooden Frame Packaging
📝

Product Description

Established in 2008, we are a professional manufacturer integrating research and design for all types of pipe couplings and repair clamps. With more than 20 product patents and certifications, the enterprise is recognized as a national high-tech entity. The facility features over 3,000 square meters of standardized factory buildings, supported by advanced production and testing equipment alongside a professional R&D team to ensure safe pipe operations. Our products are exported to the Middle East, Southeast Asia, Russia, Europe, and the United States, receiving high praise in global markets.

Pipe Clamp Features
Product Characteristics: Applicable to the repair of larger-diameter pipelines (DN300 or above). The dual-clip locking structure ensures a more balanced preload and a fine sealing effect. The split dual-opening structure has low requirements for installation space, ideal for dense pipelines or tight spaces near walls and ground.
🚀
Applications: Pipeline repair in shipping, oil fields, chemical industry, water supply, factories, mines, fire-fighting, natural gas, electric power, and mechanical equipment.
📊

Technical Specifications

Nominal Diameter (OD mm) Range (mm) Pressure (WP bar) L1 (mm) L2 (mm) Bolt (M) Torque (NM)
DN32 (42-45)42-453260100815
DN50 (57-63)57-633260100830
DN100 (108-118)108-118281072031050
DN150 (159-170)159-170241162031280
DN200 (200-219)200-219161552551480
DN300 (315-325)315-3251615525514100
DN400 (400-429)400-4291415525514100
DN500 (500-530)500-5301015525514120
DN600 (609-635)609-635815525516120
DN800 (812-842)812-842615525516150
DN1000 (1016-1048)1016-1048415525516150
📷

Product Gallery

Technical Drawing Product Layout

Frequently Asked Questions

Are you a factory or a trading company?
We are a professional manufacturer, founded in 2008, specializing in pipe coupling and repair solutions.
How to place an order?
Inquire with us → Customize with drawings/samples → Usage scenario check → Receive design recommendations → Negotiate details → Confirm samples → Deposit payment → Mass production → Delivery.
What about sample orders?
Samples can be provided. We offer 1 free sample per style; however, the buyer is responsible for the shipping costs.
What shipping methods are available?
Sea freight, China Express, and standard international express shipping are available. Other methods can be arranged upon request.
How long is the production and shipping time?
Delivery time depends on the order quantity, typically ranging from 3 to 30 working days.
How to confirm payment?
We accept wire transfers, PayPal, and other major methods. A 30% deposit is standard, with the balance due before shipment.
