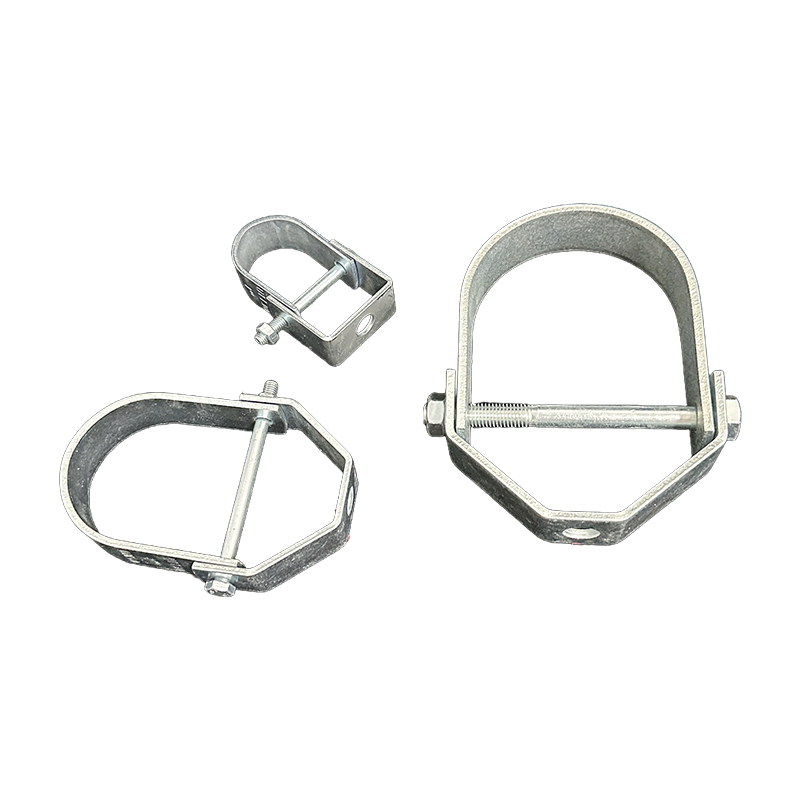

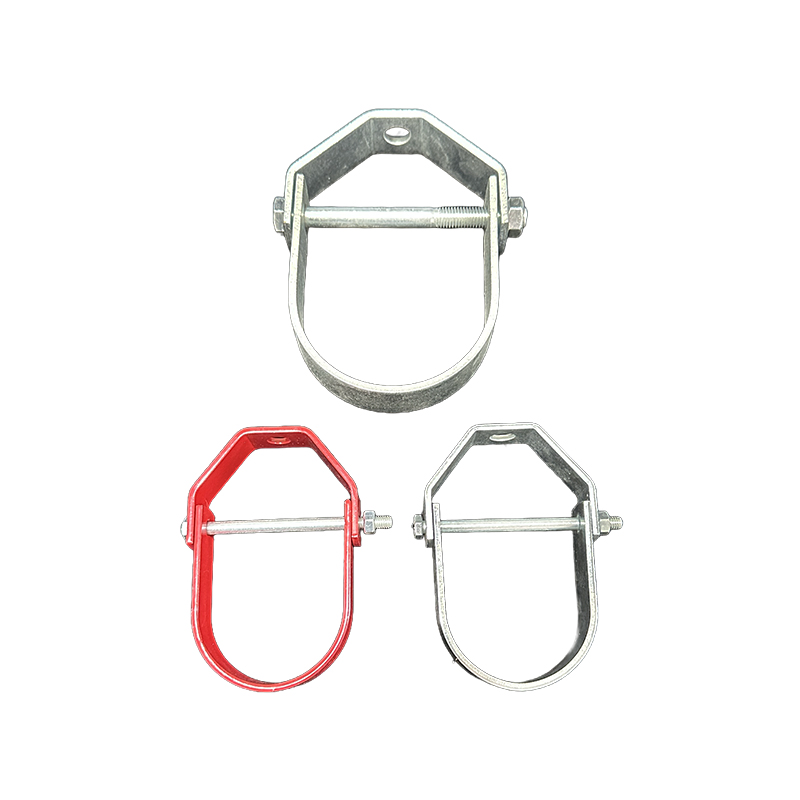

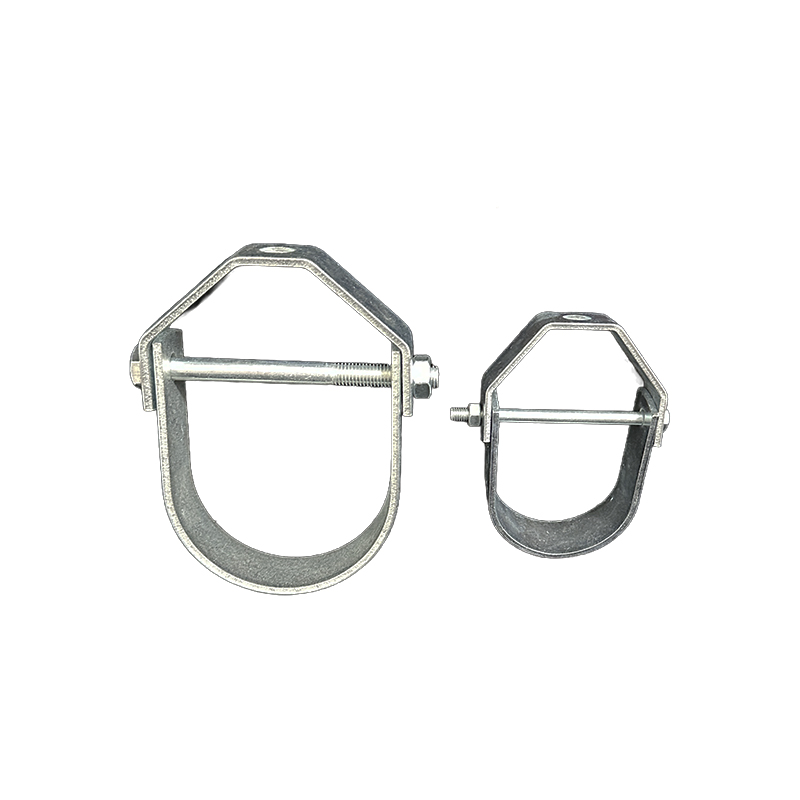

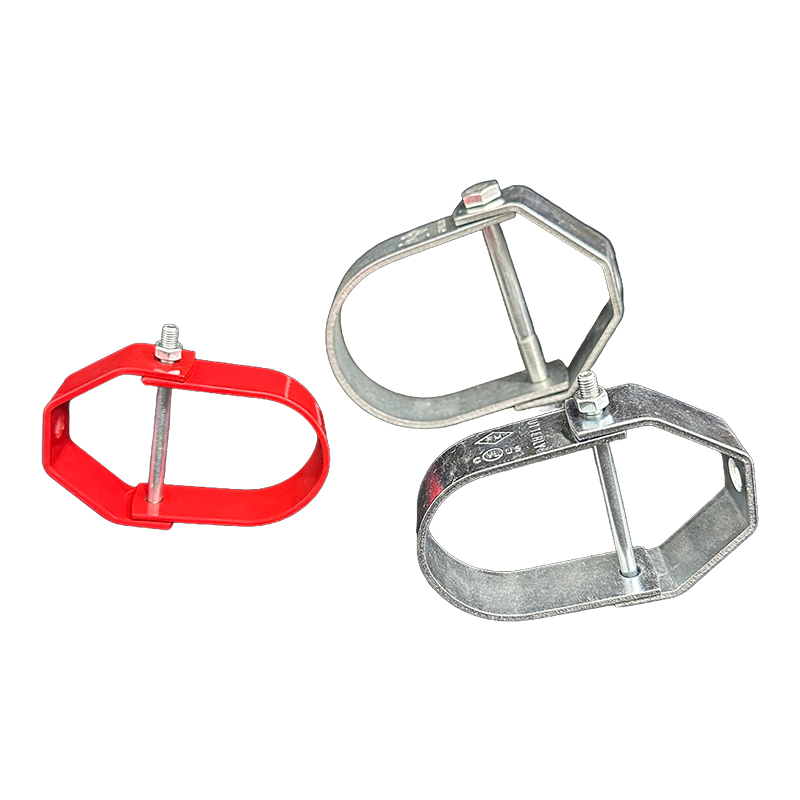

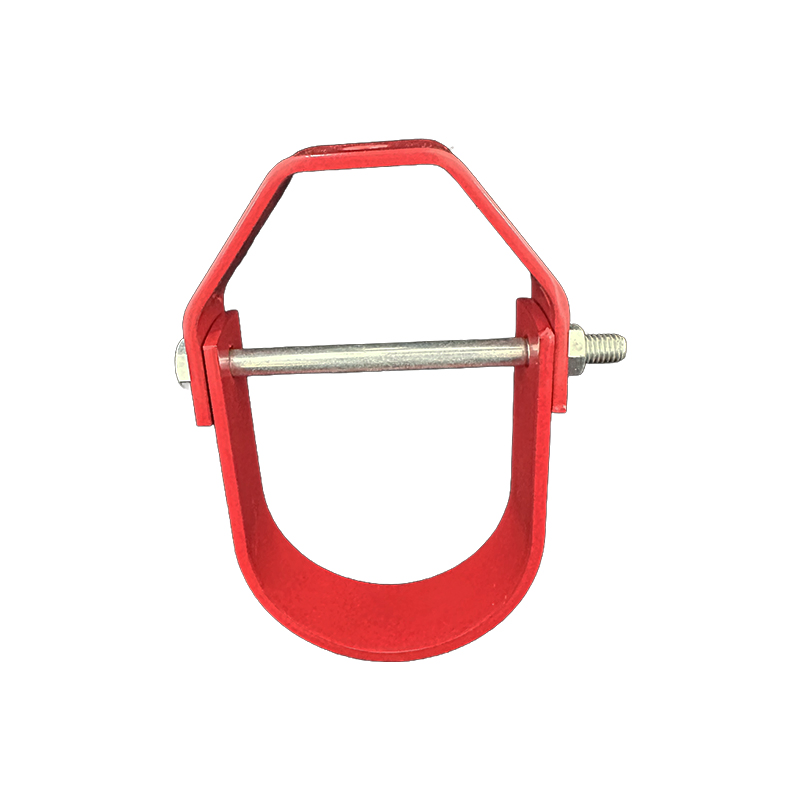

UTT30 Clevis Hanger

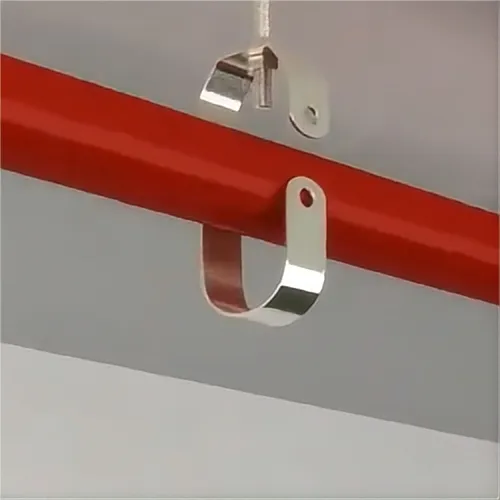

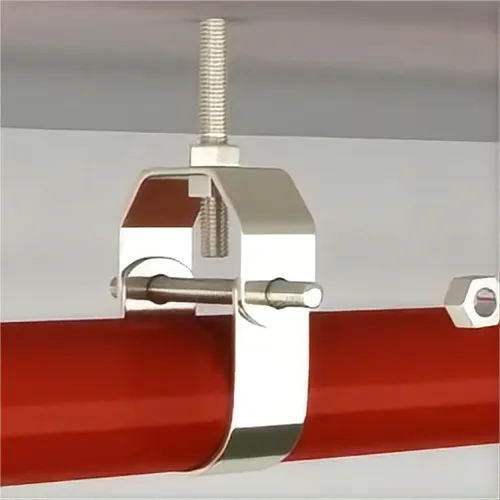

The product features a horseshoe-like design for easy installation and removal, significantly reducing labor time and effort. Its innovative shape allows it to be simply slid onto the pipe or conduit and securely snapped into place without the need for complex tools or fasteners.

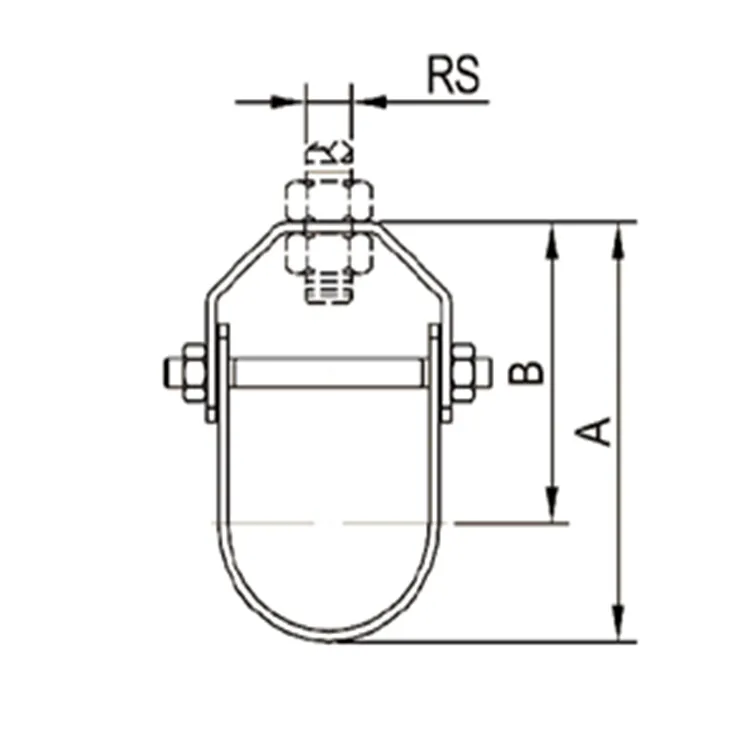

| Size | B | C | D | W | |||||
|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | in | mm | in | mm | in | mm |
| 1/2" | DN15 | 1.57 | 39.4 | 1/4" | M6 | 1/2" | 21.3 | 0.87 | 22 |
| 3/4" | DN20 | 1.57 | 39.4 | 1/4" | M6 | 3/4" | 26.7 | 0.87 | 22 |
| 1" | DN25 | 1.62 | 40.6 | 1/4" | M6 | 1" | 33.4 | 0.87 | 22 |
| 2" | DN50 | 2.13 | 53.5 | 1/4" | M6 | 2" | 60.3 | 0.98 | 25 |
| 4" | DN100 | 3.31 | 83.2 | 1/2" | M12 | 4" | 114.3 | 1.18 | 30 |
| 6" | DN150 | 5.17 | 129.8 | 1/2" | M12 | 6" | 168.3 | 1.57 | 40 |
| 12" | DN300 | 6.14 | 154 | 3/4" | M20 | 12 | 323.9 | 1.97 | 50 |
