9mm German Type Non-Perforation Hose Clamp for Hydraulic Pipes

1 / 5

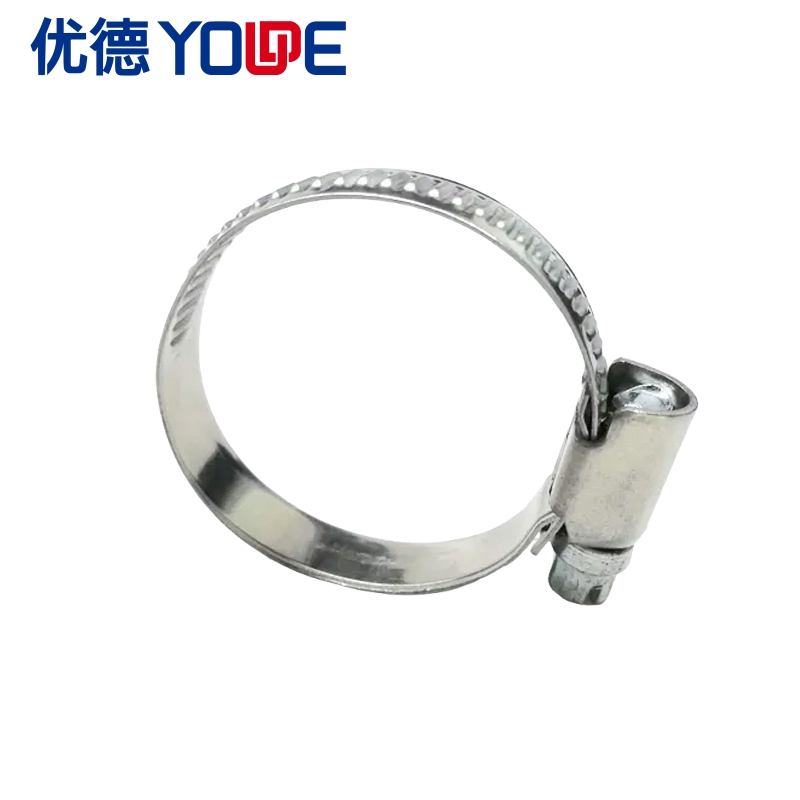

9mm German Type Non-Perforation Hose Clamp for Hydraulic Pipes

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

UDGT9W4

Product Name

American Type Hose Clamp

Type

Perforated Hose Clamp

Connection

Welding

Surface Treatment

Galvanized Sheet

Head Type

Round

Usage

Plumbing, Automotive, Irrigation, Household

Band Width

8mm, 12mm, 12.7mm

Thickness

0.6mm

Productivity

10000PCS/Day

Specification

8-12mm to bigger, customized

HS Code

73269090

📦

Packaging & Delivery

Package Size

38.00cm * 27.00cm * 21.00cm

Gross Weight

5.000kg

Package Type

Poly Bag or Box, Carton

★

Product Description

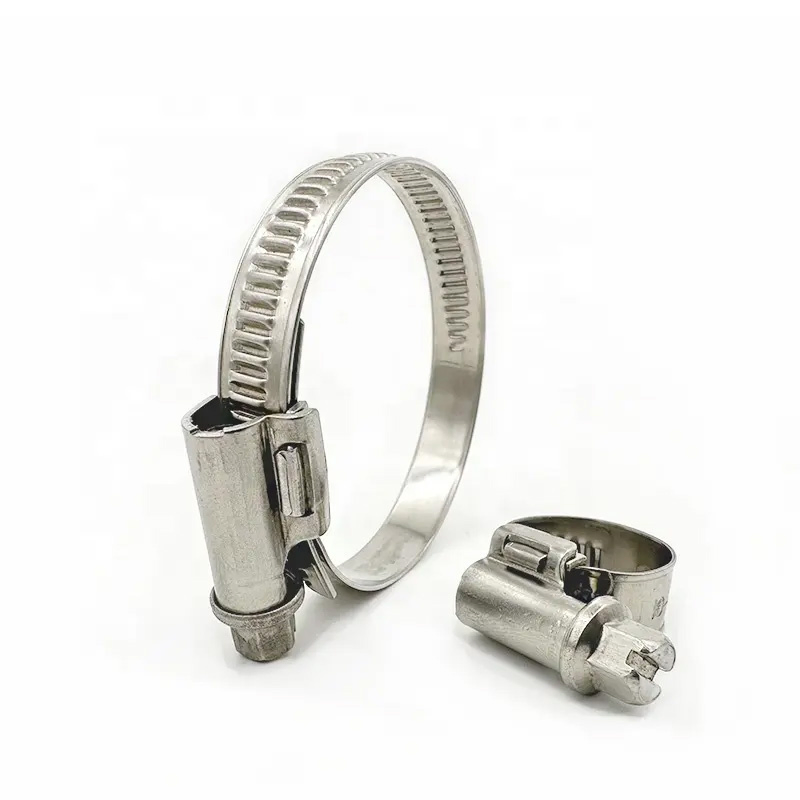

German Type Hose Clamp (Worm Drive Clamps) consist of a band, housing, and screw. These are widely used for connecting hoses in automobile pipelines, water pumps, fans, food machinery, chemical machinery, and other industries.

Surface treatment: Zinc plated, nickel plated
Color: Silver, yellow
Screw shape: Cross, slotted
Superior corrosion resistance
Punched perforated band for easy installation and secure tightening
Multi-clamping range and customizable stamped logo

Material	Band	Housing	Screw	Suggested Torque
W1	Zinc plated steel	Zinc plated steel	Zinc plated steel	3.0Nm
W2	AISI 201SS	AISI 201SS	Zinc plated steel	4.9Nm
W4	AISI 201SS/304SS	AISI 201SS/304SS	AISI 201SS/304SS	4.9Nm
W5	AISI 316SS	AISI 316SS	AISI 316SS	4.9Nm

📷

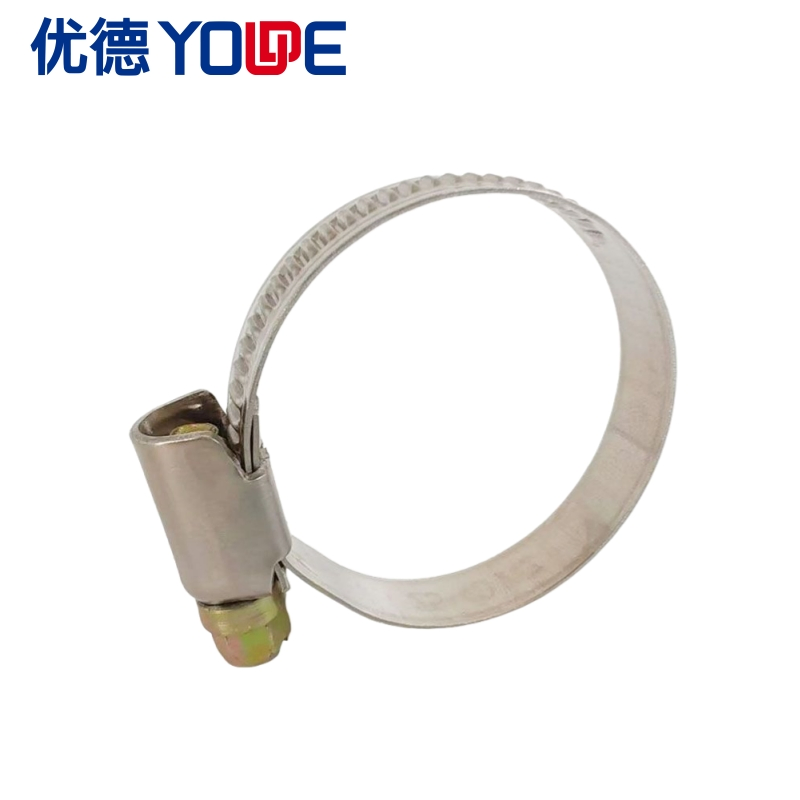

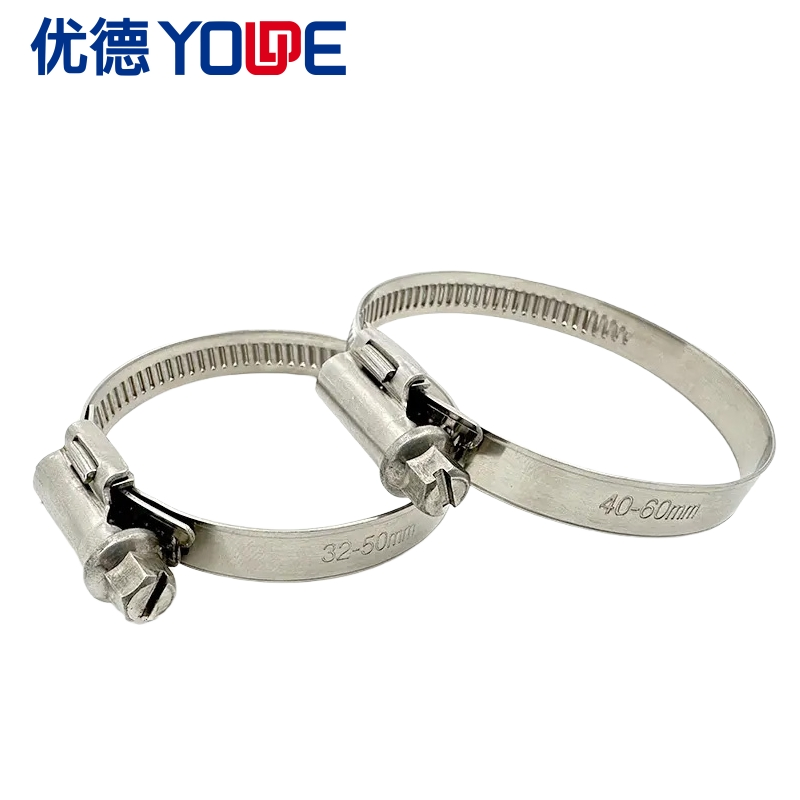

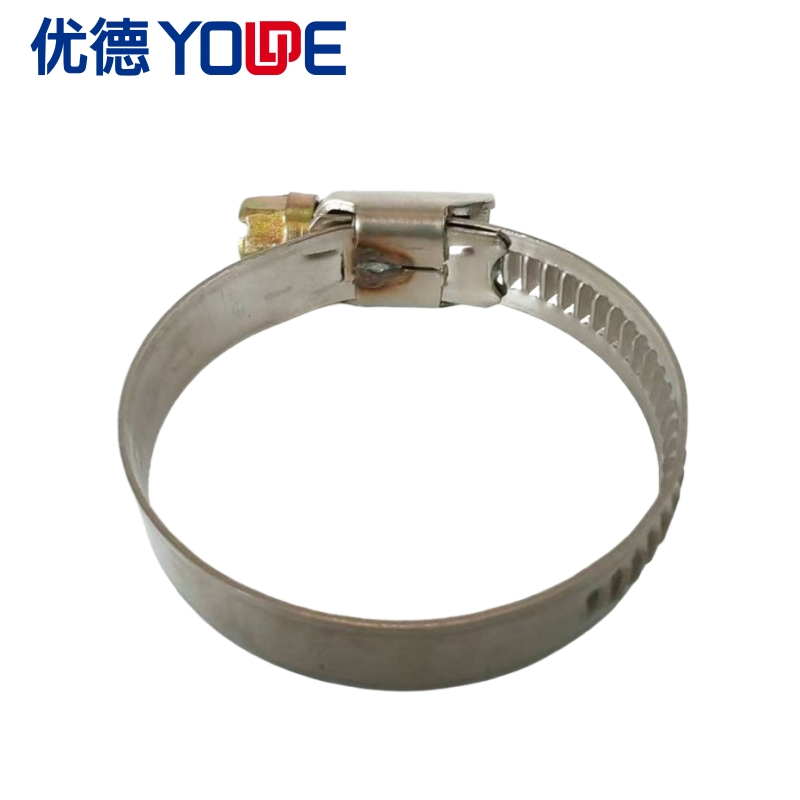

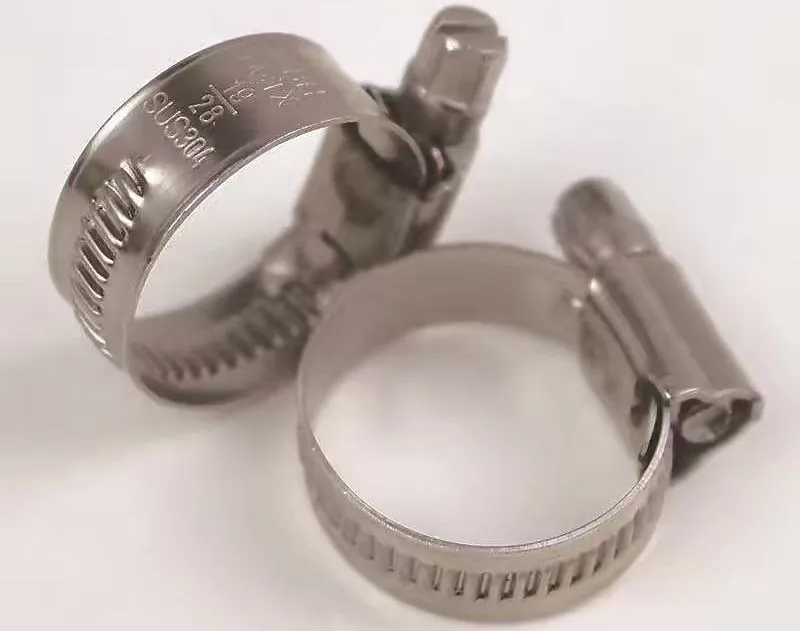

Detailed Photos

📋

Product Parameters

Size (mm)	Band Width (mm)	Pcs/Bag	Pcs/CTN	Suggested Torque
8-12	9	100	1000	4.0Nm
10-16	9	100	1000	4.0Nm
12-22	9	100	1000	4.0Nm
20-32	9	50	1000	4.9Nm
40-60	9	50	500	4.9Nm
100-120	9	10	200	4.9Nm

👍

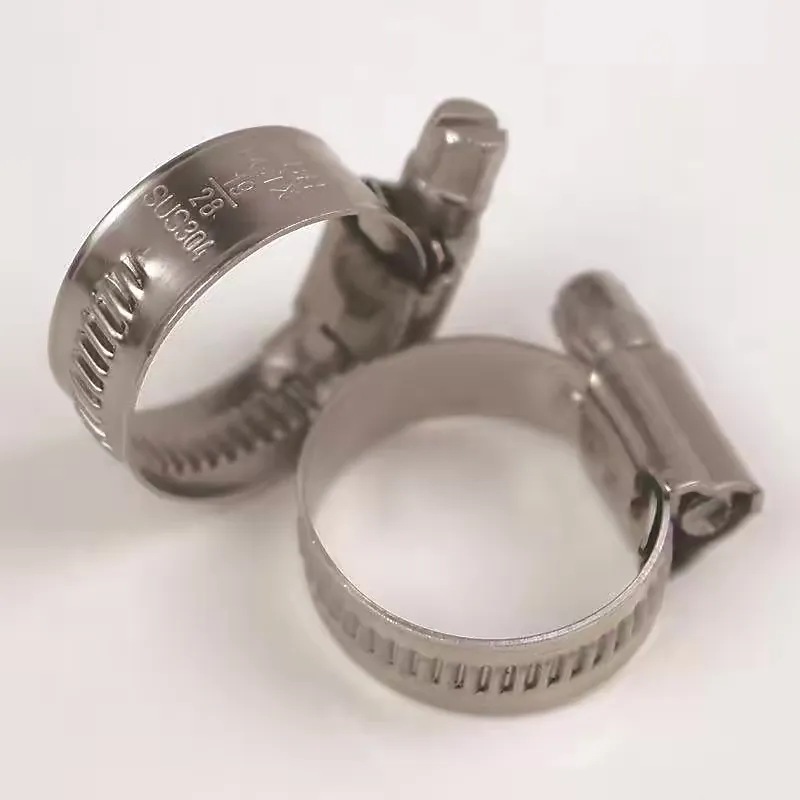

Why Choose Our Products?

Rigorous material testing: thickness, chemical composition, and hardness.
Burr-free finish for safe and easy installation.
High oxidation resistance in humid environments (304SS).
Wide range of sizes and full perforation capability.
Low no-load torque (<0.6Nm) with high load torque capability (>7Nm).

🛠

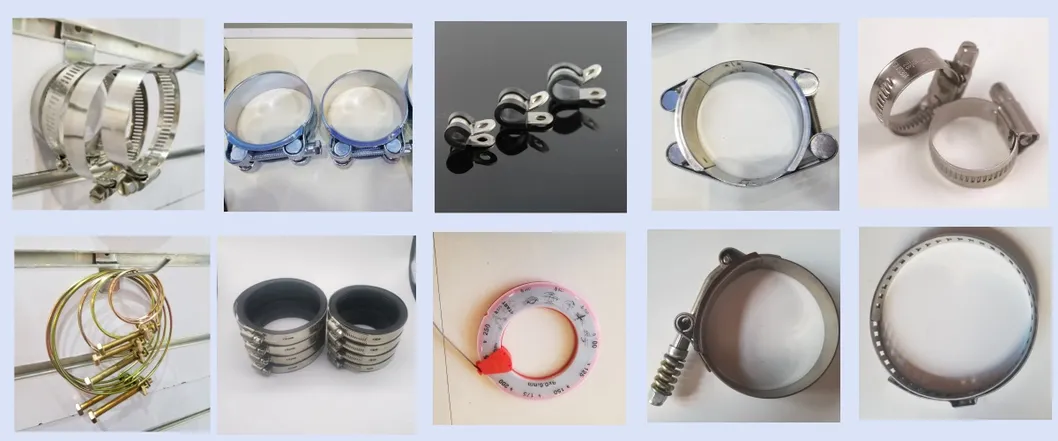

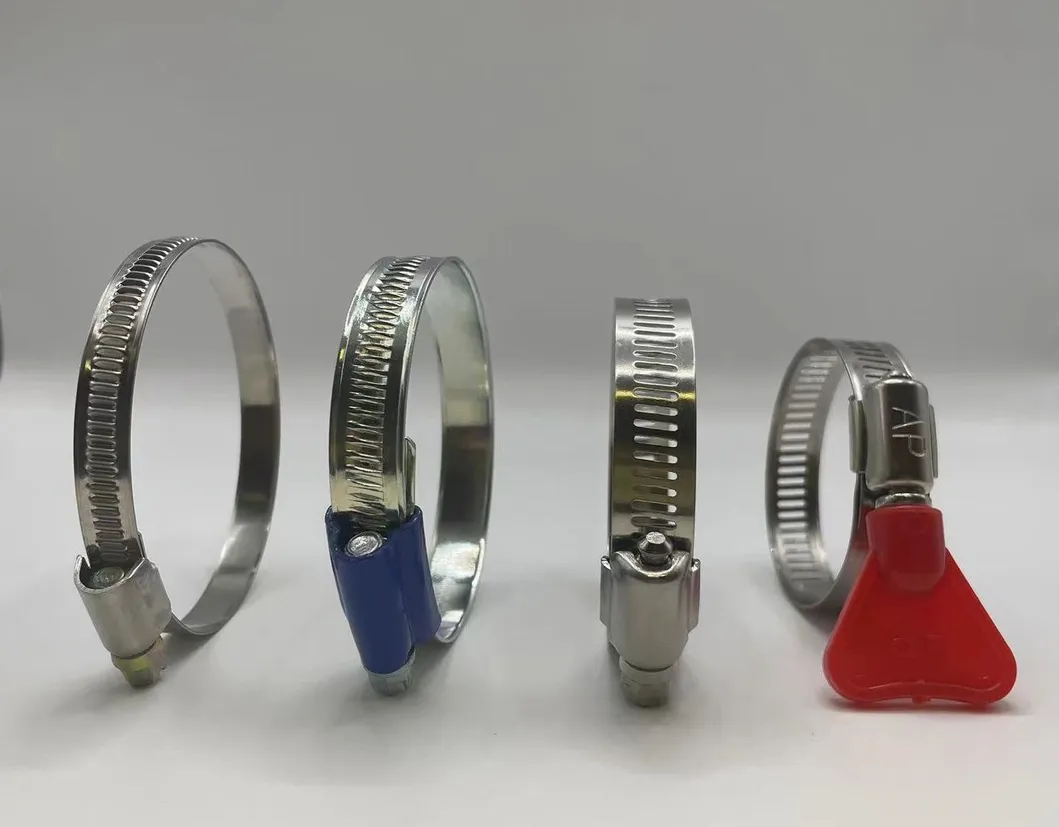

Main Product Range

🌐

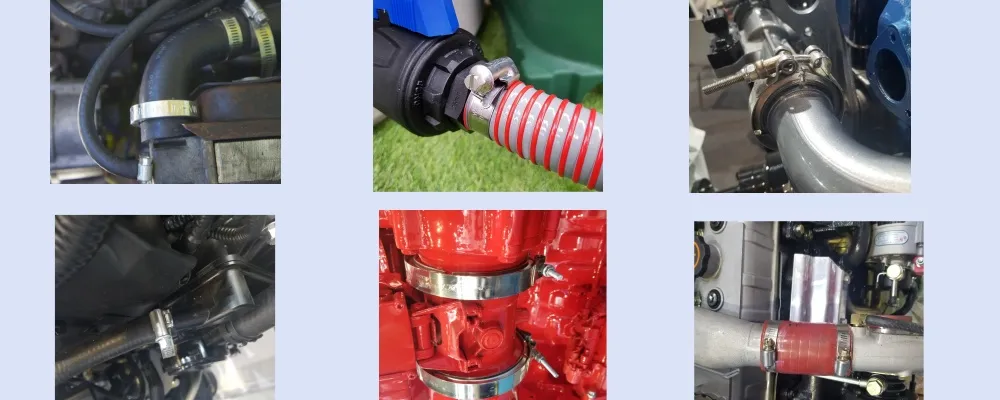

Application & Logistics

🏢

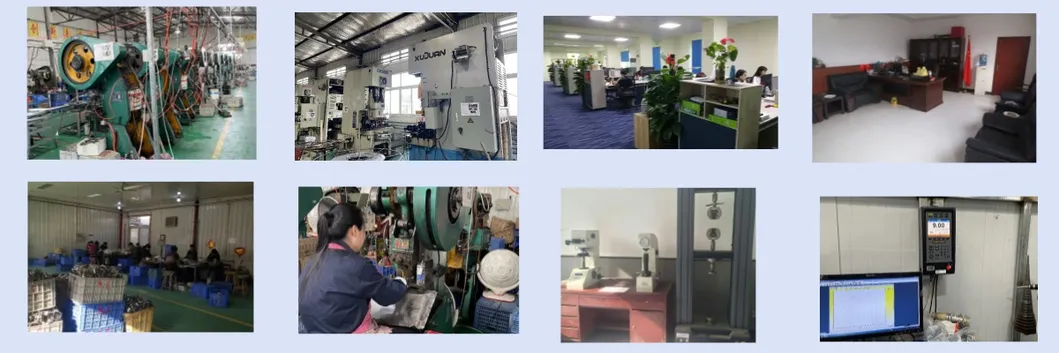

Professional Production

With over 15 years of design, production, and exporting experience in hose clamps and stamping metal parts, our engineering team understands unique technical needs. We offer cost-effective solutions through optimized production processes and centralized procurement without compromising quality.

Frequently Asked Questions

What materials are available for these hose clamps?

We offer W1 (Zinc plated steel), W2 (AISI 201SS band/housing), W4 (Full AISI 304SS), and W5 (Full AISI 316SS) to meet different corrosion resistance requirements.

What is the recommended installation torque?

The suggested torque varies by size and material, typically ranging from 3.0Nm for smaller W1 clamps to 4.9Nm for larger stainless steel models.

Can I customize the logo on the clamps?

Yes, the logo can be stamped on the housing or the band according to customer requests.

What are the primary applications for these clamps?

They are widely used in automotive pipelines, water pumps, irrigation systems, food machinery, and chemical industries.

Are your products tested for quality?

Yes, every batch of material undergoes testing for thickness, chemical composition, and hardness to ensure durability and safety.

Do you provide technical support for custom sizes?

Absolutely. We provide one-stop services from design and technical support to final sales services for non-standard requirements.
